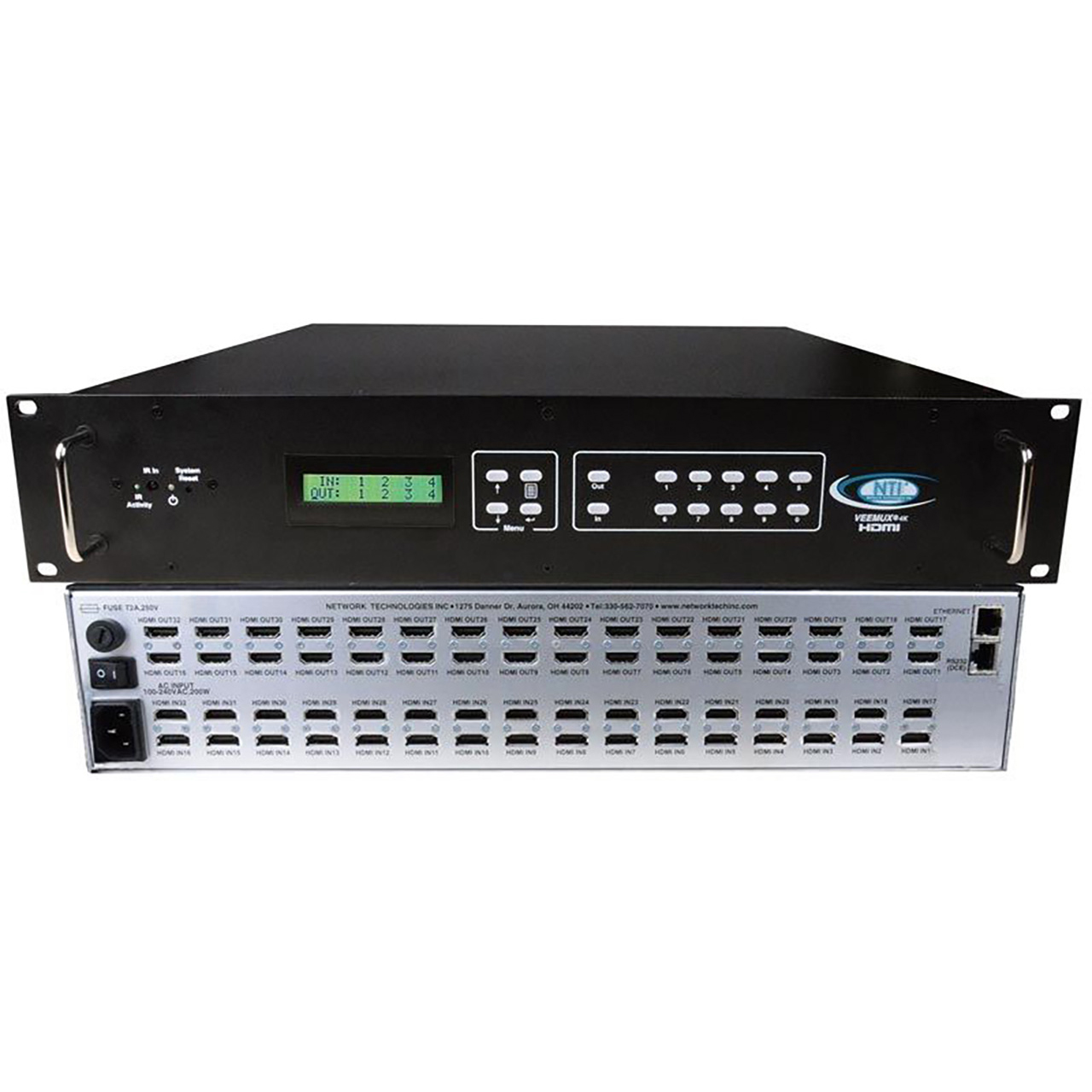

NTI SM-32X32-HD4K 32x32 Channel 4K HDMI Video Matrix Switch

SM-32X32-HD4K - Overview

• Features:

  • Configure and control the switch through front panel buttons, Ethernet, IR remote control, or RS232.
  • Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/30/60Hz YUV 4:4:4), HDTV resolutions to 1080p, and computer resolutions to 1920x1200 (WUXGA).
  • Each input can be independently connected to any or all outputs.
  • HDCP 2.2 and 1.4 compliant.
  • HDMI features supported:
  • HDMI 2.0
  • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM audio passthrough
  • YUV 4:4:4, 4:2:2, and 4:2:0
  • 12-bit Deep Color
  • HDR
  • 3D
  • Bandwidth up to 600 Mhz (18 Gbps)
  • EDID learning for the support of any HDMI display device.
  • Selectable built-in EDID table.
  • Compac 2RU design

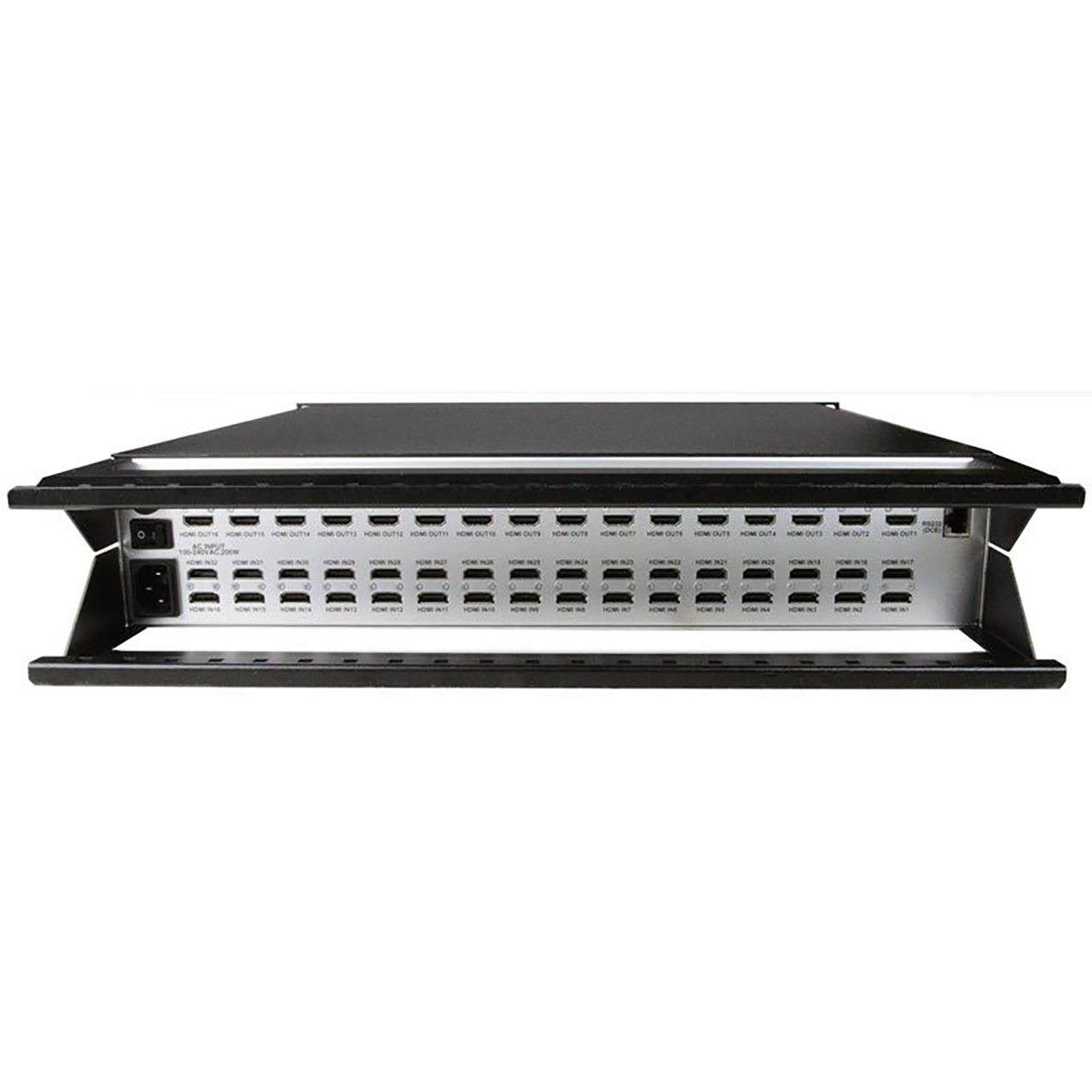

  • Cable management tray included.


• Specifications:

  • 32 female HDMI input connectors.

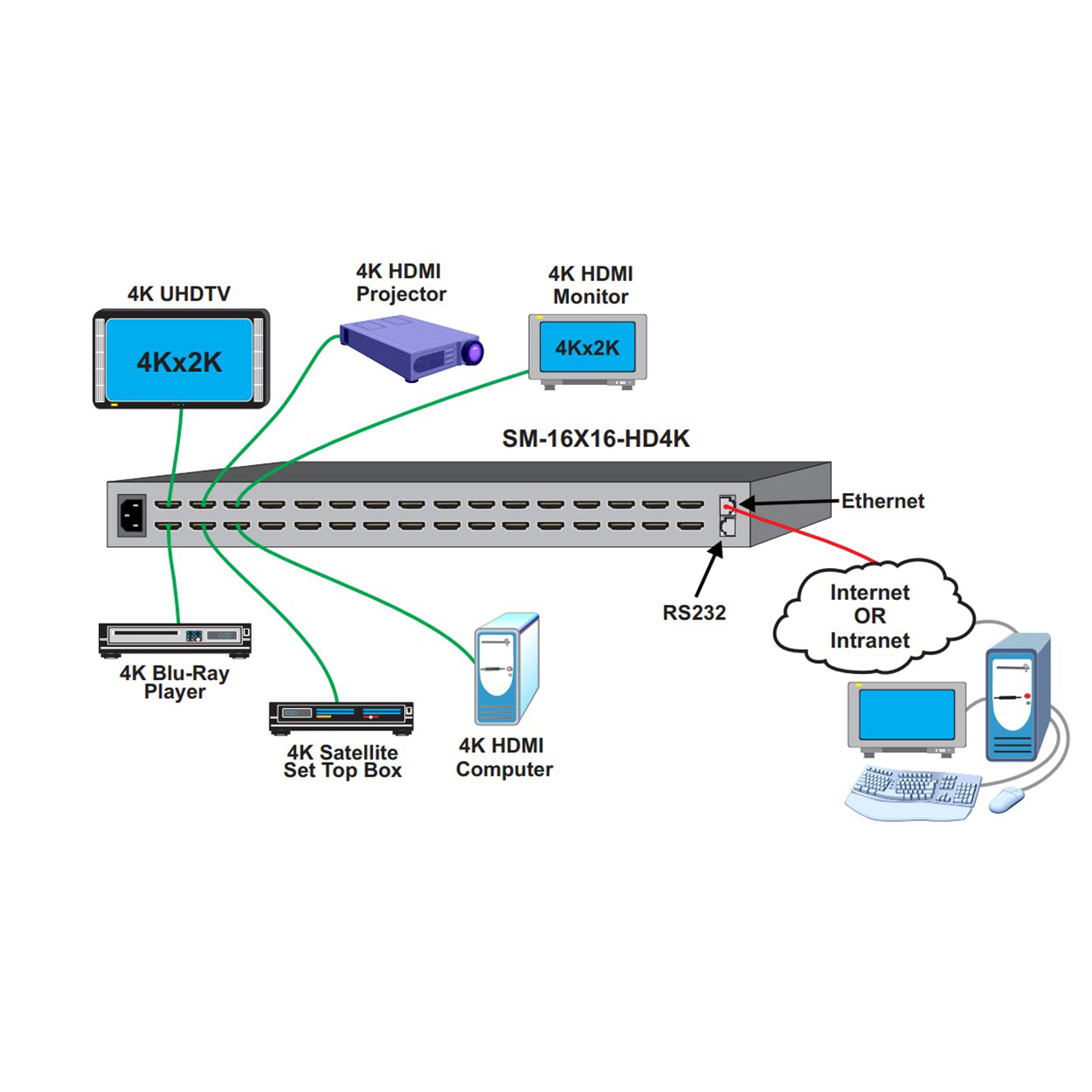

  • Compatible with computers and UHD video sources (satellite receivers, Blu-Ray players, etc) with HDMI video.
  • Supports HDCP 2.2/1.4
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/202, Solaris, Linux, FreeBSD, and MAC OS 9/10/11/12/13.
  • 32 female HDMI output connectors.
  • Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/30/60Hz RGB/YUV 4:4:4), HDTV resolutions to 1080p, and computer resolutions to 1920x1200 (WUXGA).
  • Supports HDCP 2.2/1.4
  • Max data rate: 18Gbps
  • HTTP, HTTPS
  • TCP/IP, DHCP, UDP, ARP, TLS v1.2
  • IPV4
  • Power Input: 100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • Power consumption: 150W max


• Item Includes:

  • (1) NTI SM-32X32-HD4K HDMI 4K Video Matrix Switch
  • (1) US Power Cord
  • (1) IRT-UNV Remote Control
  • (1) CT6182 DB9 Female-to-RJ45 Female adapter
  • (1) CB7339- 5 foot CAT5e patch cable
  • (4 ea) Rack mounting hardware - #10-32 x 3/4" pan head screws and #10-32 cage nuts
  • (66) pcs zip ties
  • (1) 2-Year Standard Warranty
