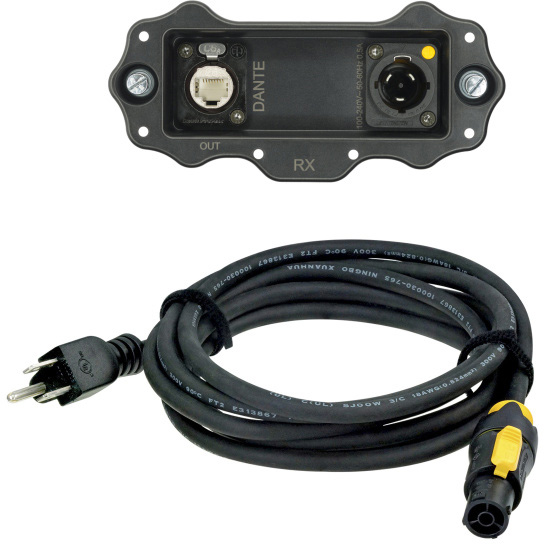

Neutrik NXP-RM-DANTE XIRIUM PRO Digital Receiver DANTE Output Module w/ NKXPF-5-15-3 powerCON TRUE1 Power Cable

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Neutrik NXP-RM-DANTE XIRIUM PRO Digital Receiver DANTE Output Module w/ NKXPF-5-15-3 powerCON TRUE1 Power Cable

    Manufacturer: Neutrik USA Inc

    Item #: NXP-RM-DANTA   •   MFG #: NXP-RM-DANTA



    List Price:$967.68
    Our Price:$691.20

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Whether the signal type is analog, digital (AES/EBU) or Dante, XIRIUM PRO NXP-RM-DANTA offers modules to accept any of them. Signal types may also be converted from one type to another, simply by selecting the appropriate module. Need to transmit an analog signal and plug into a digital input? No problem. Select an analog input module for the transmitter, and the AES digital output module for the receiver. In fact, every receiver in a system can use a different output module, allowing for signal conversion to the type used by your device.


      • Specifications

        • General
        • Radio frequency carrier range: IEEE 802.11a, UNII-1 band from 5200 MHz to 5250 MHz (channels 40-48) and UNII-3 band from 5725 MHz to 5825 MHz (channels 149-165), license-free
        • Data protocol: Proprietary (DiWA technology)
        • Transmit power: Conducted 26 dBm / 32 dBm (with 6 dBi antenna) / 35 dBm (with 9 dBi antenna), FCC compliant
        • Range: Up to 1000 m point to point (LOS), longer range depending on obstacles, reflexions, interferences, XROC mode

          Audio Performance (Analog to Analog per Wireless Link)
        • THD + Noise (TX Gain = min.): < 0.01 % @ 1 kHz, 4 dBu / < 0.05 % @ 20 Hz - 10 kHz, 4 dBu
        • Frequency response: +0.5 dB / -1.5 dB @ 20 Hz - 20 kHz ref. 1 kHz
        • Dynamic range: > 105 dB @ 1 kHz, A-weighted
        • Crosstalk: < -80 dB @ 20 kHz
        • Number of audio channels @ 24 mbps: 2
        • Number of audio channels @ 6 mbps: 1 (XROC mode)
        • Number of receivers: Unlimited number of RX clients
        • Converter resolution (ADC & DAC): 24 bit
        • Sampling rate: 48 kHz
        • Latency (Delay): 3.6 msec (analog to analog)
        • Transmission method: Compression-free, no reduction of converted data
        • Operating temperature: 32°F to +122°F / 0°C to +50°C
        • Storage temperature: -4° F to +176° F / -20 °C to +80 °C

          Additional Digital Audio Interfaces
        • AES/EBU: 24 bit / 48 kHz according to AES3-2003
        • Dante AoE (Audio over Ethernet): proprietary protocol by Audinate®

          RX Specific Characteristics
        • Antenna 5-6GHz - Audio Transmission: Omni-directional, 9dBi, 25° Elevation and 360° Azimuth, N-connector male (direct mount)
        • Antenna 2.4GHz - Control Data Transm.: 1/2 wave dipole with SMA female connectors
        • Number of audio channels: 2
