OBSBOT OPB-2402-C Talent All-in-One Multi-Cam Live Streaming Studio Production Monitor for Webcams and Cameras

ITEM #: OBS-OPB-2402-C MFG #: OBSBOT-OPB-2402-C

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,099.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    OBSBOT-OPB-2402-C - Overview

    All-In-One Live Streaming Hub

    The OBSBOT Talent is a truly boundary-breaking system that offers extensive connectivity for OBSBOT Camera and Webcam products, leading you to exploit ultra Live Streaming and Production capabilities. Take advantage of various connection methods and built-in production features. Everything is ready for your live streaming.

    OBSBOT Talent, a perfect combination of encoder, switcher, recorder, and monitor, takes an important position of the OBSBOT ecosystem to supervise, manage, record, and edit the video in real time and then put the video signal to live streaming online.

    Talent has one of the most seamless connection with OBSBOT products, with integrated control panel, you can directly control the PTZ gimbal, AI Auto Tracking, Preset Positions and more exclusive features to make your livestream scene more efficient, more professional and with more possibilities.

    Smart Control Panel in Talent
    On Talent, an exclusively designed control panel is available to be called out for PTZ Control, AI Auto Tracking settings, Preset Positions, and Focus, which offers a more helpful way for controlling OBSBOT PTZ products.

    Start Multi-Cam Recording Without a Hitch
    With NDI connection, OBSBOT Talent makes it possible to record with up to three Tail Airs at the same time. Say goodbye to recording with each device one by one. Take your time to create more excitement.

    One Click to Start Multiple Device Shooting
    By using the Tail Air Smart Remote Controller, you can connect with Tail Air and the Obsbot Live App. Now, we are empowered with seamless compatibility with Talent, bringing you a next-level, more immersive controlling experience.

    Ultra-Versatile Connection Compatibility

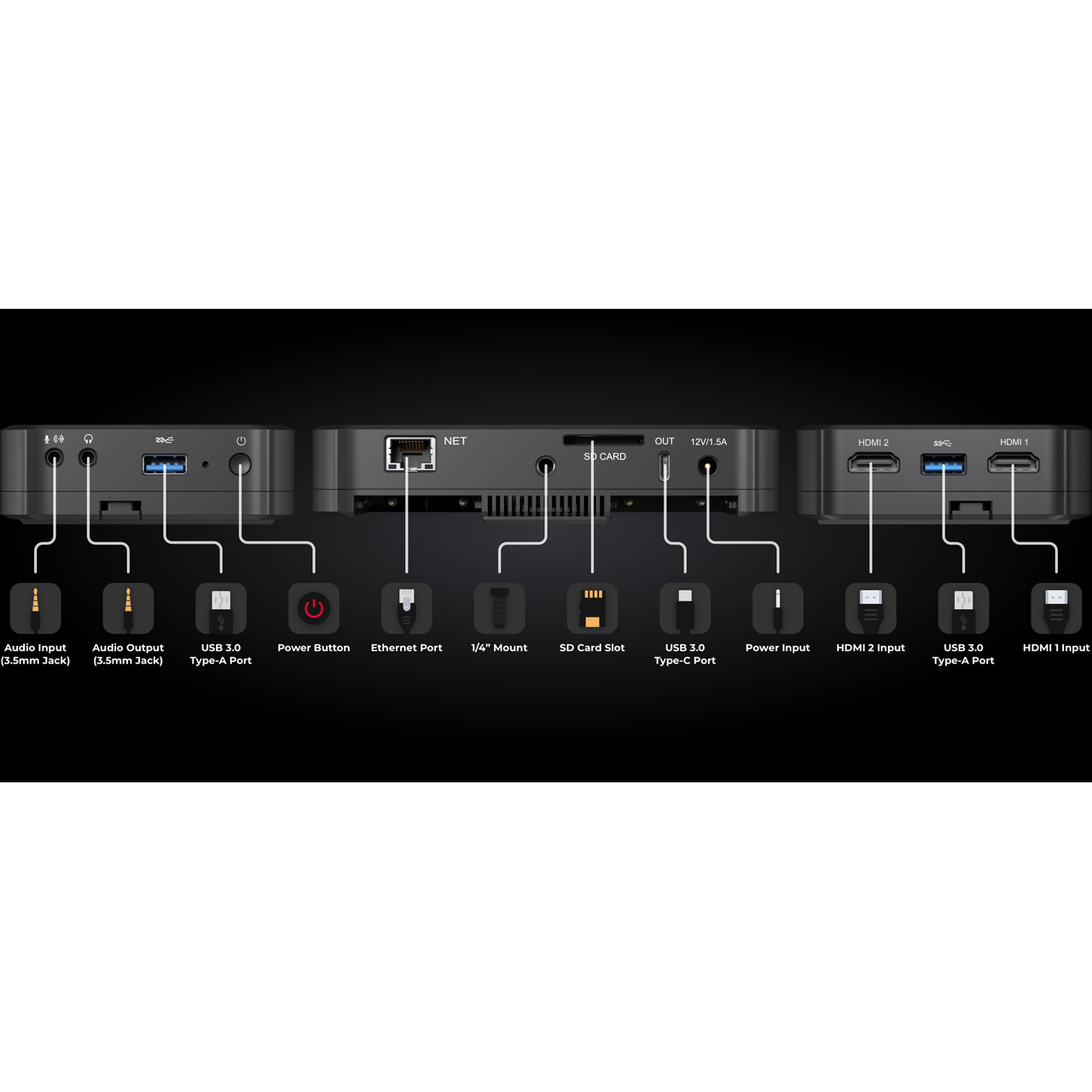

    To ensure maximum compatibility and diversity, Talent features multiple interfaces for video capturing, including HDMI, USB-A, SD card, and even an Ethernet port. It also has two 3.5mm audio slots for audio input and monitoring. Additionally, a cellular connection can be achieved with a dongle input.

    To Boundless Possibilities

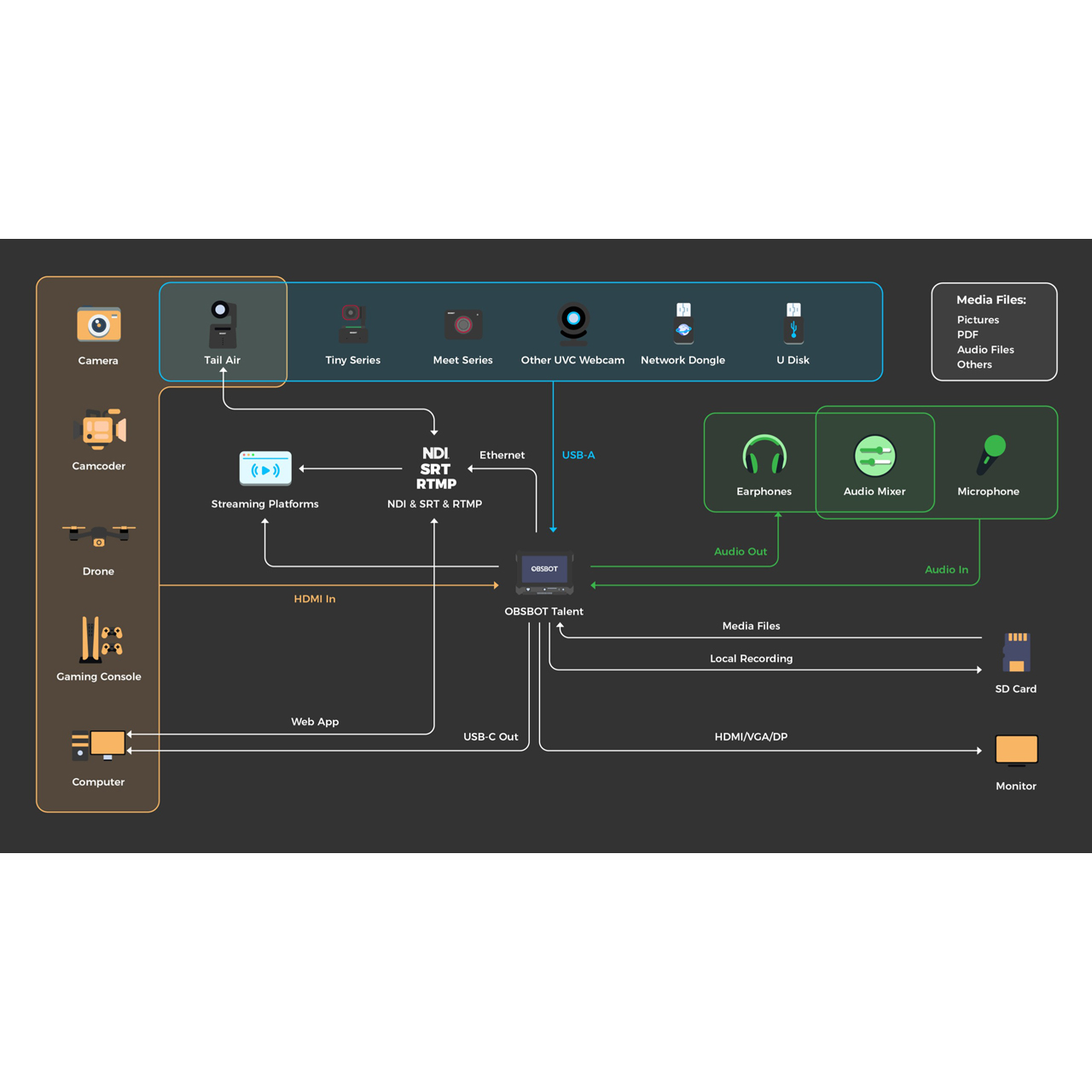

    Besides versatile input, Talent supports up to 7 video inputs, offering powerful connection capabilities to manage video signals. It can output them via USB port, Wi-Fi, 4G LTE, or Ethernet to various live streaming destinations like YouTube, Twitch, NDI, SRT, and more.

    Level Up the Control with Collaboration
    In live events like worship services, educational events, and exhibitions that require great performance, Talent's compatibility allows multiple controls simultaneously using another Talent, a computer, remote controller, or even a phone. A team can separately switch, control, manage, and mix audio to maintain a more stable workflow. This can even be done from different locations around the world via an Ethernet connection.

    Relax, the Battery is Hot-Swappable

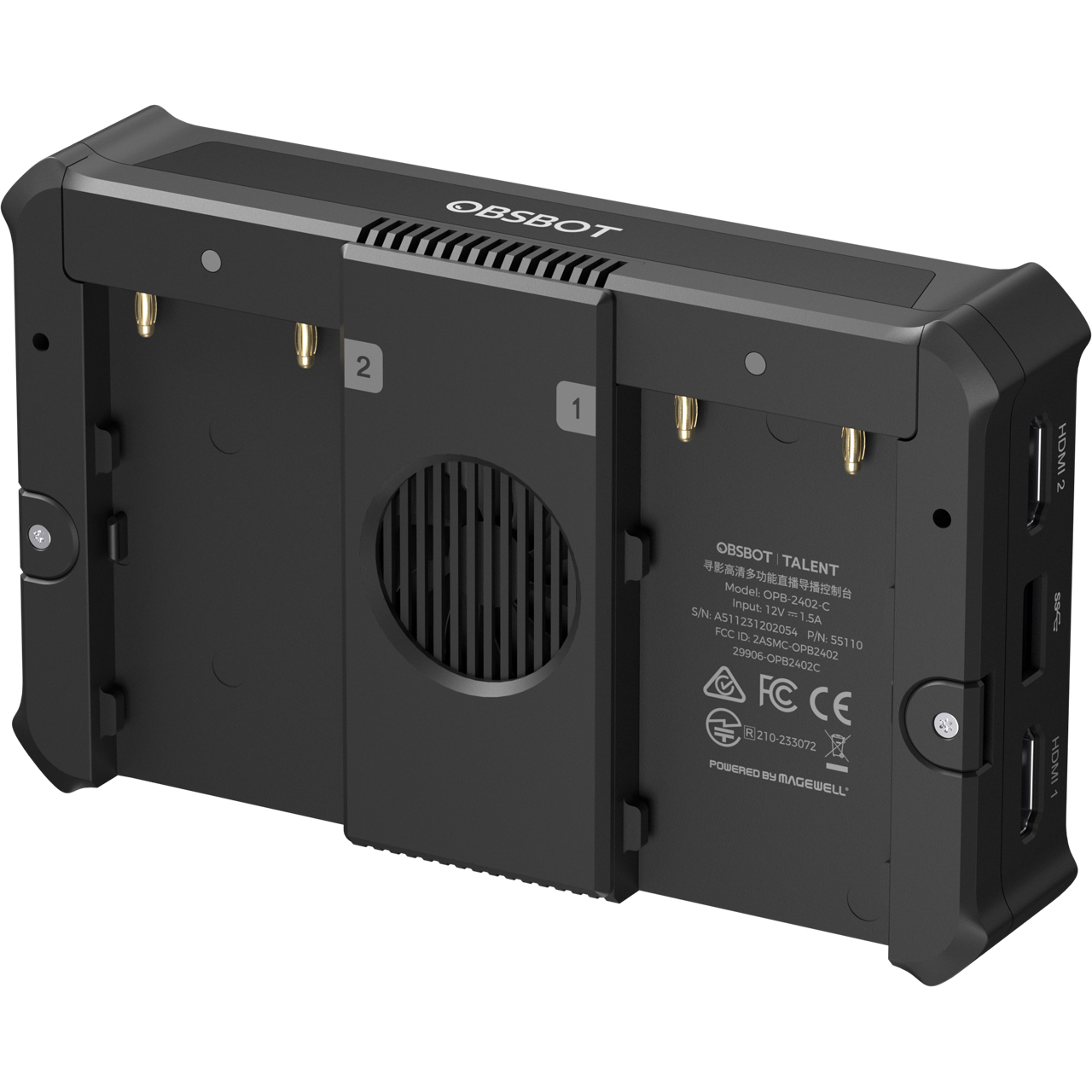

    With a two-battery supply design, Talent is fully compatible with the NPF battery and is completely hot-swappable. When one battery runs out of power, you can seamlessly add or replace it with a new, fully-charged battery without interruption, ensuring your live stream always has power.

    • Specifications:

      • Dimensions: 5.80" x 3.54" x 1.12" (147.2mm x 90mm x 28.5mm)
      • Weight:
        - 14.21oz (402.9g)
        - 1.09lbs (495.2g)(w/o stand)
      • Screen Size: 5.44"
      • Screen Type: AMOLED
      • Aspect Ratio: 16:9
      • Resolution: 1920x1080
      • Brightness: 350 nits
      • Color Depth: 8-bit
      • Contrast Ratio: 6000:1
      • Color Gamut: 105% NTSC
      • Refresh Rate: 60Hz
      • Viewing Direction: All
      • PPI: 405
      • Touchscreen: Capacitive
      • Screen Coating: Anti-fingerprint coating
      • Local Storage: 64GB
      • SD Card (Not Included) Format Compatibility: FAT32 (< 128GB), NTFS, exFAT
      • AC Power Input: 12V/1.5A
      • Maximum Power Consumption: 15W
      • Hot-Swappable Battery Pack: 2x DC 7.4V (NP-F battery packs, not included)
      • Temperature:
        - Operating: 14°F - 122°F (-10°C - 50°C)
        - Storage: -4°F - 158°F (-20°C - 70°C)
      • Relative Humidity: 5% - 90% non-condensing

        Video Input
      • HDMI Port: 2x HDMI 2.0 Type-A port
      • Typical Framerate:
        - @ 4096x2160p/3840x2160p: 23.98/24/25/29.97/30/59.94/60
        - @ 1920x1080p: 23.98/24/25/29.97/30/50/59.94/60
        - @ 1920x1080i: 25/29.97/30
        - @ 1280x720p: 23.98/24/25/29.97/30/50/59.94/60
        - @ 720x576p: 50/100
        - @ 720x576i: 25/50
        - @ 720x480p: 59.94/60
        - @ 720x480i: 29.97/30
      • Color Depth: 8/10/12-bit
      • Color Sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
      • USB:
        - Port: 2x USB 3.0 Type-A port, 1x USB 3.0 Type-C port
        - Single USB-A Input: Up to 1920x1080p, 60fps
        - Single USB-C Input: Up to 1920x1080p, 60fps
        - Dual USB-A Input: Up to 1920x1080p, 50fps + 1920x1080p, 30fps
        - One USB-A Input + One USB-C Input: Up to 1920x1080p, 60fps + 1920x1080p, 60fps
        - Format: YUYV, MJPG, NV12
      • SRT Stream, RTMP Pull, RTMP Push, NDI® Stream:
        - Codec: H.264, H.265
        - Resolution/Frame Rate: Up to 1080p, 60fps
      • Video Format: MOV/MP4
      • Picture Format: JPEG/PNG/BMP

        Audio Input
      • Mic/Line In: 1x 3.5mm jack, 2-ch., 48 KHz, 16-bit
      • Input from HDMI Port: 2-ch., 48 KHz, 16-bit
      • Input from USB Port: 2-ch. (only microphone supported)
      • Input from Bluetooth Device:
        - 2-ch., 48 KHz, 16-bit
        - From SRT stream
        - From RTMP stream
        - From NDI stream
        - Audio embedded in video files
      • Background Music (BGM): MP3, M4A, WAV files

        Video Output
      • Streaming and Recording:
        - Codec: H.264, H.265
        - Resolution: 1080p, 720p, 540p, 360p (only for NDI)
        - Frame Rate: 60/59.94/50/30/29.97/25/24/23.98/15 fps (Encoding options change along with the frame rate of the show.)
        - NDI HX3 Bitrate: Up to 62.0Mbps, down to 1.5Mbps
        - Other Bitrates: Up to 30.0Mbps, down to 256kpbs
        - Key Frame Interval: Customizable
        - Profile: High profile, Main profile, Baseline profile
        - Bitrate Mode: VBR, CBR
      • USB-C:
        - Port: 1x USB 3.0 Type-C port
        - Output Mode: DP-OUT, UVC/UAC
        - Resolution: 1920x1080
        - Frame Rate: 60fps, 50fps
        - Sampling Format: RGB 4:4:4

        Audio Output
      • Streaming and Recording: 2-ch., 16-bit, 48 KHz, AAC, 64kbps/96kbps/128kbps
      • Headphone Output: 1x 3.5mm jack, 2-ch., 48 KHz, 16-bit
      • Output via Bluetooth Device: 2-ch., 48 KHz, 16-bit
      • Output via USB-C Port: 2-ch., 48 KHz, 16-bit
      • Output via USB-A Port: 2-ch., 48 KHz, 16-bit/24-bit/32-bit

        Supported Networks
      • Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
      • WiFi: 2.4G/5G, Station and Hotspot modes supported
      • Cellular: USB modem supported

    • Item Includes:

      • 1x OBSBOT Talent
      • 1x Power Adapter
      • 2x Mini Stand
      • 1x Sun Hood
      • 2x Thumb Screws

    • Warranty:

      • Main Unit: 2 Year Warranty
      • Screen and Accessories: 1 Year Warranty

    • GTIN:

      0768490145716
