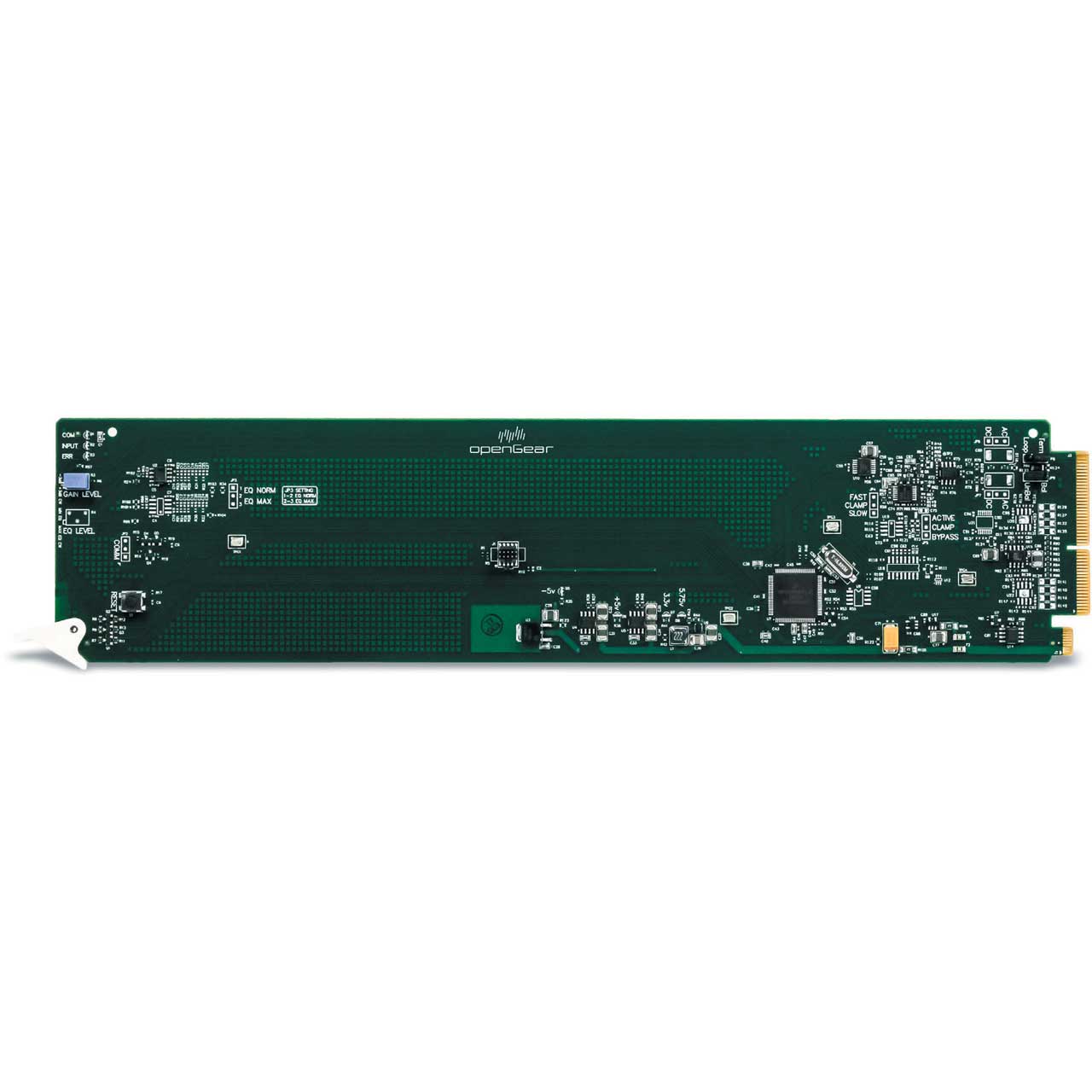

Multidyne OG-5310-ADA-1X8 1x8 Analog Video Distribution Amplifier

OG-5310-ADA-1X8 - Overview

• Features:

  • Multi-mode input provides differential or single-ended input and hi-Z looping or card-terminated operation
  • Remote control monitoring via DashBoard™ software


• Specifications:

  • Electrical
  • Power: 2 Watts

    Analog Video Input
  • Number of Inputs: 1
  • Impedance: User selectable as hi-Z looping or card terminated 75Ω
  • Level: Vp-p, nominal
  • Return Loss: 46 dB @ 3.58 MHz
  • Input Modes: User selectable as differential/single-ended

    Analog Video Output
  • Number of DA outputs: Up to (8) Impedance: 75Ω
  • Level: 1 Vp-p, nominal Looping Output: (1)

    Performance
  • Frequency Response: >0.05 dB @ 3.58 MHz Differential
  • Gain: >0.15% @ 3.58 MHz Differential Phase: >0.15° @ 3.58 MHz
  • S/N: >60 dB; 5 MHz BW
