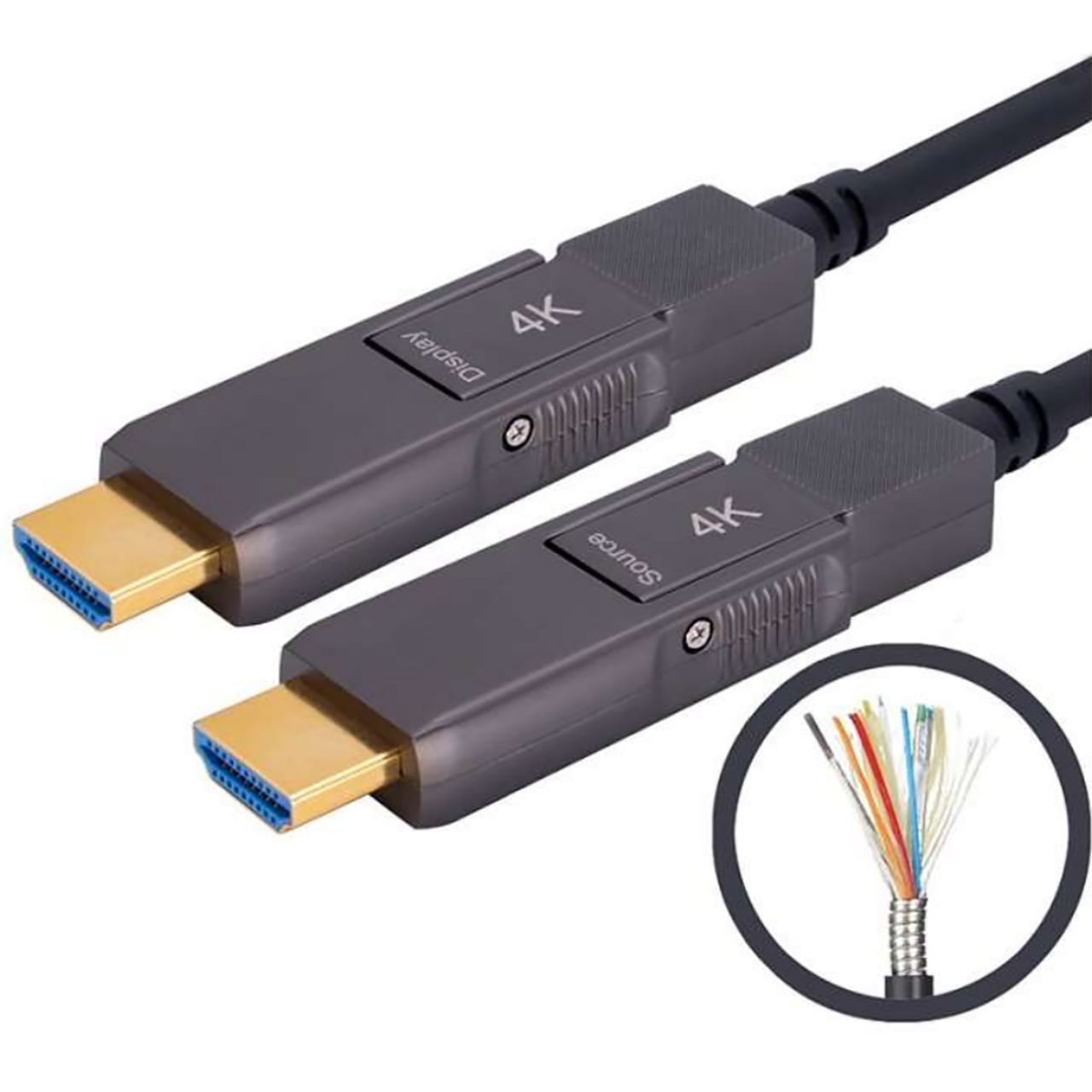

OMC Tech AOCH-4020 Armored Detachable 4K60 HDMI 2.0 AOC Cable - 65.6 Foot

AOCH-4020 - Overview

Ultra-Tough. Ultra-Long. Ultra-4KHD.

• Features:

  • Comply with HDMI 2.0 standard: EDID, CEC, HDCP2.2, HDR, HEC, ARC, etc
  • Support 3840 x 2160 (4K) @ 60Hz 4:4:4 resolutions with bandwidth up to 18Gbps
  • Supports up to eight PCM channels, DTS-HD Master & Dolby Digital True HD surround sound audio
  • No loss of signal - delivering crystal clear digital images instantly;
  • Zero Latency - No compression at all, only direct conversion of electronic to fiber signal.
  • Cable OD: 5.8mm, 4 fiber (High speed) + 7 copper wire (Low speed and Power)
  • OM3 fiber technology greatly reduces EMI/RFI emissions
  • Triple-shielding further protects against interference for optimal signal quality
  • Has Source & Display clearly printed on the connector for easy identification
  • Has high pulling strength and compression load
  • Plug and Play, no external power required
  • Pluggable gender for easy installation with 2x HDMI D/A Adapters
  • 200CU stainless steel construction to provide "Armored" reliability


• Specifications:

  • HDCP & DDC: HDCP 2.2 Fully Support bi-directional EDID and HDCP communication
  • Video Bandwidth: 6Gbps x 3 Channel (Max) + Clock
  • Supported Resolution & Distance:
    - PC: WUXGA 1920x1200
    - HDTV: 480p, 720p, 1080i and 1080p deep color, 3D, 4K (60P)
  • O/E Converter: 4 channel 850nm VCSEL array/4 channel GaAs PD array
  • Connector Type: HDMI Type D
  • Cable Type: Armored Hybrid Type with OM3 Fiber and Copper Wire
  • Cable Length: 65.6ft (20m)
  • Cable Outer Diameter: 5.8mm
  • Jacket Outer Material: TPU
  • Cable Weight: 2.4lbs (1.1kg)
  • Cable Color: Black
  • Differential Input: 100Ω (typical)
  • Power Consumption: 250mW (max)
  • Power Supply: Non external power required


• Item Includes:

  • 1x Armored Detachable 4K60 HDMI 2.0 AOC Cable - 65.6 Foot


• Warranty:

  • 1 Year Limited Warranty
