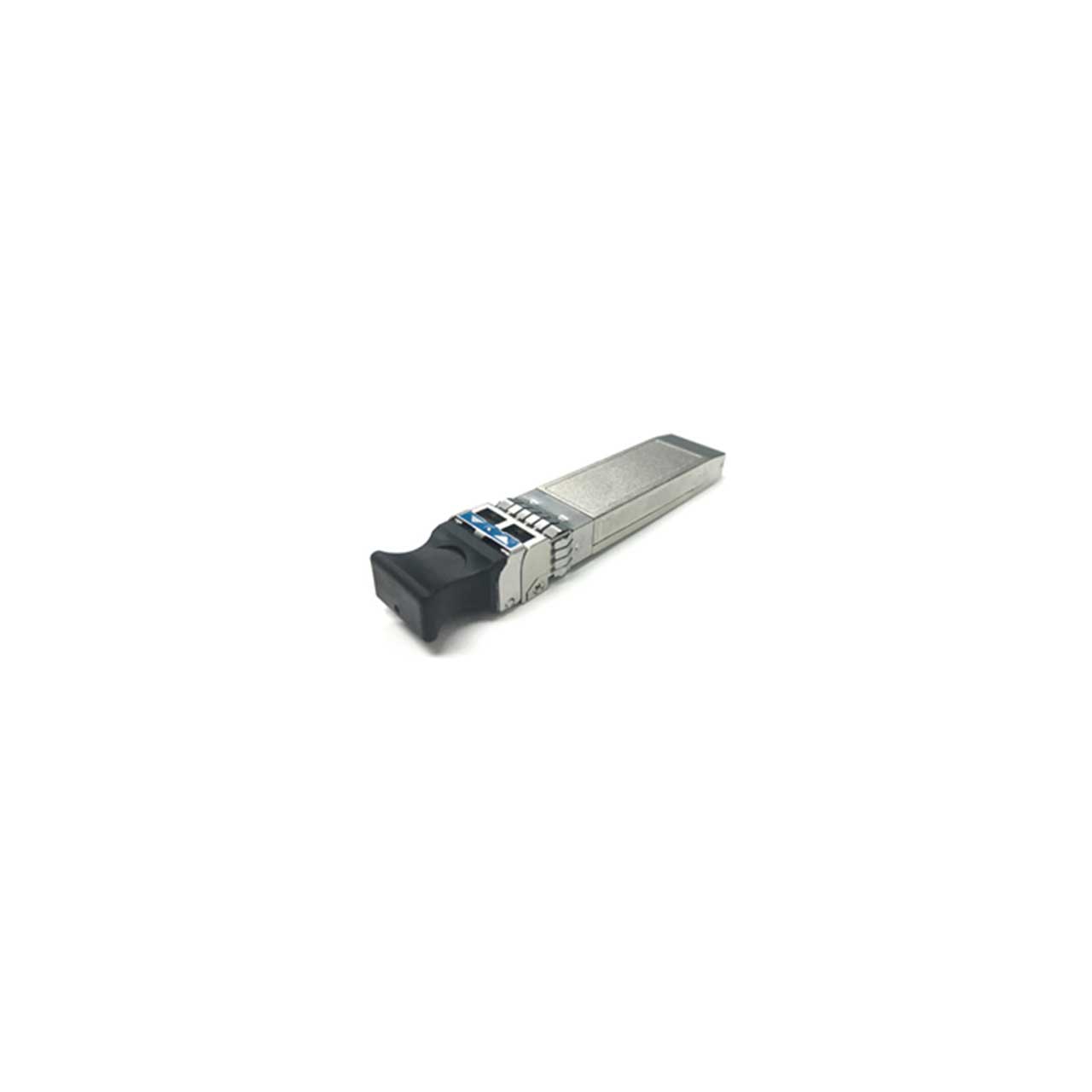

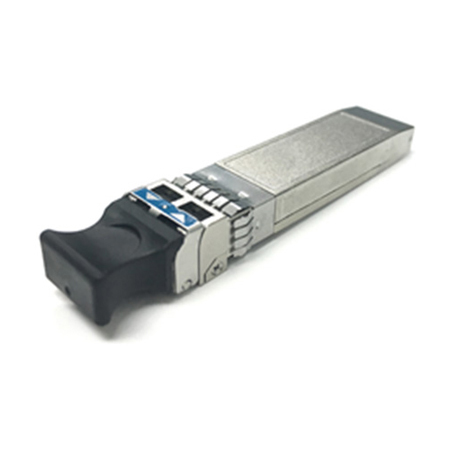

OMC Tech PMK-S1-4103K-I SFP28 25Gbps Transceiver - Duplex LC Single-Mode Fiber Module - 1310nm

ITEM #: OMC-PMK-S14103KI MFG #: PMK-S1-4103K-I

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OMC-PMK-S14103KI

PMK-S1-4103K-I - Overview

The OMC Tech PMK-S1-4103K-I is a 1310nm DFB based SFP28 transceiver. It is designed to transmit and receive optical data over 9/125µm single-mode optical fiber (SMF) and support up to 10km transmission. The module has a duplex LC optical interface and all mechanical characteristics are compliant with SFF-8431 and SFF-8432.

  • Features:

    • 25Gbps serial optical interface
    • Single 3.3V power supply
    • Duplex LC connector, AC coupled
    • 1310nm wavelength DFB transmitter and PIN Photo-Detector receiver
    • Maximum link length of 10km via Single Mode Fiber
    • Bail de-latch for easy removal from cage
    • Power consumption <1W
    • RoHS Compliant
    • With Digital Diagnostic Monitor Interface


  • Specifications:

    • Center Wavelength: 1290 to 1330nm
    • Optical Modulation Amplitude (OMA): -6.5 to 2.5dBm
    • Output Optical Power: -8.5 to 3dBm
    • Extinction Ratio: 3.5dB
    • Side-Mode Suppression Ratio: 30dB
    • Transmitter and Dispersion Penalty: 3dB
    • Average Launch Power of OFF: -30dBm
    • Optical Return Loss Tolerance: 20dB
    • Transmitter Reflectance: -20dBm
    • Operation Temperature: 32° to 158°F (0° to 70°C)
