Hall Technologies HBX-R HDMI Video Extender with Ultra-HD AV IR RS232 and Ethernet (Receiver)


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    HBX-R - Overview

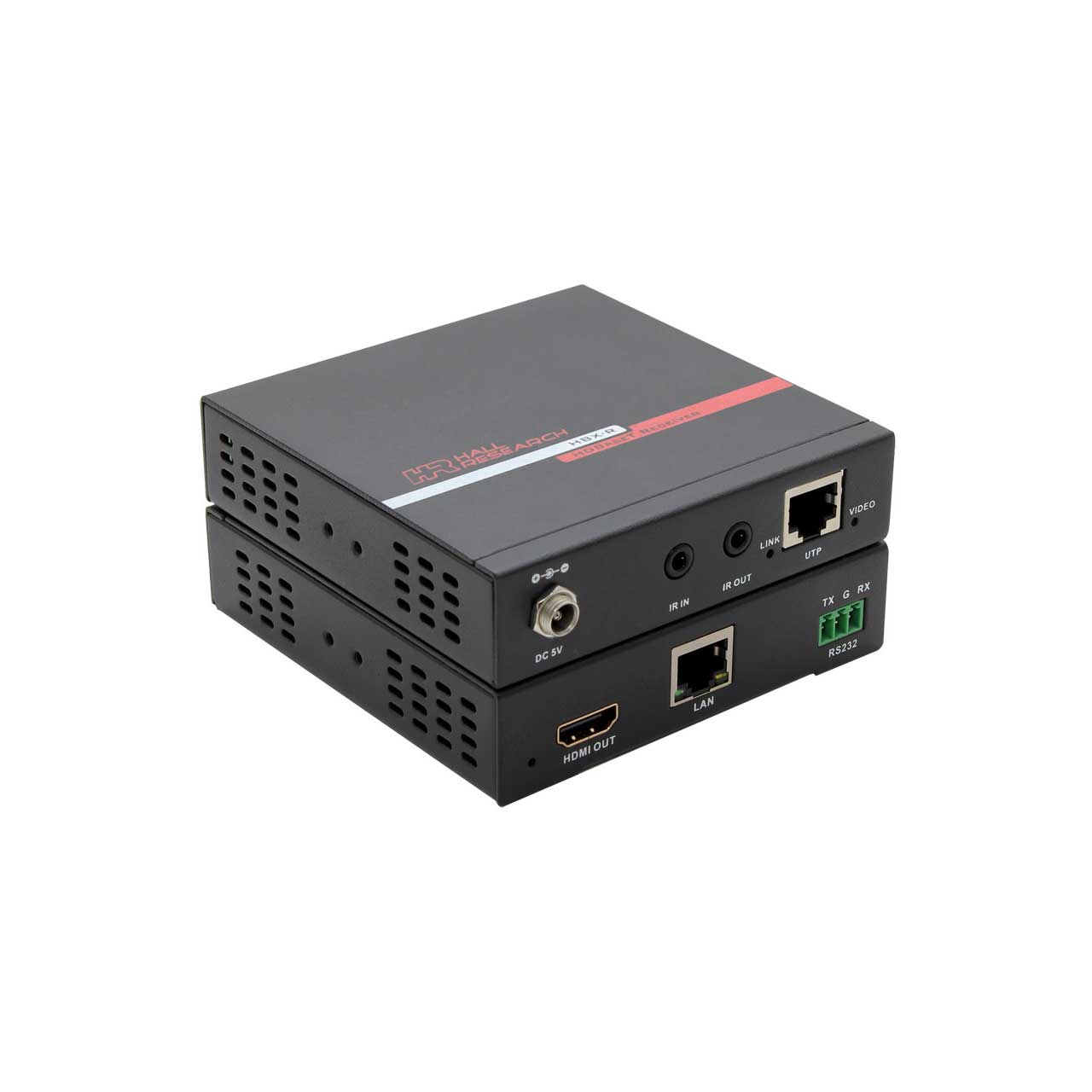

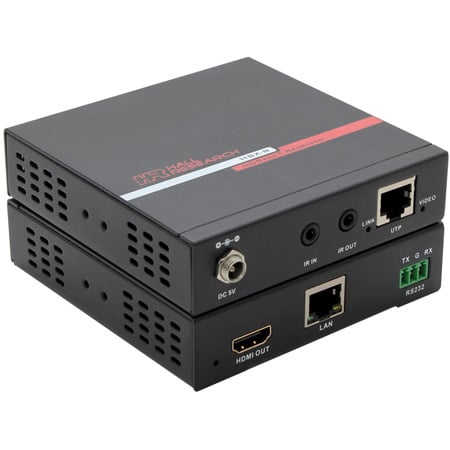

    The HBX-R is a Class A HDBaseT compliant Receiver that supports 100 meter Cat6 range and is used to extend HDMI, RS-232, IR, and Ethernet (100BaseT) up to 100 meters (328 feet) using a single Cat6 cable.

    Since this product uses the HDBaseT standard, video is extended pixel-by-pixel with no compression or latency. The extender supports all PC and HDTV Resolutions including 4K @ 30 Hz 4:4:4 or 4K @ 60 Hz 4:2:0. The IR extension preserves the modulation (carrier) frequency thereby providing compatibility to most standards.

    The HBX-R Receiver includes a universal 5v power supply. IR emitter and IR detector cables are included.

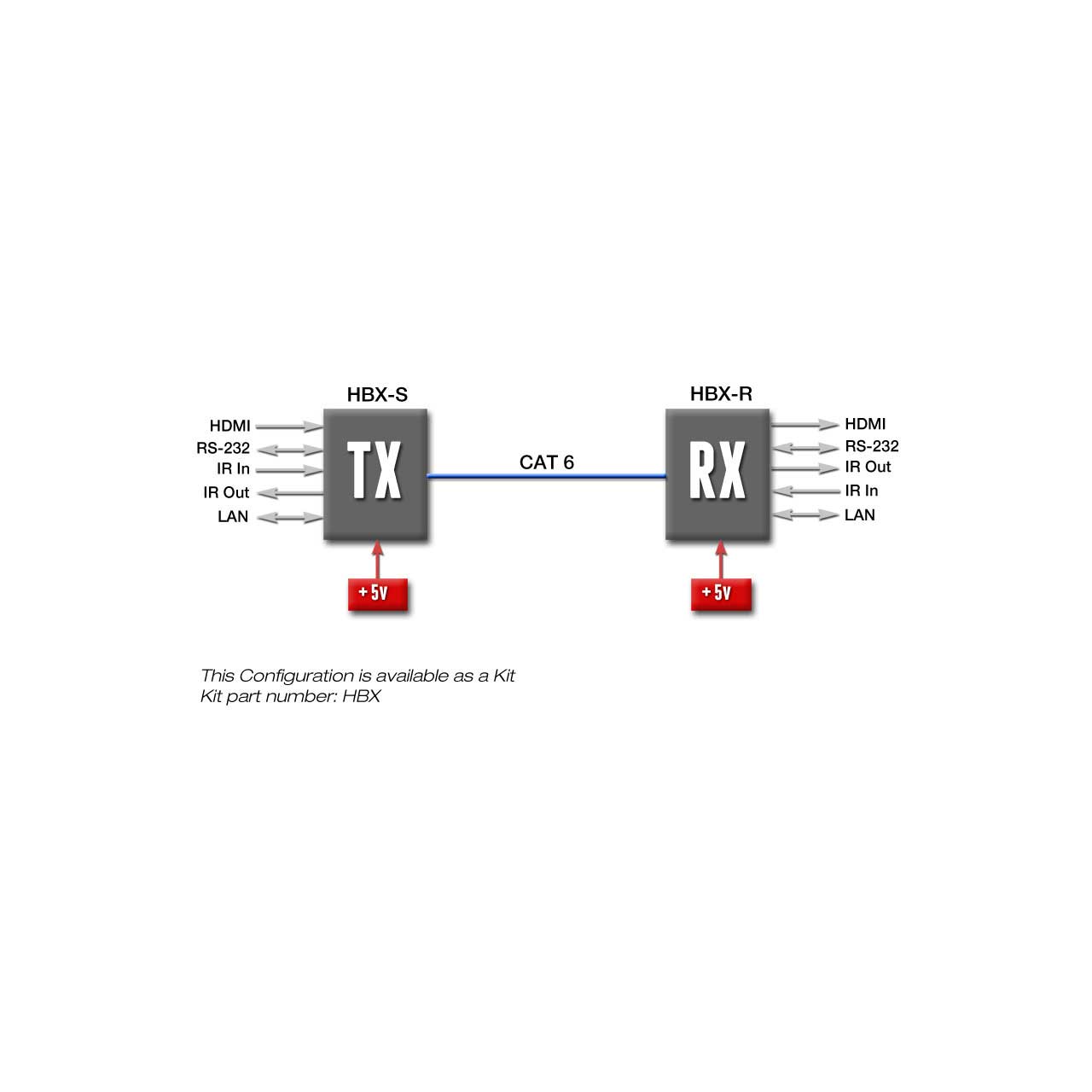

    Note about Power Supply: When connected to HBX-S, the Receiver needs the power supply connected as shown above. However, certain Senders, such as the HSM-44-BX Matrix Switch provide Power-over-Cable on their HDBaseT outputs eliminating the need for connecting a power supply to the Receiver.

    • Features:

      • Fully Compliant with HDBaseT standard
      • Supports virtually all HDMI and DVI resolutions including 4K UHD
      • Extends, Video, Audio, RS-232, IR, and Ethernet
      • Supports extension to 100 m (330 ft)
      • Fully isolates grounds between TX and RX sides
      • Compact, Rugged, Reliable, and Economical
      • Plug and play, no configuration needed
      • Receiver can be powered via PoC from senders that provide PoC such as HSM-44-BX Matrix Switch with HDBaseT outputs
    • Specifications:

      • Video Standards: DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)
      • Signal Type: TMDS
      • Resolutions: DVI signal - VGA (640x480) thru WUXGA (1920x1200); HDTV signal - 480i through 1080p; Digital Cinema - 4K30 4:4:4 or 4K60 4:2:0 (4096x2160) up to 60 m
      • Audio Formats: All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192 kHz sample rate)
      • DDC: Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake
      • CEC: Pass-Thru CEC for Consumer Electronics Control compatible devices
      • RS232: Bidirectional (full-duplex) any baud rate up to 115,200
      • Ethernet: 100BaseT Ethernet LAN
      • IR: Extended in both directions. Carrier modulation range from 30 kHz to 60 kHz
      • Power Supply: 100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2 A, regulated
      • Power: 10 watts maximum
      • Storage Temperature: -40 to +158 °F (-40 to +70 °C)
      • Operating Temperature: +32 to +122 °F (0 to +50 °C)
      • Humidity: 10% to 90%, non-condensing
      • Cooling: Convection
      • Mounting: End plates with hole for surface mounting
      • Enclosure type: Metal (Aluminum ends, Aluminum Extrusion)
      • Dimensions (H x W x D): 1.0" x 3.9" x 3.9"
      • Product weight: 0.63 lb
      • Safety: CE
      • EMI/EMC: CE, FCC Class A
      • MTBF: 90,000 hours (Calculated Estimate)
      • Warranty: 3 years parts and labor
