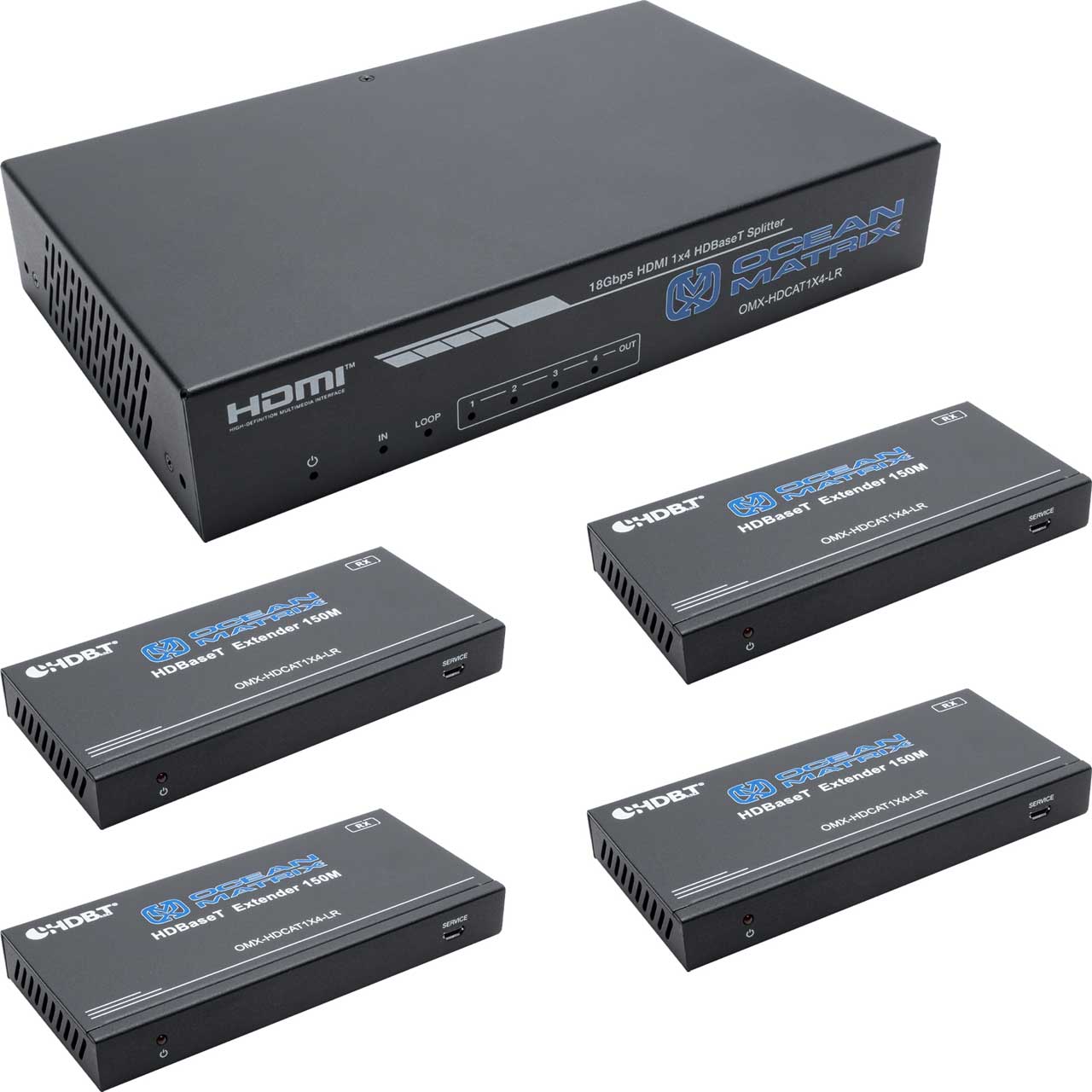

Ocean Matrix OMX-HDCAT1X4-LR 1x4 HDBaseT Splitter Extender Set- 4K60 up to 393ft/120m

ITEM #: OMX-HDCAT1X4-LR MFG #: OMX-HDCAT1X4-LR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Ocean Matrix
Free Shipping with $49 Minimum Order

List Price:

$899.95

Our Price:

$849.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    OMX-HDCAT1X4-LR - Overview

    The Ocean Matrix HDCAT1X4-LR is a seamless solution to distribute a 4K/60 HDMI signals to 4 HDBaseT outputs enabling users to create a simple 1x4 video setup in digital signage, conference room, sports bar and similar applications.

    Each HDBaseT output can be extended on a single CAT6/6a/7 cable to flat panel displays or video projectors at distances over 300 feet for 4K signals. If your video system only needs a 1080p signal, the Ocean Matrix HDCAT1X4-LR can support distances beyond 450 feet.

    The unit provides several key features including an HDMI looping input. It supports HDMI 2.0b, HDCP 2.2 as well as HDR, HDR10+, HLG and Dolby vision. With advanced EDID management built-in, the Ocean Matrix HDCAT1X4-LR is ready for seamless integration with existing and modern infrastructures.

    • Features:

      • Supports Video Resolutions up to 4K2K@60Hz 4:4:4
      • HDMI 2.0b, HDCP 2.2 and HDCP 1.x Compliant
      • Supports EDID Management
      • 18 Gbps Video Bandwidth
      • Supports HDR, HDR10+, HLG and Dolby Vision
      • 7.1CH HD Audio Pass-through
      • Digital and Analog Audio De-embedded Output
      • Extends Signal Transmission Distance up to 120 Meters at Resolutions of 4K2K@60Hz, and 150 Meters at 1080p@60Hz via a Single CAT6/6a/7 Cable
      • 1 HDMI Input, 1 HDMI Loop Output, and 4 HDBaseT Outputs
      • IR & RS-232 Routed to HDBaseT Output
      • One-way POC Functionality (Transmitter powers the receivers)
      • Compact Design for Easy and Flexible Installation


    • Specifications:

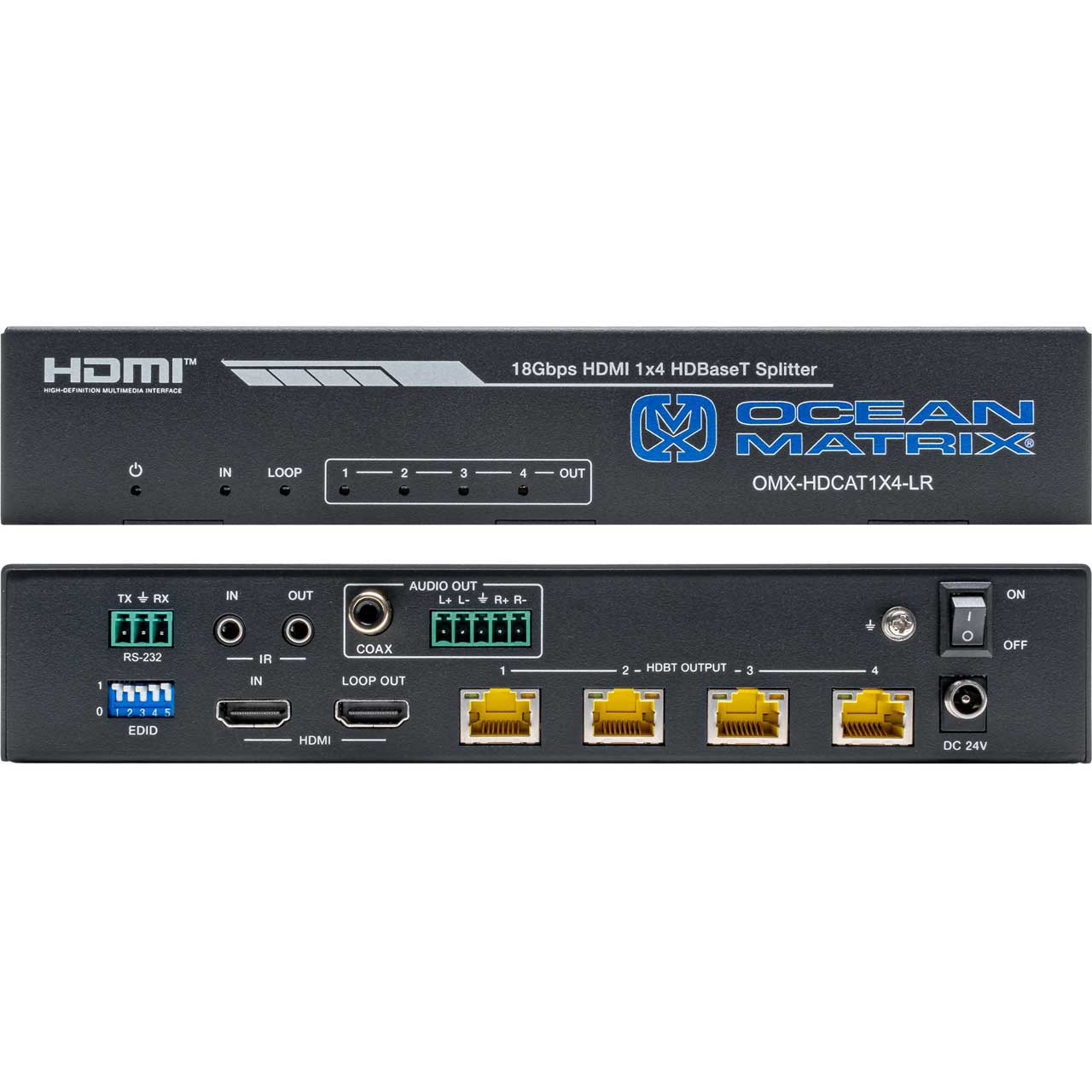

      • Input: 1 x HDMI Type A (19-pin Female)
      • Outputs: 1 x HDMI Type A (19-pin female) 4 x CAT OUT [RJ45, 8-pin female] 1 x Coaxial Audio OUT [RCA] 1 x L/R Audio OUT [3.5mm Stereo Mini-jack] 1 x Phoenix Connector Output Jack
      • Control Inputs and Outputs: 1 x RS-232 (3-pin Phoenix Connector) 1 x EDID DIP switch [5-pin] 1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack]
      • HDMI Compliance: HDMI 2.0
      • HDCP Compliance: HDCP 2.2 / HDCP 1.4
      • Video Bandwidth: 18Gbps
      • Video Resolution: Up to 4K2K@60Hz 4:4:4
      • Color Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
      • HDR: Supports HDR10, HDR10+, HLG & Dolby Vision
      • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, & DTS-X
      • Coaxial Audio Formats: PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
      • Analog Audio Formats: PCM 2.0CH
      • Transmission Distance: 4K2K@60Hz, 120m / 1080P@60Hz, 150m
      • Dimensions (LxWxH): Transmitter: 8.69 x 5.13 x 1.59" Receiver: 5.52 x 2.57 x 0.07"
      • Weight: Transmitter: 1.91lbs Receiver: 0.55lbs
      • Power Consumption: 35W
      • Operating Temperature: 32-104 °F (0-40 °C)
      • Storage Temperature: -4-140 °F (-20-60 °C)

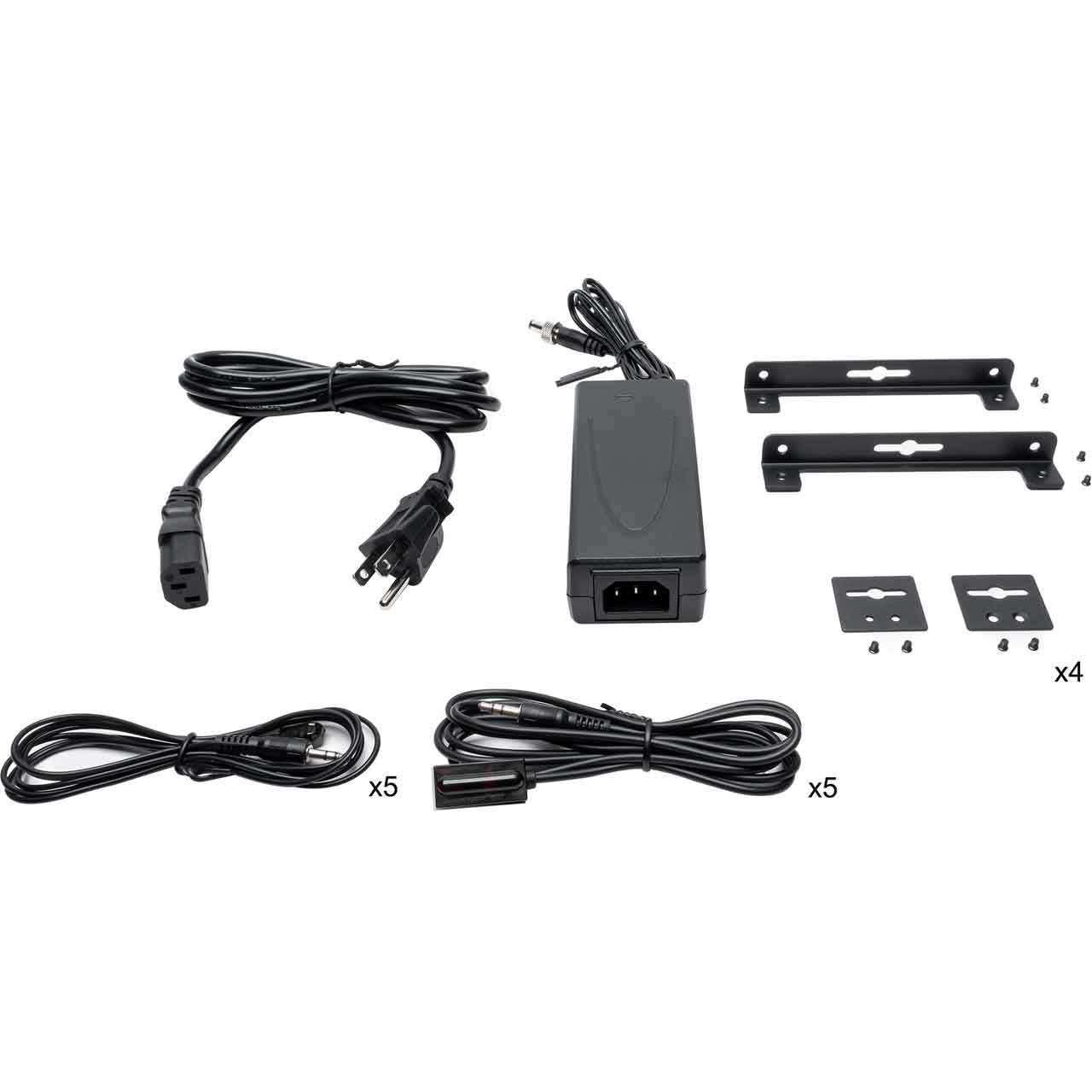

    • Item Includes:

      • 1 x Transmitter

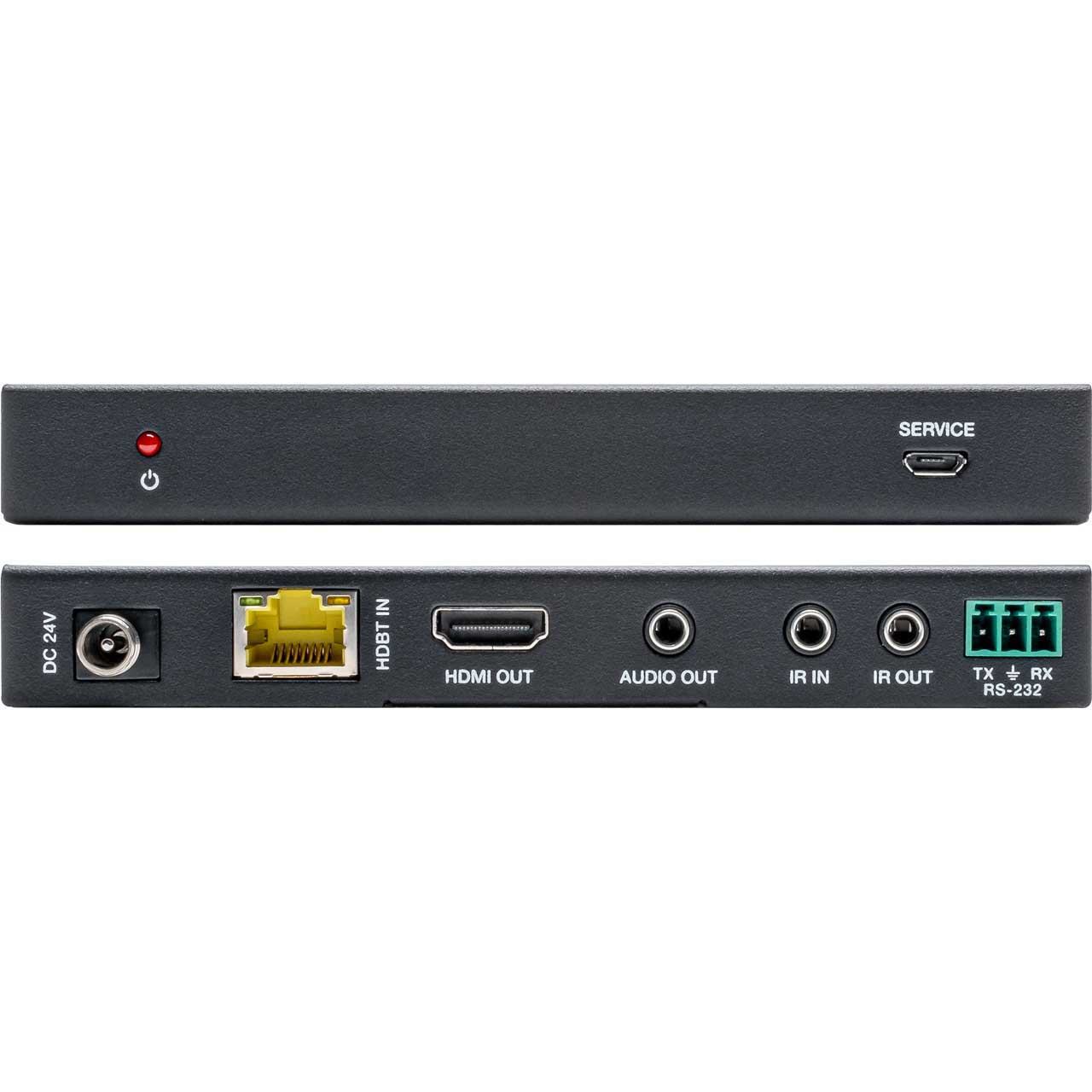

      • 4 x Receiver
      • 5 x IR Blaster Cable (1.5 meters)
      • 5 x 20K-60KHz IR Receiver Cable (1.5 meters)
      • 5 x 3-pin Phoenix Connector
      • 1 x 5-pin Phoenix Connector
      • 10 x Mounting Ear
      • 1 x 24V/2.7A DC Locking Power Adapter


    • Warranty:

      • 1 Year
