Ocean Matrix OMX-HDMI-CAT6X [email protected] at 8-Bit HDMI Extender Set


  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    OMX-HDMI-CAT6X - Overview

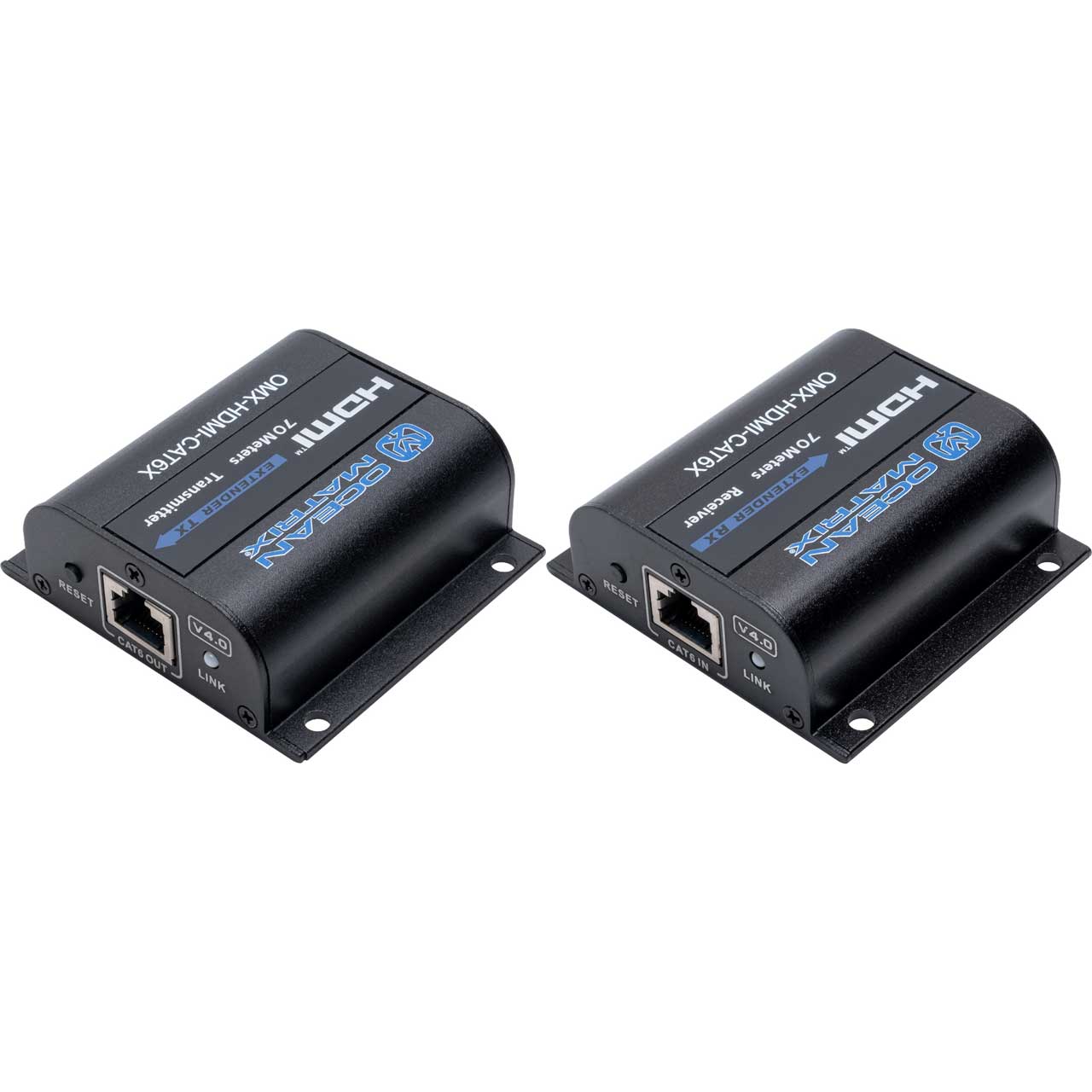

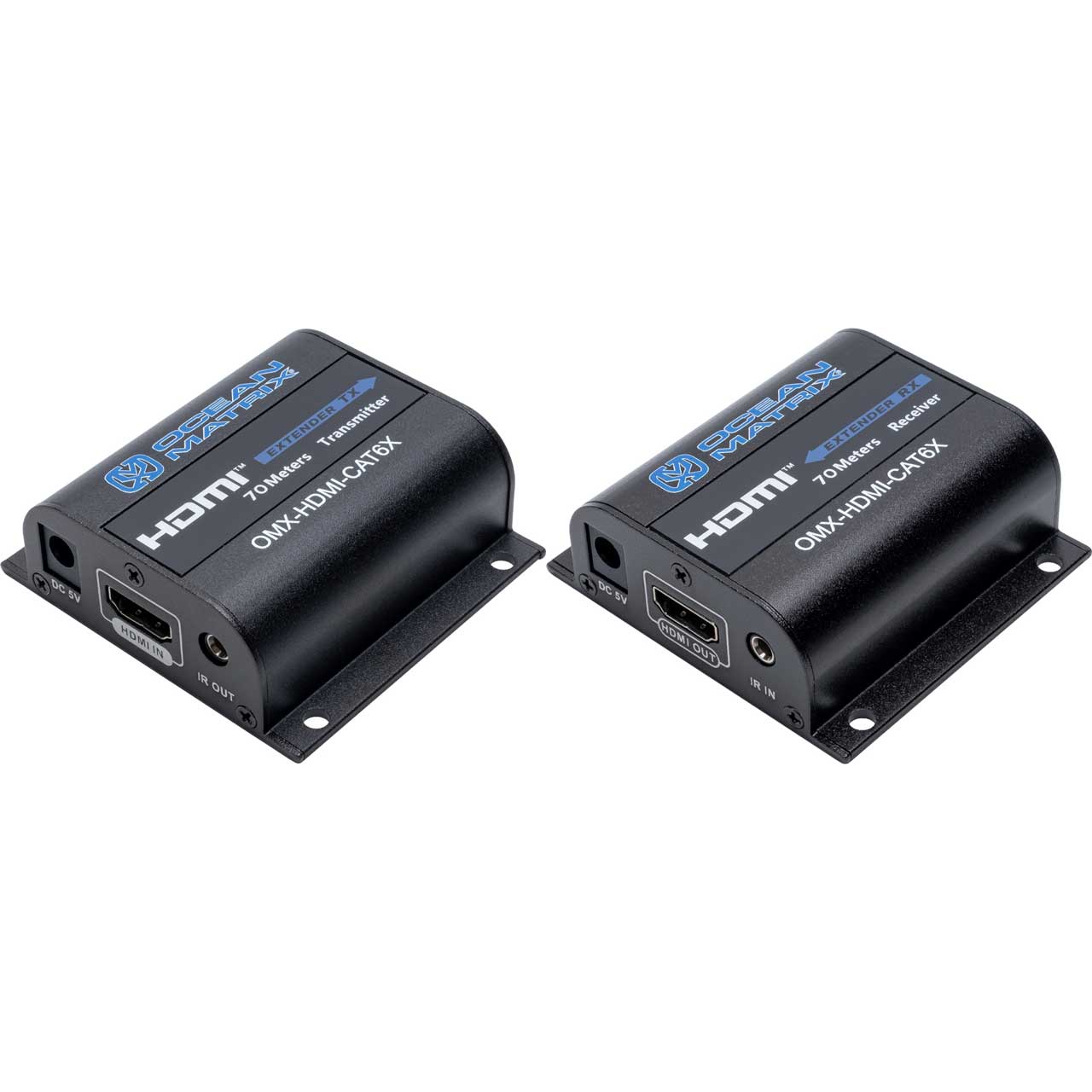

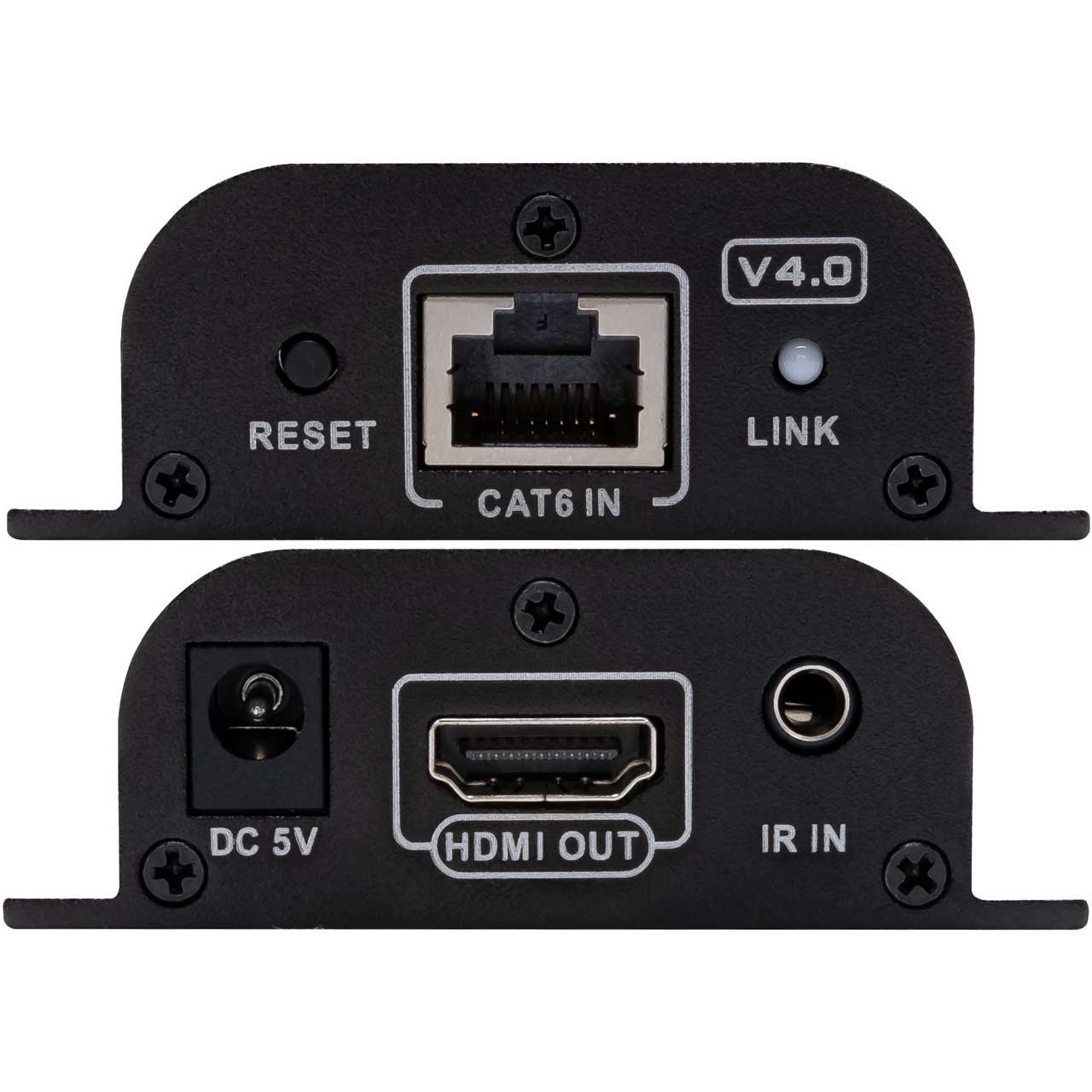

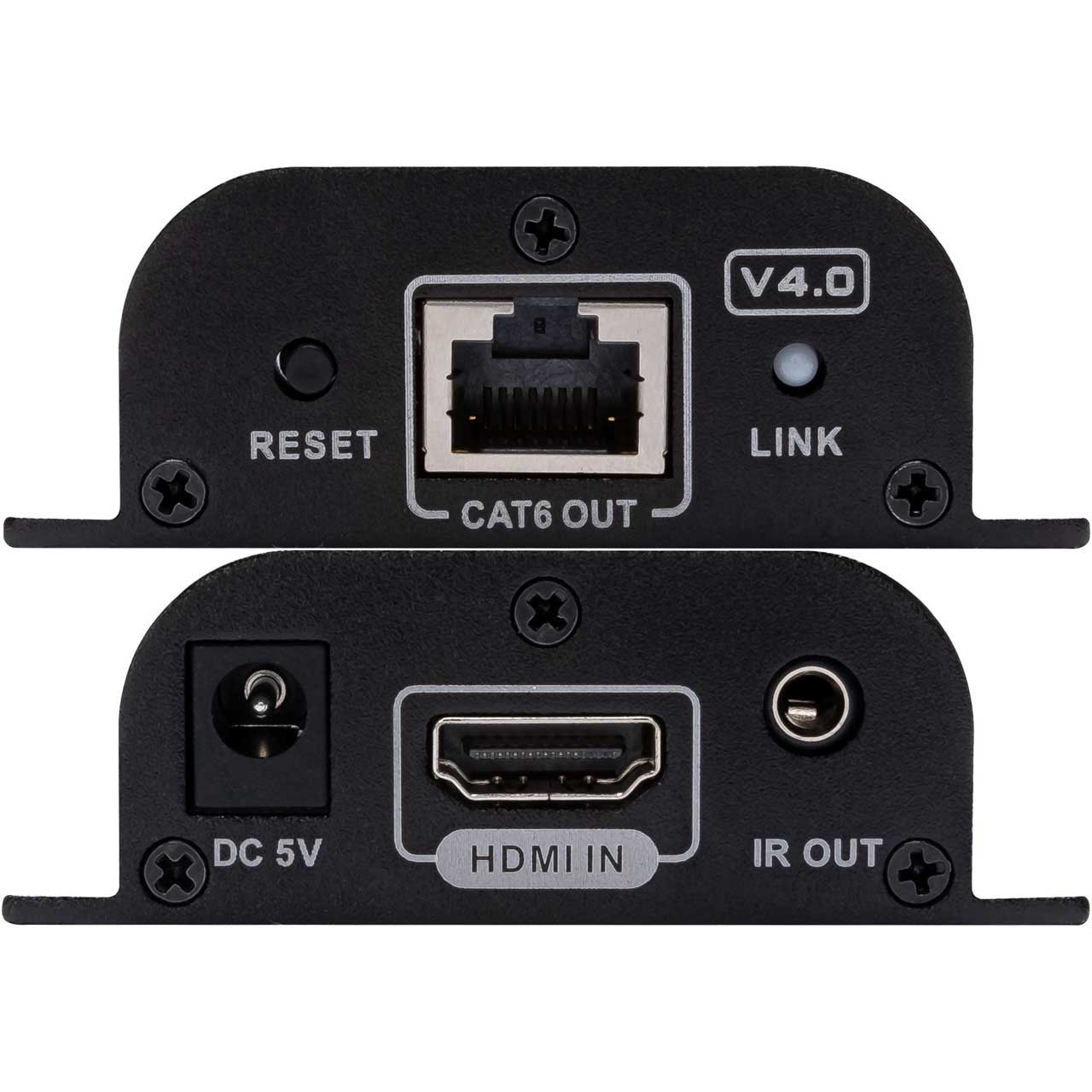

    The Ocean Matrix OMX-HDMI-CAT6X extends HDMI based high definition video/audio beyond the standard distances of HDMI cable and its inherent limitations. Consisting of a transmitter and a receiver, this system delivers [email protected] HDMI signal up to 40 meters (130 feet) and [email protected] HDMI signal up to 70 meters (230 feet) over a single CAT6 network cable. The system fully supports [email protected] and [email protected] resolutions as well as IR control over the same cable run.

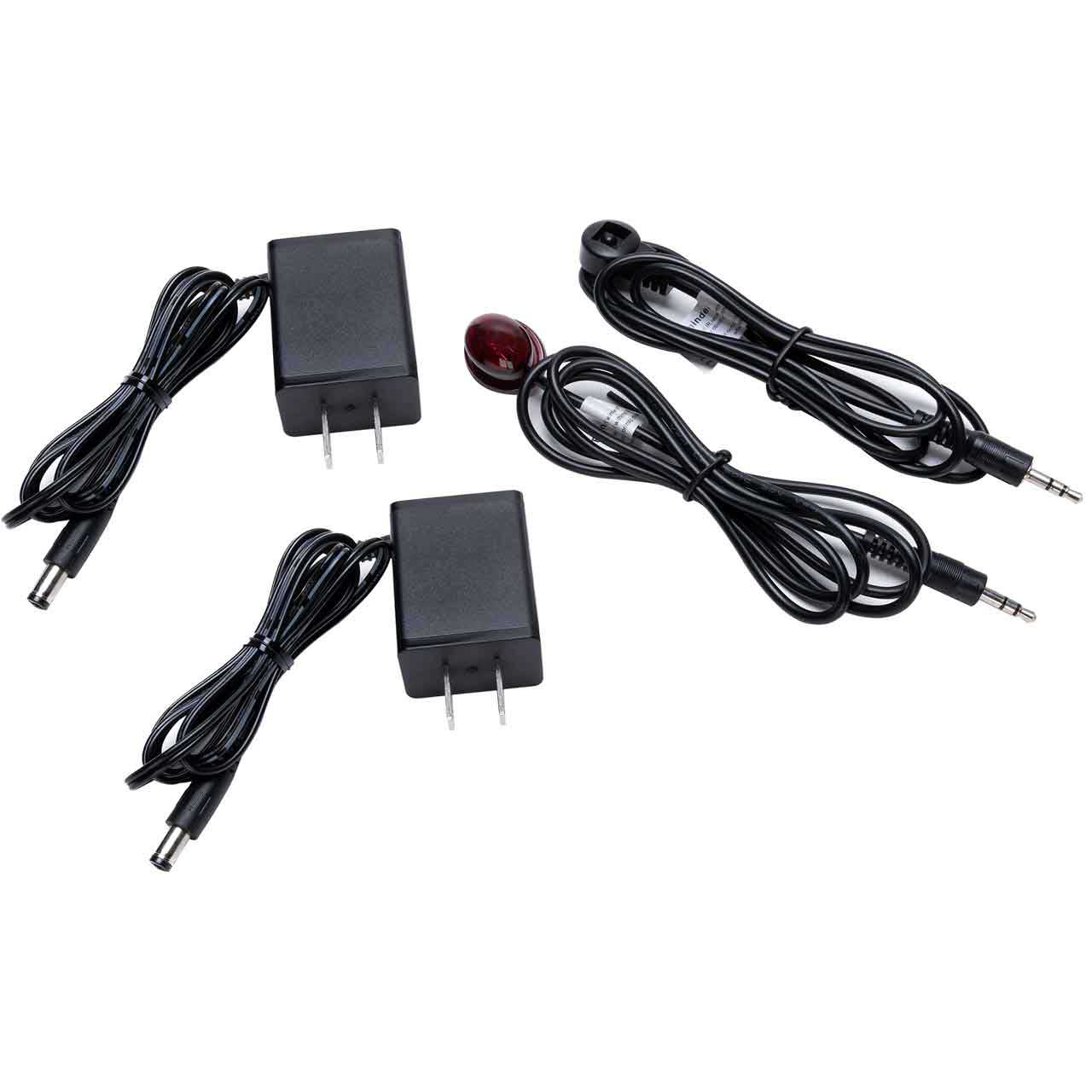

    IR signal pass-back allows for remote control of the source at a secondary location with two IR extension cables (included).

    Ideal for projections screens, home theatre setups, outdoor advertising, remote conferencing, CCTV, high-end security, and remote HD monitoring.

    • Features:

      • Zero Latency
      • Supports up to [email protected] Resolution
      • Supports CAT6 / 6A / 7 Network Cables
      • Transmission Distance: [email protected] up to 40m / [email protected] up to 70m
      • IR Pass-Back Function (20 - 60KHz)
      • Supports 1080p HDR10 (YUV 4:4:4)
      • EDID Passthrough
      • Audio Formats Supported: PCM, LPCM, DTS HD, DTS Audio
      • Automatic Cable Equalization
      • Lightning Protection, Surge Protection, ESD Protection
    • Specifications:

      • HDMI Compliance: HDCP 1.4
      • HDMI Resolutions: Up to [email protected] 8-bit
      • Audio Formats: DTS, DTS-HD, PCM, LPCM
      • HDR Supported
      • IR Pass-Back: Frequency Range 20-60KHz
      • Operating Temperature: -20 - 60°C / -4 - 140°F
      • Dimensions (W)(D)(H): 71.6 x 66.6 x 24.8mm / 2.82 x 2.62 x 0.98in
      • Each Unit Weight: 2.86 oz
      • Power Supply: DC5V/500mA

    OMX-HDMI-CAT6X - Required Accessories

      OMX-HDMI-CAT6X - Recommended Accessories
