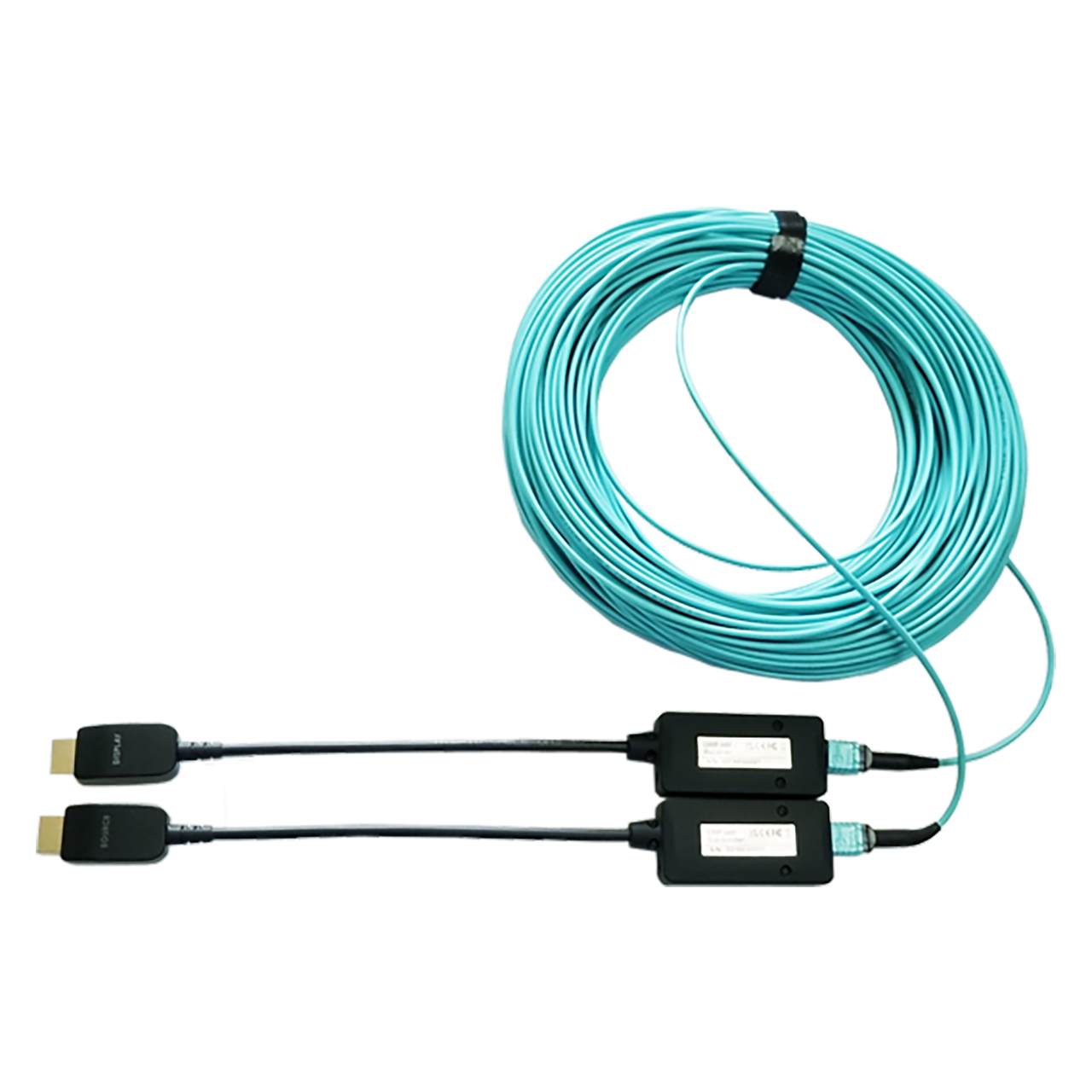

Ophit OMP-HM 8K HDMI 2.1 Optical Extender Transmitter and Receiver Kit - Multi-mode with MPO Connector - 330 Foot Range

Name: Ophit OMP-HM 8K HDMI 2.1 Optical Extender Transmitter and Receiver Kit - Multi-mode with MPO Connector - 330 Foot Range
Brand: Ophit
SKU: OPHI-OMP-HM
Price: 720.00 USD
Availability: PreSale

ITEM #: OPHI-OMP-HM MFG #: OMP-HM

Ophit

Our Price:

$720.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

OMP-HM - Overview

For environments demanding high-performance AV solutions, the Ophit OMP-HM HDMI 2.1 Optical Fiber Extender delivers flawless 8K UHD video transmission with zero signal loss over long distances. Engineeredfor precision and performance, the OMP-HM ensures crystal-clear visuals and reliable connectivity for professional AV installations.

Features:
- High Speed and long distance transmission by optical fiber
- Compatible with HDMI standard v2.1
- Supports OM3 (or OM4) fiber with 8core MPO type connector
- I2C data and Hot Plug Detection signal is transmitted by optical fiber
- CEC control, EDID, and HDCP
- EMI & Safety: CE, FCC
Specifications:
- Signal: HDMI v2.1
- Video Bandwidth: 48.0Gbps
- Supporting Resolution & Distance: 4K/8K UHD(up to 7680x4320) 100M(330ft)
- Connector/Fiber: HDMI 19 Pin (male)/ MPO
- Power Consumption: 0.75W (typ)
- Dimensions: 11.8" x 0.62" x 1.22" (300mm x 16mm x 31mm)
- Environment:
  - Operating Temperature Range: 32°F - 122°F (0°C - 50°C)
  - Storage Temperature Range: -4°F - 158°F (-20°C - 70°C)
Item Includes:

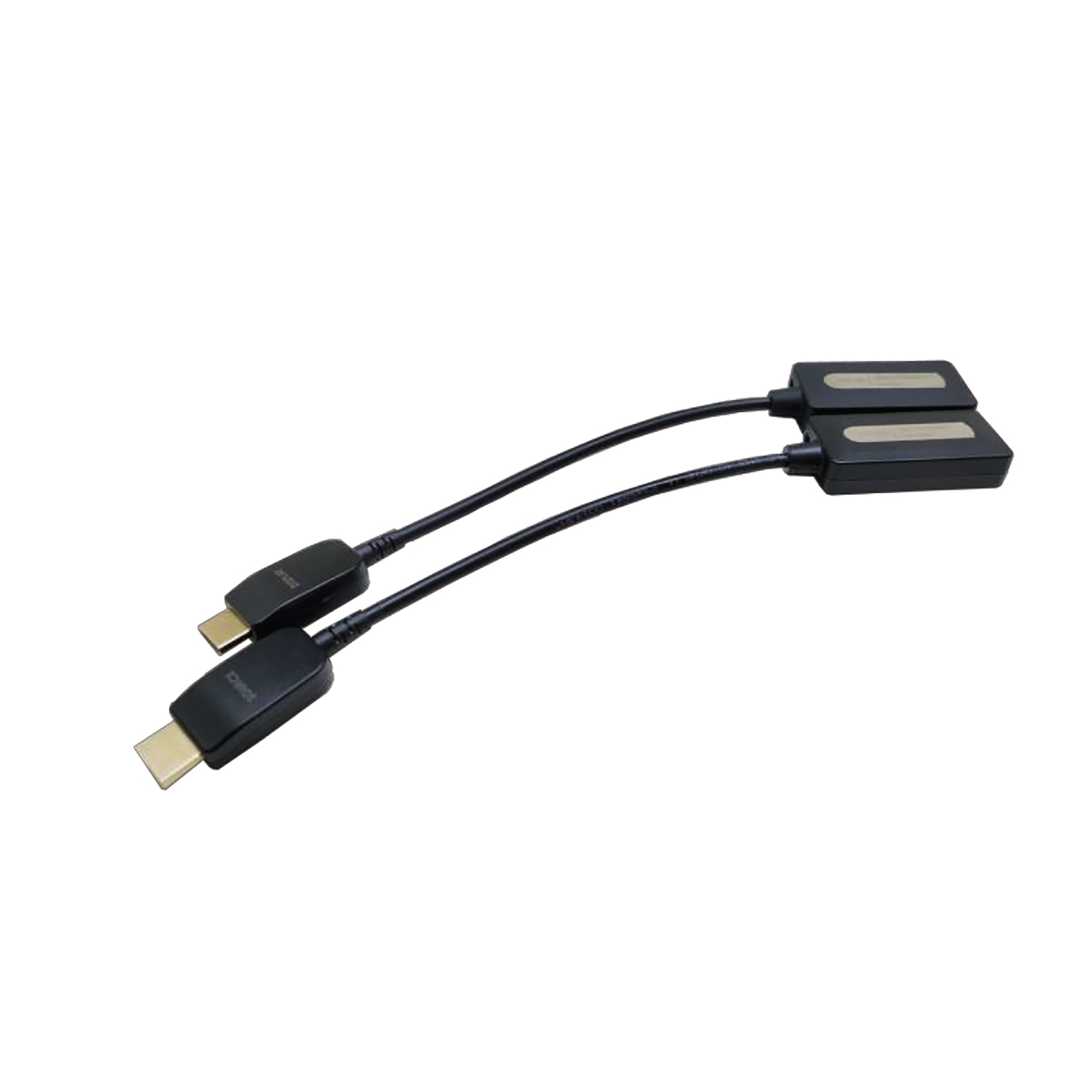

- 1x Ophit OMP-HM-T Transmitter & Receiver
- 1x Power Adapter
- 1x User Manual

OMP-HM - Recommended Accessories

Celerity UFO-CABLE-250P Universal Bi-Directional HDMI Fiber Optic Cable for UFO HDMI/DP/DP2H/DVI Connectors - 250 Feet
CTY-UFOCABLE250P
Our Price: $150.00
Celerity UFO-CABLE-100P Universal HDMI Fiber Optic Cable - 100 Foot
CTY-UFO-CABLE100
Our Price: $100.00
Tripp Lite P164-000-8K6 HDMI Coupler F/F - Supports up to 8K 60Hz
TRL-P164-000-8K6
Our Price: $9.47
