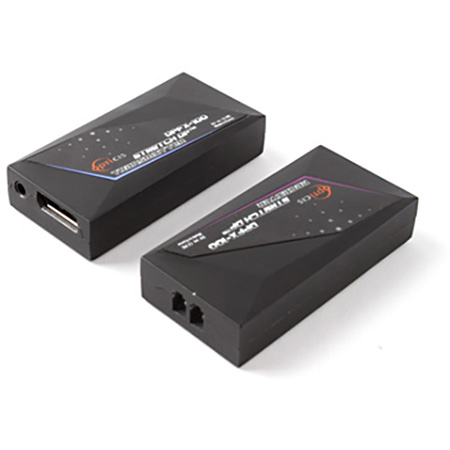

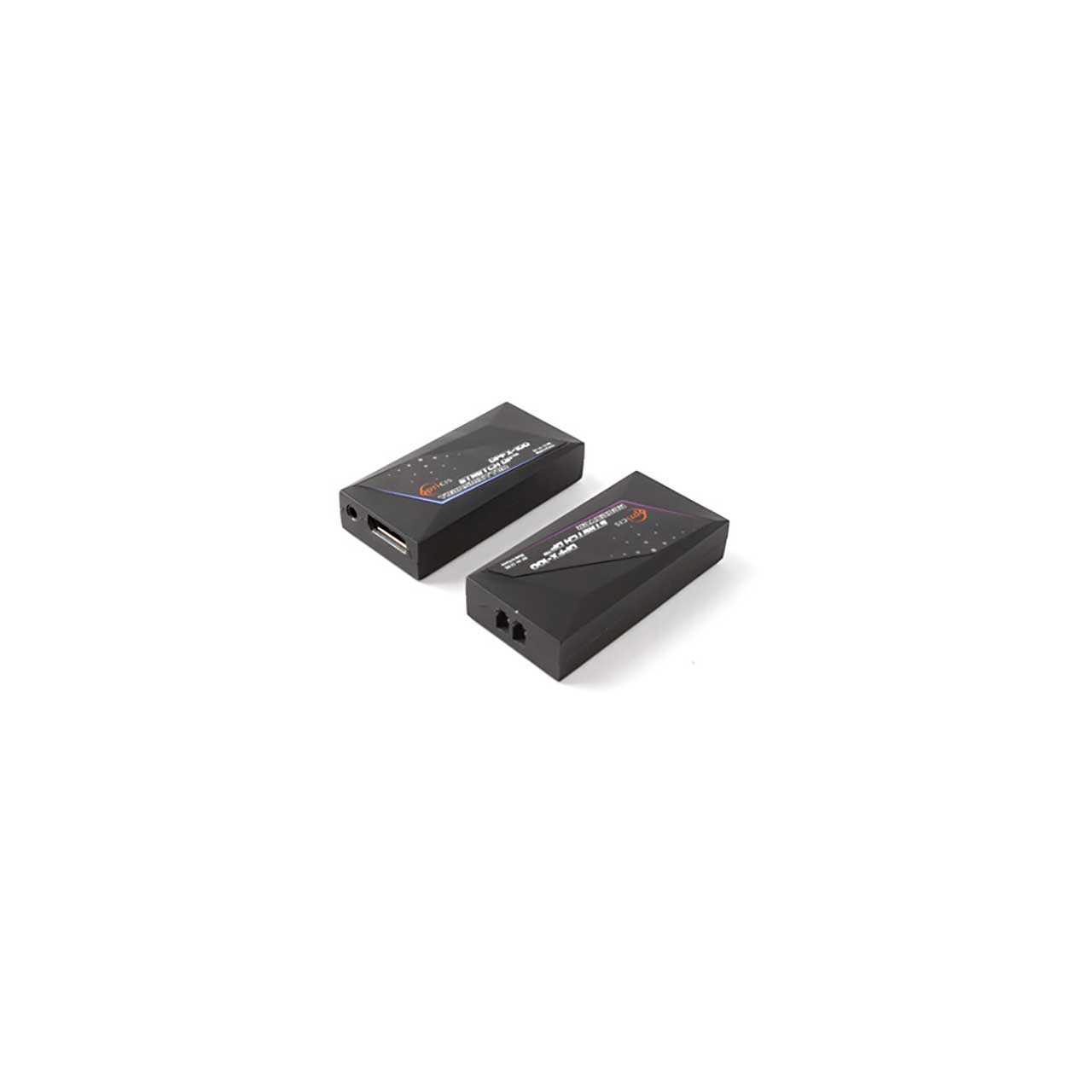

Opticis DPFX-100-TR 2 Fiber DisplayPort 1.1 Extender

ITEM #: OPTI-DPFX-100-TR MFG #: DPFX-100-TR

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$1,365.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    DPFX-100-TR - Overview

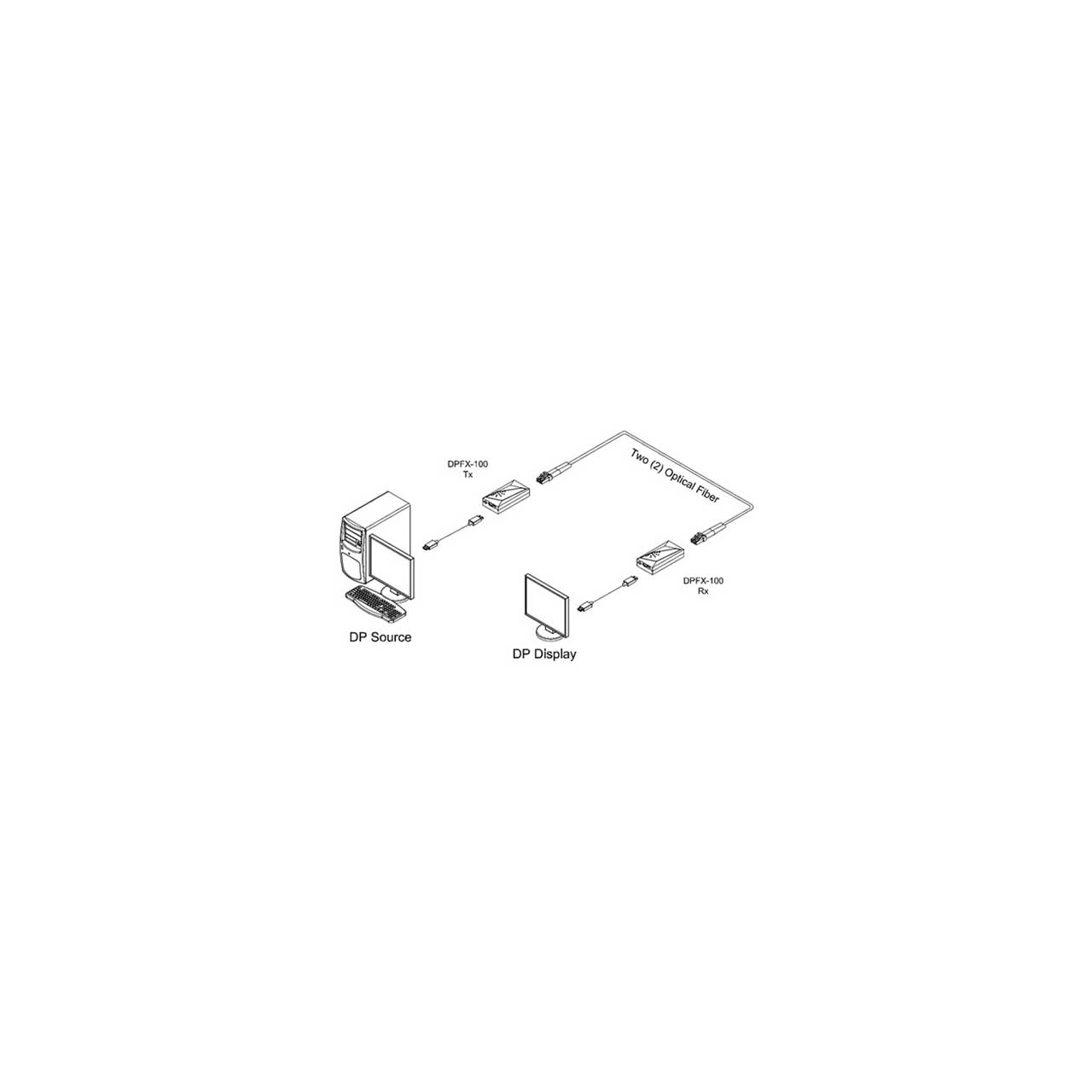

    DPFX-100-TR is designed to be compact enough to fit into various installation environments with two (2) LC fibers connection. DPFX-100-TR transmits WQXGA (2560x1600) at 60Hz signal up to 200m (656 feet), avoiding tricks like scaling or data compression for lessening a burden of data transmission. It provides total data throughput of 10.8Gbps (2.7Gbps per lane).

    The pure fiber connection by two (2) LC fibers connector between transmitter and receiver gives a clean, secure and easy installation with perfect electrical isolation and zero electrical hazard.

    The DPFX-100-TR can be operated by USB power without external DC power adapter simply by plugging the supplied USB to DC plug cables to each module. In the shipping group, two (2) short DP cables are also included for mating to various types of DP connectors.

    • Features:

      • Supports DisplayPort 1.1a standards
      • Extends WQXGA (2560x1600) at 60Hz
      • Transmits DP data up to 200m (656 feet) over two (2) LC multi-mode fibers (50/125um).
      • Offers total data rate 10.8Gbps (2.7Gbps per lane)
      • Supports auxiliary channel
      • Plug & Play
      • Has DP receptacle and provides intermediate cable for flexible installation
      • Operated by USB power or DC power supplier
      • Operating temperature: 0 ~ 50°
      • Storage temperature: -30 ~ 70°
      • Input power: +5V, 1A
      • Certifications: CE / FCC, Class 1 Laser Eye Safety

    • Item Includes:

      • One (1) Transmitter (Tx) and One (1) Receiver (Rx)
      • Two (2) DP copper cables (0.5m)
      • Two (2) USB to DP plug Cables
      • Two (2) DC +5V,1A power adapters
      • User’s Manual

    • Warranty:

      • 1 Year


    DPFX-100-TR - Required Accessories

      DPFX-100-TR - Recommended Accessories
