Opticis HDX-1F20-TR 4K HDMI 2.0 Optical Extender with Transmitter and Receiver - Extends 984ft over One LC MM OM3

Name: Opticis HDX-1F20-TR 4K HDMI 2.0 Optical Extender with Transmitter and Receiver - Extends 984ft over One LC MM OM3
Brand: Opticis
SKU: OPTI-HDX-1F20TR
Price: 2422.00 USD
Availability: Backorder

ITEM #: OPTI-HDX-1F20TR MFG #: HDX-1F20-TR

Opticis

Our Price:

$2,422.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

HDX-1F20-TR - Overview

Meets HDMI 2.0 Standards and Transmits an Uncompressed and Transparent Video Signal

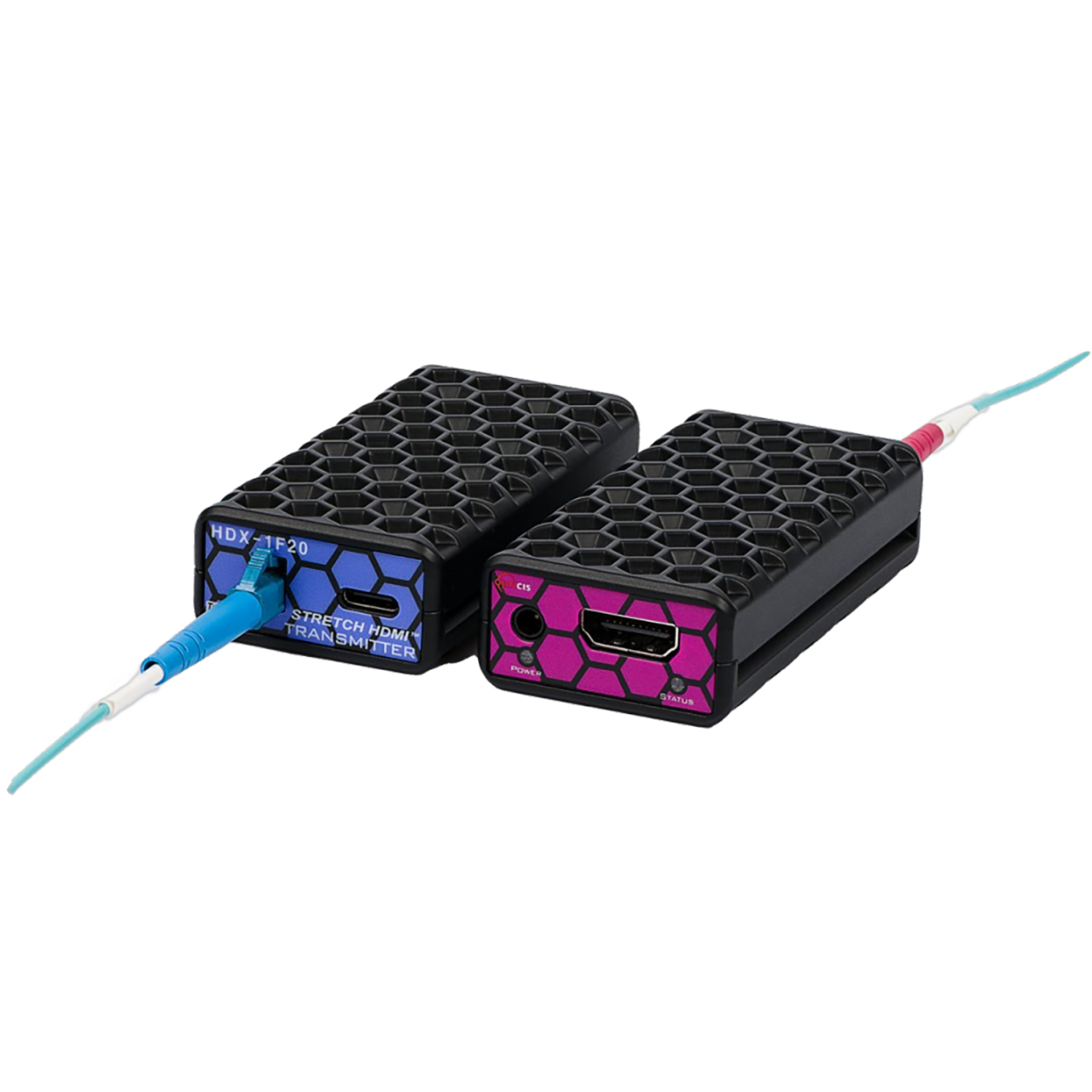

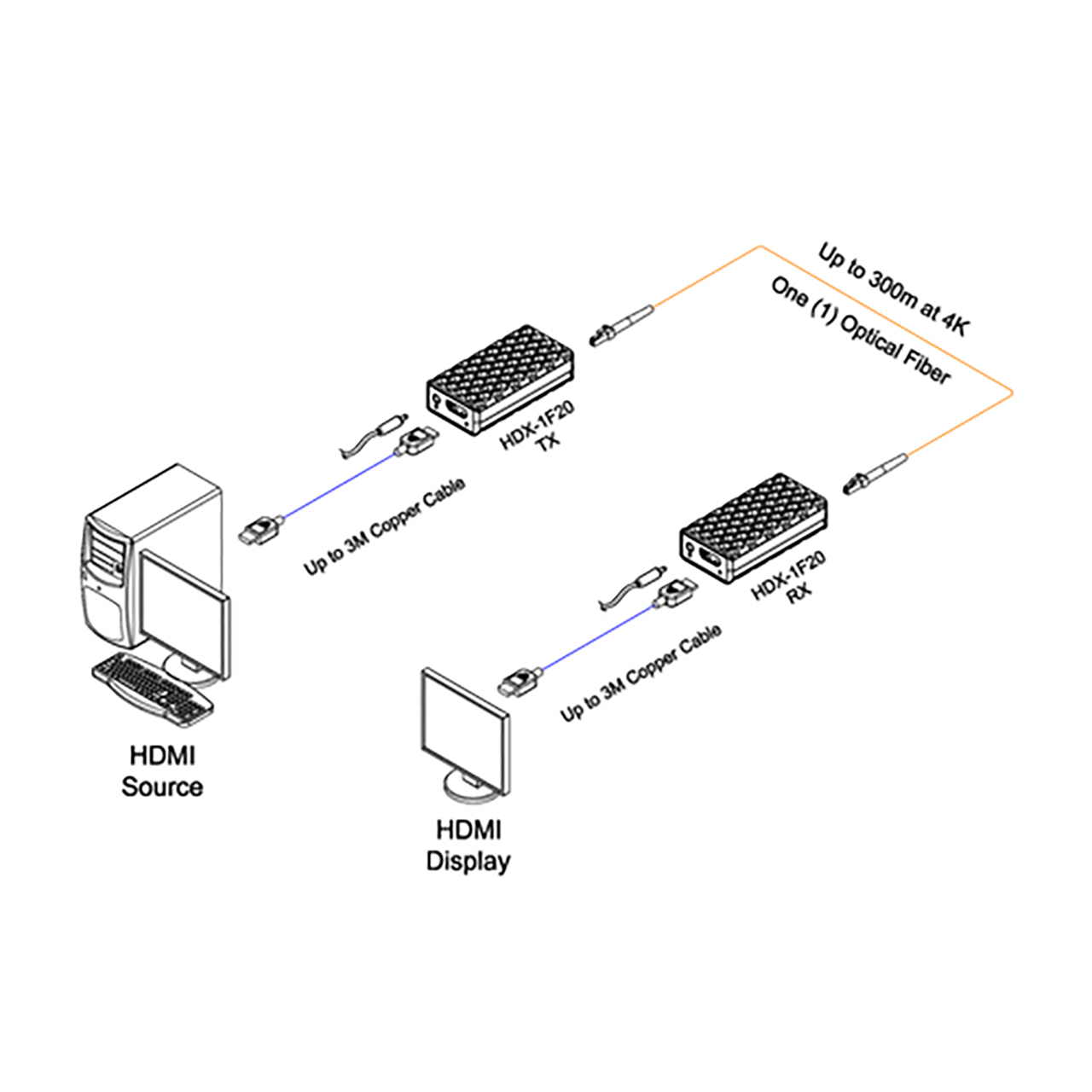

The Opticis HDX-1F20-TR is a high-performance HDMI fiber optical extender, transmitting 4K (4096x2160) at 60Hz up to 984ft (300m) over one LC multimode fiber (OM3). It offers 9.84ft (3m) extension for both transmitter and receiver sides, enhancing installation flexibility. When connecting with BR-600, the built-in Diagnosis function allows remote monitoring and management for ensuring real-time error detection and reduced downtime. Combining robust performance, advanced diagnostics, and versatile extension options, the HDX-1F20-TR is an ideal solution for demanding AV installations.

Applications:
• Medical Imaging
• Military
• Digital Signage
• Control Room
• Flight Simulation
• Rental Staging

Features:
- TAA Compliant
- 4K (4096x2160) @ 60Hz support with HDMI 2.0 standards
- 984ft (300m) transmission over LC multimode fiber (OM3)
- 9.84ft (3m) copper extension available on TX/RX sides
- Audio Return Channel (ARC) support with data security and negligible EMI
- Built-in diagnostics with remote monitoring when paired with BR-600 Power Rack
- Diagnosis Link Manager GUI for firmware upgrades and system management
- BR-600 compatibility supports up to 8x diagnosis extenders simultaneously
- USB Type-C firmware upgrade capability
- FCC/CE certified for EMI/RFI emission standards
Specifications:
- Resolution: Up to 4K (4096x2160) at 60Hz
- Bit Rate: Total 18Gbps (6Gbps/channel)
- Maximum Distance: Up to 984ft (300m)
- Fiber Type: 1x LC multimode fiber (OM3)
- Power Supply: External DC power 5V/1A with USB-C power available
- Power Consumption: < 2.5W
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Operating Humidity: 10% - 85% RH (non-condensing)
- Dimensions (LxWxH): 1.53" x 2.99" x 0.78" (39mm x 76mm x 20mm)
Item Includes:
- 1x Transmitter (TX)
- 1x Receiver (RX)
- 2x 6.56ft (2m) Male to Male HDMI copper cable
- 2x 5V 1A power adapter
- 1x User Manual
Warranty:
- 1 Year Limited Warranty
