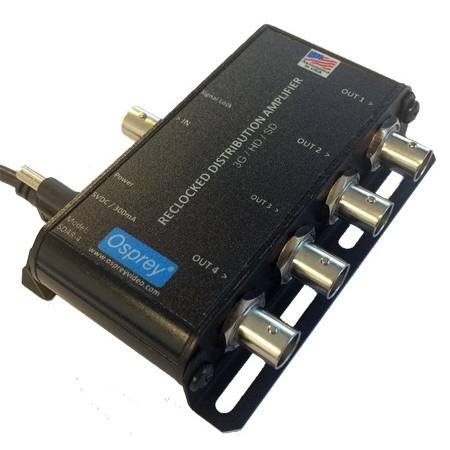

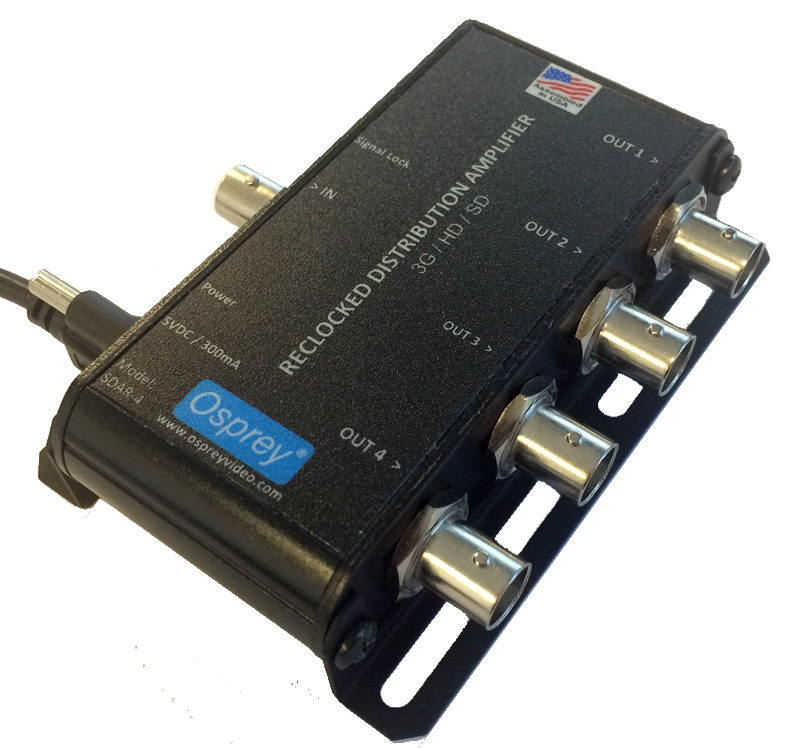

Osprey SDAR-4 1x4 USB Powered Equalized & Reclocking SDI Distribution Amplifier

ITEM #: OSPREY-SDAR-4 MFG #: 97-11014

free ship

Our Price:

$260.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    97-11014 - Overview

    This Osprey SDI distribution amplifier will accept any single link SDI input up to 3G and passes it directly to four outputs while preserving Ancillary Data and Embedded Audio. The amplifier has automatic cable equalization to lessen attenuation over longer runs. Dip switches allow the user to select between SD and HD signals and turn off unused ports to conserve power when running from portable power sources. Powered by USB via a locking connector the SDAD-4 is perfect for streaming workflows.

    • Features:

      • Standard Compliance: SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M
      • Video Inputs: 1x 3G/HD/SD-SDI, (BNC) w embedded audio
      • Outputs: 4x 3G/HD/SD-SDI, (BNC) w embedded audio
      • Reclocking: YES
      • Cable Equalization: 100m at 3G, 200m at HD, 400m at SD, Power: +5 VDC @ ~1.5W

    • Specifications:

      • Standards Compliance: SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M
      • Video Input: 1 x 3G / HD/SD SDI, DVB-ASI (BNC with embedded audio)
      • Outputs: 4 x 3G / HD/SD SDI, DVB-ASI (BNC with embedded audio)
      • Reclocking: Yes
      • Cable Equalization (Belden 1694A): 100m at 3G, 200m at HD, 400m at SD
      • LED indicators:
      • Power
      • Signal Lock
      • Power Connector: Locking Mini B USB
      • Power:
      • +5 VDC @ ~1.8W (all outputs enabled)
      • May be powered by USB charger, PC or portable battery pack (not included)

    • Item Includes:

      • Reclocking Video Distribution Amplifier, Mounting Brackets, Locking USB Power Cable

    • GTIN:

      0850189006405
