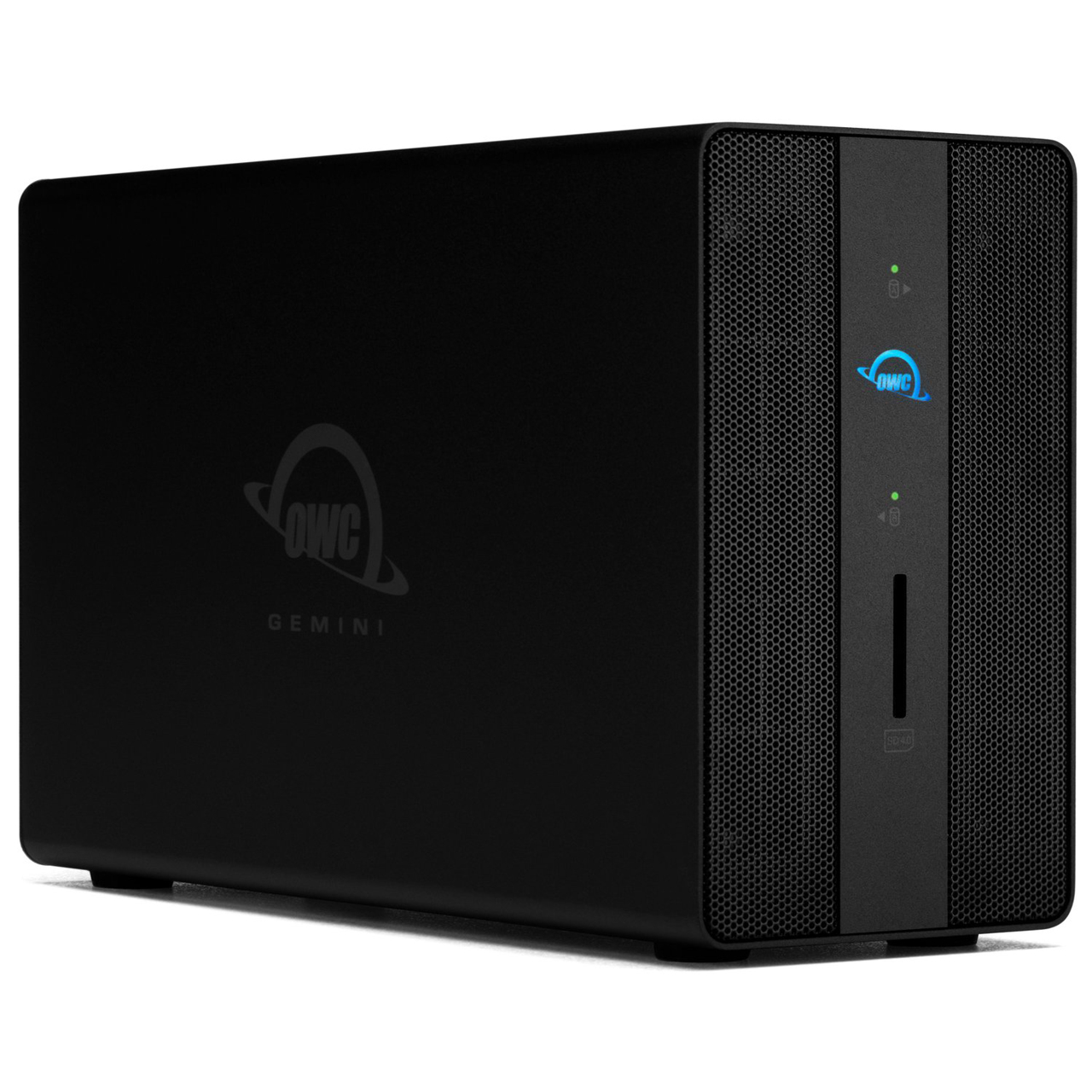

OWC OWCTB3GM000H24 Gemini Thunderbolt Dock and Dual-Drive RAID External Storage Solution - 24TB

ITEM #: OWC-TB3GM000H24 MFG #: OWCTB3GM000H24

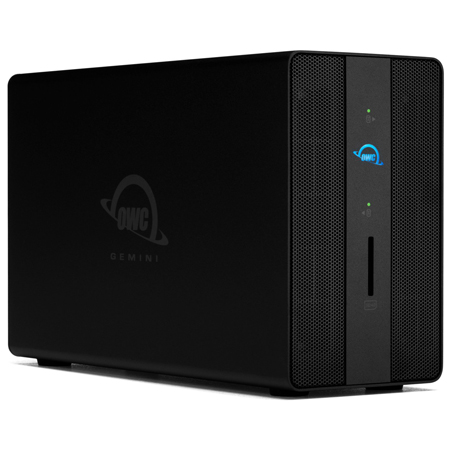

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,069.99

Special Price:

$979.99

Availability: In Stock
iAvailability Description Popup


OWCTB3GM000H24 - Overview

The Do-It-All Tool for Digital Workflows
With dual drive bays and seven connectivity ports including an SD 4.0 (UHS-II) card reader, the OWC Gemini is the do-it-all tool that will organize your digital life. You'll have plenty of room to duplicate footage, create and manage archives, or render and process effects. Connect your favorite peripherals via USB ports. Ingest the day's shoot or drone footage with the frontside reader.

Hardware RAID: Speed, Reliability, Flexibility
The OWC Gemini utilizes hardware RAID to unleash the full potential of two 3.5-inch 7200RPM hard drives or 2.5-inch SATA SSDs. Preconfigured in high-speed RAID 0 mode to deliver maximum throughput from its drives, Gemini offers real-world HDD speeds up to 562MB/s for audio editors/musicians/producers, individual content creators, photographers, small photography studios, and filmmakers working with up to 4K resolutions and compressed codecs. A/V professionals seeking SSDs that start and stay fast over their full capacity can take advantage of the proven reliability of OWC Mercury Extreme SSDs.

If you desire the extra security of mirrored data, you can configure the Gemini in RAID 1 mode. Need more drive flexibility? Set up a span to combine the capacity of the two drives into one huge volume or use the drives as independent volumes.

Stay Connected to Your Team and Media
The OWC Gemini features a 2.5Gb/s Ethernet port so you can transfer files and work up to 2.5x faster over wired networks and enjoy increased productivity in an IP-based workflow. Great for shared workspaces and workflows, file transfers breeze by quickly so you spend less time setting up and more time getting to work. When it's time to share your progress, you can use your RAID options to render out working files and a fast connection to post for team and client reviews

Gain an 8K Perspective
With a dedicated latest generation HDMI port, Gemini empowers you to add the fresh, crisp perspective of an 8K display to your workflow. Whether in your home office or on a mobile studio job, seeing your work in full detail is just one connection away. Use it to free up your laptop port, so you can dock in and out quickly and stay mobile.

  • Features:

    • Performance Storage: Up to 562MB/s2
    • Fast Connectivity: 2x Thunderbolt 3 ports (Thunderbolt 2/Thunderbolt backward compatible1)
    • Speed and Storage: Hardware RAID controller (RAID 0,1, Span or JBOD/Independent)

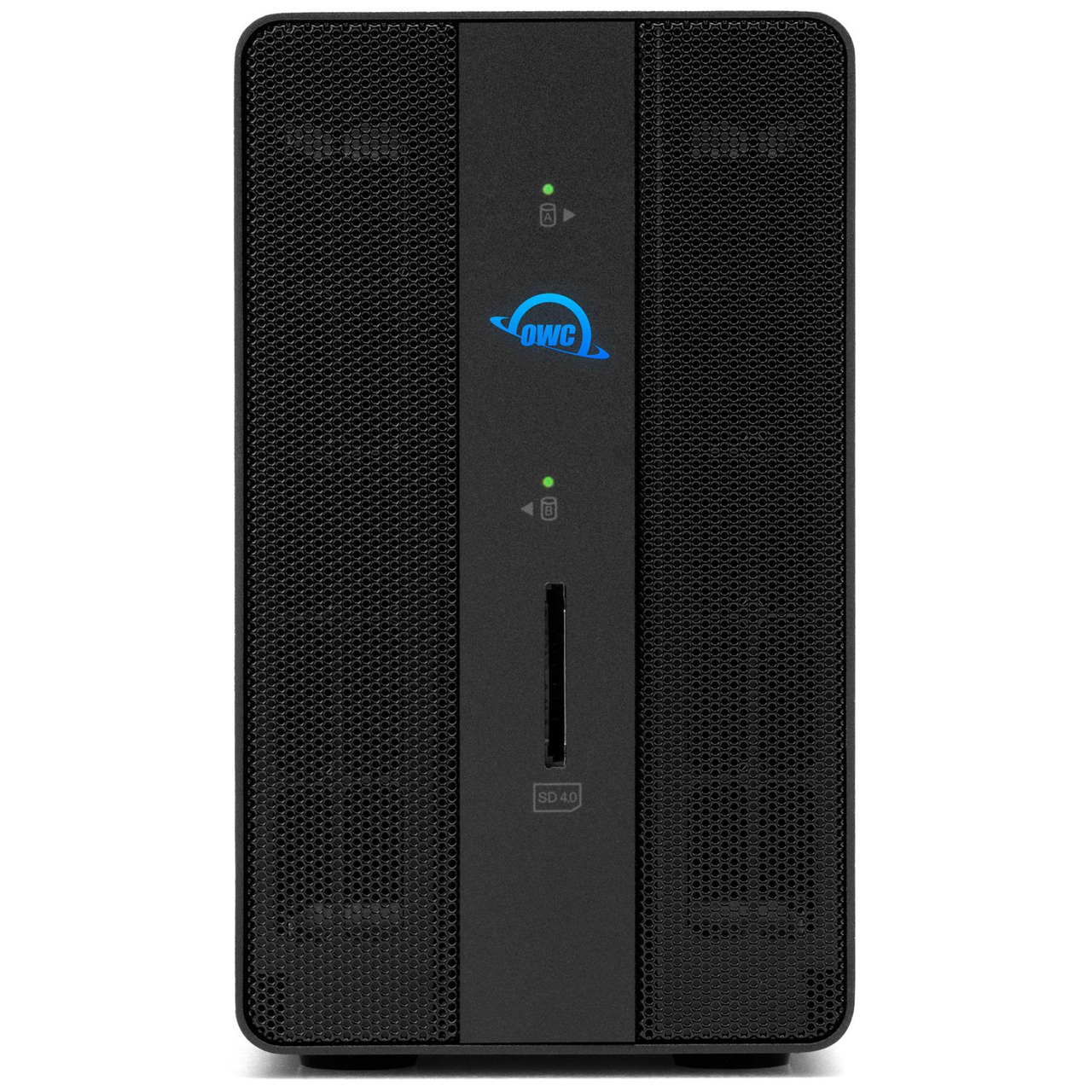

    • Easy Camera Uploads: Frontside SD 4.0 (UHS-II) card reader
    • A Hub of Options: 2x USB 3.2 (10Gb/s) Type-A ports
    • Host Network Connectivity: 2.5Gb/s Ethernet port
    • See Work in Progress: HDMI 2.1 for adding up to an 8K monitor
    • Innergize™ Enabled: custom OWC software for complete health, performance, and field upgrade management when using OWC Atlas Memory Cards with OWC Atlas Card Readers and card reader-equipped products

  • Specifications:

    • Drive Bays 2 bays supporting: 2.5-inch SATA HDDs, 2.5-inch SATA SSDs, 3.5-inch SATA HDDs, 3.5-inch SATA SSDs, 2.5-inch U.2 SSDs, 3.5-inch U.2 SSDs, M.2 SSDs (with M.2 to U.2 adapter)
    • Total Capacity: 24.0TB
    • Total Solution Cache Size: 1024MB
    • Drive Mechanism: 2x 12.0TB Toshiba MG09ACA Series 7,200RPM Enterprise Capacity Hard Disk Drive with 512 MB cache
    • Hot Plug Support: Yes

      RAID Levels Supported
    • SPAN
    • RAID 0
    • RAID 1
    • JBOD

      RAID Features
    • Hardware RAID
    • Software RAID Capable

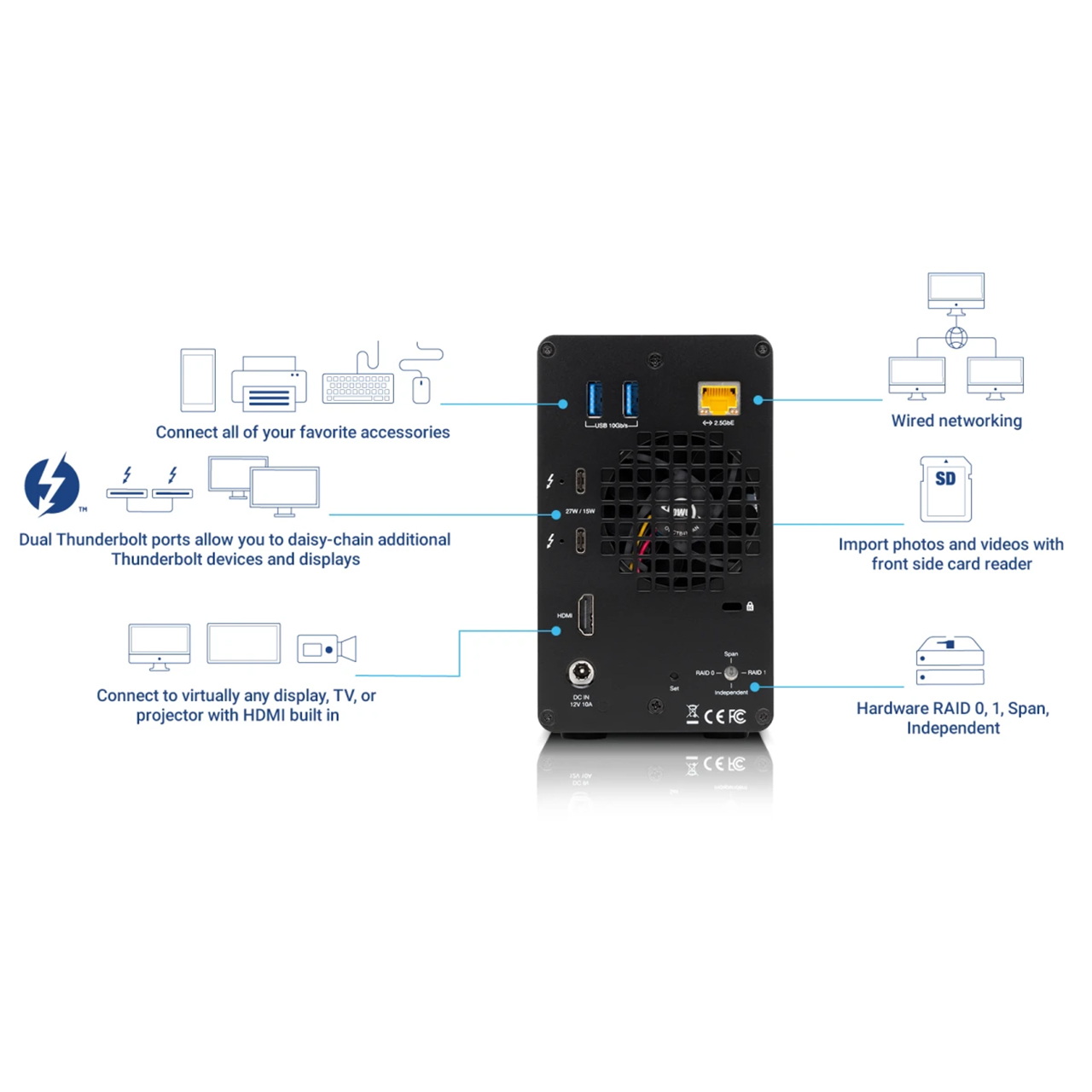

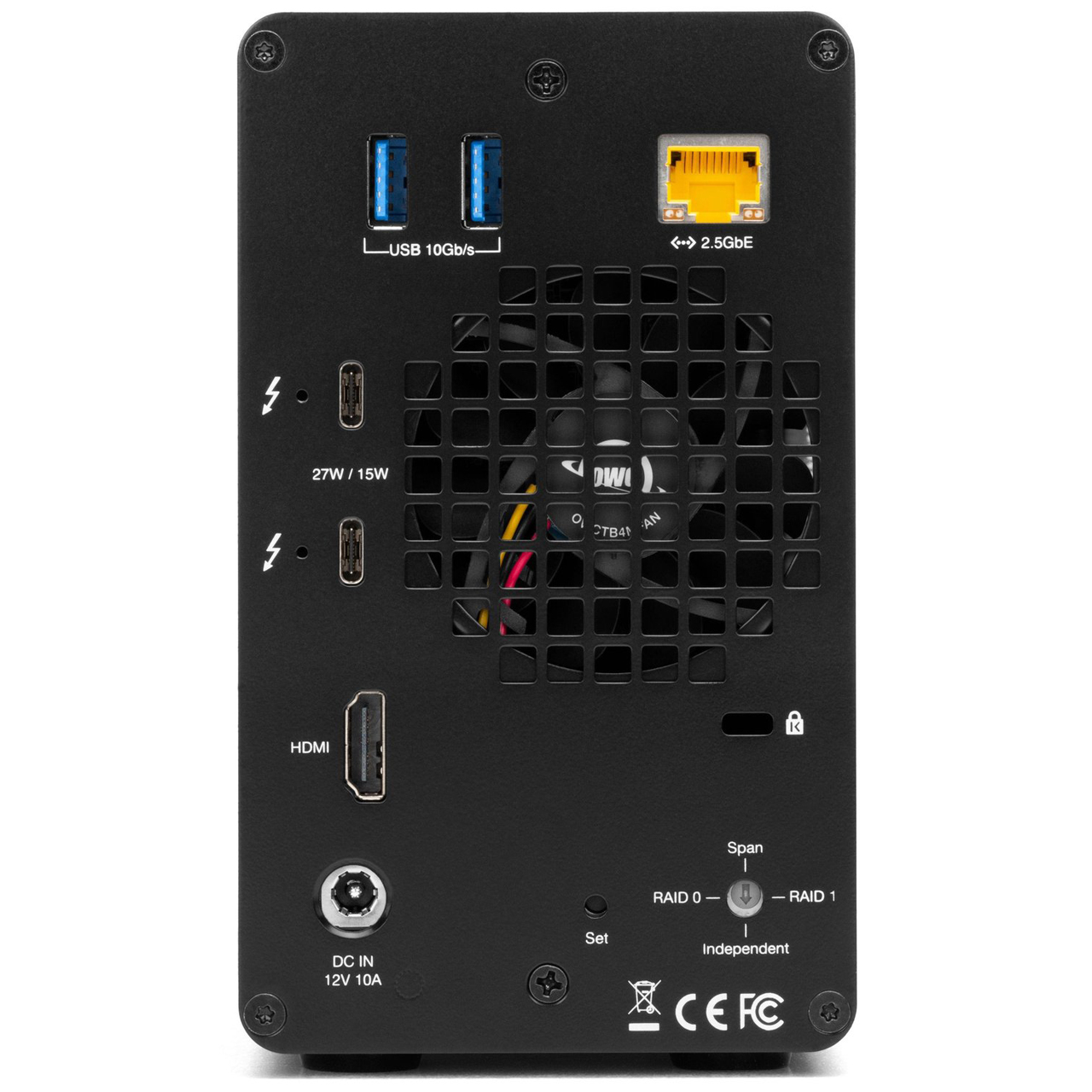

      Device Ports
    • 1x Host Port - Thunderbolt 3 (USB-C) up to 40Gb/s
    • 1x Thunderbolt 3 (USB-C) Port
    • 2x USB 3.2 Gen 2 Type-A Ports up to 10Gb/s - USB 2.0/3.0 backwards compatible
    • 1x HDMI Port
    • 1x 2.5 Gigabit Ethernet (2.5GbE) RJ45 Port
    • 1x SD Memory Card Slot

    • Power Delivery: Provides up to 27 watts of power via Thunderbolt 3 to charge or reduce laptop and device battery draw

      Ethernet Speeds (RJ45)
    • 2.5Gb/s (2.5GBASE-T)
    • 1Gb/s "Gigabit" (1000BASE-T)
    • 100Mb/s (100BASE-T)
    • 10Mb/s (10BASE-T)

    • Data Rate: Up to 40 Gb/s

      Data Transfer Rate (Maximum)
    • Thunderbolt 3: Up to 40Gb/s (or 5000MB/s)
    • USB 3.2 Gen 2: Up to 10Gb/s (or 1250MB/s)

      Chipset/Controller
    • Thunderbolt: 2x Intel JHL7440
    • Media Reader: Genesis Logic GL-3232S
    • Ethernet: 1x Intel i226
    • SATA Controller: ASMedia ASM-1352R

    • Host Interface Requirements: Thunderbolt (USB-C) port

      OS Compatibility
    • macOS 12.x Monterey
    • macOS 13.x Ventura
    • macOS 14.x Sonoma
    • macOS 15.x Sequoia
    • macOS 26.x Tahoe
    • Windows 10 64-bit Edition
    • Windows Server 2016
    • Windows Server 2022
    • Windows 11
    • Linux OS
    • iPadOS 15-26
    • Chrome OS
    • ChromeOS 107 or later

      Driver Requirements
    • Windows 10 and Windows 11 users utilizing the OWC Gemini (2.5GbE) ethernet require a network driver
    • Intel® Network Adapter Driver for Windows® 10 & 11
    • External Power Adapter: Yes

      Other
    • Power Supply: External UL-listed universal auto-switching power supply
    • AC Input: 100V - 240V, 50-60Hz, 2.0A
    • DC Output: +12V, 10A
    • Wattage: 120W
    • Fans: 1x 60mm 3,000RPM cooling fan
    • Security Slot: Yes
    • Power/Activity LED: Yes
    • Housing Color: Black
    • Housing Material: High quality aluminum for optimized heat dissipation
    • Dimensions: 5.8" x 9.4" x 3.3"
    • Weight: 3.53lbs
    • Certifications: CE, FCC, VCCI, BSMI, RCM, Thunderbolt technology
    • RoHS Compliant: Yes
    • Ambient Temperature:
      - Operating: 41°F - 95°F
      - Non-Operating: -4°F - 140°F
    • Altitude:
      - Operating: -1,000ft - 10,000ft
      - Non-Operating: -1,000ft - 40,000ft
    • Humidity:
      - Operating: 8% - 90% non-condensing
      - Non-Operating: 5% - 95% non-condensing
    • Noise: 19.3dB

  • Item Includes:

    • 1x OWC Gemini Thunderbolt Dock and External Storage Solution
    • 1x 28" Thunderbolt (USB-C) Cable
    • 1x External Power Supply & Power Cable
    • 1x Quick Start for OWC Gemini
    • 1x Manual for OWC Gemini
    • 1x OWC Dock Ejector for Mac and Windows (software download)
    • 1x User Guide for OWC Dock Ejector

  • Warranty:

    • 3 Year OWC Limited Warranty
