Pathway Connectivity PWREP MX Repeater Rackmount 8-Ports Compression Fit Terminal Rear Panel Conn - B-Stock (Open/Used)

ITEM #: P9115-BSTK MFG #: P9115-BSTK

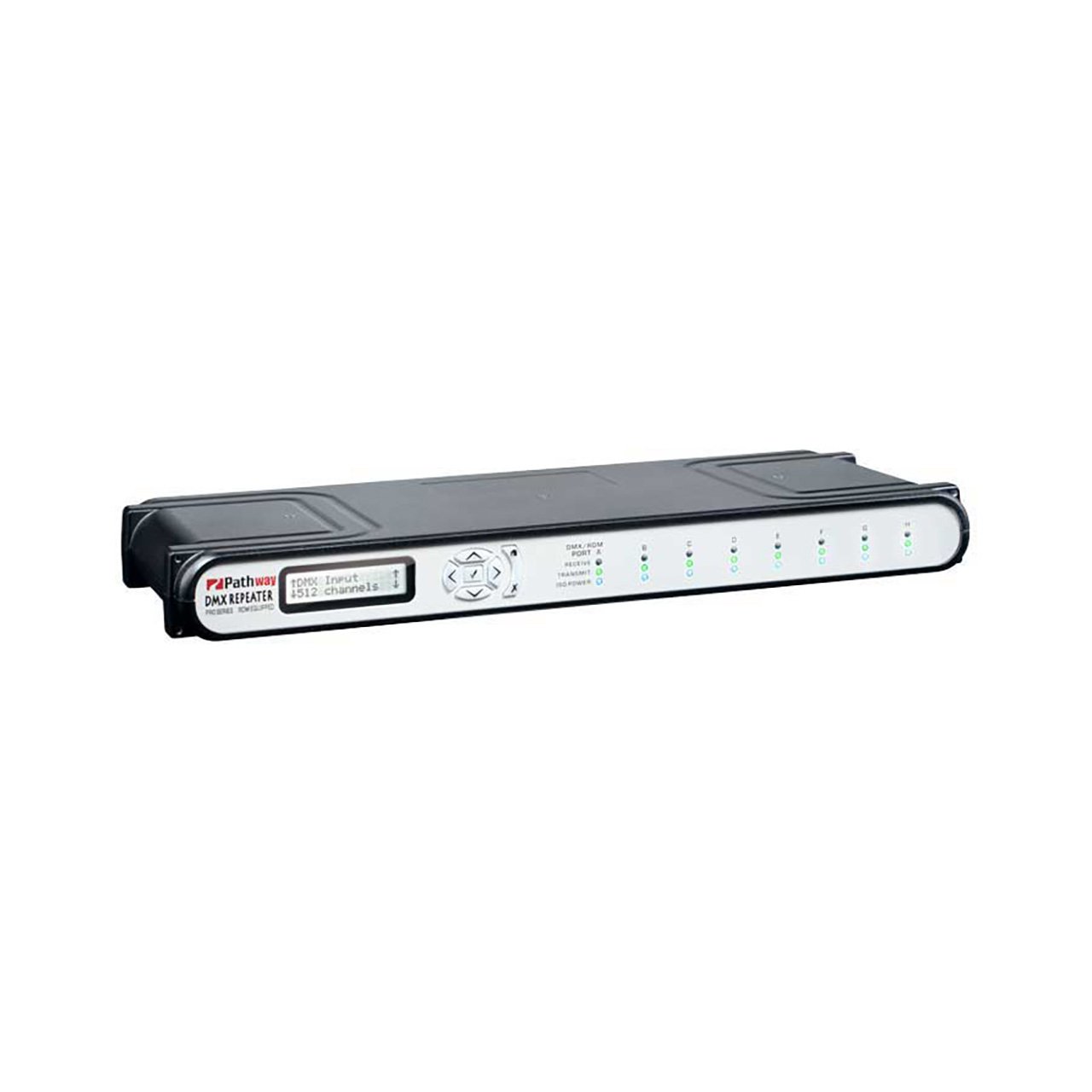

Primary Image
Pathway Connectivity Solutions
Free Shipping with $49 Minimum Order

List Price:

$1,850.00

Our Price:

$1,572.50

Special Price:

$1,399.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

P9115-BSTK - Overview

An increasingly important part of DMX data distribution systems, the Pathway Connectivity P9115 Repeater Pro's support for RDM (Remote Device Management) allows the Repeater Pro to act as an RDM Controller, or a bidirectional RDM splitter.

In venues where a console is moved frequently, Hub Mode allows the Repeater Pro to sense which port is receiving DMX, the automatically route the signal to the remaining ports - eliminating the need for patch bays.

The Repeater Pro also allows for easy prioritization between two consoles, or HTP-merge two sources with one source able to roam - ideal for incorporating remote focus units.

Please Note! This is a B-Stock unit. It is fully opertional but has has been open and used. Does not include original packaging. No longer under manufacturer's warranty.

  • Features:

    • Silent, fanless operation
    • 8 outputs
    • E1.20 RDM and E1.11 DMX512A compliant
    • Three modes: RDM, Merge, and Hub
    • RDM discovery and end device management from the front panel
    • RDM can be disabled on a port-by-port basis to accommodate older equipment
    • Merge two controllers without any additional gear
    • Automatically switch a console between locations by simply unplugging and replugging the console
    • Units running in different modes can be chained together
    • Fully configurable from the front display
    • DMX output speed and signal loss behavior are user-selectable, including hold forever
    • Monitor incoming DMX signal levels in real time
    • DMX Console sends a channel level to all ports, for an independent DMX signal check on end devices
    • Self-resetting over-voltage protection on all ports
    • Ships with rack ears


  • Specifications:

    • General
    • 100-240VAC, 50/60 Hz wide-range power input
    • 0.08A maximum power consumption
    • Operating Conditions: 14°F to 104°F (-10°C to +40°C), 10-90% relative humidity, non-condensing
    • 2000V opto-isolation between DMX ports
    • 250V fault protection on DMX ports


  • Item Includes:

    • 1x Pathway P9115 DMX/RDM Repeater Pro with 8 Way / Rear Terminal
    • 1x Rackmount ears
