Pathway Connectivity PWREP RM P8 TERM REAR RDMHUB MX Repeater Rackmount 8-Ports Compression Fit Terminal Rear Panel Conn

PWREP RM P8 TERM REAR RDMHUB - Overview

• Features:

  • Silent, fanless operation
  • 8 outputs
  • E1.20 RDM and E1.11 DMX512A compliant
  • Three modes: RDM, Merge, and Hub
  • RDM discovery and end device management from the front panel
  • RDM can be disabled on a port-by-port basis to accommodate older equipment
  • Merge two controllers without any additional gear
  • Automatically switch a console between locations by simply unplugging and replugging the console
  • Units running in different modes can be chained together
  • Fully configurable from the front display
  • DMX output speed and signal loss behavior are user-selectable, including hold forever
  • Monitor incoming DMX signal levels in real time
  • DMX Console sends a channel level to all ports, for an independent DMX signal check on end devices
  • Self-resetting over-voltage protection on all ports
  • Ships with rack ears


• Specifications:

  • General
  • 100-240VAC, 50/60 Hz wide-range power input
  • 0.08A maximum power consumption
  • Operating Conditions: 14°F to 104°F (-10°C to +40°C), 10-90% relative humidity, non-condensing
  • 2000V opto-isolation between DMX ports
  • 250V fault protection on DMX ports


• Item Includes:

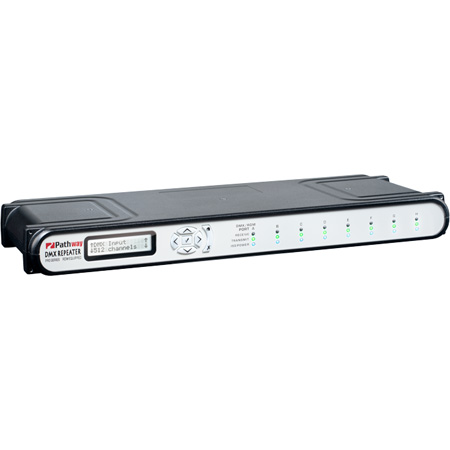

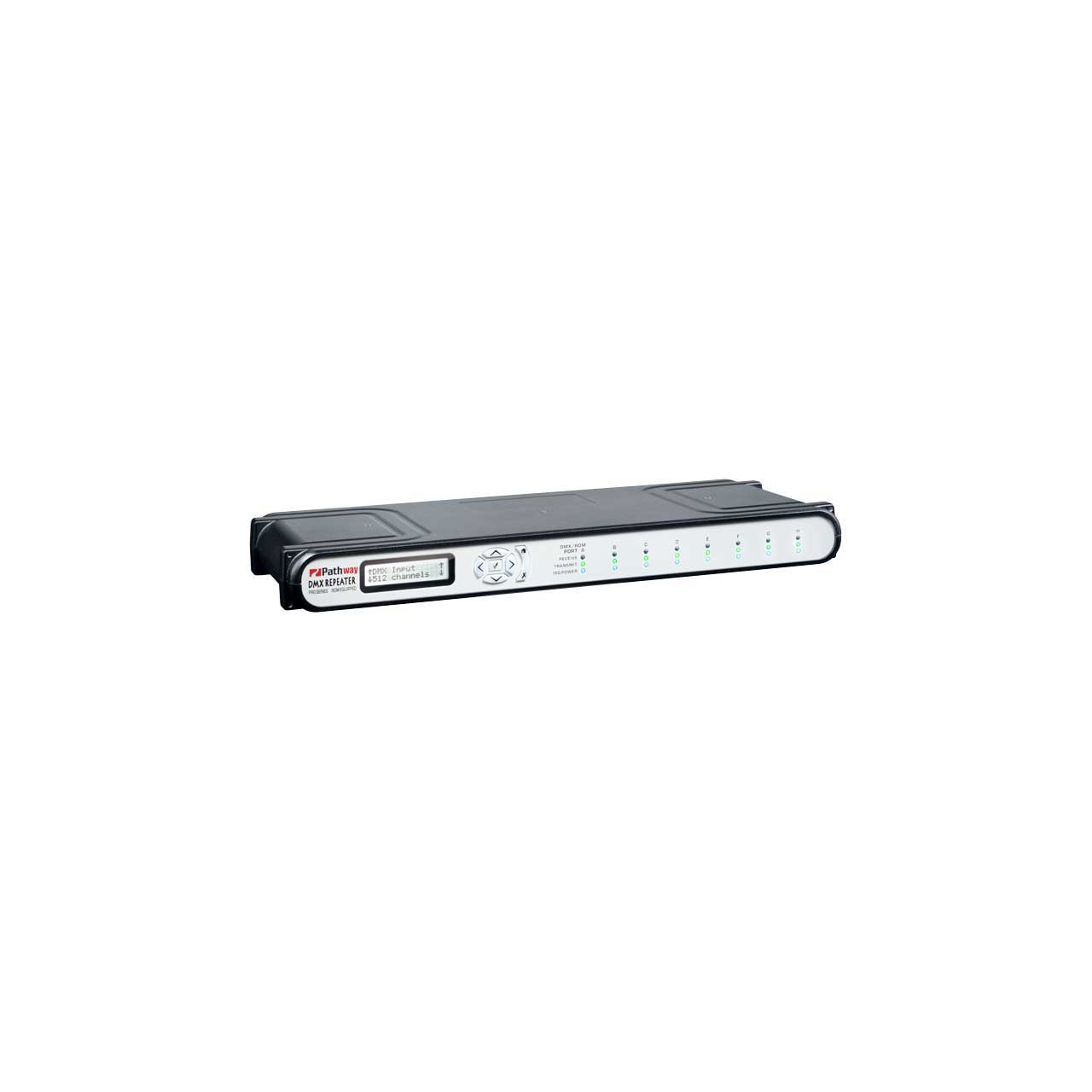

  • 1x Pathway P9115 DMX/RDM Repeater Pro with 8 Way / Rear Terminal
  • 1x Rackmount ears
