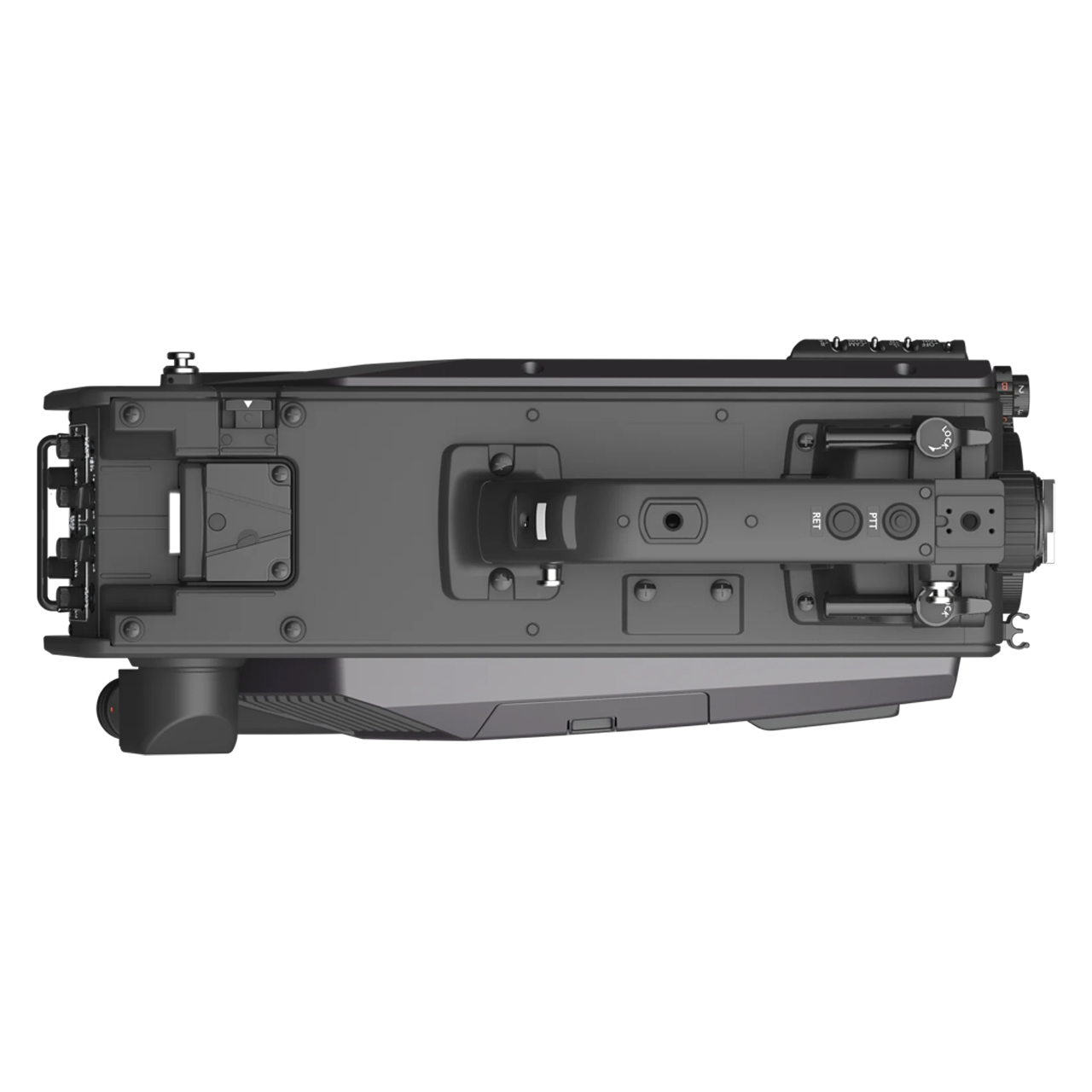

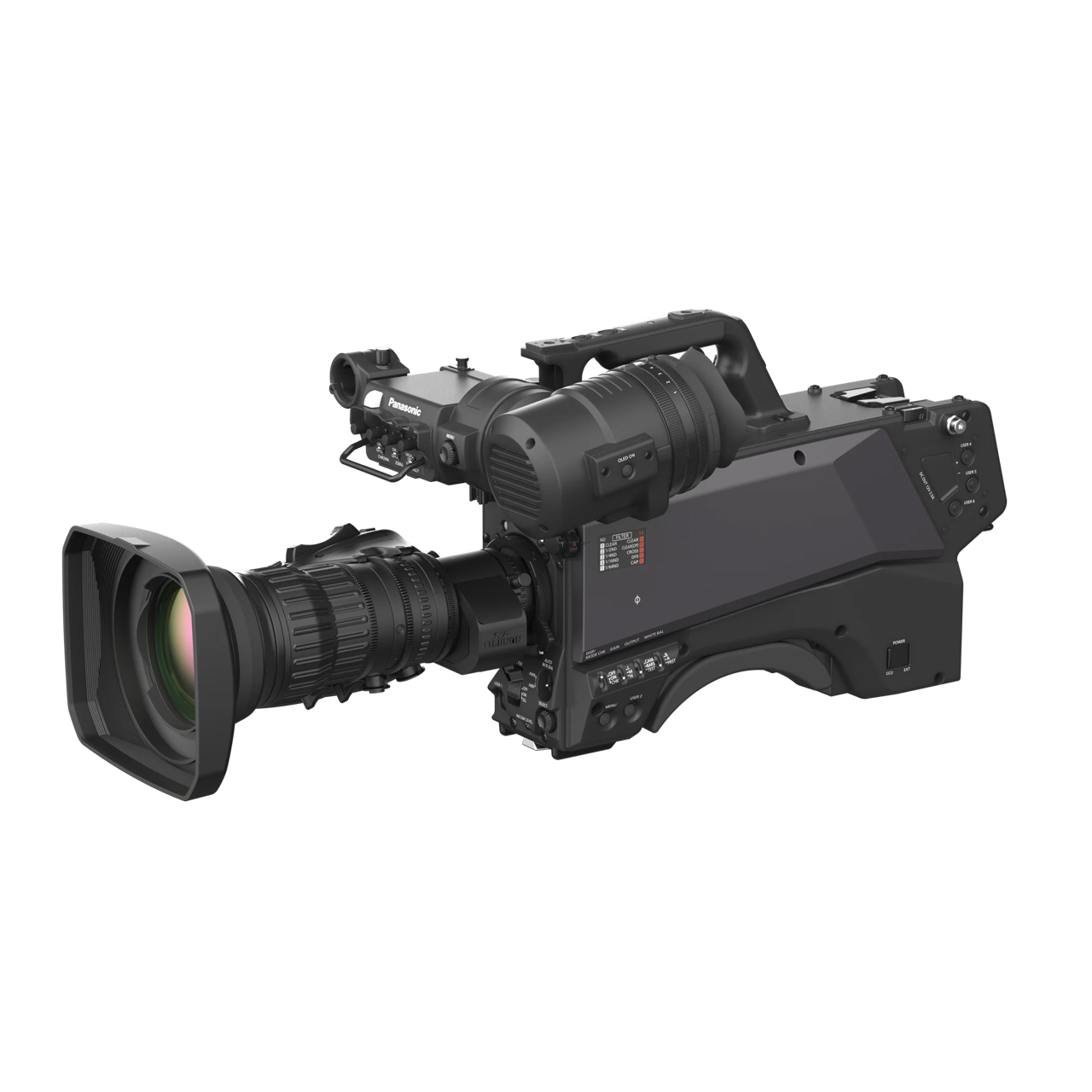

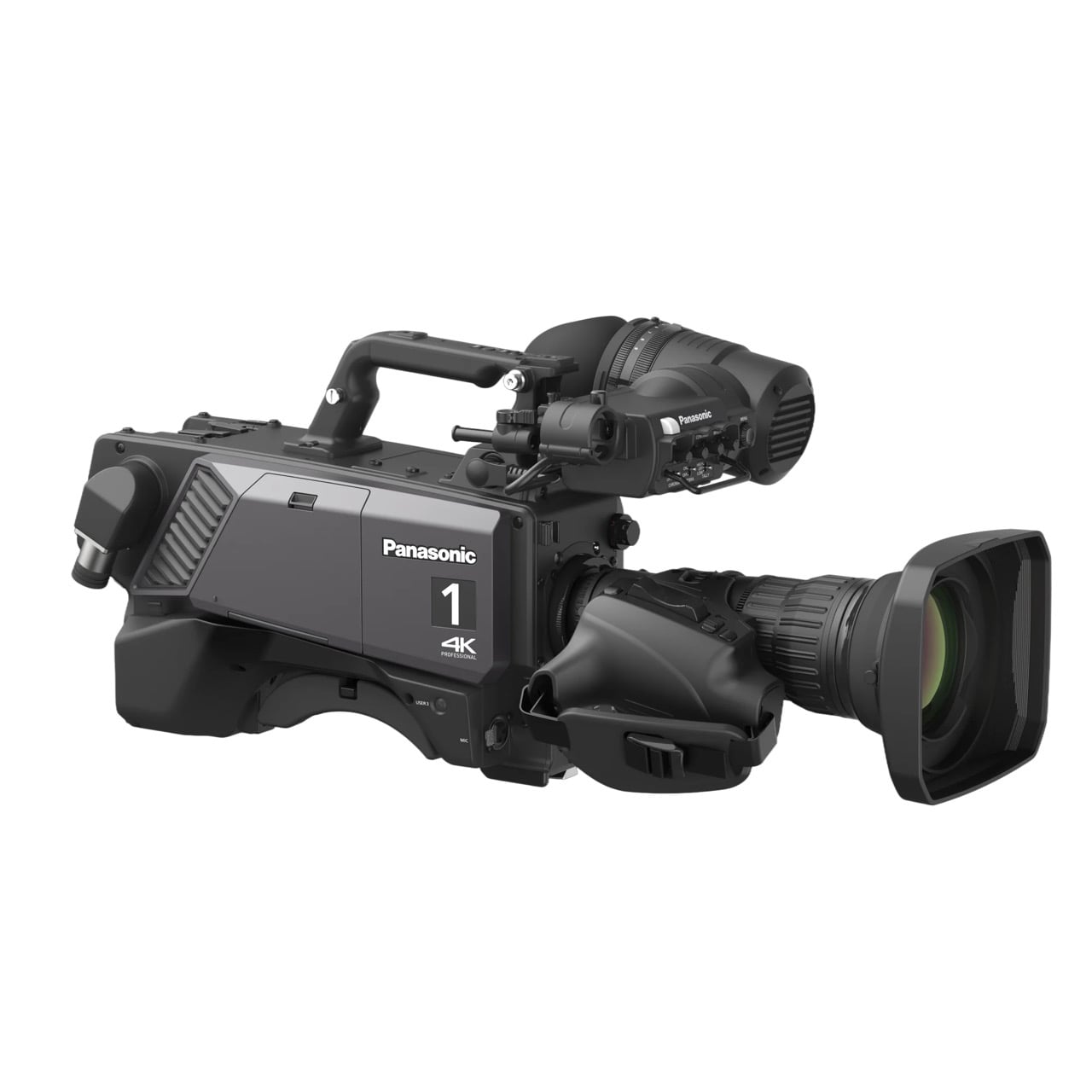

Panasonic AK-UCX100 4K 12G-SDI HDR Studio Camera with SMPTE ST 2110 Support - Black

AK-UCX100GSJ - Overview

4K Studio Camera built for On-site Production with Dante network audio!

• Features:

  • 4K redundant connections using two SFP28 slots
  • Genlock IN for synchronizing video with external signals, and reference output
  • Dante network audio
  • Built-in ND filter with multiple options: Clear, 1/2, 1/4, 1/16 and 1/64
  • Exceptional Resolution
  • Various Interfaces without CCU
  • SMPTE ST 2110 Support for IP Era
  • Simultaneous HLG (BT.2020) and SDR (BT.709)
  • Moire Reduction
  • Integration with Panasonic PTZ Cameras
  • High-precision focus assist function
  • World's first autofocus function built into a camera head
  • Video and Data Transmission (TRUNK)
  • Supports 4K 2x and HD 4x high-speed shooting


• Specifications:

  General
  • Power Supply:
    - DC 12V (when using an external power supply)
    - AC 240V, 50/60Hz (AK-UCU710/AK-UCU710S/AK-UCU700/AK-UCU700S/AK-CFA100 in connected)
  • Power Consumption:
    - 119W (maximum, when connecting to external 12V and including supply to externally connected devices)
    - 360W (maximum, when AK-UCU710/AK-UCU710S/AK-UCU700/AK-UCU700S/AK-CFA100 is connected and including supply to an externally connected device)
  • Operating Temperature: 14°F - 113°F (-10°C - 45°C)(Preheating required under a temperature 32°F (0°C) or below)
  • Operating Humidity: 85% or less (relative humidity)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Weight: Approx. 9.90lbs (4.55kg)(body only, excluding the accessories)
  • Dimensions (WxHxD): 5.96" x 10.53" x 14.66" (157mm x 267mm x 371.5mm)(excluding protrusions)

    Camera Unit
  • Pickup Device: 19.29 million pixels, MOS sensor
  • Optical Filter:
    - ND: CLEAR, 1/2, 1/4, 1/16, 1/64
    - FX: CLEAR, CLEAR (Option*), CROSS, Diffusion, CAP (*Option: HD Low Pass filter)
  • Lens Mount: 2/3-type bayonet
  • Sensitivity:
    - LOW LIGHT: F10 (59.94Hz)/F11 (50Hz)
    - NORMAL: F6 (59.94Hz)/F7 (50Hz)
    - 2000 lx, 3200K, when white reflectivity is 89.9%
  • Horizontal Resolution:
    - 4K: 2000 TV lines or above (center)
    - HD: 1000 TV lines or above (center)
  • S/N: 62dB or above
  • Gain Switching: -6, -3, 0, 3, 6, 9, 12, 15, 18
  • Shutter Speed:
    - 59.94i/59.94p Mode: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
    - 50i/50p Mode: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
    - 29.97p Mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
    - 25p Mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
    - 23.98p Mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
  • System Format:
    - 3840x2160/59.94p/50p/29.97p/25p/23.98p
    - 1920x1080/59.94p/50p/29.97p/25p/23.98p

    Video Input/Output
  • SDI OUT 1:
    - 1x BNC
    - 12G/6G/3G/1.5G-SDI: 0.8Vp-p, 75Ω
  • SDI OUT 2:
    - 1x BNC
    - 12G/6G/3G/1.5G-SDI: 0.8Vp-p, 75Ω
  • TRUNK IN:
    - 1x BNC
    - 3G/1.5G-SDI: 0.8Vp-p, 75Ω
  • G/L IN/REF OUT:
    - 1x BNC
    - G/L IN: Tri-level SYNC or BB (black burst)
    - REF OUT: Black signal without burst

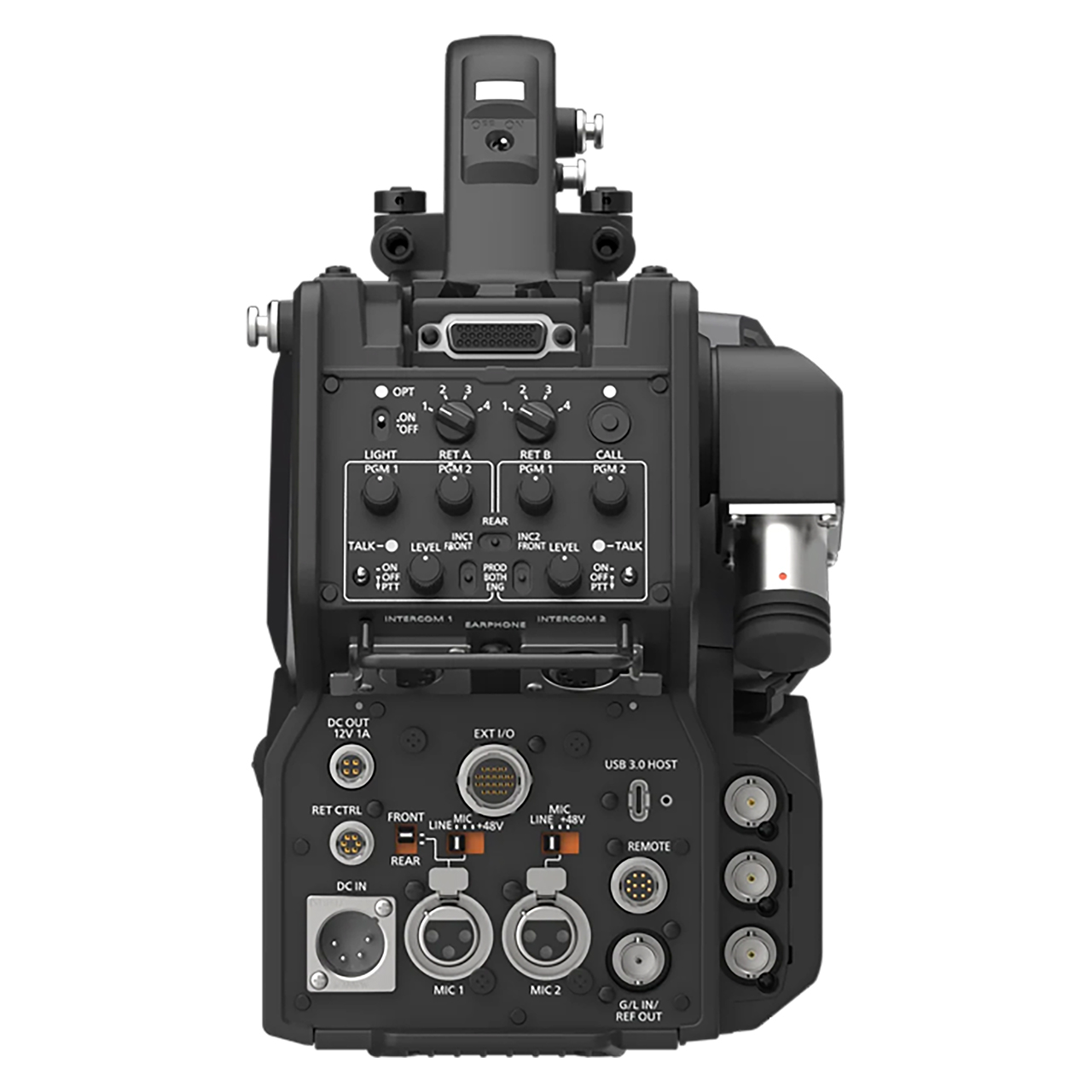

    Audio Input/Output
  • MIC 1:
    - 1x XLR, 3-pin female type
    - LINE/MIC/+48V switchable
    - For MIC, FRONT/REAR switchable
    - LINE: 0dBu,+4dBu menu selection available
    - MIC: -60dBu, -40dBu, or -20dBu menu can be selected
  • MIC 2:
    - 1x XLR, 3-pin female type
    - LINE/MIC/+48V switchable
    - LINE: 0dBu,+4dBu menu selection available
    - MIC: -60dBu, -40dBu, or -20dBu menu can be selected
  • MIC (front):
    - 1x XLR, 3-pin female type
    - Switchable with MIC 1 terminal

    Intercom
  • INTERCOM 1: 1x XLR, 5-pin, female type
  • INTERCOM 2: 1x XLR, 5-pin, female type
  • EARPHONE: 1x Stereo mini jack, 3-pin

    Other Input/Output

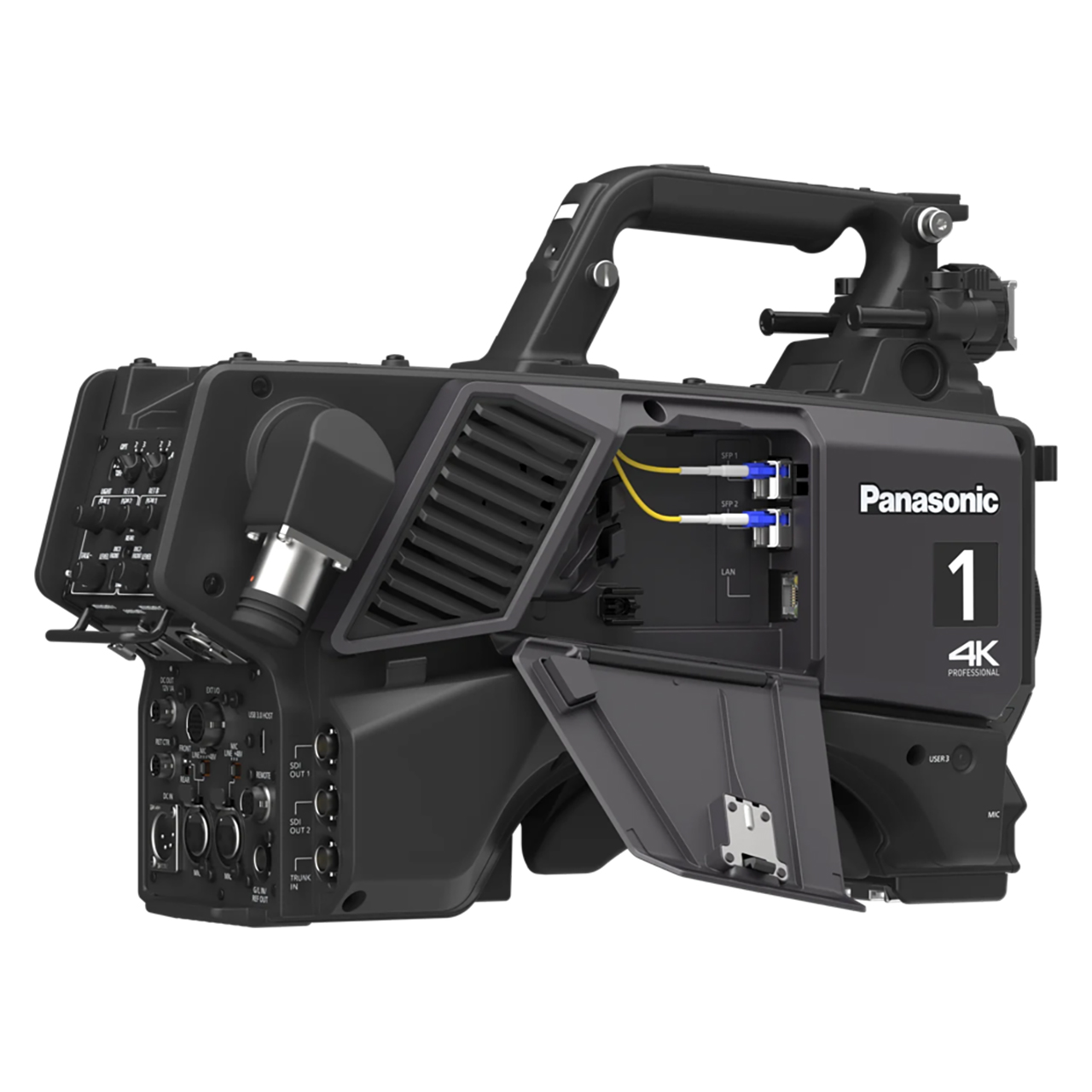

  • OPT FIBER: 1x Optical composite connector
  • SFP 1: 1x SFP28
  • SFP 2: 1x SFP28
  • LENS: 1x 12-pin
  • VF: 1x 20-pin
  • VF (rear): 1x 29-pin
  • DC IN: 1x XLR, 4-pin, DC12V
  • DC OUT 12V 1A: 1x 4-pin
  • RET CTRL: 1x 6-pin
  • EXT I/O: 1x 20-pin, DC12V, 0.5A
  • REMOTE: 1x 10-pin
  • DC OUT 12V 2.5A: 1x 2-pin
  • LAN: 1x RJ45
  • USB3.0 HOST: Type C connector (USB Power Delivery)
  • Build-Up Terminal: 1x 20-pin
