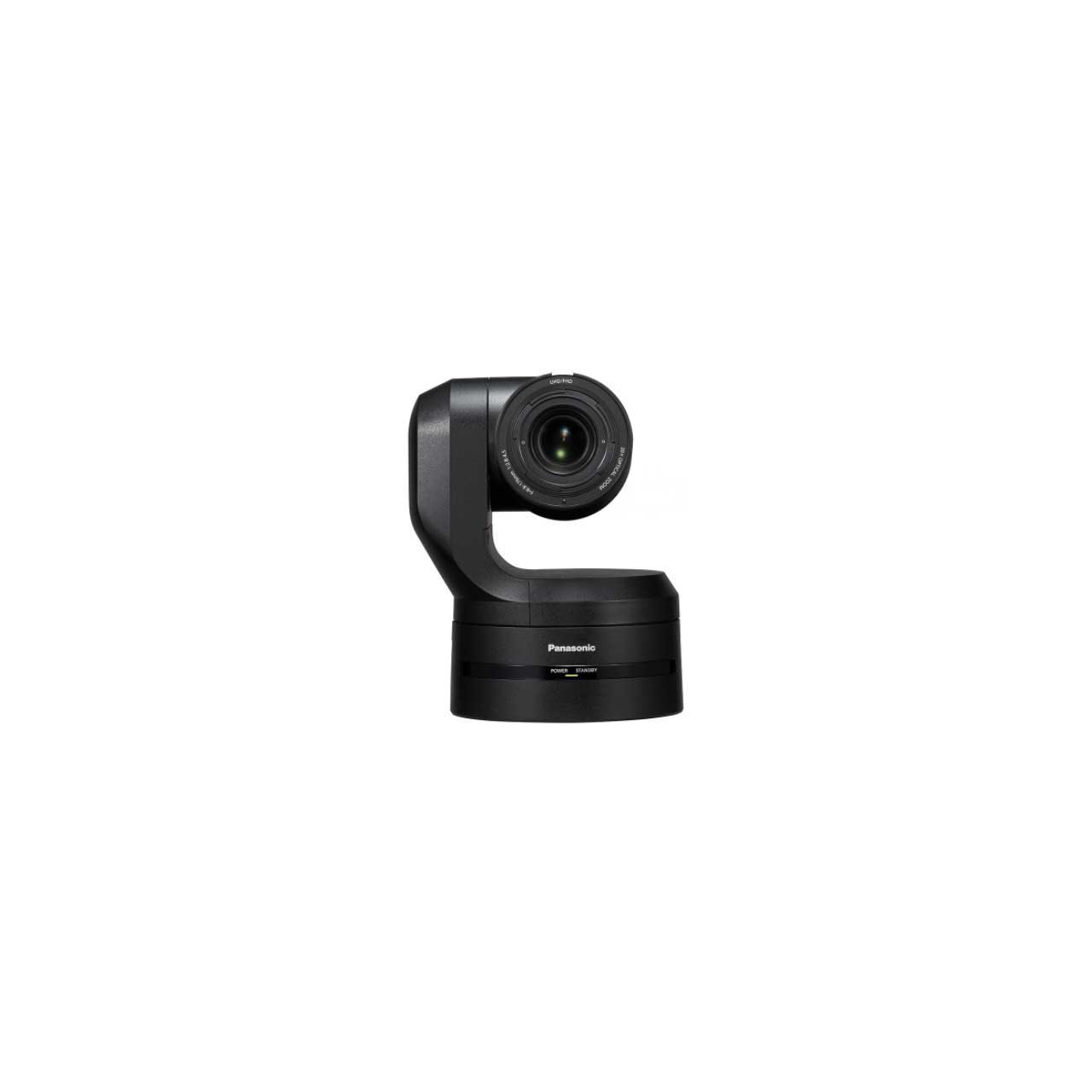

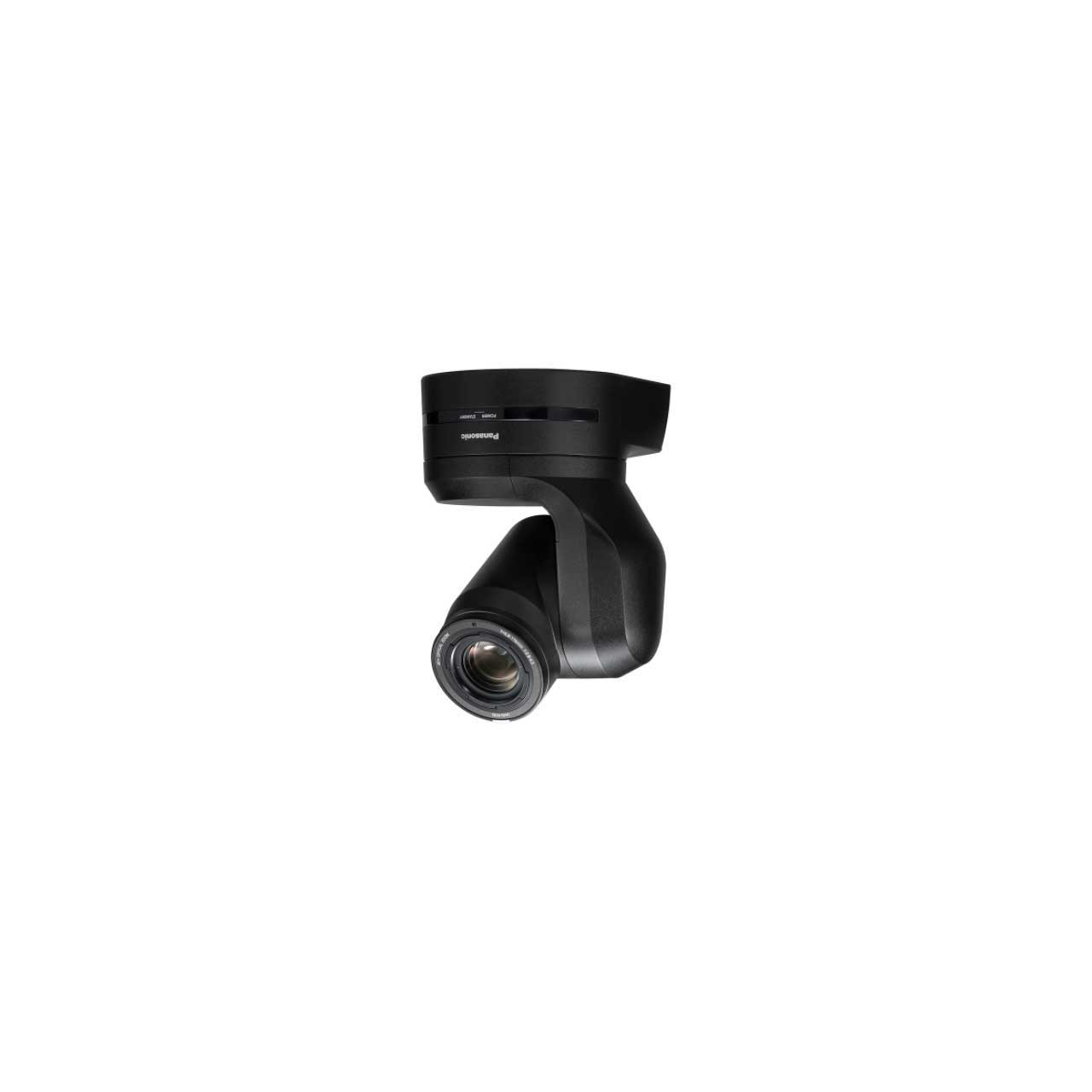

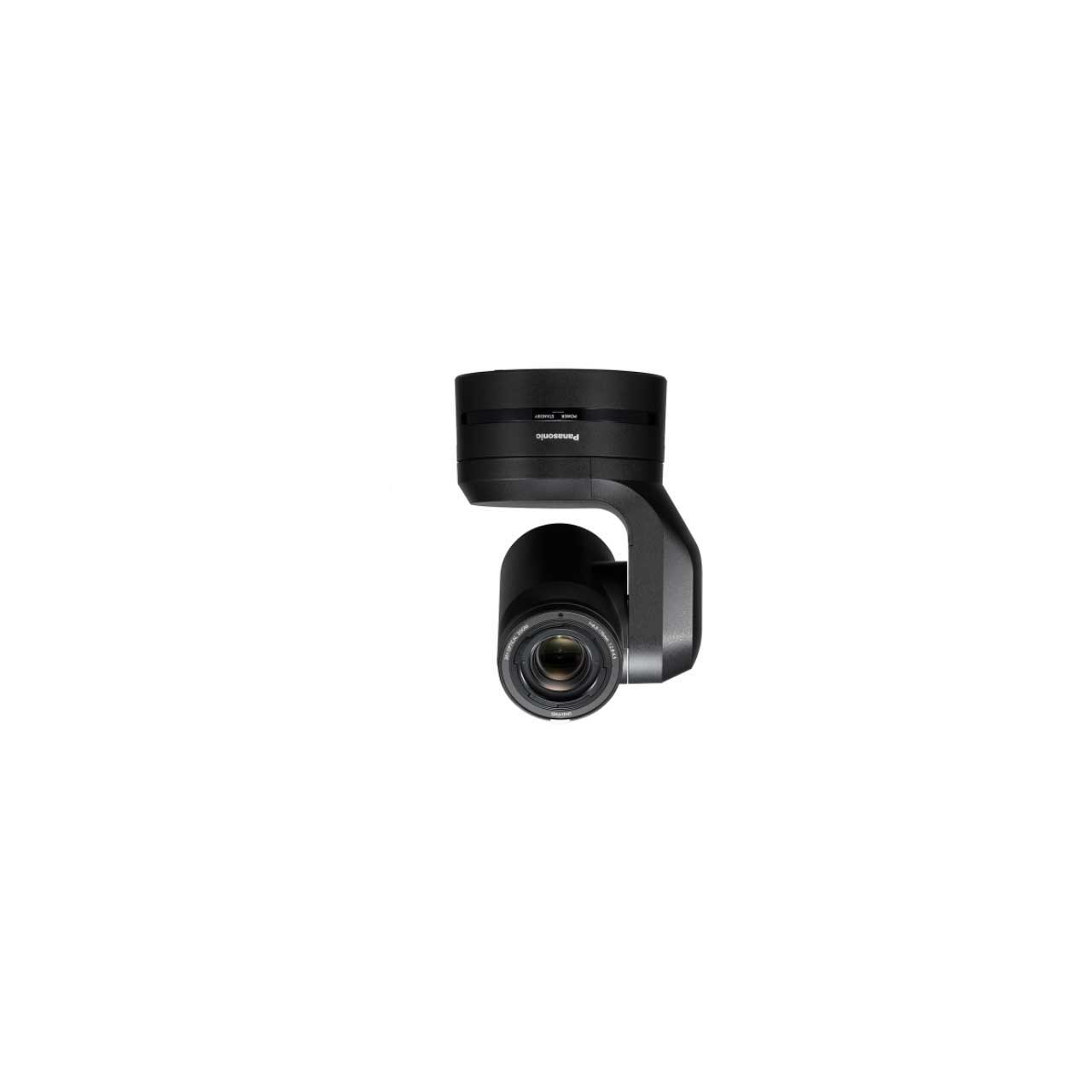

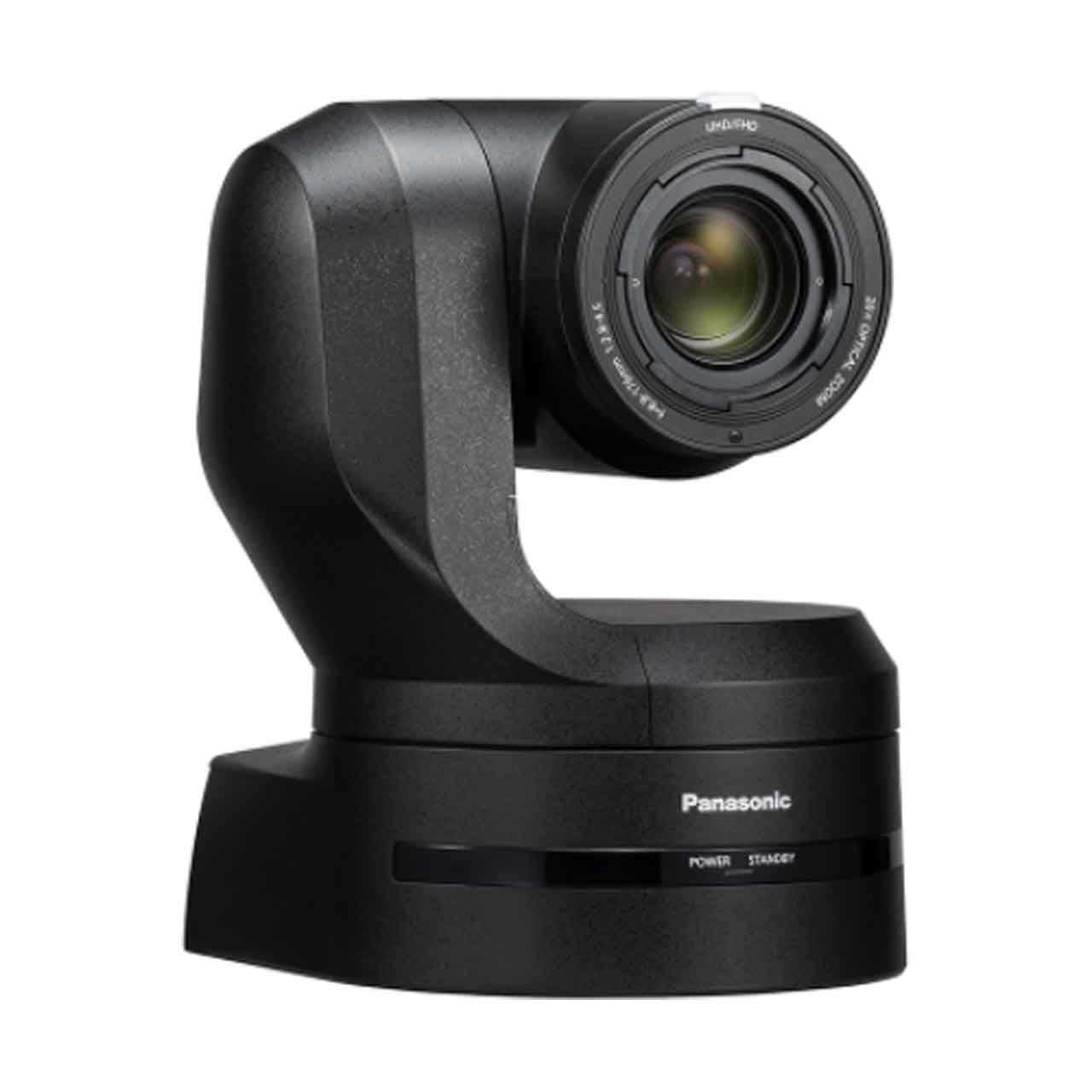

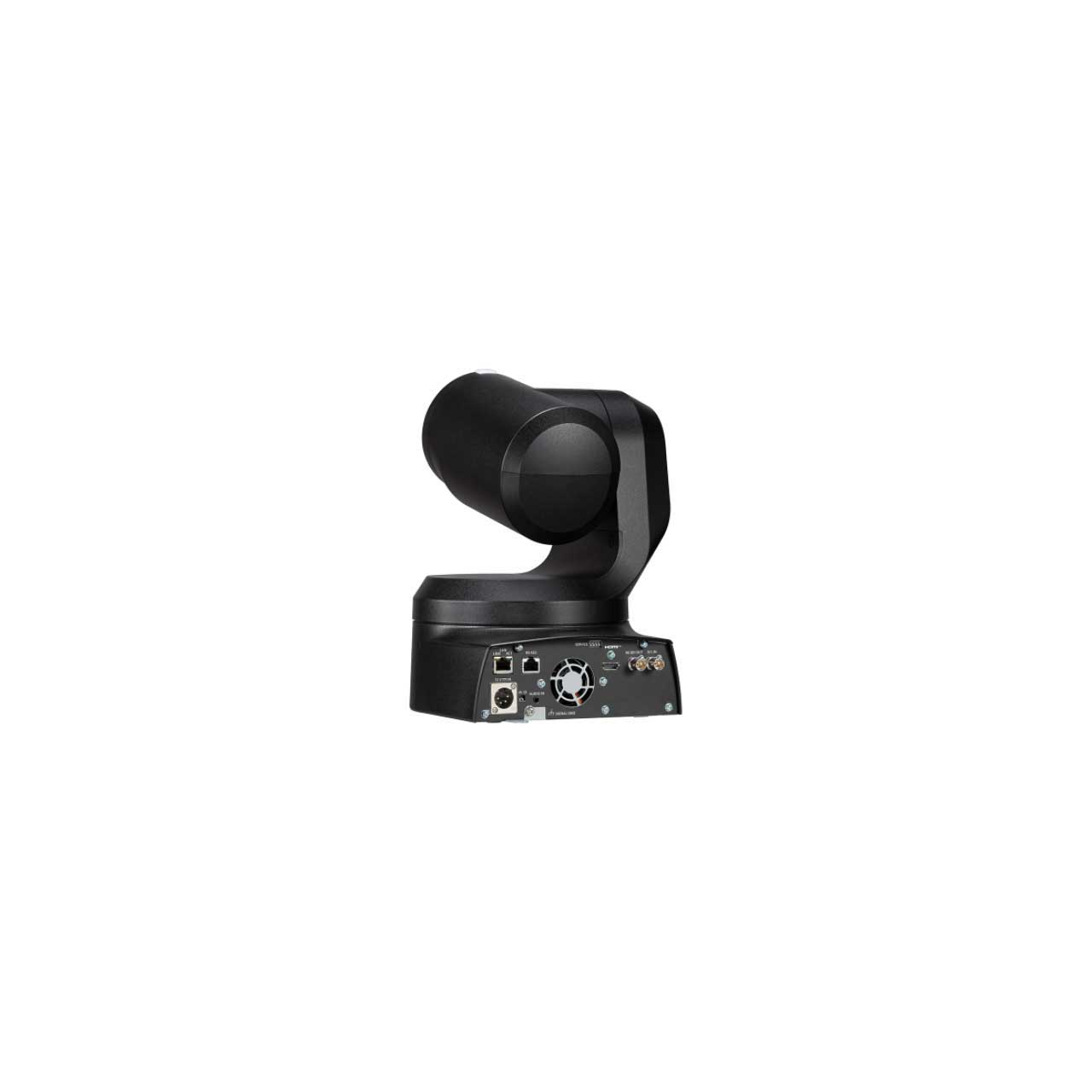

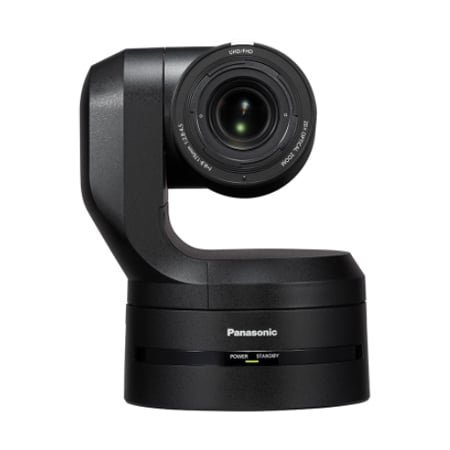

Panasonic AW-HE145KPJ Full HD 60P PTZ Camera with Integrated 20x Zoom - Metallic Black

AW-HE145KPJ - Overview

• Features:

  • High sensitivity achieved with the 1-type large-sized sensor
  • Optical 20x zoom/horizontal 75.1° wide-angle shooting
  • Pan/tilt performance that achieves smooth and accurate operation
  • Enables high-quality video production even in dark environments
  • SRT support for stable video transmission


• Specifications:

  • Dimensions (WxHxD): 8.3 x 10.5 x 8.6" (213 x 267 x 219mm)
  • (excluding protrusions, direct ceiling mount bracket)
  • Storage Temperature: -20° to 50°C (-4° to 122°F)
  • Current consumption: 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
  • Power Requirements: 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
  • Ambient Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Ambient Operating Humidity: 20 % to 90 % (no condensation)
  • Finish: Metallic Black
  • Mass: Approx. 4.1 kg (9.04 lb) (excluding mount bracket)
  • Controller Supported: AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1
  • Lens:
    Motorized Optical 20x zoom, F2.8 to F4.5
    [f=8.8 mm (11/32") to 176.0 mm (6-15/16");
    35 mm (1-3/8") equivalent: 24.5 mm (31/32") to 490.0 mm (19-9/32")]
  • Minimum Illumination: 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
  • Synchro Scan:
  • 59.94p/59.94i: 60.00 Hz to 7200 Hz
    29.97p: 30.00 Hz to 7200 Hz
    23.98p/24p: 24.00 Hz to 7200 Hz
    50p/50i: 50.00 Hz to 7200 Hz
    25p: 25.00 Hz to 7200 Hz
  • Zoom:
    Optical zoom: 20x
    i.Zoom: FHD 32x
    Digital zoom: 10x
  • Horizontal Resolution: 1000 TV lines Typ (Center area)
  • Gain Selection: Auto, 0 dB to 36 dB*2
  • Super Gain Function Equipped: +37 dB to 42 dB
  • White Balance:
    ATW: 3200K, 5600K
    ATW Speed: Normal / Slow / Fast
    AWB: AWB-A / AWB-B
    VAR (selectable between 2000K and 15000K by designating a value)
  • Optical Filter: Through, 1/4, 1/16, 1/64, IR through (IR through is used as "Night mode")
  • Output Format: 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
  • Color Separation Optical System: 1MOS
  • Focus: Switching between auto and manual
  • Focus Distance: Entire zooming range: 1000 mm (3.3 ft)
  • Wide End: 100 mm (0.33 ft)
  • Gamma: HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
  • Scene File: Scene1, Scene2, Scene3, Scene4
  • Electronic Shutter Speed:
    59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
  • Imaging Sensors: 1-type Full-HD MOSx1
  • Chroma Amount Variability: OFF, -99 to 99 %
