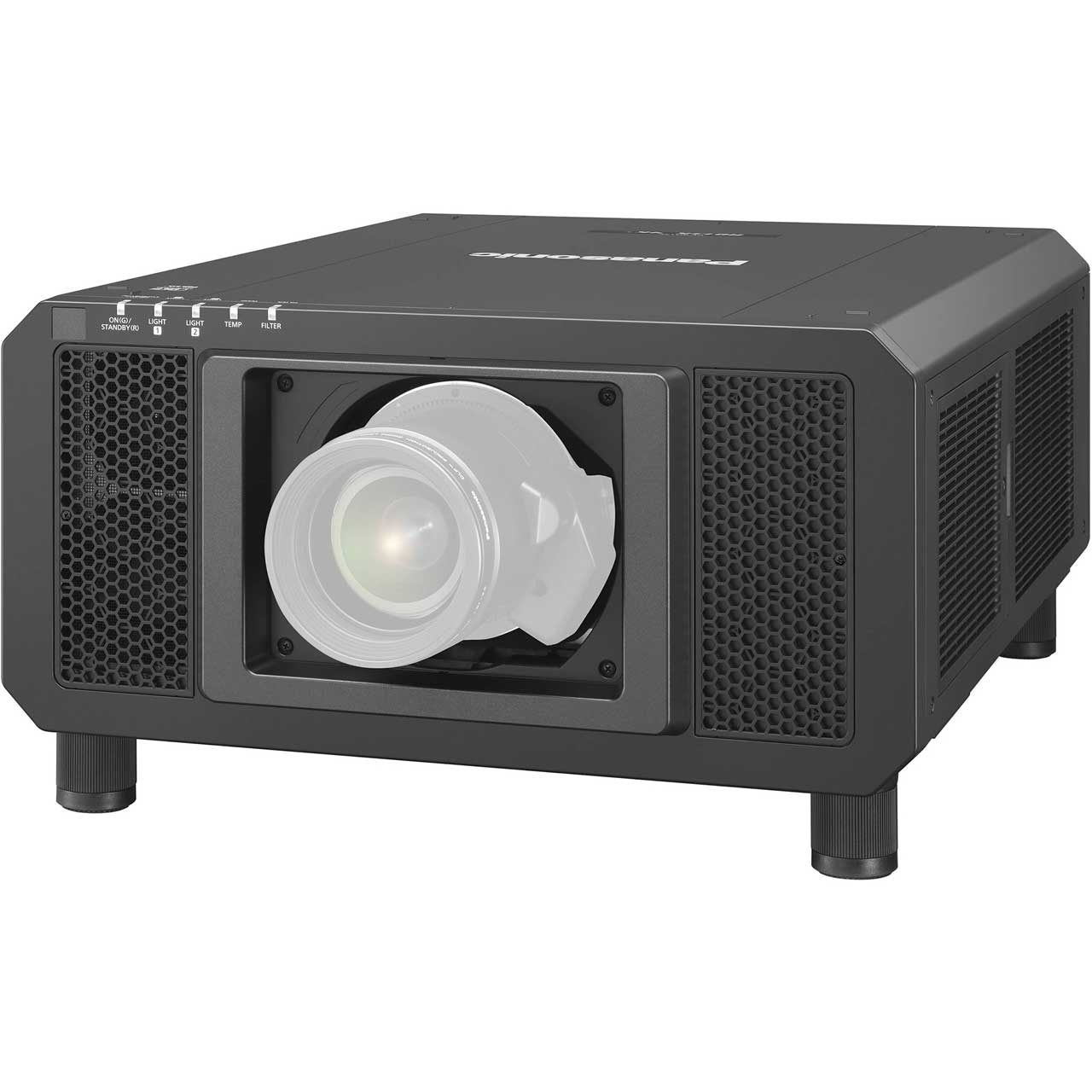

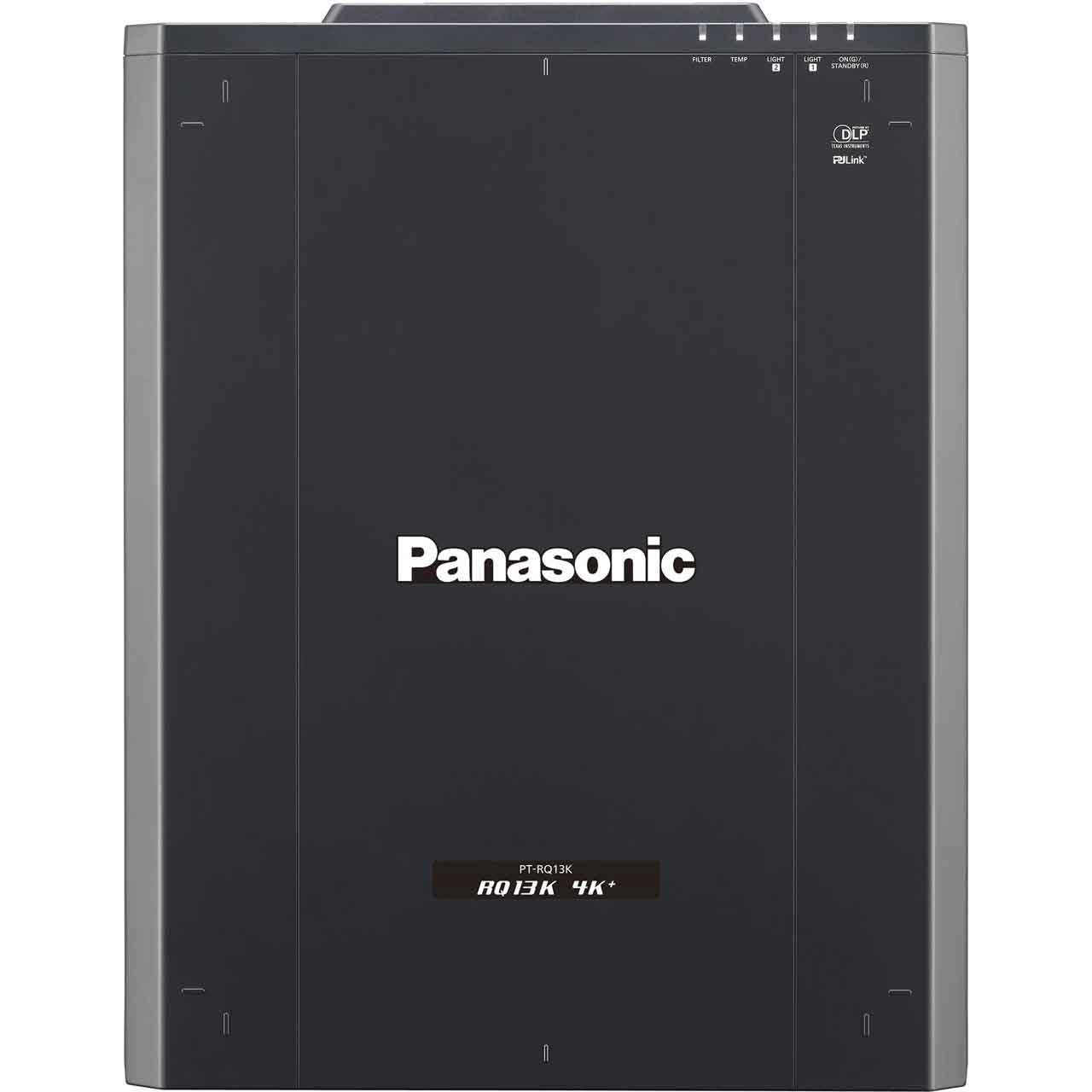

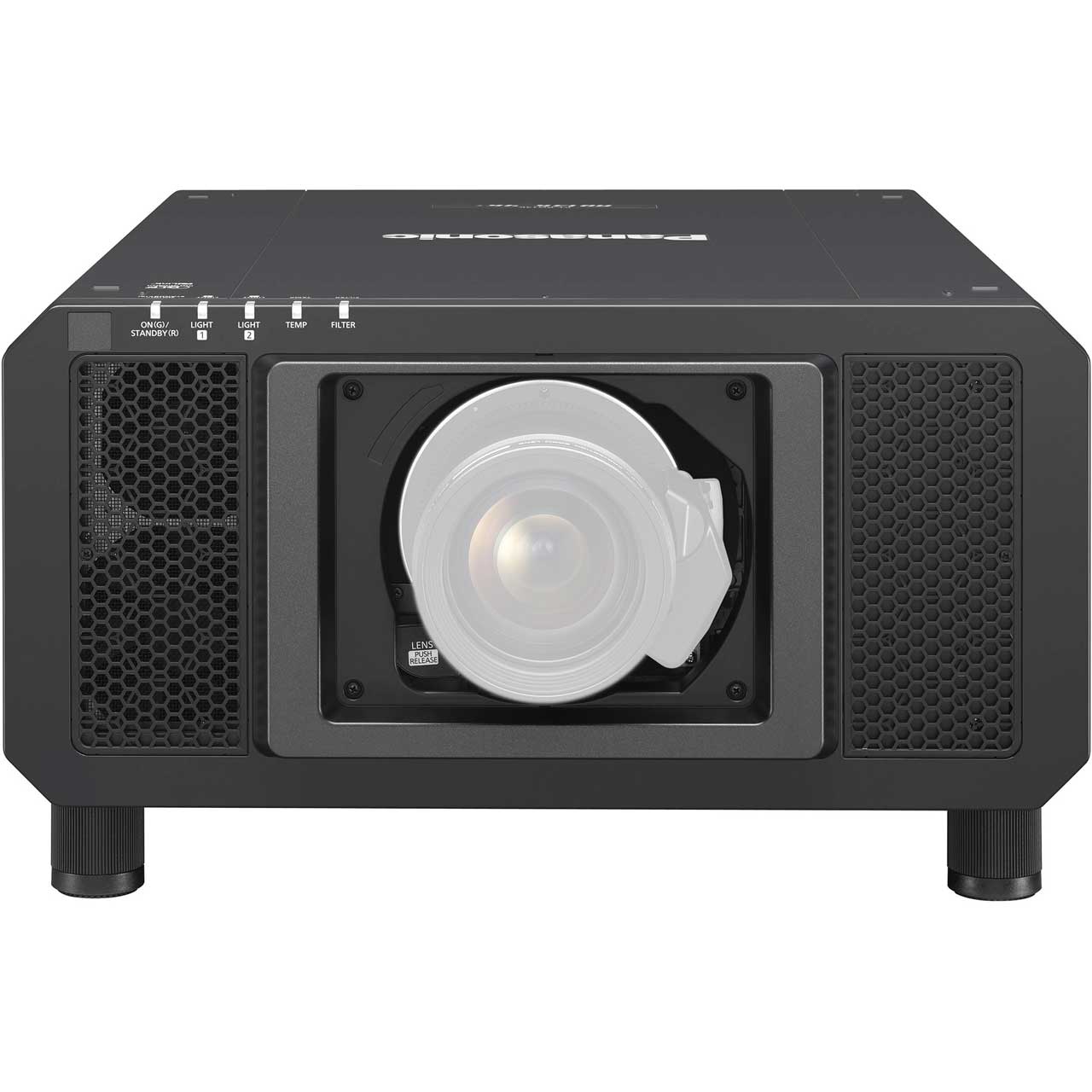

Panasonic PT-RQ13KU 10000 Lumens Video Projector - 3DLP Laser with 4K (5120 x 3200) Resolution - Lens Not Included

ITEM #: PAN-PT-RQ13KU MFG #: PT-RQ13KU

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$93,699.00

Our Price:

$50,359.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.
  • Shipped truck freight.


PT-RQ13KU - Overview

Combining 3-Chip DLP imaging with Panasonic's original SOLID SHINE Laser technology, the PT-RQ13KU achieves lifelike 4K+ resolution with a high 10,000 lm of brightness. Two powerful solid-state laser light-source modules and three independent DLP chips for red, green, and blue ensure outstanding brightness, color accuracy, and contrast.

Dual Drive Laser Optical Engine uses two discrete light sources grouping laser diodes into modules. A failsafe laser light source redundancy circuit ensures minimal reduction in brightness and color uniformity in the event of laser diode failure, making PT-RQ13KU Series ideal for mission-critical applications. Further, brightness decreases gradually and in a linear rather than exponential fashion (as is common to lamp-based projectors) over its 20,000-hour maintenance-free service life.

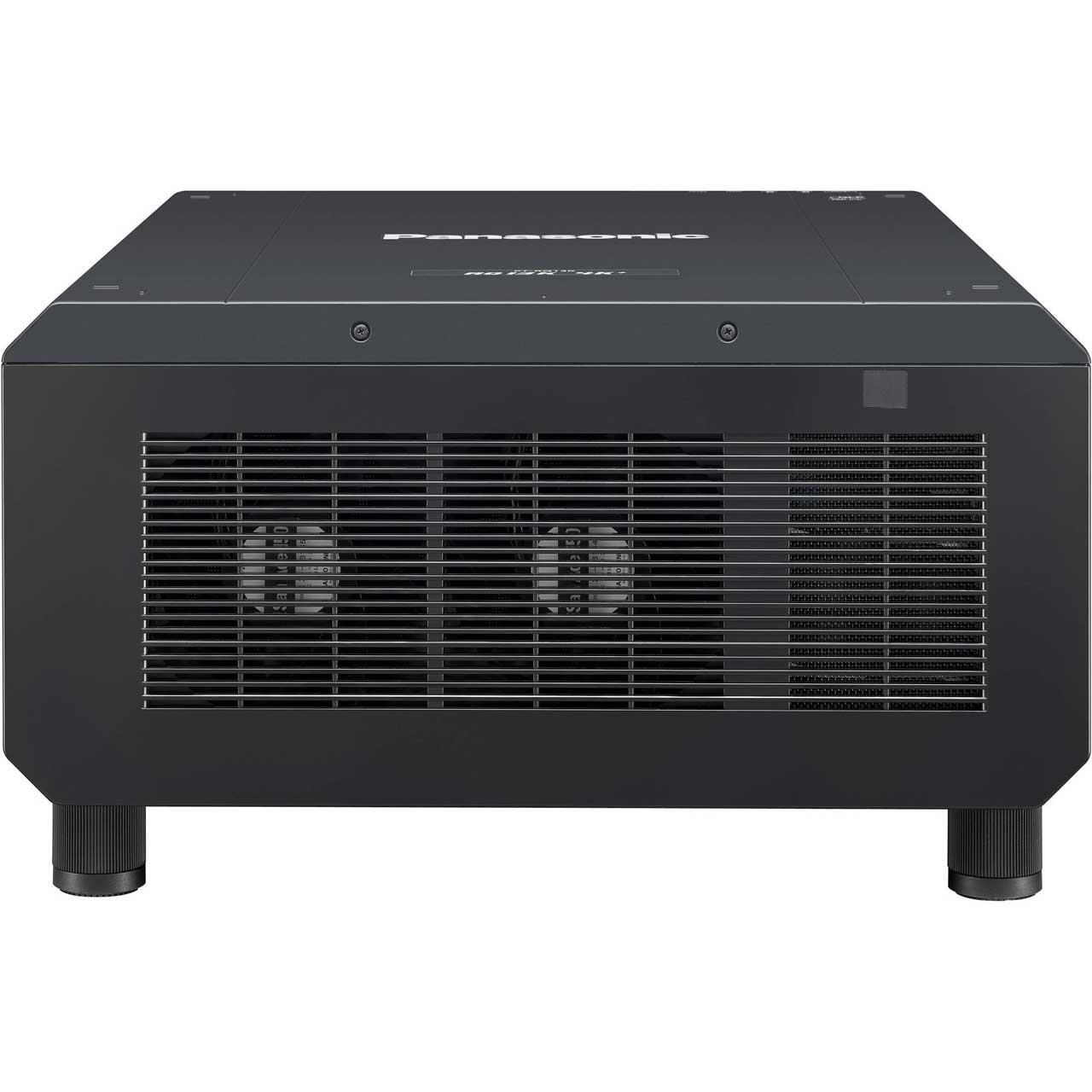

The PT-RQ13KU Series employs a newly developed direct liquid cooling system for the laser light source that features a redesigned air intake and a solid aluminum heat sink to suppress temperature rises. This allows stable operation in ambient temperatures of up to 122°F while reducing operating noise to just 43 dB.

  • Features:

    • Laser 3-chip DLP, 10000 lumens, 4K+
    • 5K pixel performance with a quad pixel drive system on a WQXGA
      chipset
    • 240Hz high frame rate for superb and sharp motion pictures
    • Lamp-free laser projection and dust resistant liquid cooling system with
      20000 hours of free maintenance
    • 20,000:1 contrast ratio

  • Specifications:

    • Brightness: 10,000 lumens
    • Resolution: 5,120 x 3,200 pixels (Quad Pixel Drive: ON)
    • Lamp: 3-Chip DLP Laser
    • Power supply: AC 100-240 V, 50/60 Hz
    • Power consumption: 1,270 W
    • Operating Temperature: 77 °F Altitude: 700m (22 ft 12 in)
    • Picture mode: Dynamic, Dynamic Contrast
    • DLP™ chip Panel size: 22.9 mm (0.9 inches) diagonal (16:10 aspect ratio)
    • DLP™ chip Display method: DLP™ chip x 3 (R, G, B), DLP™ projection system
    • DLP™ chip Pixels: 4,096,000 (2,560 x 1,600) x 3, total of 12,288,000 pixels
    • Refresh Rate: 240 Hz
    • Lens: Optional powered zoom/focus lenses
    • Light source: Laser Diode (Laser class: Class 1)Class 3R for North America.
    • Luminance life for set: 20,000 hours at half luminance (normal)/
    • 24,000 hours at half luminance (Eco)
    • Temperature: 95°F Altitude 700m (22ft 12in), Dust: 0.15mg/m
    • Screen size: 1.78-25.4 m (70-1,000 inches) (16:10 aspect ratio)
    • Contrast: 20,000:1 (full on/full off, in Dynamic Contrast 3 mode)
    • Single-link HD-SDI signal SMPTE ST 292 compliant(YPBPR 4:2:2 10-bit):
      720/60p, 720/50p, 1035/60i, 1080/60i, 1080/50i, 1080/25p, 1080/25sF,
      1080/24p, 1080/24sF, 1080/30p, 1080/30sF
    • Single-link 3G-SDI signal SMPTE ST 424 compliant (YPBPR 4:2:2 10-bit):
      1080/60p, 1080/50p, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p,
      (RGB 4:4:4 12-bit/10-bit, YPBPR 4:4:4 12-bit/10-bit): 1080/60i, 1080/50i,
      1080/25p, 1080/25sF, 1080/24p, 1080/24sF, 1080/30p, 1080/30sF, (RGB
    • 4:4:4 12-bit/10-bit, YPBPR 4:4:4 12-bit/10-bit, X'Y'Z' 4:4:4 12-bit):
      2048 x 1080/24p, 2048 x 1080/24sF, 2048 x 1080/25p, 2048 x 1080/25sF,
      2048 x 1080/30p, 2048 x 1080/30sF
    • Dual-link HD-SDI signal SMPTE ST 372 compliant(YPBPR 4:2:2 10-bit):
      1080/50p, 1080/60p, (RGB 4:4:4 12-bit/10-bit, YPBPR 4:4:4 12-bit/10-bit):
      1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/25sF, 1080/30p,
      1080/30sF, 2048 x 1080/24p, 2048 x 1080/24sF, 2048 x 1080/25p,
      2048 x 1080/25sF, 2048 x 1080/30p, 2048 x 1080/30sF, (X' Y' Z' 4:4:4
      12-bit*3): 2048 x 1080/24p, 2048 x 1080/24sF, 2048 x 1080/25p,
      2048 x 1080/25sF, 2048 x 1080/30p, 2048 x 1080/30sF
    • Dual-link 3G-SDI signal SMPTE ST 425 compliant (YPBPR 4:4:4 12-bit/10-bit):
      1080/50p, 1080/60p, 2048 x 1080/48p, 2048 x 1080/50p, 2048 x 1080/60p,
      (RGB 4:4:4 12-bit/10-bit) : 1080/50p, 1080/60p, 2048 x 1080/48p,
      2048 x 1080/50p, 2048 x 1080/60p, (YPBPR 4:2:2 10-bit): 3840 x 2160/24p,
      3840 x 2160/25p, 3840 x 2160/30p, 4096 x 2160/24p, 4096 x 2160/25p,
      4096 x 2160/30p
    • Quad-link HD-SDI signal (YPBPR 4:2:2 10-bit):
      3840 x 2160/24sF, 3840 x 2160/24p, 3840 x 2160/25sF, 3840 x 2160/25p,
      3840 x 2160/30sF, 3840 x 2160/30p, 4096 x 2160/24sF, 4096 x 2160/24p,
      4096 x 2160/25sF, 4096 x 2160/25p, 4096 x 2160/30sF, 4096 x 2160/30p
    • Quad-link 3G-SDI signal SMPTE ST 425 compliant (YPBPR 4:2:2 10-bit):
      3840 x 2160/60p, 3840 x 2160/50p, 4096 x 2160/60p, 4096 x 2160/50p,
      (YPBPR 4:2:2 12-bit, YPBPR 4:4:4 10-bit/12-bit, RGB 10-bit/12-bit)
      3840 x 2160/24sF, 3840 x 2160/24p, 3840 x 2160/25sF, 3840 x 2160/25p,
      3840 x 2160/30sF, 3840 x 2160/30p, 4096 x 2160/24sF, 4096 x 2160/24p,
      4096 x 2160/25sF, 4096 x 2160/25p, 4096 x 2160/30sF, 4096 x 2160/30p

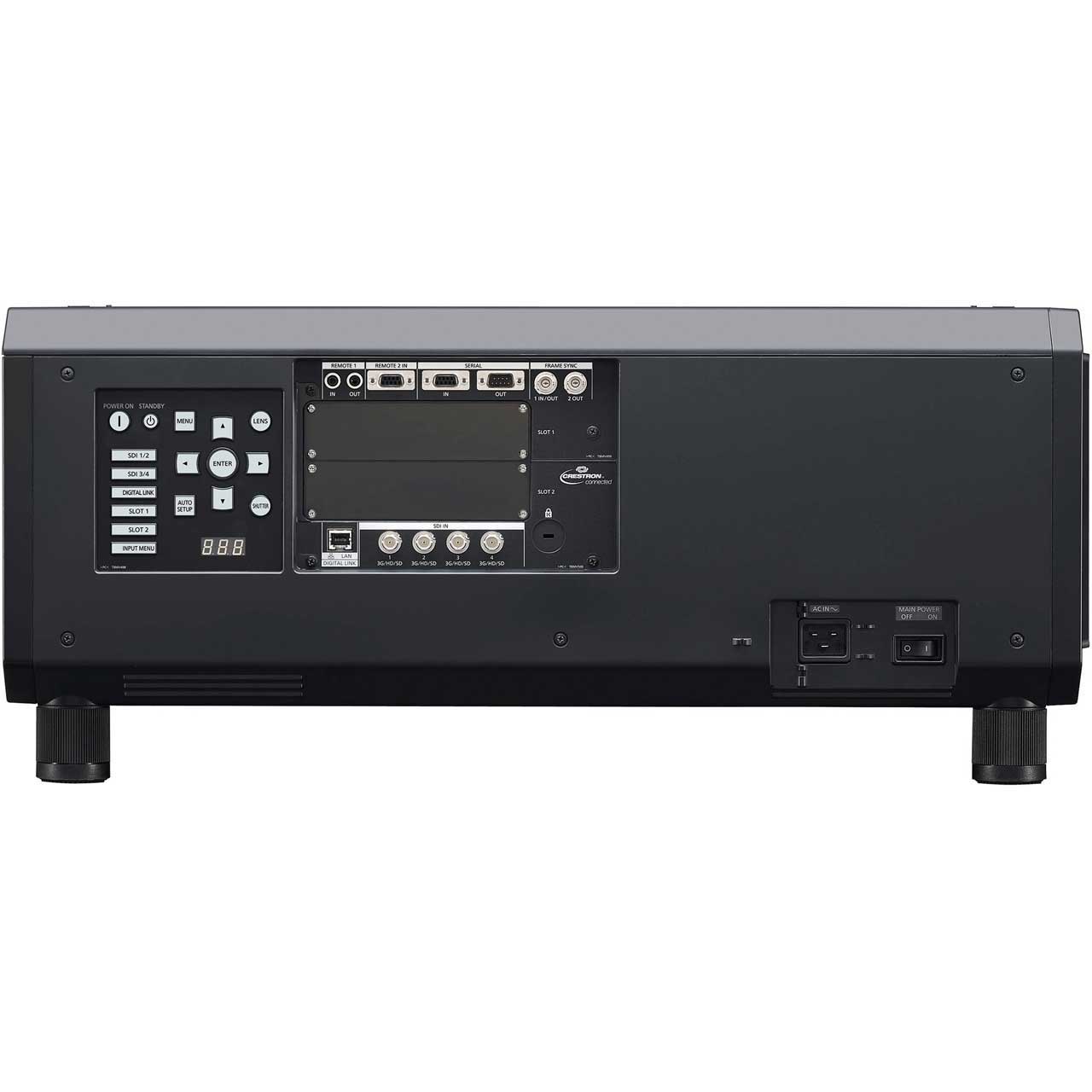

    • Terminals: SDI IN 1
      BNC x 1
      3G/HD/SD-SDI input, Dual-link input (LINK-A) ,
      Quad-link input
      SD-SDI signal SMPTE ST 259 compliant
      HD-SDI signal SMPTE ST 292 compliant
      3G-SDI signal SMPTE ST 424 compliant
      Dual-link HD-SDI signal SMPTE ST 372 compliant
      Dual-link 3G-SDI signal SMPTE ST 425 compliant
      Quad-link HD-SDI signal
      Quad-link 3G-SDI signal SMPTE ST 425 compliant
    • Terminals: SDI IN 2:
      BNC x 1
      3G/HD/SD-SDI input, Dual-link input (LINK-B)
      Quad-link input
      SD-SDI signal SMPTE ST 259 compliant
      HD-SDI signal SMPTE ST 292 compliant
      3G-SDI signal SMPTE ST 424 compliant
      Dual-link HD-SDI signal SMPTE ST 372 compliant
      Dual-link 3G-SDI signal SMPTE ST 425 compliant
      Quad-link HD-SDI signal

  • GTIN:

    0885170253292
