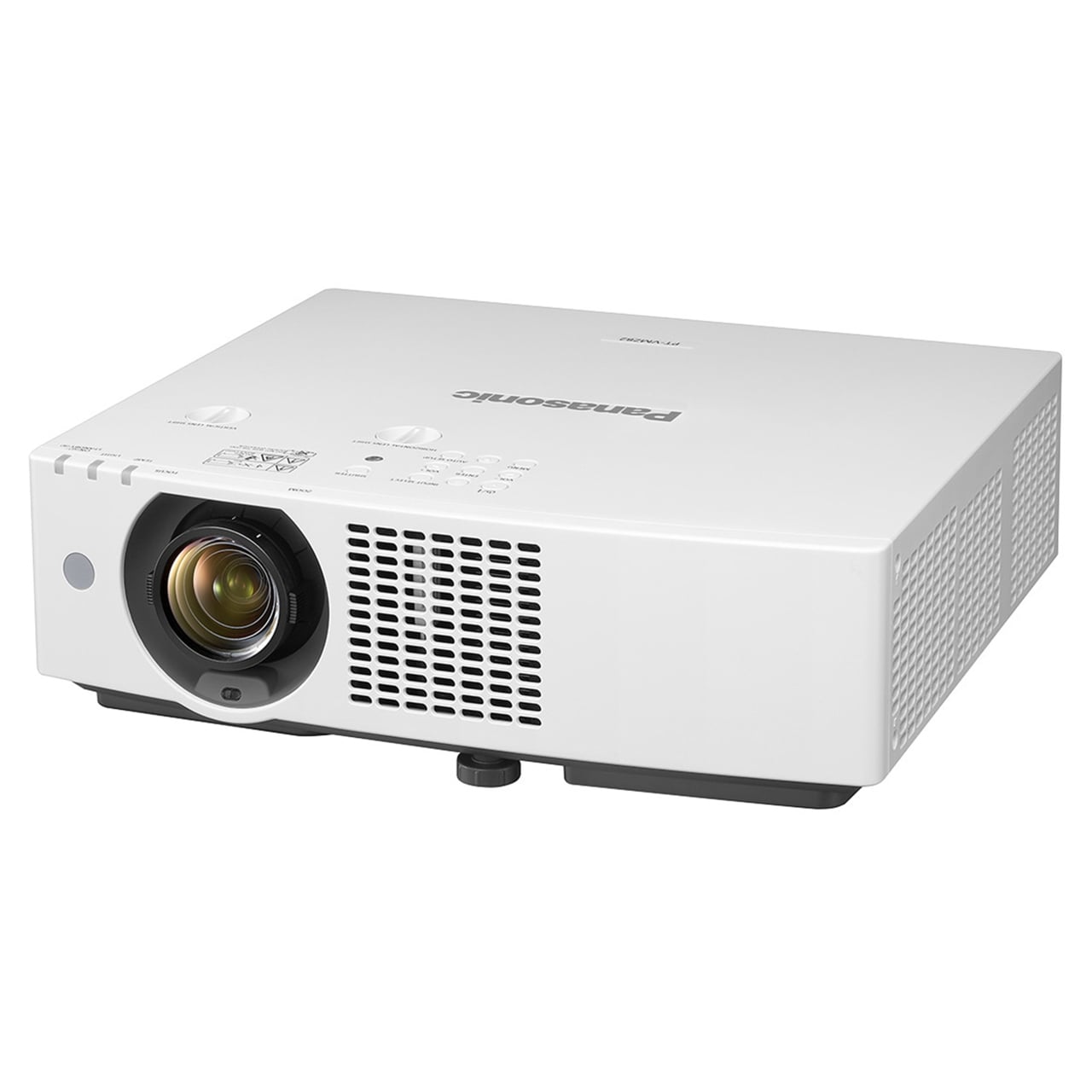

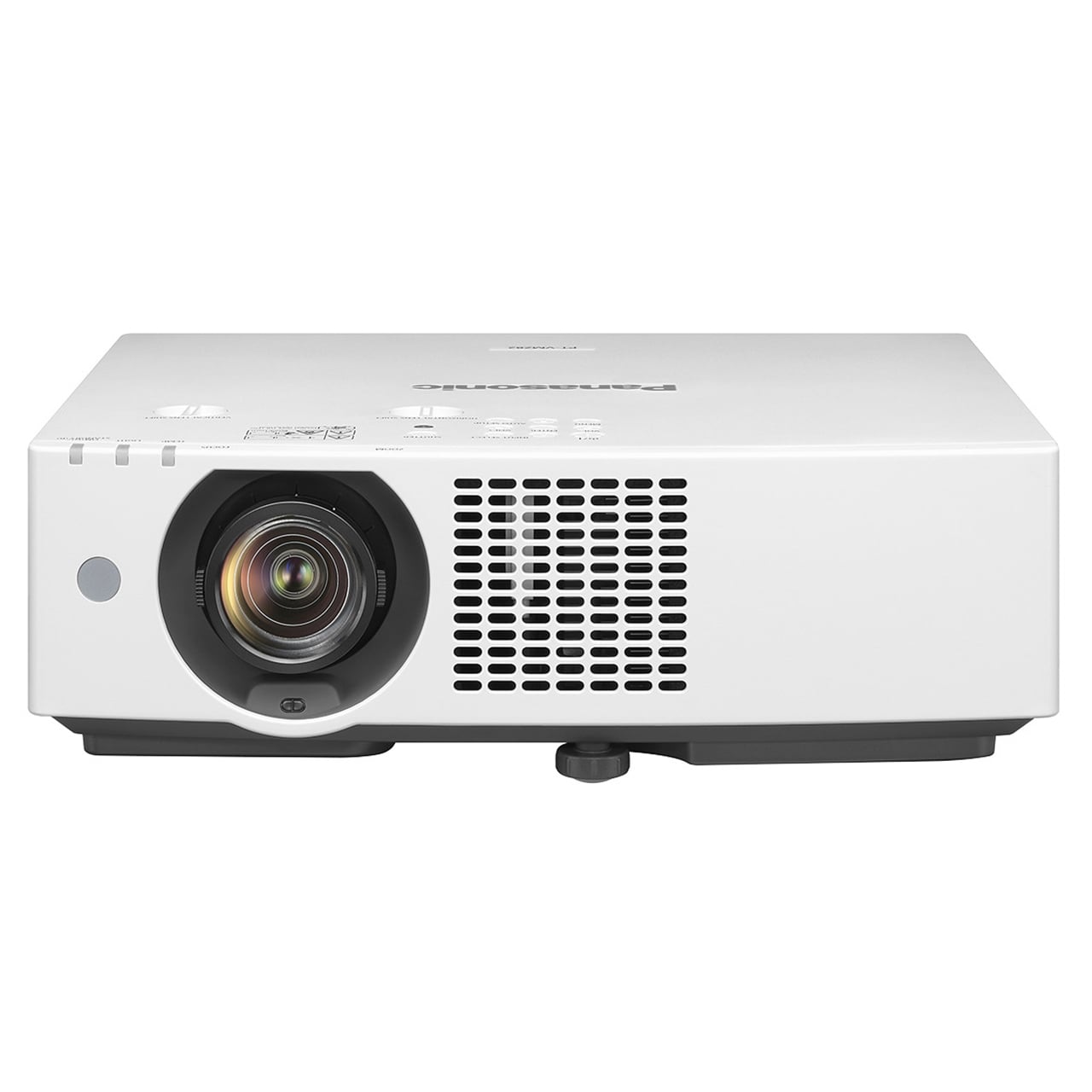

Panasonic PT-VMZ72U8 7300 Lumen WUXGA Laser LCD Projector with Digital Link & 4K Signal Input - White

PT-VMZ72U8 - Overview

Designed for lights-on applications in corporate spaces, educational settings and museums

• Features:

  • High-efficiency optical engine
  • Daylight View Basic
  • WUXGA (1920x1200) LCD panels
  • Vivid Green Mode for lifelike sports simulation
  • Quiet Operation for Hybrid Lessons and Meetings
  • Available in black or white
  • Digital Zoom Extender and Digital Image Shift
  • 5,000,000:1 dynamic contrast ratio


• Specifications:

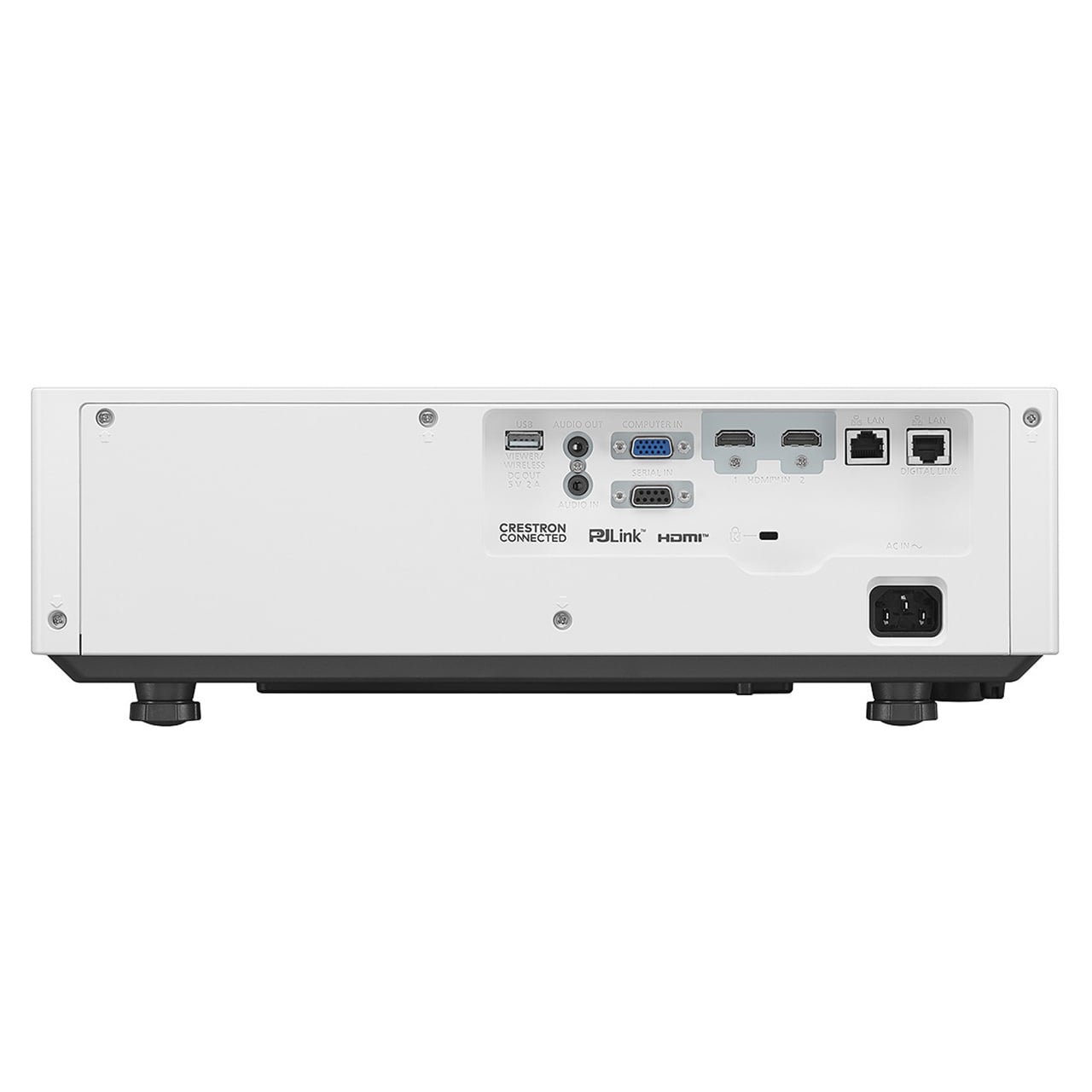

  Terminals
  • HDMI 1/2 IN: 2x HDMI 19-pin (Compatible with HDCP, Deep Color, 4K/30p7 signal input), CEC supported
  • COMPUTER IN: D-sub 15-pin (female) (RGB/YPBPR/YCBCR)
  • AUDIO IN: 1x M3 stereo mini-jack
  • AUDIO OUT: 1x M3 stereo mini-jack
  • SERIAL IN: 1x D-sub 9-pin (female) for computer control (RS-232C compliant)
  • LAN: 1x RJ45 for network control, 10Base-T, 100Base-TX, compatible with PJLinkT [Class 2]
  • DIGITAL LINK/LAN: 1x RJ45 for network and DIGITAL LINK connection (video/network/serial control)(HDBaseT compliant), 100Base-TX (Compatible with PJLinkT [Class 2], HDCP, Deep Color, 4K/30p7 signal input)
  • USB (VIEWER/WIRELESS/ DC OUT): 1x USB connector (Type A) for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A)

    Projector Type: LCD projector
  • LCD Panel Size: 0.64" (16.3mm) diagonal (16:10 aspect ratio)
  • Display System: Transparent LCD panel (x 3, R/G/B)
  • Pixels: 2,304,000 (1920 x 1200) pixels x 3
  • Light Source: Laser diodes
  • Light Output: 7,300 lm²/7,300 lm (ANSI)
  • Resolution: WUXGA (1920x1200 pixels)
  • Power Supply: AC 100V - 240V, 50/60Hz
  • Built-In Speaker: 10W monaural
  • Cabinet Materials: Molded plastic
  • Filter: Included (Estimated maintenance time: approx. 20,000 hours)
  • Weight: Approx. 15.4lbs (7.0kg)
  • Lens:
    - 1.6x manual zoom (Throw Ratio: 1.09-1.77:1)
    - Manual focus lens
    - F=1.58 - F=1.91
    - f=15.30mm - f=24.60mm
  • Digital Zoom Extender: Throw Ratio 1.09 - 2.21:16 (Corresponding value. When used together with optical zoom.)
  • Lens Shift (from the origin point of the lens mounter):
    - Vertical: +44%
    - Horizontal: ±20%
