    PT-VMZ61BU7 - Overview

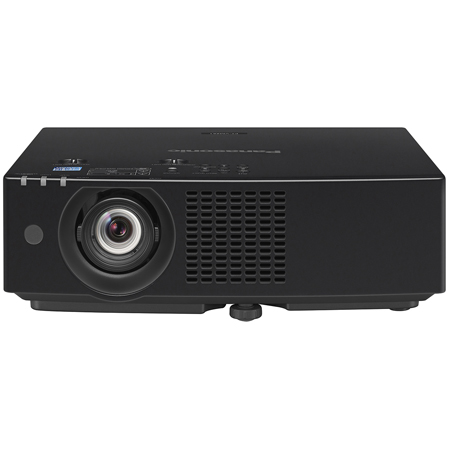

    Introducing the World's Smallest and Lightest LCD Laser Projector
    Weighing just 7.0 kg (15.43 lbs), PT-VMZ71 Series is the smallest and lightest LCD laser projector in its class with up to 7,000 lm from a compact, easy-to-manage body. Its lightweight design makes it easy to carry from room to room, and simple to install on the ceiling. The projector's smooth styling and quiet operation harmonize with your interior space, blending in and keeping attention focused on the presentation.

    Bright, High-Visibility Images in Well-Lit Spaces
    Because office and classroom projectors are used with the room lights on and window blinds open, they need high light output to produce a bright image. Thanks to a carefully refined optical engine, PT-VMZ71 Series generates up to 7,000 lm of brightness, more than most professional projectors of a similar size. Dim, washed out projections are history: expect big, bright, vivid pictures in bright environments to stimulate viewer engagement with the lesson or meeting content.

    High 3,000,000:11 Dynamic Contrast
    Input signals are analyzed frame by frame to regulate light output for best contrast performance in every scene. As well as accurately reproducing pictures that contain a mix of dark and bright hues, Dynamic Contrast is more energy efficient than other technologies and can be optimized to suit the content or the room's lighting. The projector's high 3,000,000:11 contrast ratio provides better detail definition in shadows with deeper blacks, brighter whites, and more natural skin-tones for a better sense of depth and definition.

    Daylight View Basic Optimizes Image Quality in Bright Rooms
    Daylight View Basic enhances image sharpness by clarifying detail definition in dark areas of the picture, which can be difficult to see in bright light. A sensor measures the amount of ambient light in the room and optimizes halftone color and brightness for best results according to surrounding levels of illumination.

    Power Consumption Reduced by 20 %1
    PT-VMZ71 Series uses about 20 %1 less energy than the previous series. Efficiency is further increased, and brightness optimized to suit ambient light levels, just by pressing the ECO2 button on the remote control. Adopting energy-efficient Panasonic projection in your meeting rooms or learning spaces helps you to achieve CSR environmental policy objectives while reducing waste.

    • Features:

      • High-Visibility Images in Bright Rooms
      • Flexible Installation Adapts to Any Space
      • Smooth, Effortless Collaboration
      • High 3,000,000:1 Dynamic Contrast
      • Daylight View Basic Optimizes Image Quality in Bright Rooms
      • Power Consumption Reduced by 20 %
      • Reduce Interruptions and Callout Frequency
      • Versatile 1.6x Zoom with Wide-Range V/H Lens-Shift
    • Specifications:

      • LCD panel:
      • Size: 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
      • Display system: Transparent LCD panel (x 3, R/G/B)
      • Drive method: Active matrix
      • Pixels: 2,304,000 (1920 x1200) pixels

      • Light source: Laser diodes
      • Light output: 6,200 lm
      • Time until light output declines to 50 %3: 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
      • Resolution: WUXGA (1920 x1200 pixels)
      • Contrast ratio: 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
      • Screen size (diagonal): 0.76-7.62 m (30-300 in), 16:10 aspect ratio
      • Center-to-corner zone ratio: 85 %
      • Lens: 1.6x manual zoom (throw ratio: 1.09-1.77:1), manual focus lens, F 1.60-2.12, f 15.30-24.64 mm
      • Digital Zoom Extender: Throw Ratio 1.09-2.21:15 (Corresponding value. When used together with optical zoom.)
      • Lens shift (from center of screen): Vertical +44 %, Horizontal ±20 %
      • Keystone correction range: Vertical: ±25 °, Horizontal: ±35°
      • Installation: Ceiling/floor, front/rear, free 360-degree installation

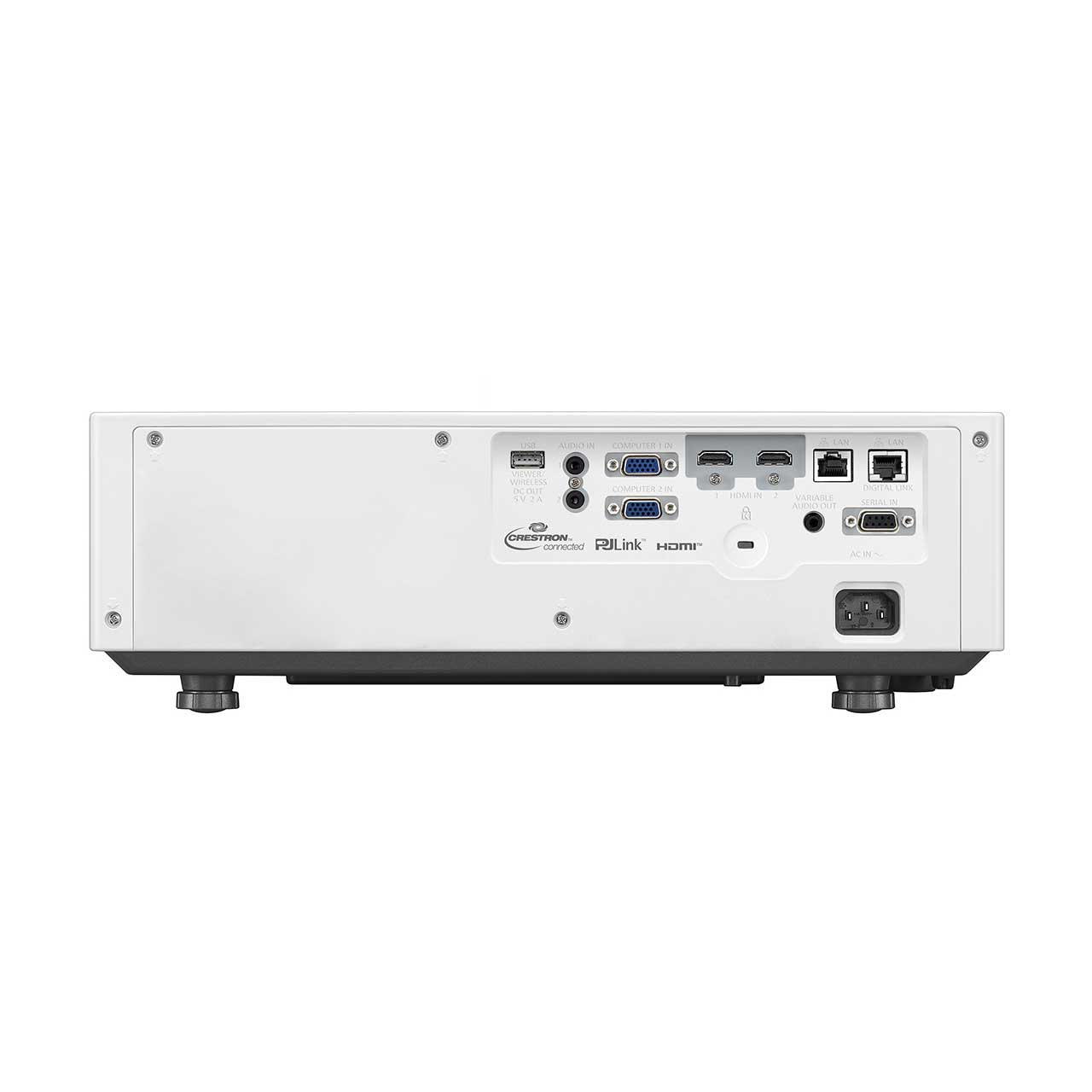

      • HDMI 1/2 IN: HDMI 19-pin x2 (Compatible with HDCP, Deep Color, 4K/30p6 signal input), CEC supported
      • COMPUTER 1/2 IN: D-sub 15-pin (female) x2 (RGB/YPBPR/YCBCR)
      • AUDIO 1/2 IN: M3 stereo mini-jack x2
      • VARIABLE AUDIO OUT: M3 stereo mini-jack x1
      • SERIAL IN: D-sub 9-pin (female) x1 for computer control (RS-232C compliant)
      • LAN/DIGITAL LINK: RJ-45 x1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], HDCP, Deep Color, 4K/30p6 signal input)
      • LAN: RJ-45 x1 for network control, 10Base-T, 100Base-TX, compatible with PJLink [Class 2]
      • USB (Viewer/Wireless/ DC OUT): USB connector (Type A) x1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A8)

      • Power supply: AC 100 V-240 V, 50/60 Hz
      • Maximum power consumption: 370 W (3.9-1.7 A) (395 VA) (Power consumption is 360 W at 200-240 V)
      • On-mode power consumption (Light Power): [NORMAL]335 W (100-120 V), 320 W (200-240 V) [ECO]240 W (100-120 V), 230 W (200-240 V) [QUIET]235 W (100-120 V), 225 W (200-240 V)

      • Built-in speaker: 10 W monaural
      • Cabinet materials: Molded plastic
      • Dimensions (W x H x D): 15 23/32" x 4 17/32" x13 11/16 (not including protruding parts),15 23/32" x 5 1/4" x 13 11/16" ) (with feet at shortest position)
      • Weight with supplied lens: 15.21 lbs)
      • Operating environment: Operating temperature: 32-113 °F, 13, Operating humidity: 20-80 % (no condensation)
      • Applicable software: Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows, Wireless Projector App for iOS/Android
    • Item Includes:

      • 1x Panasonic PT-VMZ61BU7 6200-Lumen WUXGA Laser LCD Projector - Black
