    3330H00010 - Overview

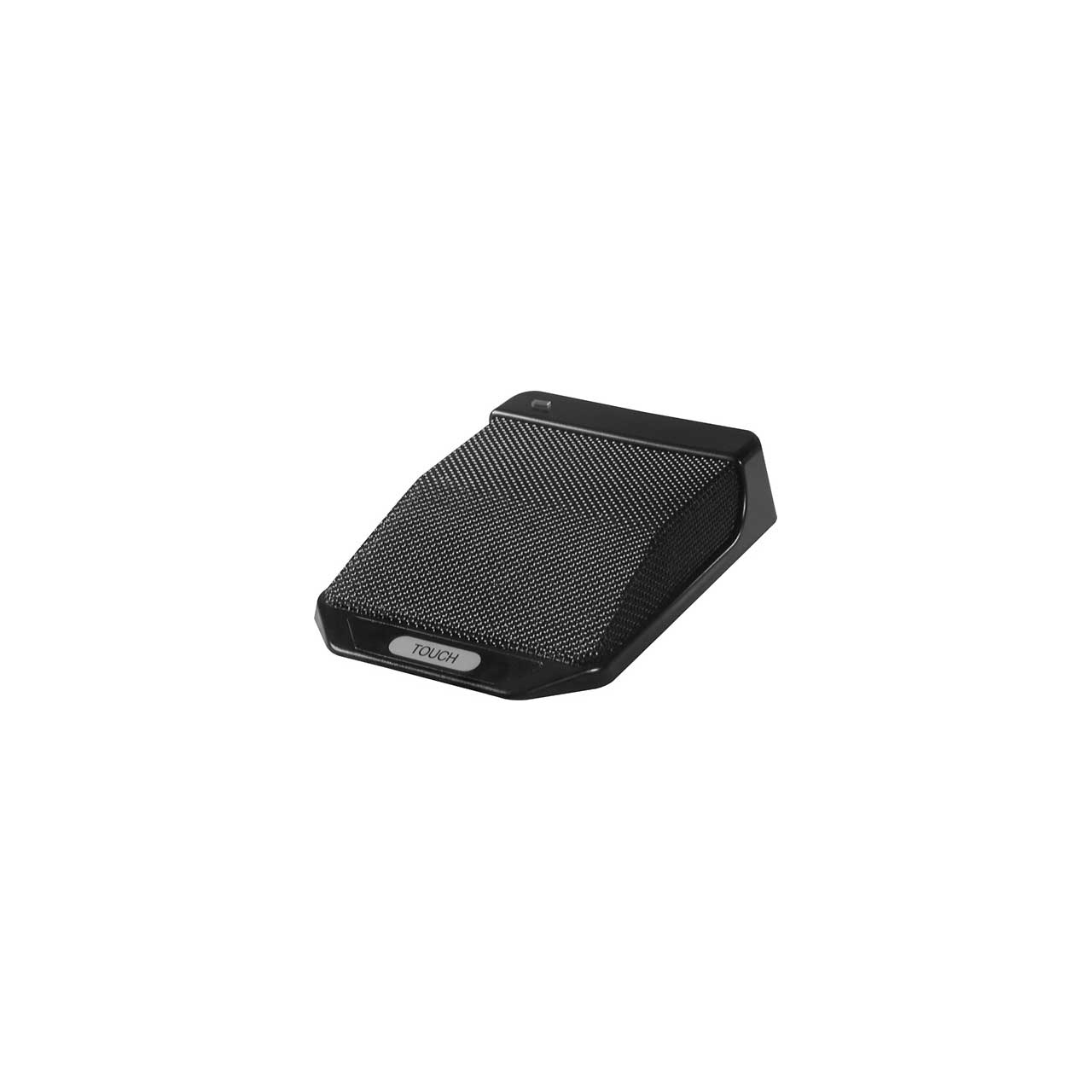

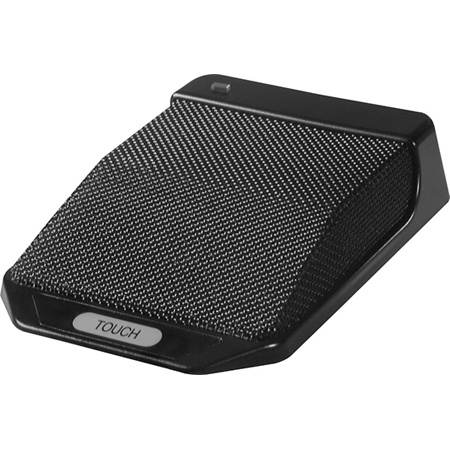

    The PCC®-170SW is a surfacemounted supercardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and council chambers. Because of its highly directional pickup pattern, the PCC®-170 SW minimizes background noise and feedback. The microphone reproduces the voice with a clean, clear and natural
    sound.

    The PCC®-170SW has a silent-operating membrane switch which is normally off. The switch can be configured for touch on/off, momentary on or momentary off operation. This configuration is set by a bottom-mounted DIP switch. A high-intensity LED lights when the unit is on. The PCC®-170SW is intended for multiplemicrophone use on a conference table where each person wants control of his or her microphone. The microphone attenuates 70dB when the switch is in the off position.

    Since the microphone capsule is placed on a boundary or surface, direct and reflected sounds arrive at the diaphragm in-phase. This coherent addition of direct and reflected waves increases sensitivity 6dB and prevents phase cancellations. The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference. Clarity and reach are also enhanced.

    Self-contained electronics eliminate the need for an in-line preamp. Powered by 12-48V phantom power, the PCC®-170SW has a low-impedance balanced output which permits long cable runs without hum pickup or high-frequency loss. Self-noise is low and sensitivity is very high and an RFI suppression is included. A bass-tilt switch allows the user to tailor the low-end response for particular applications.

    Did You Know!...... that while boundary mics are widely utilized in conference rooms and training applications many Audio Engineers use them as drum recording mics. It's true! Musicians and Audio Engineers can benefit from a pair of boundary mics by placing them on the floor on both sides of a kick drum, on the walls or even inside the kick drum. Have fun experimenting to find your killer drum sound

    • Features:

      • Supercardioid polar pattern offers high gain before feedback
      • PCC® (Phase Coherent Cardoid) technology for optimum speech intelligibility
      • Three-position bass-tilt switch for optimized suppression of subsonic noise
      • LED in the microphone housing will light when the mic is on
      • Silent -operating on/off switch to reduce the number of simultaneously open mics
      • Detachable cable

    • Specifications:

      • Type: Switchcraft TB3M
      • Polar Pattern: Supercardioid
      • Gender: Male
      • Contacts: 3-pin
      • Audio frequency bandwidth: 50 - 20,000 Hz
      • Impredance: 150Ω
      • Equivalent Noise Level: 22dB-A
      • Maximum SPL: 120dB
      • Sensitivity: 22mV/Pa (-30dBV)
      • Signal to Noise: 72dB-A
      • Voltage: 12 to 48V phantom power to DIN/IEC
      • Dimensions: 4.84" x 3.39" x 0.91"
      • Cable: 15ft
      • Weight: 6oz
      • Finish: Black

    • Item Includes:

      • (1) PCC170 SW
      • (1) Mini XLR to XLR Cable

    • Warranty:

      • Crown products are covered by a 6 Year Warranty

    • GTIN:

      0885038024873
