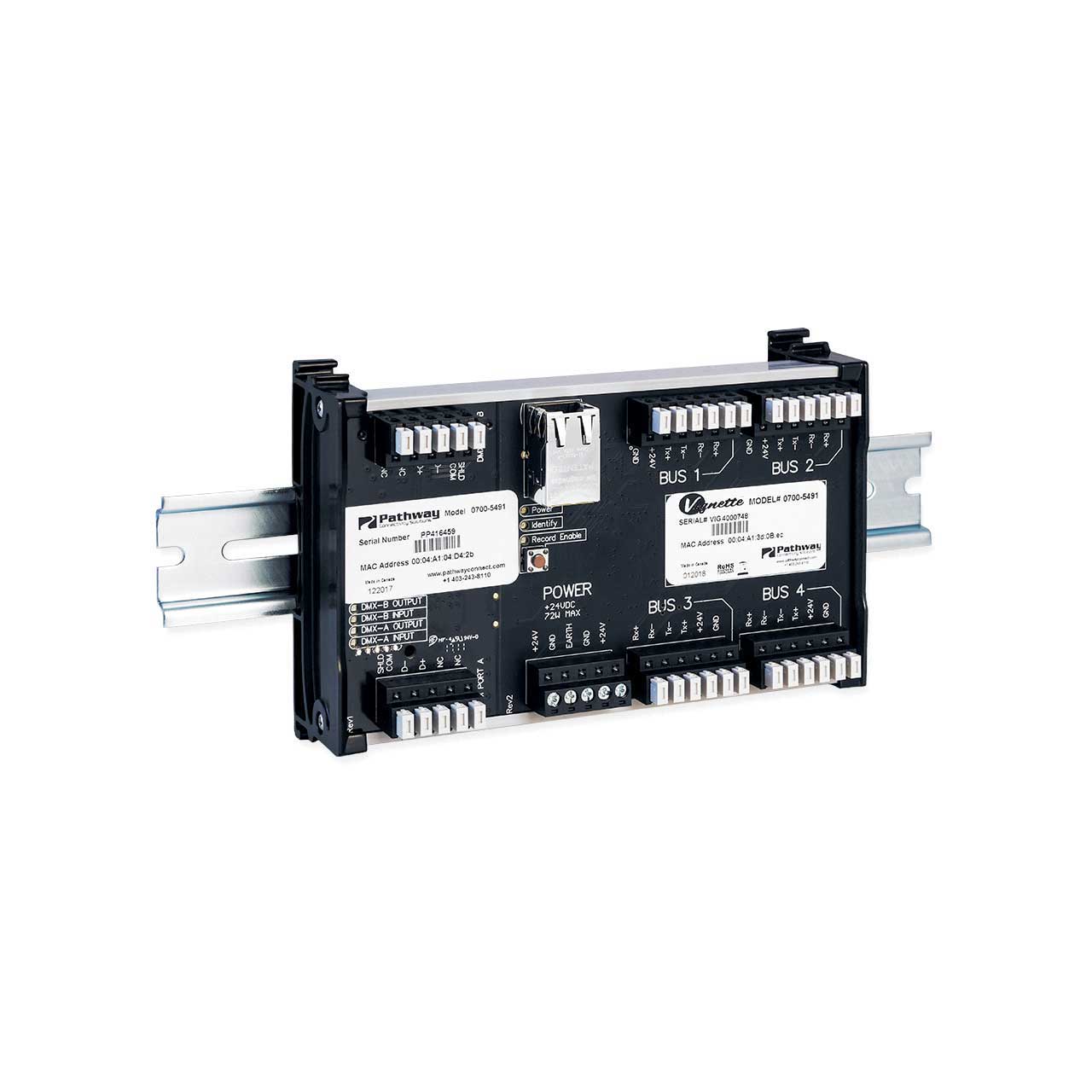

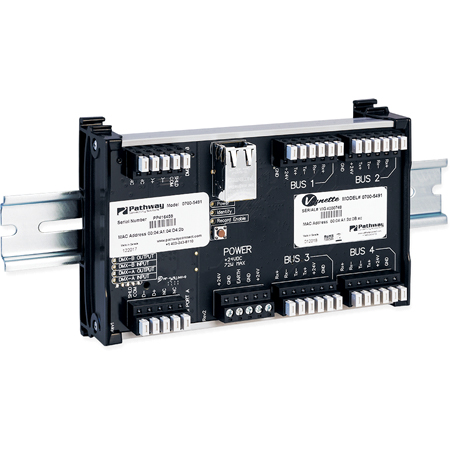

Pathway Connectivity PWGW DIN VD2 VIGNETTE 485 DIN-mount Architectural Gateway with 2 DMX Ports - 6.25-Inch

PWGW DIN VD2 - Overview

• Features:

  • Power and network connectivity for Vignette 485 wall station inserts (PWWSI V485), with optional DMX512 ports and Contact Closures/Test Buttons

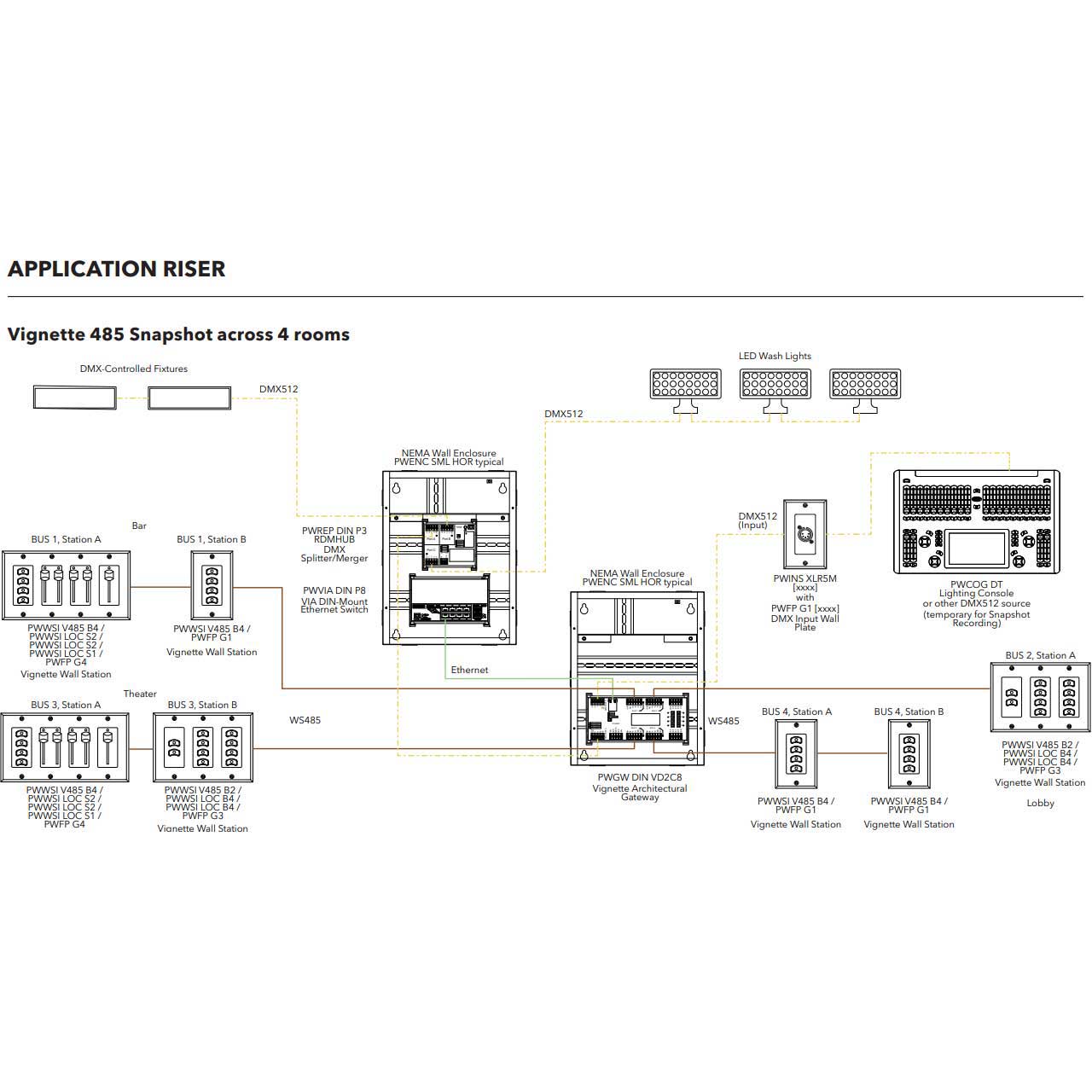

  • Configure up to 4 groupings of presets allows one Gateway to achieve asynchronous fades across four rooms
  • Allows using legacy multi-drop wiring where PoE home-runs are not feasible
  • Use third-party buttons/dry contact closure to trigger snapshot replay for VD2C8, VC16, VEC8 Models
  • Stand-alone mode with 8 or 16 momentary buttons and LED indicators allows the Gateway to be used as its own Button Station for VD2C8, VC16, VEC8 Models
  • Advanced configuration using free Pathscape software of sACN output universes, sACN priorities, crossfade timing and the function of the optional DMX512 ports
  • DMX512 outputs will crossfade between presets and incoming source when present; no blackouts
  • DMX512 outputs will subtlely crossfade between architectural presets and theatrical controller when on-line; no sudden blackouts for PWGW DIN VD2 and PWGW DIN VD2C8
  • In pure sACN systems, the Architectural Gateway can record and play back four universes of sACN
  • With the use of Pathport Gateways (PWPP), can record and playback up to four universes of DMX512
  • Compression-screw and Insulation Displacement Contact connectorsfor DMX512 connections and station buses
  • Mounts to standard 35mm DIN rail
  • Operates on 24VDC


• Specifications:

  • Electrical
  • Input Ratings: 24VDC power input, 72W maximum power consumption; 8W per gateway plus 1W per insert (64 maximum) on the 4-port station bus network
  • Cabling: Standard CAT5/5e/6 Cable, 164 yds (150 m) maximum, or Retrofit onto existing 3-pair Belden 9773 or equivalent, 328 yds (300m) maximum
  • Regulatory Compliance: CE

    Mechanical
  • Dimensions (WxHxD): 6.25" x 4" x 1.9" (159mm x 103mm x 48mm)
  • Weight: 1lbs

    Environmental
  • Operating Temperature: 14°F to 113°F (-10°C to 45°C)
  • Relative Humidity: 5-95%, non-condensing
  • Standard Compliance: RoHS 2011/65/EU + A1 2015/863

    General
  • Compliance ANSI E1.11 DMX512-A R2013
  • ANSI E1.20 RDM - Remote Device Management
  • ANSI E1.31 sACN - Streaming ACN
  • ANSI E1.33 RDMnet - RDM over IP
  • IEEE 802.3 Ethernet
  • California Title 1.81.26, Security of Connected Devices


• Item Includes:

  • 1x Pathway Connectivity PWGWDINVD2 Architectural Gateway


• Warranty:

  • 3-Year Limited Warranty
