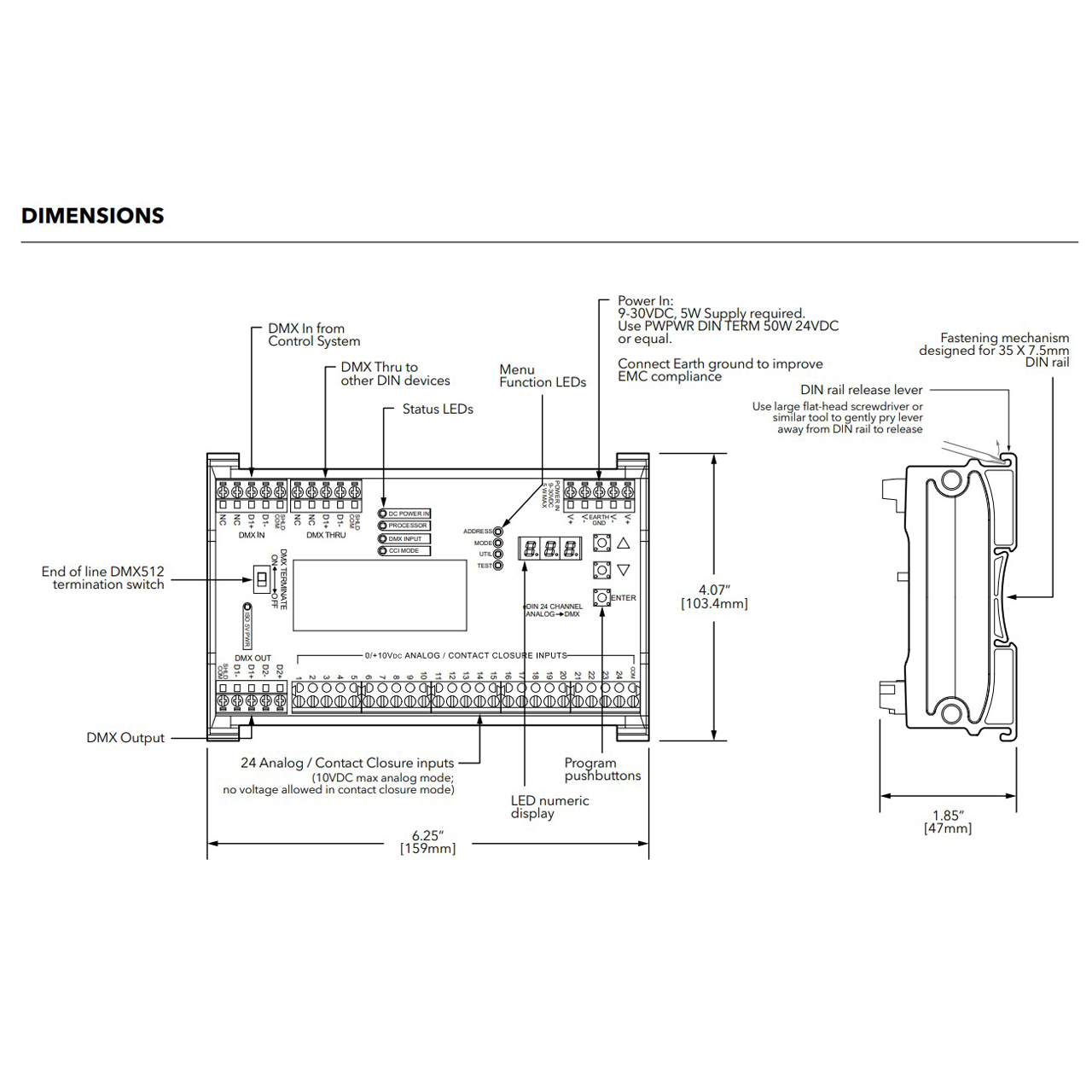

Pathway Connectivity PWINF DIN A2D 24-Channel DIN-mount Analog to Digital DMX Interface - 6.25-Inch

Name: Pathway Connectivity PWINF DIN A2D 24-Channel DIN-mount Analog to Digital DMX Interface - 6.25-Inch
Brand: Pathway Connectivity Solutions
SKU: PCS-PWINF-DINA2D
Price: 569.95 USD
Availability: Backorder

ITEM #: PCS-PWINF-DINA2D MFG #: 274UUC

Pathway Connectivity Solutions

List Price:

$585.00

Our Price:

$569.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

274UUC - Overview

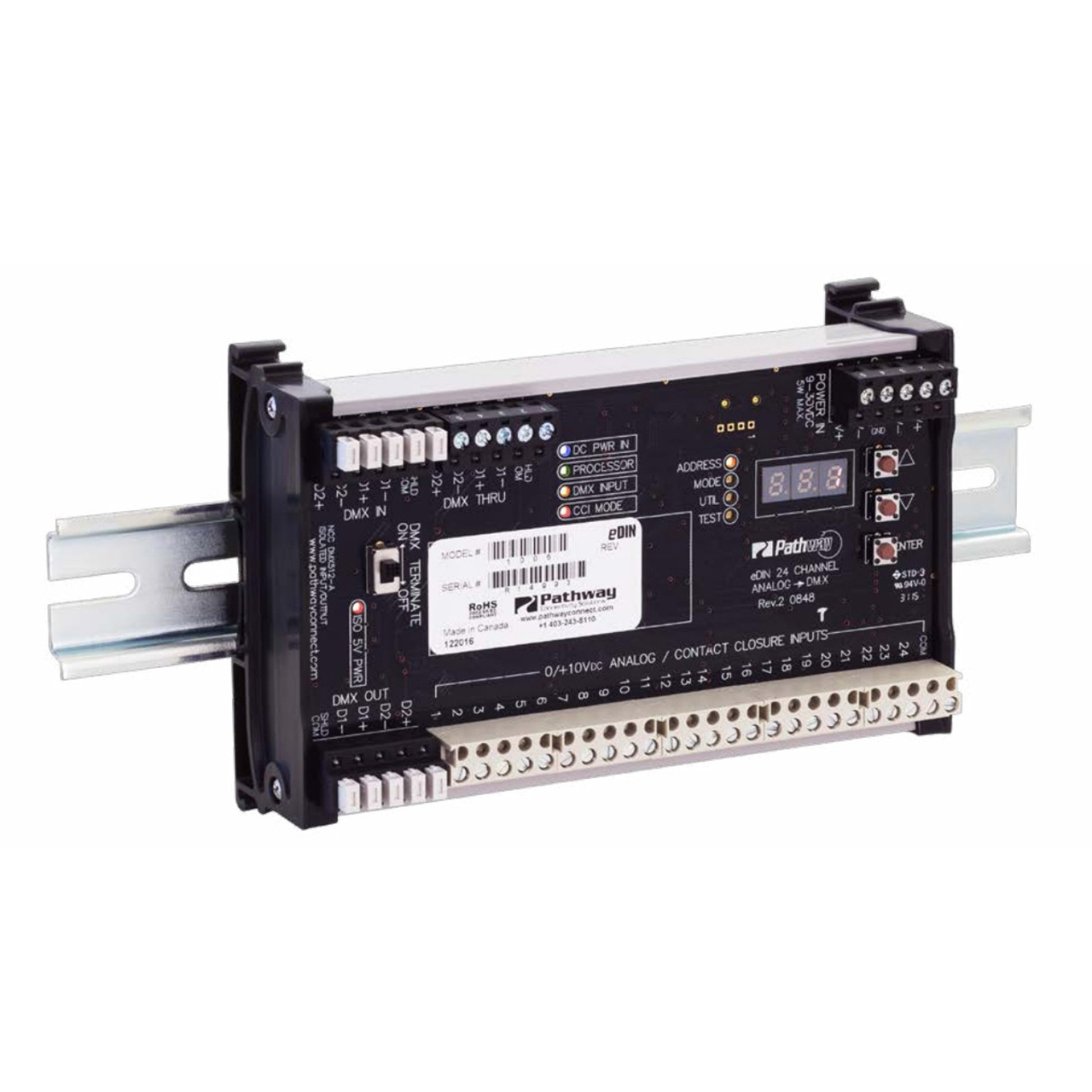

The Pathway Connectivity PWINF DIN A2D 24-Channel Analog to DMX converts 24 analog 0-10VDC sources or 24 dry contact closure inputs into a DMX512 signal. A built-in DMX merger combines signal output with other DMX512 lighting consoles, controllers or additional Analog to DMX units. The Analog to DMX can also be used as a simple snapshot playback device, holding up to 24 "looks" that can be triggered by contact closure. Compact and DIN-rail mountable, the Pathway 24-Channel Analog to DMX is field configurable through its front panel, or through RDM by using free Pathscape configuration software.

Features:
- Convert analog 0-10VDC levels to DMX512

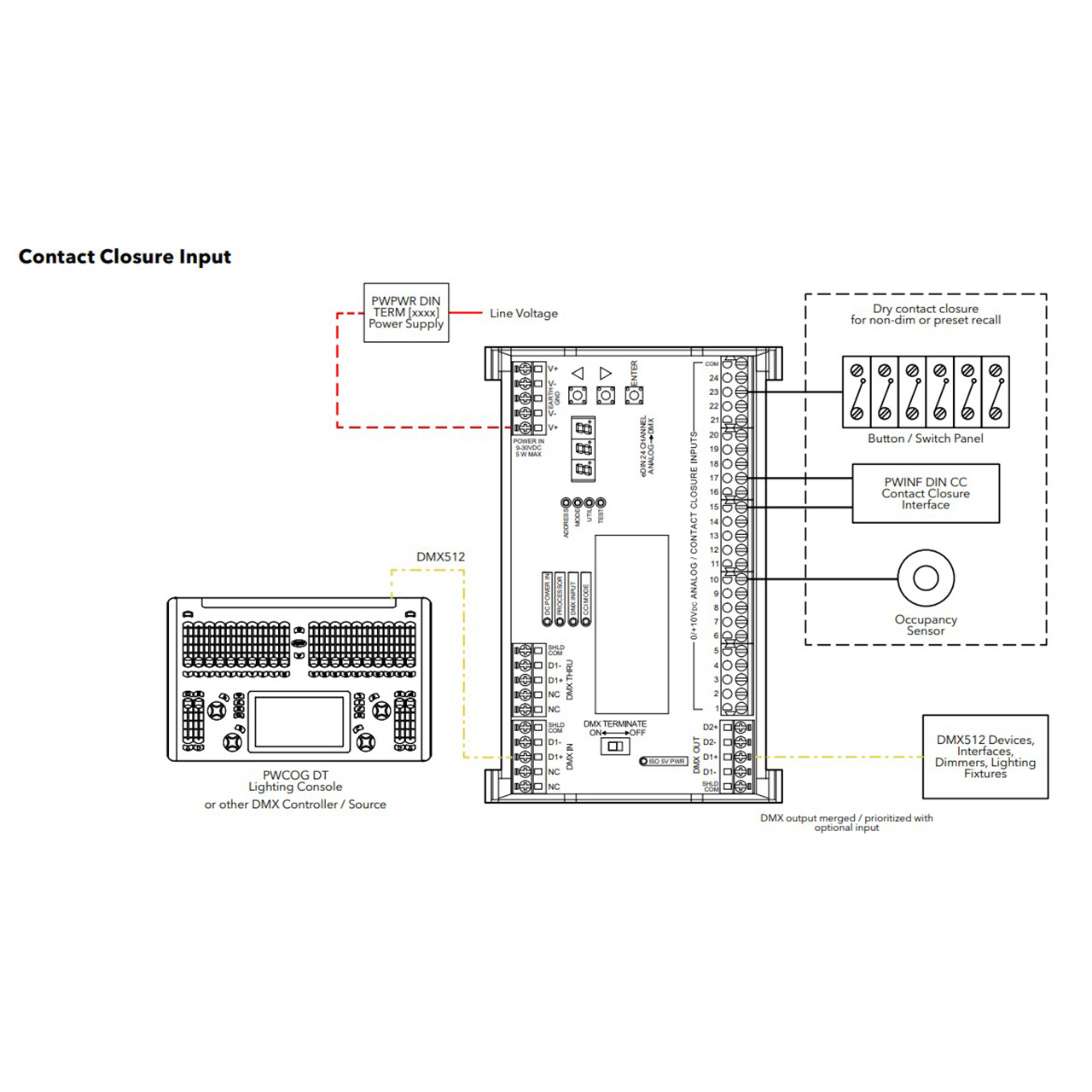

- Alternate Contact Closure mode, for off/full DMX512 control
- Recall mode allows capture and playback of up to 24 discrete, full universe looks
- Built-in merger allows in-line operation with other DMX sources in either recall or input modes.
- DMX512 start address and operating mode configurable from front panel or remotely using RDM
- Indicator LEDs for Power, Processor,DMX Input status, and CCI Mode
- Test function in both analog input and contact closure modes.
- DMX line termination switch

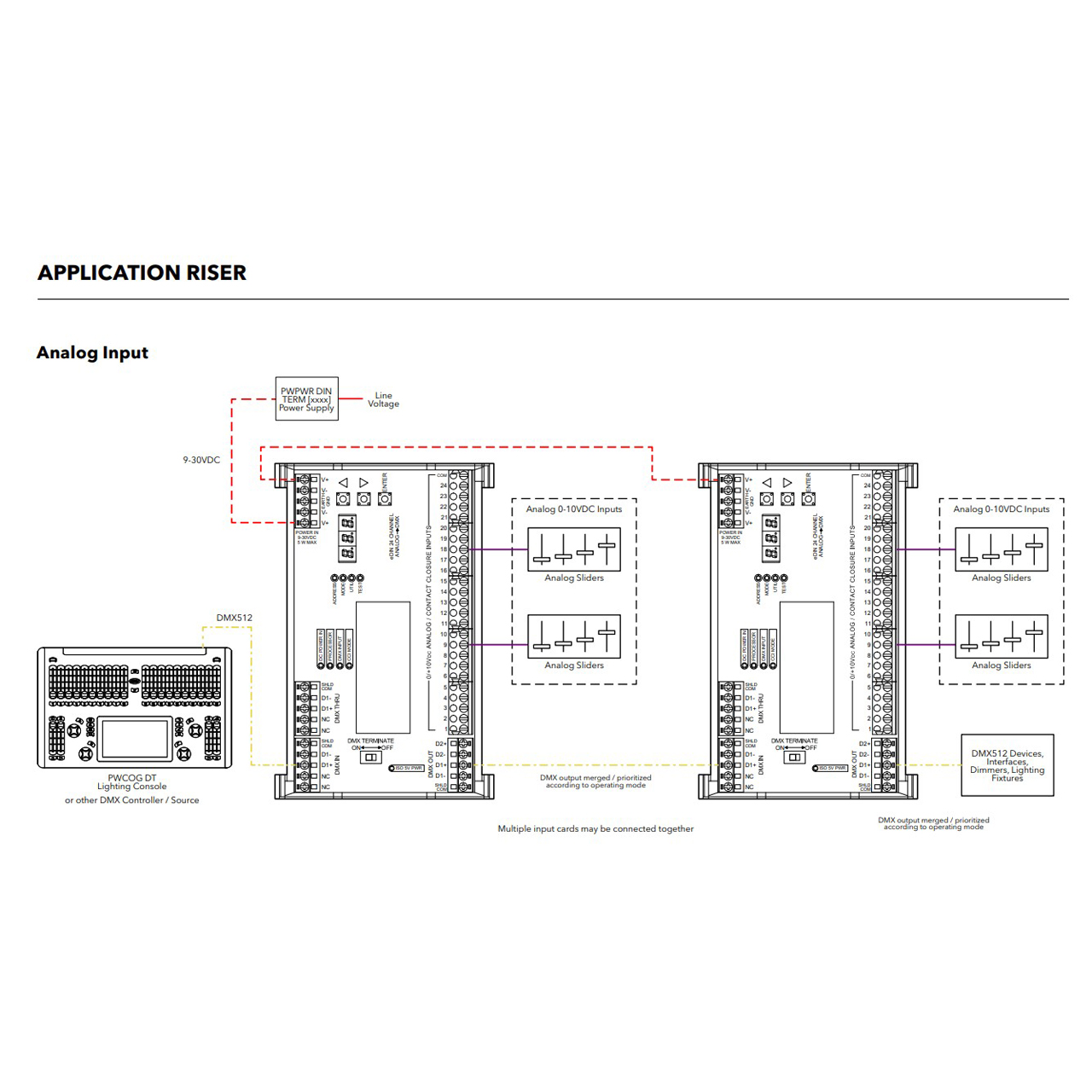

- Data and power easily daisy-chained to other DIN Interface units

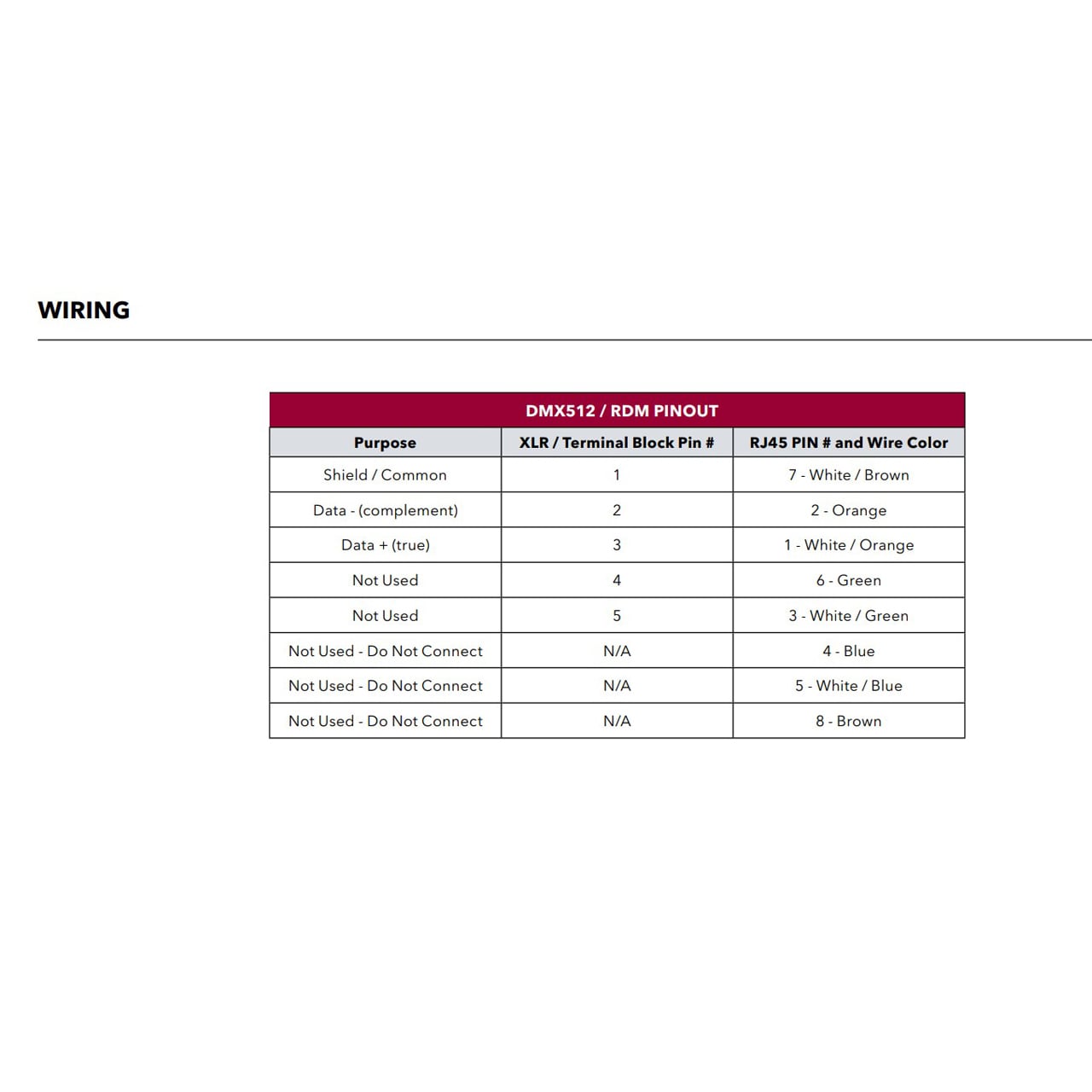

- One DMX Input, one DMX Thru connection, and one DMX Out
Specifications:
- Control Device Type: Interface Device
- Mounting Location: Cabinet, Wall
- Mounting Type: DIN Rail, Surface
- Product Type: System Interface
- Network Compatibility: DMX, RDM
- Networkable Control: Yes
- Qty. of Load Controlled: 24
- Voltage Rating: 9V - 30VDC
- Number of Comm. Ports: 2
- Receiving Protocol: 0V - 10V, DMX, Dry Contact, RDM
- Sending Protocol: DMX, RDM
- Dimming Protocol: DMX
- Regulatory Listing: CE
