Platinum Tools T109C MapMaster-Mini Pocket UTP/STP Cable Tester

ITEM #: PLAT-T109C MFG #: T109C

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    T109C - Overview

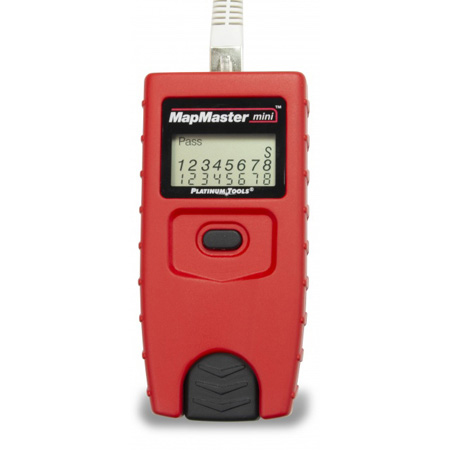

    The Platinum Tools T109C MapMaster™ mini detects faults and locations of UTp/STP RJ45 network cables. Good terminations, causes of faulty and locations of cables are displayed on an LCD display. A set of five mapping remotes is included for locating cables terminated in wall jacks or patch panels. A built-in tone generator with 4 different tone combinations can be used with a tone probe to detect where a cable is routed and the location of the end of the cable.


  • Installation, troubleshooting, and maintenance on network cables
  • Identify patch panel port where network cable is terminated
  • Determine wiring condition
  • Identify up to 5 network cable runs at a time
  • Find and fix position of exposed or hidden cables
    • Features:

      • Large LCD displays TIA/EIA568A/B Wiremap sequence & easy identifies faults
      • Continuity Tests Identifies Shorts, Opens, Miswires, Reversals and Split pairs
      • Identifies Network ID-Only Remotes Set #1 - 5
      • Compatible with up to two test and map Remotes
      • Quickly identify unlabeled network cables
      • Built-in tone generator with 4 tone cadences
      • Trace/locate network cables and locate breaks/opens in network cabling
      • Single Multi-Function button operates test functions, tone generation, and ID-Only remotes location
      • Self-storing remote
      • Auto power off prevents depletion of battery power
    • Specifications:

      • Maximum Voltage: RJ Jack: 66V DC or 55V AC (between any two connectors pins w/o damage)
      • Battery Life: 6V Alkaline Batteries - 4x LR44
        Standby: 3.5 years
        Active: 80 hours
      • Cable Types (Shielded or Unshielded):
        Cat3 (4-pair only)
      • Maximum RJ Cable Length: 0 - 1000ft (305m)
      • Minimum Cable Length for Split Pair Detection: 1.5ft (0.5m)
      • Low Battery: Icon flashes when battery voltage falls below 6V
      • Regulatory: Complies with CE directives
      • Operating Temperature: 32°F - 122°F (0°C - 50°C)
      • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
      • Humidity: 10% - 90%, non-condensing
      • Dimensions: 4.6" x 2.3" x 1.1" (11.7cm x 5.8cm x 2.8cm)
      • Weight: 4.0oz (115g), with battery and remote
    • Item Includes:

      • Cable testing remote

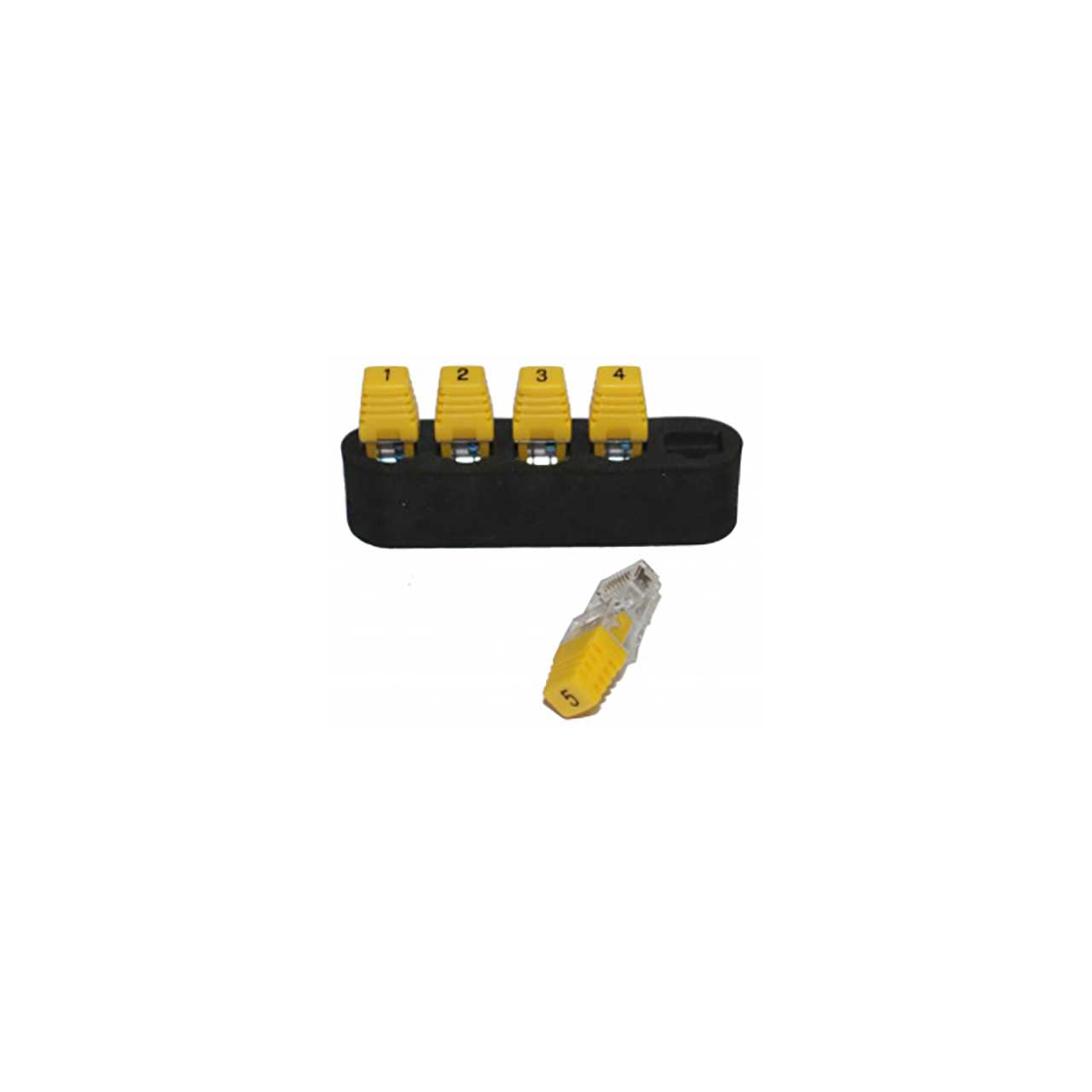

      • 5 numbered RJ45 ID only remotes
    • Warranty:

      • 1 year
