Pliant Technologies CrewCom FLEX 16-Key Intercom Desktop Panel - Native AES67 AoIP - Dual Gigabit Ethernet

ITEM #: PLI-CDP-16 MFG #: CDP-16

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$4,495.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


CDP-16 - Overview

A communications ecosystem built for hybrid, remote, distributed, and scalable workflows!

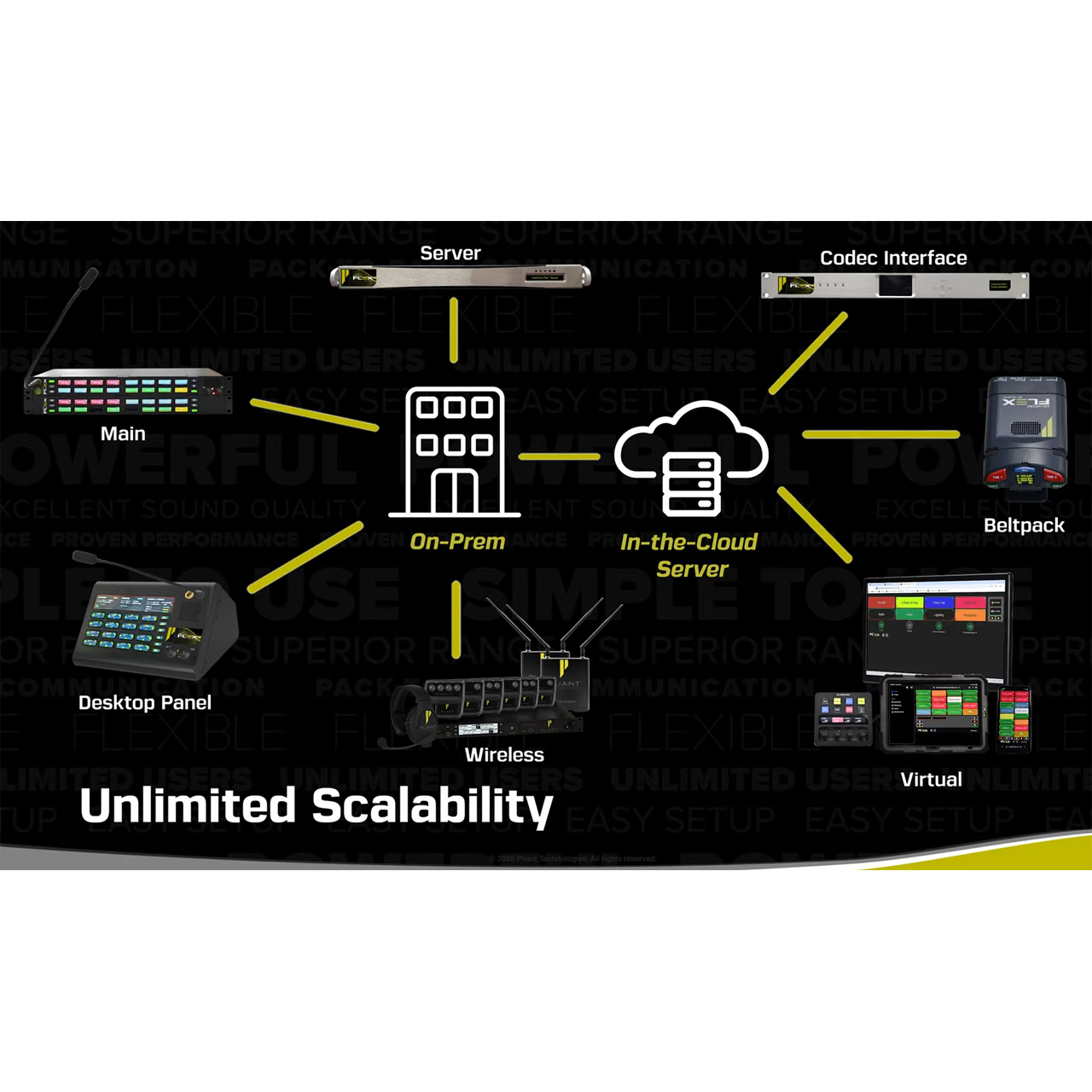

The world's first complete frameless matrix intercom system. By converging wired, wireless, and virtual voice communications on a standards-based AES67/SMPTE ST 2110 backbone, CrewCom Flex delivers unprecedented flexibility and scalability - without the expense, complexity, or limitations of traditional matrix hardware.

All the Power of a Main Panel-Right at Your Desk

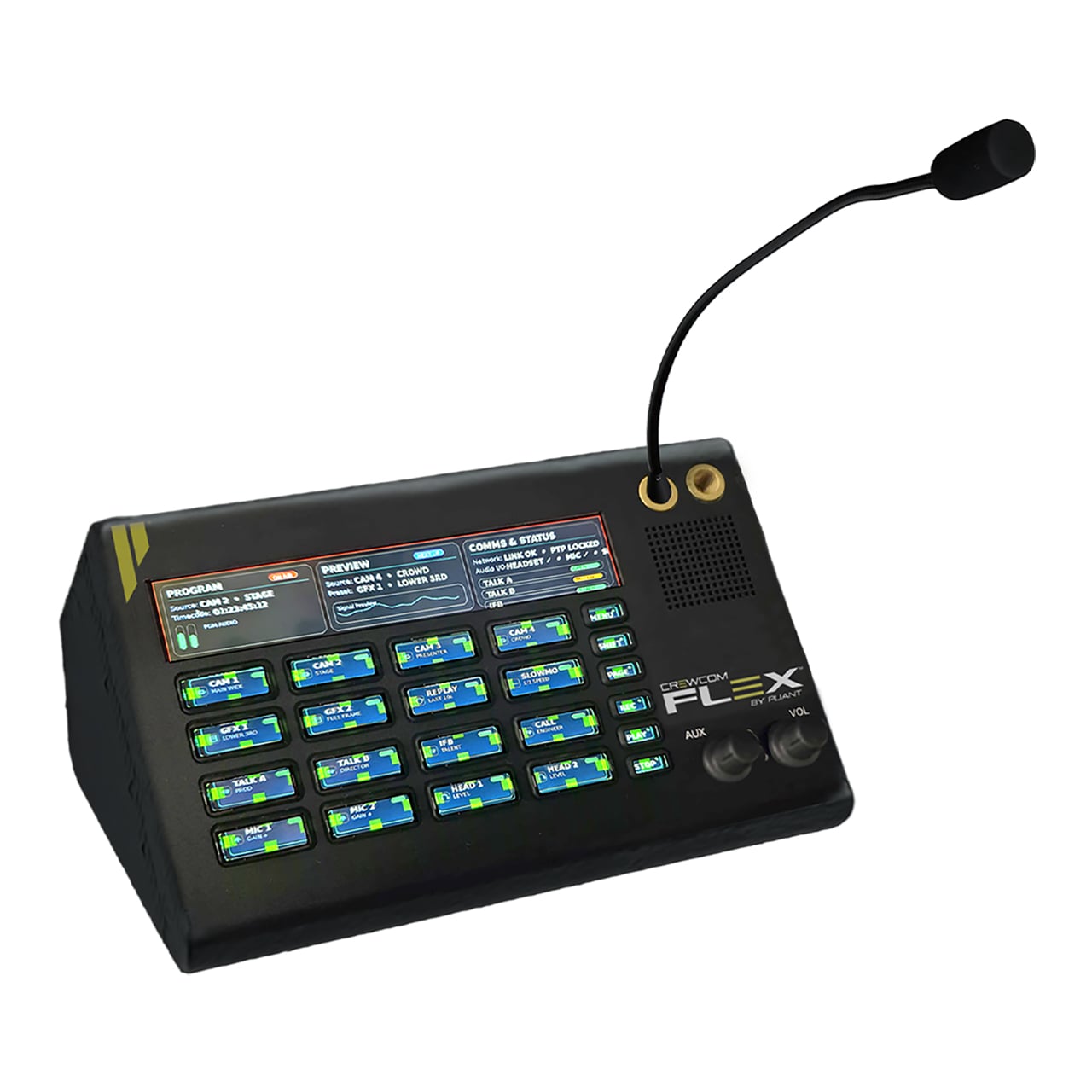

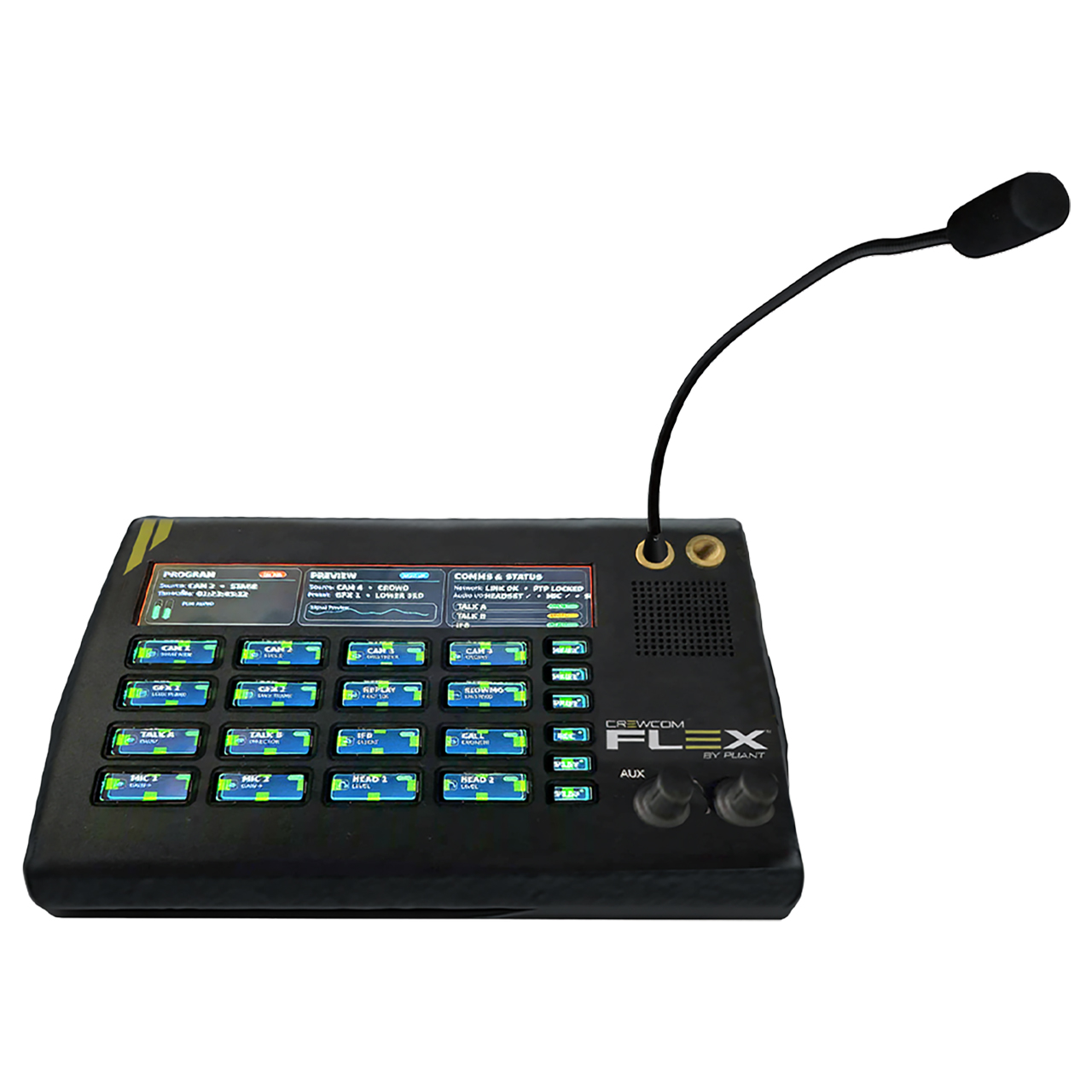

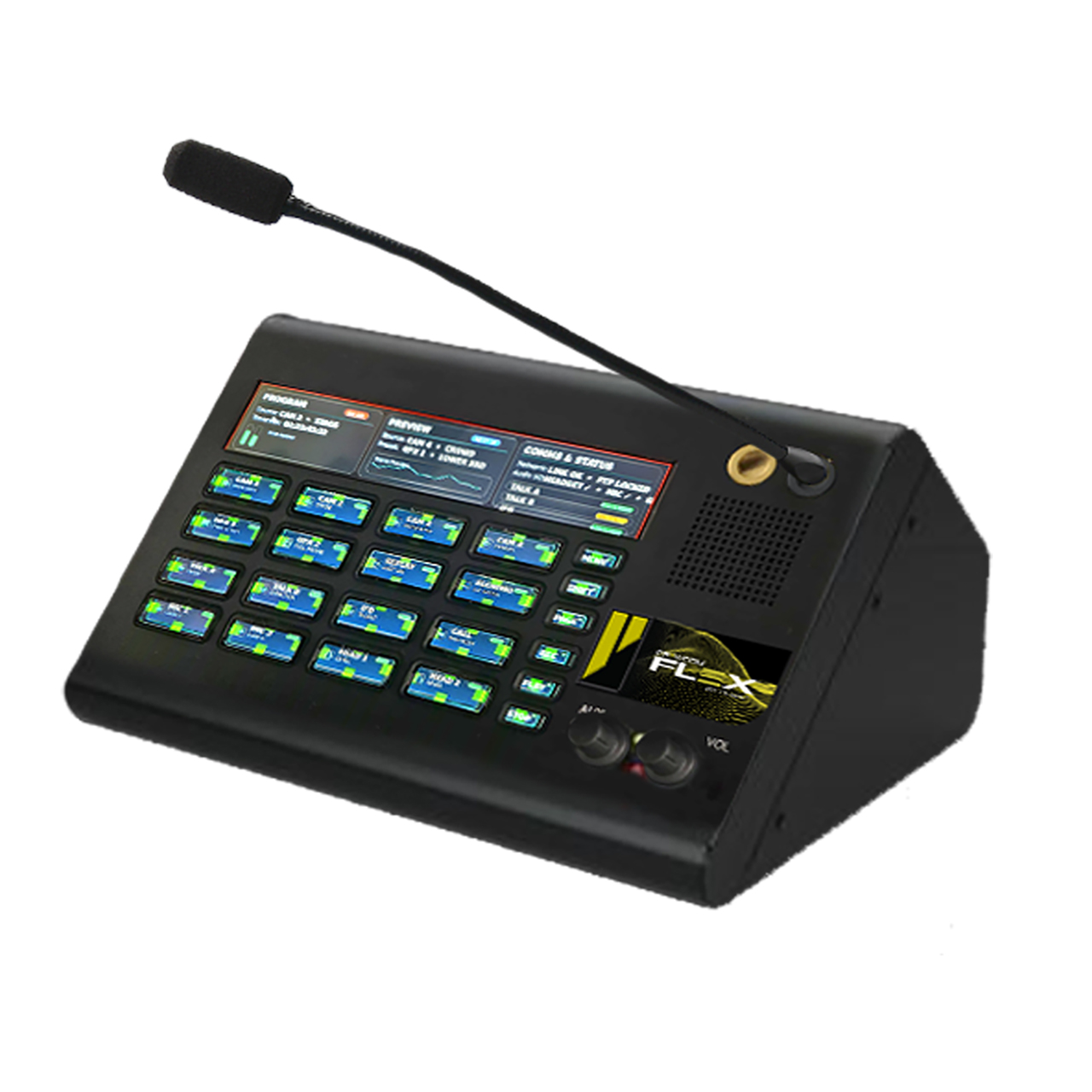

When a rack isn't practical, the Pliant Technologies CDP-16 CrewCom Flex 16-Key Desktop Panel brings full-featured intercom control right to your desk. Delivering the same powerful performance as the CKP-16 master panel, this compact desktop solution offers maximum flexibility without compromise.

With 16 intuitive four-way "compass" keys and an ergonomic layout, the CDP-16 puts fast, precise communication control at your fingertips - ideal for fast-paced environments where clarity and speed are essential.

Designed for Real-World Workflows
Whether you're in a control room, production office, edit suite, or remote setup, the CDP-16 fits seamlessly into any workspace - no rackmount required.

The result is a powerful, space-saving intercom solution that delivers professional performance wherever your team works.

Applications:
• Live Events
• House of Worship
• Theater
• Production
• Nuclear
• Government

Please Note: Gooseneck microphone shown but not included.

  • Features:

    • 16x tactile four-way "compass" keys with Up/Down lever action for Talk/Listen and Left/Right for individual channel volume control
    • 3 shift pages providing 48 assignable keys total + "Reply to Last Caller" function
    • High-visibility TFT LCD display with 16.7 million color support and improved viewing angles
    • Additional utility touchscreen located above the keys (for clock, system metering, status, or future applications)
    • Larger fonts and support for more characters per label
    • Built-in 10W speaker optimized for voice communication (200Hz - 6.5kHz)
    • Professional audio inputs: &frac;14" jack gooseneck microphone socket with threaded brass collet, 4-pin XLR-M headset connector, Rear USB 2.0 port for USB headsets and external audio devices
    • Native AES67/Livewire+ AoIP interoperability
    • Dual Gigabit Ethernet ports (Primary supports PoE)
    • Flexible secondary port supporting daisy-chaining, bonded failover, or SMPTE ST 2022-7 hitless redundant streaming
    • Redundant power options: PoE (Primary) + included 12V DC power supply
    • Full configuration and management via CrewWare 2.0
    • Onboard web UI for direct device setup and maintenance

  • Specifications:

    • Audio I/O: AES67 AoIP I/O, USB 2.0 audio connectivity via rear panel USB A connector
    • Microphone Socket:
      - ¼" jack socket with threaded brass collet
      - Suitable for use with the CEM-G12-TRS gooseneck microphone
    • Headset Connector: 4-Pin Switchcraft XLR male
    • Speaker:
      - Effective Frequency Range: 200Hz - 6.5kHz
      - Sensitivity: 75.76dBSPL @1kHz, 1W/1m.
    • IP/Ethernet Connections:
      - Dual Gigabit Ethernet ports, Primary NIC supports PoE+ to power the unit
      - Secondary NIC is used for daisy chain connections, bonded failover or SMPTE 2022-7
      - Hitless Merge redundant connections
    • Power Supply: 12VDC power supply is supplied with the unit
    • Temperature:
      - Operating Temperature: 32°F - 113°F (0°C - 45°C)
      - Storage Temperature: 14°F - 140°F (-10°C - 60°C)
    • Relative Humidity: 95% @ 104°F (40°C), non-condensing
    • Operating Vibration: 1Grms/5~500Hz
    • IEC 60068-2-64: Non-Operating Shock 30Grms, 11ms
    • IEC 60068-2-27: ESD Protection 8KV contact/15KV air IEC 61000-4-2
    • Processor, CPU: NXP i.MX 8M Quad - 4x Cortex-A53 @ 1.5GHz, 1MB L2, 1x Cortex-M4 266MHz
    • Memory: 3GByte LPDDR4-3200 MTps default
    • Storage Media: eMMC 32GB as default; M.2 type M SSD 64GB default (PCIe)(can't be OS storage) (optional), 8GB from uSD card (optional), OS(Bootloader), Embedded Linux
    • Regulatory: EMI, CE/FCC class A
    • Certification: CE/FCC/UKCA, LVD

  • Item Includes:

    • 1x 16-Key Intercom Desktop Panel, 12V DC Power Supply with Region Specific Power Cord
