Pliant Technologies CrewCom FLEX 1RU 16-Key Frameless IP Intercom Main Panel - Native AES67 AoIP - Dual Gigabit Ethernet

ITEM #: PLI-CKP-16 MFG #: CKP-16

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Pliant Technologies
Free Shipping with $49 Minimum Order

Our Price:

$4,095.00

Add to Wish ListLeasing Options
Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CKP-16 - Overview

A communications ecosystem built for hybrid, remote, distributed, and scalable workflows!

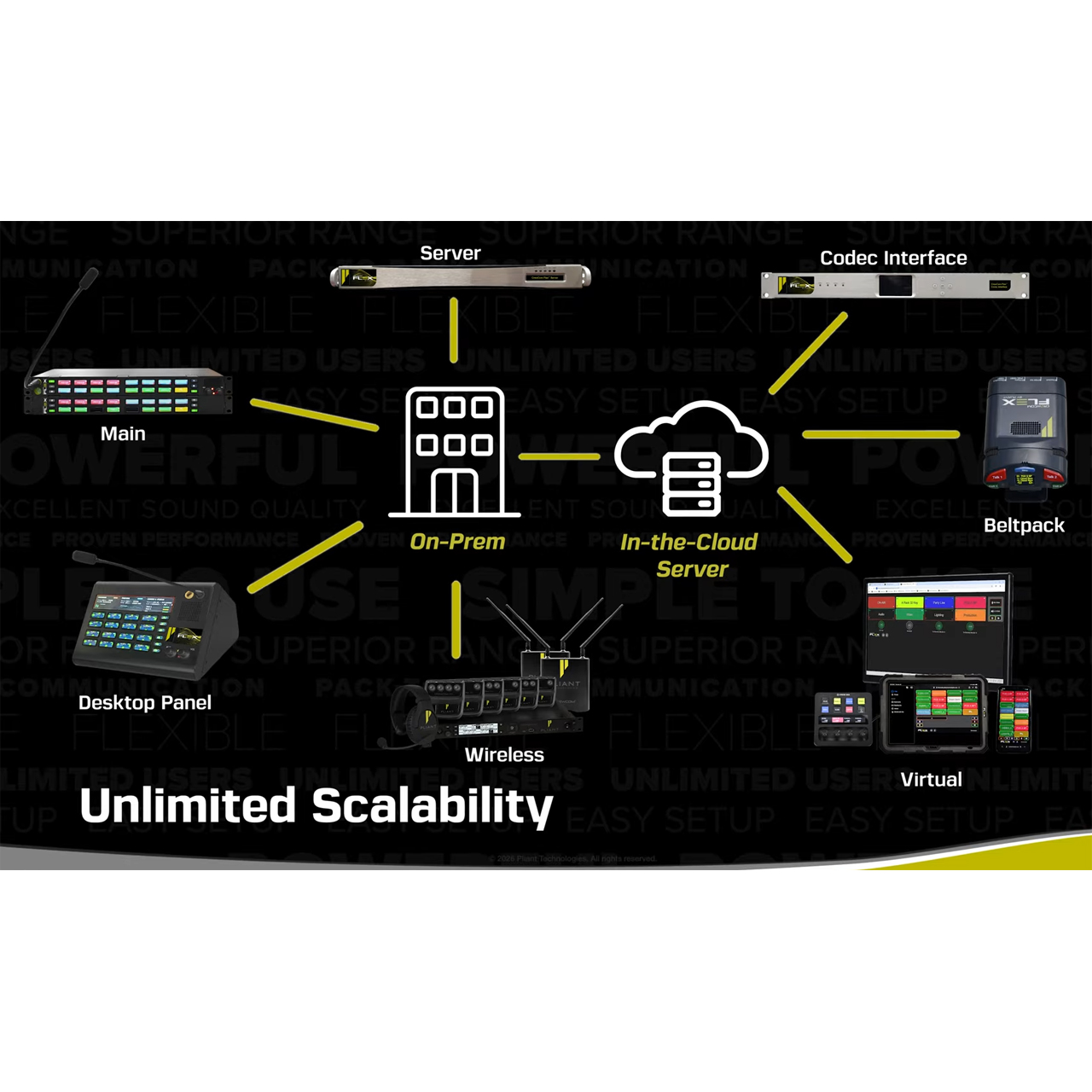

The world's first complete frameless matrix intercom system. By converging wired, wireless, and virtual voice communications on a standards-based AES67/SMPTE ST 2110 backbone, CrewCom Flex delivers unprecedented flexibility and scalability - without the expense, complexity, or limitations of traditional matrix hardware.

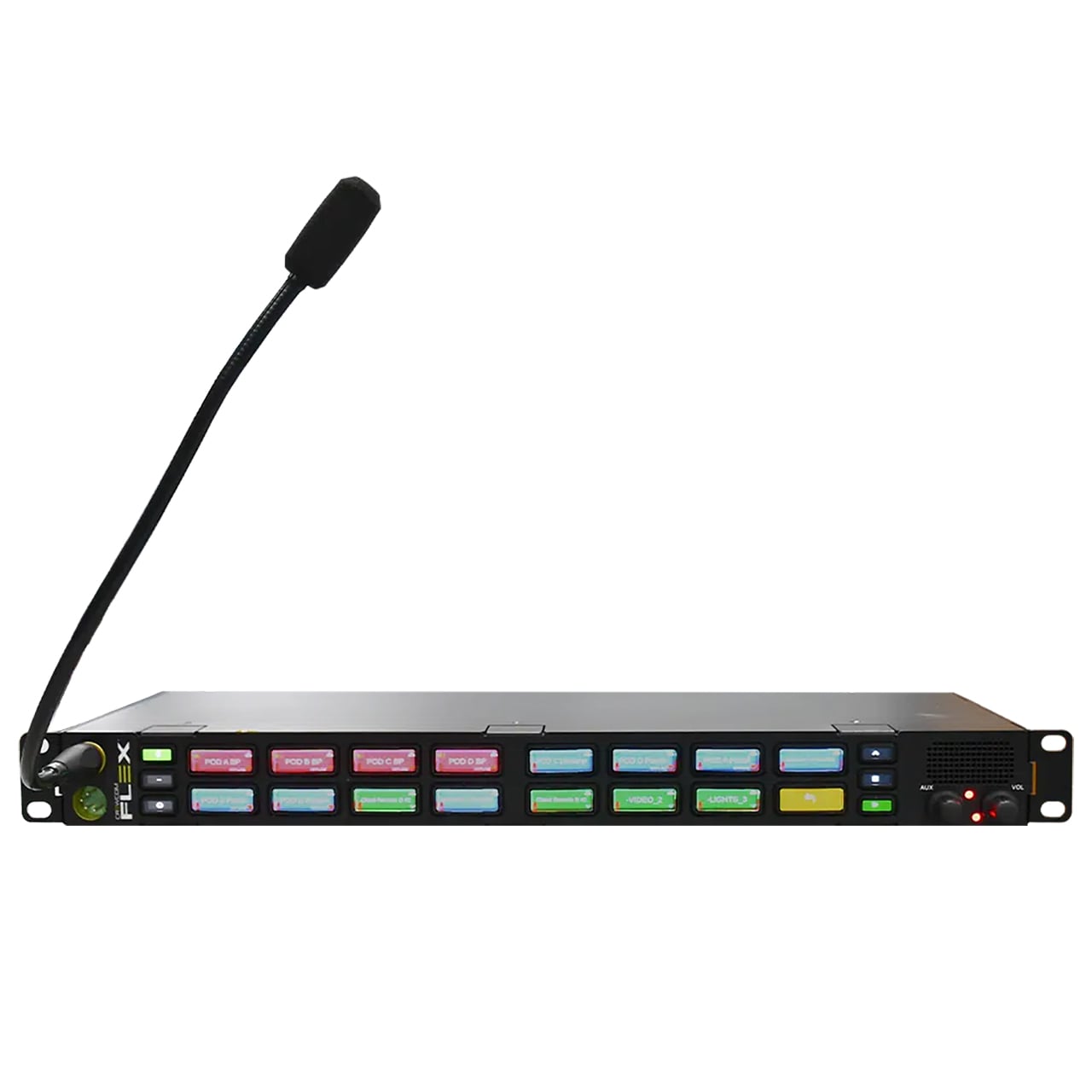

Meet the 1RU CrewCom Flex 16-Key Main Panel (CKP-16) - where the familiarity of traditional hardware meets the flexibility of modern AoIP. Built on AES67 standards, this frameless 1RU panel delivers seamless integration into today's IP-based workflows - without the constraints of a legacy matrix. It's intercom, reimagined for scalability, reliability, and total control.

Designed for Real Operators
At the center are 16 tactile "compass" keys, giving users intuitive control over talk, listen, and volume. Paired with high-visibility displays, every action is clear, fast, and confident - no guesswork, no delays.

Audio That Cuts Through the Noise
A powerful 10W voice-optimized speaker ensures crystal-clear communication in even the most demanding environments. Support for professional headsets and gooseneck microphones gives users the flexibility to work their way.

Built for Always-On Performance
With redundant power via PoE+ and DC, this panel is engineered for uptime when it matters most.
And with centralized control through CrewWare, system configuration and management are simple and efficient and keep your system running smoothly.

Rugged. Reliable. Ready for Anything.
The CrewCom Flex 16-Key Main Panel enables a powerful, frameless matrix intercom experience that delivers maximum control, unmatched flexibility, and rock-solid reliability - all in a compact 1RU design. From control rooms to live events and industrial operations, this panel is built to perform wherever communication is mission-critical.

This panel serves as the core master control surface for CrewCom Flex systems, offering powerful, intuitive operation in a frameless, matrix-free IP intercom architecture.

Applications:
• Live Events
• House of Worship
• Theater
• Production
• Nuclear
• Government

Please Note: Gooseneck microphone shown, but not included.

  • Features:

    • 16x tactile four-way "compass" keys with Up/Down lever action for Talk/Listen and Left/Right for individual channel volume control
    • 3 shift pages providing 48 assignable keys total + "Reply to Last Caller" function
    • High-visibility TFT LCD display with 16.7 million color support and improved viewing angles
    • Larger fonts and support for more characters per label
    • Built-in 10W speaker optimized for voice communication (200Hz - 6.5kHz)
    • Professional audio inputs: ¼" jack gooseneck microphone socket with threaded brass collet, 4-pin XLR-M headset connector, Rear USB 2.0 port for USB headsets and external audio devices
    • Native AES67 AoIP interoperability
    • Dual Gigabit Ethernet ports (Primary supports PoE)
    • Flexible secondary port supporting: Daisy-chaining (data only), Bonded failover, SMPTE ST 2022-7 hitless redundant streaming
    • Redundant power options: PoE (Primary) + included 12V DC power supply
    • Rugged 1RU rackmount design with excellent thermal management
    • Full configuration and management via Pliant CrewWare 2.0 Console software
    • Onboard web UI for direct device setup and maintenance
    • Gooseneck microphone not included.


  • Specifications:

    • Audio I/O: AES67 AoIP I/O, USB 2.0 audio connectivity via rear panel USB A connector
    • Microphone Socket:
      - ¼" jack socket with threaded brass collet
      - Suitable for use with the CEM-G12-TRS gooseneck microphone
    • Headset Connector: 4-Pin Switchcraft XLR male
    • Speaker:
      - Effective frequency range: 200Hz - 6.5kHz
      - Sensitivity: 75.76dBSPL @1kHz, 1W/1m.
    • IP/Ethernet Connections:
      - Dual Gigabit Ethernet ports, Primary NIC supports PoE+ to power the unit
      - Secondary NIC is used for daisy chain connections, bonded failover or SMPTE 2022-7
      - Hitless Merge redundant connections
    • Power Supply: 12VDC power supply is supplied with the unit
    • Temperature:
      - Operating Temperature: 32°F - 113°F (0°C - 45°C)
      - Storage Temperature: 14°F - 140°F (-10°C - 60°C)
    • Relative Humidity: 95% @ 104°F (40°C), non-condensing
    • Operating Vibration: 1Grms/5~500Hz
    • IEC 60068-2-64: Non-Operating Shock 30Grms, 11ms
    • IEC 60068-2-27: ESD Protection 8KV contact/15KV air IEC 61000-4-2
    • Processor, CPU: NXP i.MX 8M Quad - 4x Cortex-A53 @ 1.5 GHz, 1MB L2, 1x Cortex-M4 266MHz
    • Memory: 3GByte LPDDR4-3200 MTps default
    • Storage Media: eMMC 32GB as default; M.2 type M SSD 64GB default (PCIe) (can't be OS storage) (optional), 8GB from uSD card (optional), OS(Bootloader), Embedded Linux
    • Regulatory: EMI, CE/FCC class A
    • Certification: CE/FCC/UKCA, LVD


  • Item Includes:

    • 1x 16-Key Intercom Main Panel, 12V DC Power Supply with Region Specific Power Cord
