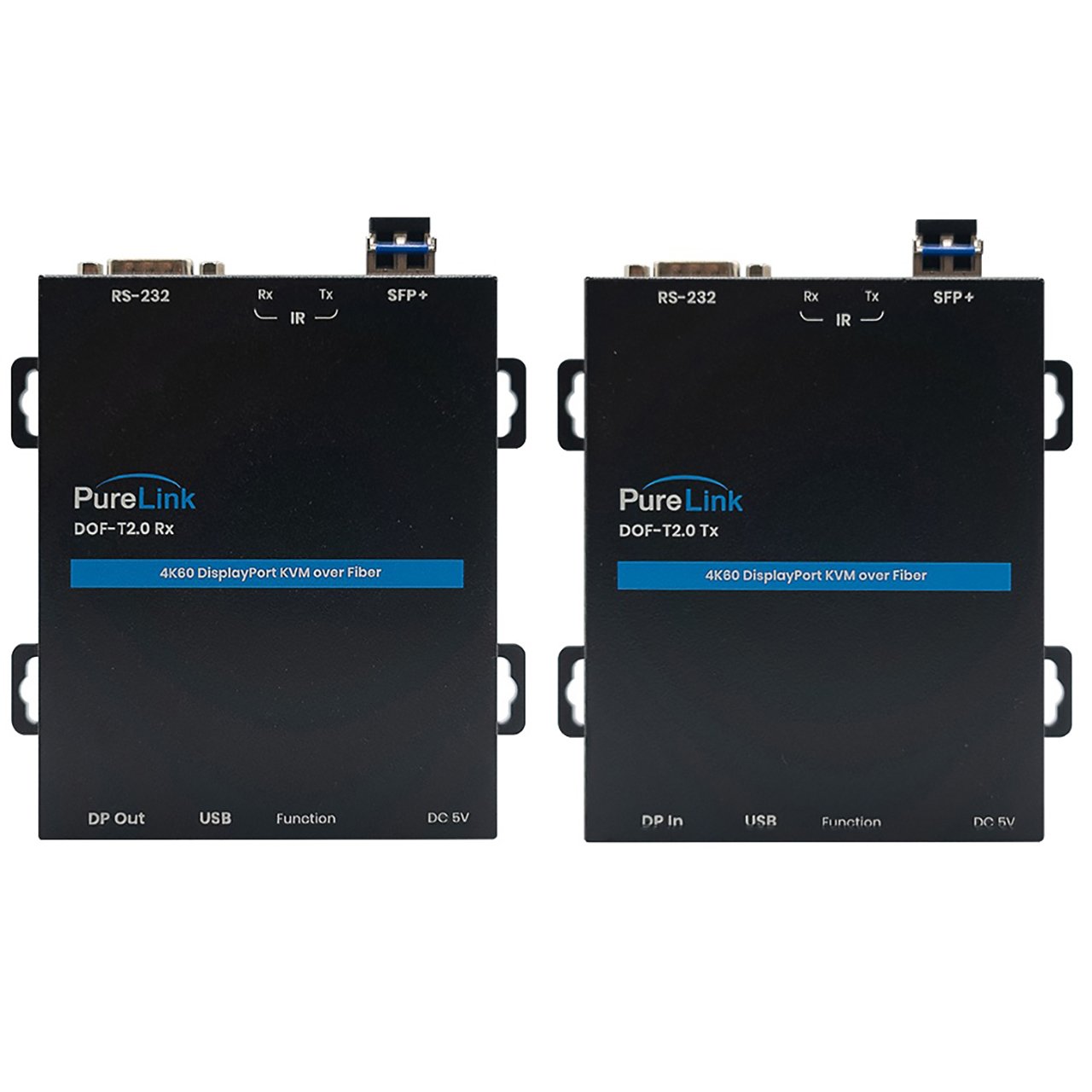

PureLink DOF T2.0 TX/RX 4K60 DisplayPort 1.2 and USB 2.0 over LC Fiber Transmitter and Receiver System

DOF T2.0 TX/RX - Overview

• Features:

  • TAA Compliant
  • DisplayPort resolutions up to 4K@60Hz 4:4:4 HDR
  • Supports distances up to 1.24 miles (2000 m.) over single-mode fiber
  • Real-Time Auto-EDID Management
  • 18Gbps bandwidth support
  • Supports LPCM 7.1 audio, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X formats
  • Bi-directional IR & RS-232 control
  • Supports USB keyboard mouse


• Specifications:

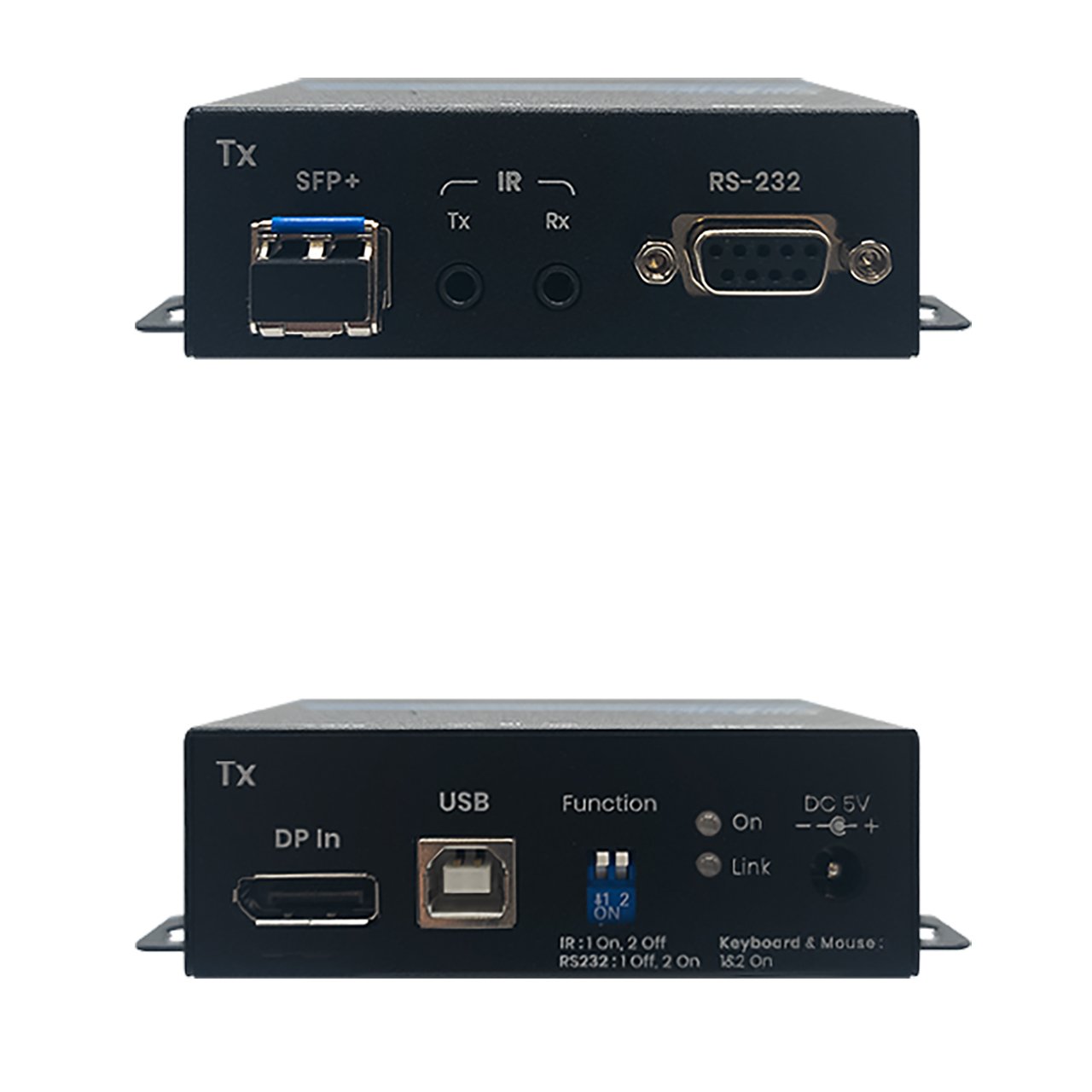

  • Connector Types (Tx)
    - Inputs: 1x DisplayPort Type A female
    - Outputs: 1x SFP 10G+ Fiber module
    - Control: 1x DB9 female [RS-232], (2) 3.5mm jack [IR Input/Output]

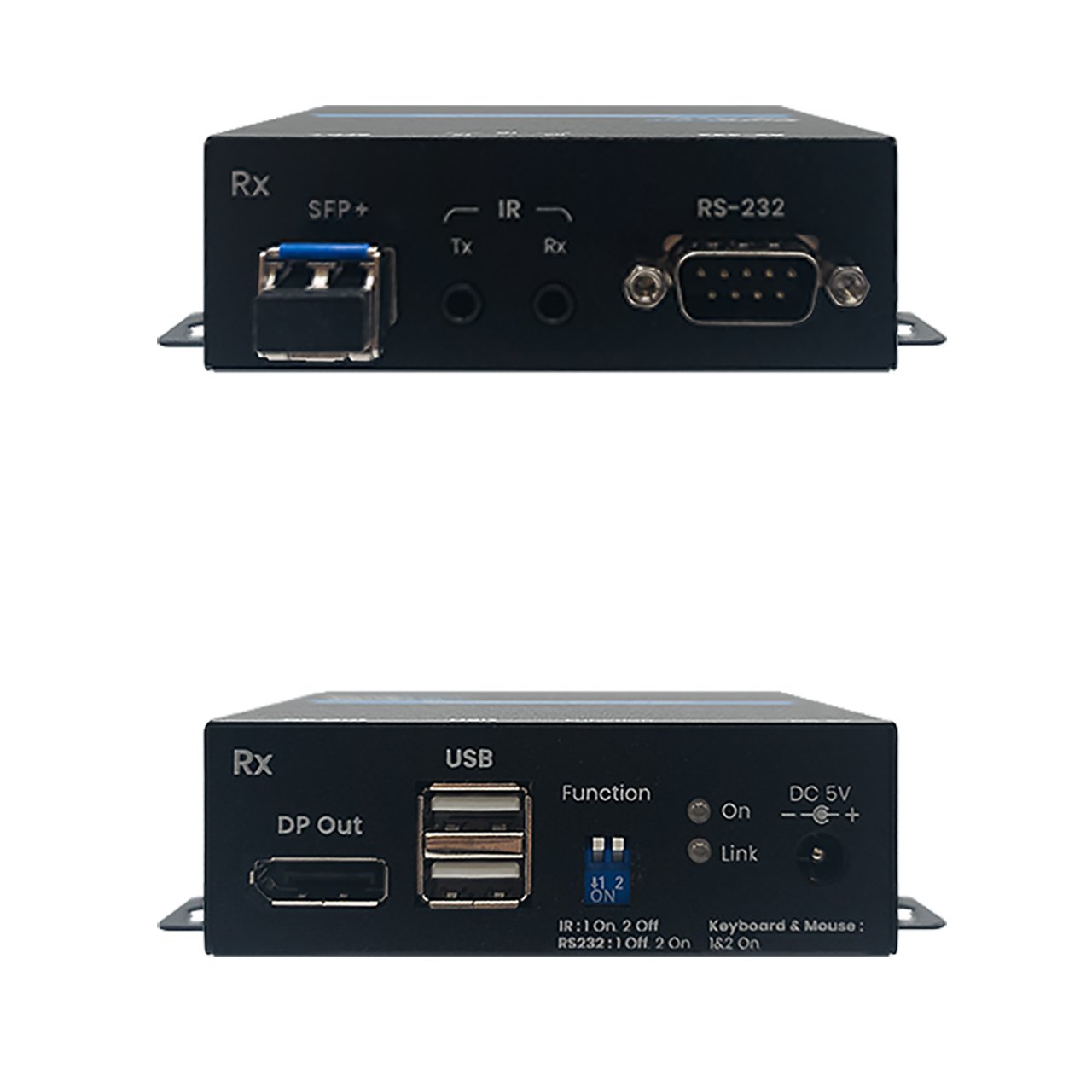

  • Connector Types (Rx)
    - Inputs: 1x SFP 10G+ Fiber module
    - Outputs: 1x DisplayPort Type A female
    - Control: 1x DB9 male [RS-232], (2) 3.5mm jack [IR Input/Output]
  • Resolutions: 4K@60Hz 4:4:4 18Gbps (6Gbps per color) 1080p@60Hz 16bit, 3D, HDR, Dolby Vision
  • Compliance: DisplayPort 1.2
  • Audio Formats: LPCM 7.1 @192KHz, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DT5:X
  • Transmission Distance: Up to 1.24 miles (2000m) over single-mode fiber
  • RS-232 Data Rate: 115200 bps/Full Duplex
  • Power Consumption: Max 5W
  • Power Supply: DC 5V 2A
  • Relative Humidity: Up to 95%
  • Product Dimensions: 4.31" x 4.51" x 1.18" (109.6mm x 114.5mm x 30mm)
  • Product Weight: 0.6lb (270g)


• Item Includes:

  • 1x DOF-T2.0 Transmitter
  • 1x DOF-T2.0 Receiver
  • 2x 10G SFP+ single-mode optical transceiver, installed in Transmitter and Receiver
  • 2x DC 5V 2Amp power adapter
  • 1x IR Emitter cable
  • 1x IR Receiver cable


• Warranty:

  • 5-Year Limited Warranty
