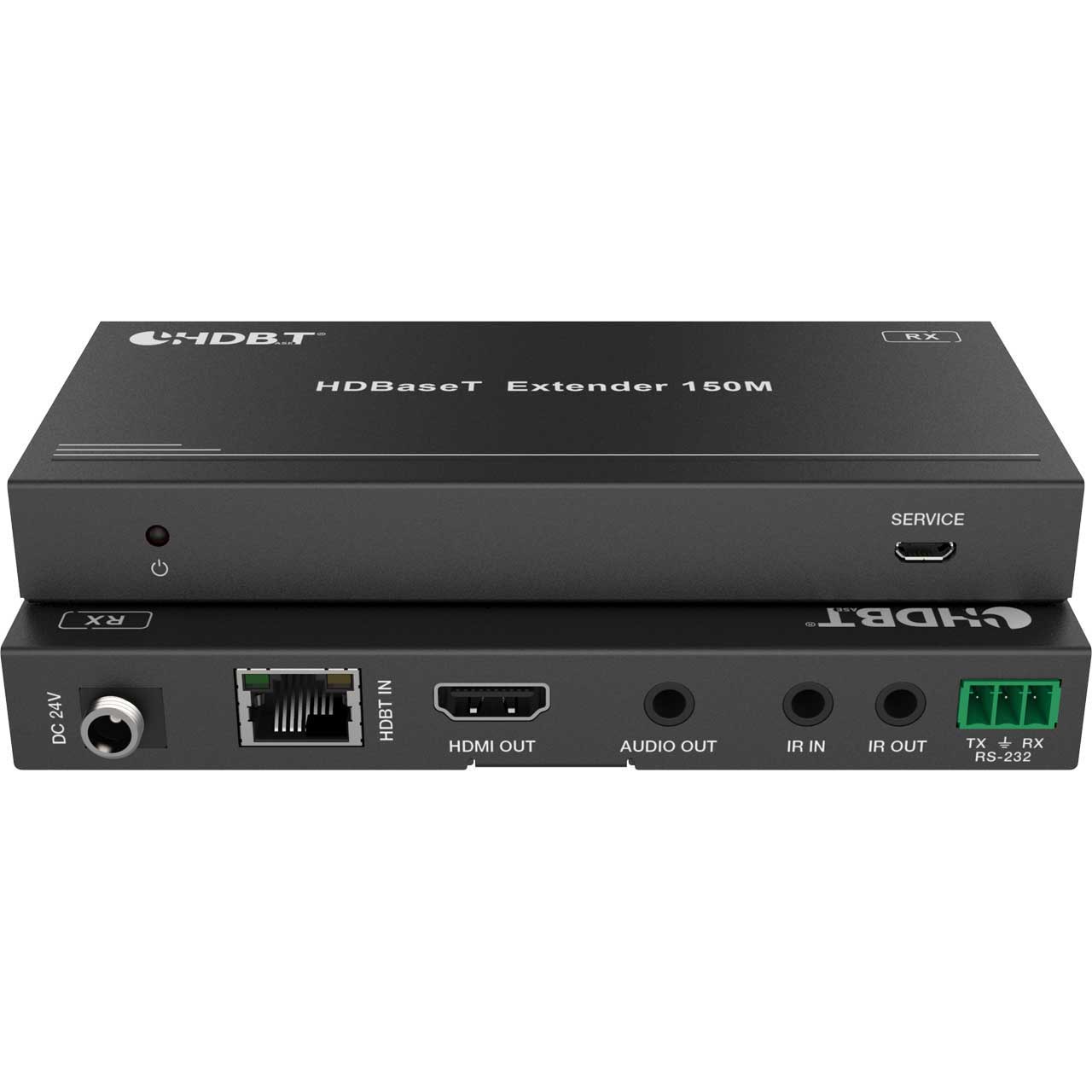

PureLink HTX-III-RX HDTools UHD 4K60 4:4:4 HDMI 2.0b HDCP 2.2 HDBaseT to HDMI Receiver for HTX III Matrix Switchers

HTX-III-RX - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
  • Supports video resolutions up to 4K/60 4:4:4
  • Supports audio up to 7.1 channels of High Definition audio pass through
  • Up to 330ft (100m) HDBaseT™ transmission distance
  • Video, audio, IR, RS-232, ethernet, and PoE over a single cable
  • ARC and CEC supported


• Specifications:

  • Performance
  • Supported Distance: 492 ft. (150 m)
  • Supported Resolutions: up to 4K@50/60Hz (4:4:4)
  • Compliance: HDMI 2.0b, HDCP 2.2/1.4
  • Data Transfer Rate: 18 Gbps
  • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2
  • Color Depth: 8-bit 10-bit 12-bit
  • Supported HDMI Audio Formats: LPCM 2/5.1/7.1 CH, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Control Options: RS-232, IR
  • Power Consumption: 11 Watts (max)
  • Power Supply: Input: AC100 - 240V 50/60Hz / Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
  • Operating Temperature: 32° ~ 104° F
  • Storage Temperature: - 4° ~ 148° F
  • Relative Humidity: 20 ~ 90% non-condensing
  • MTBF: 50,000 hours
  • Video output format: (1) HDMI Type A [19-pin female], (1) IR [3.5mm Stereo Mini-jack], (1) LAN [RJ45]

    Enclosure
  • Enclosure Type: All metal, black powder coat finish
  • Product Dimensions: 6.7 x 3.8 x 0.7 in.
  • Product Weight: 0.94 lbs.
  • Product Dimensions: 12.21 x 7.09 x 2.76 in.
  • Product Weight: 7.7 lbs


• Item Includes:

  • 1x PureLink HTX-III-RX HDTools UHD 4K60 4:4:4 HDMI 2.0b HDCP 2.2 HDBaseT to HDMI Receiver for HTX III Matrix Switchers


• Warranty:

  • Limited Warranty (3-Years)
