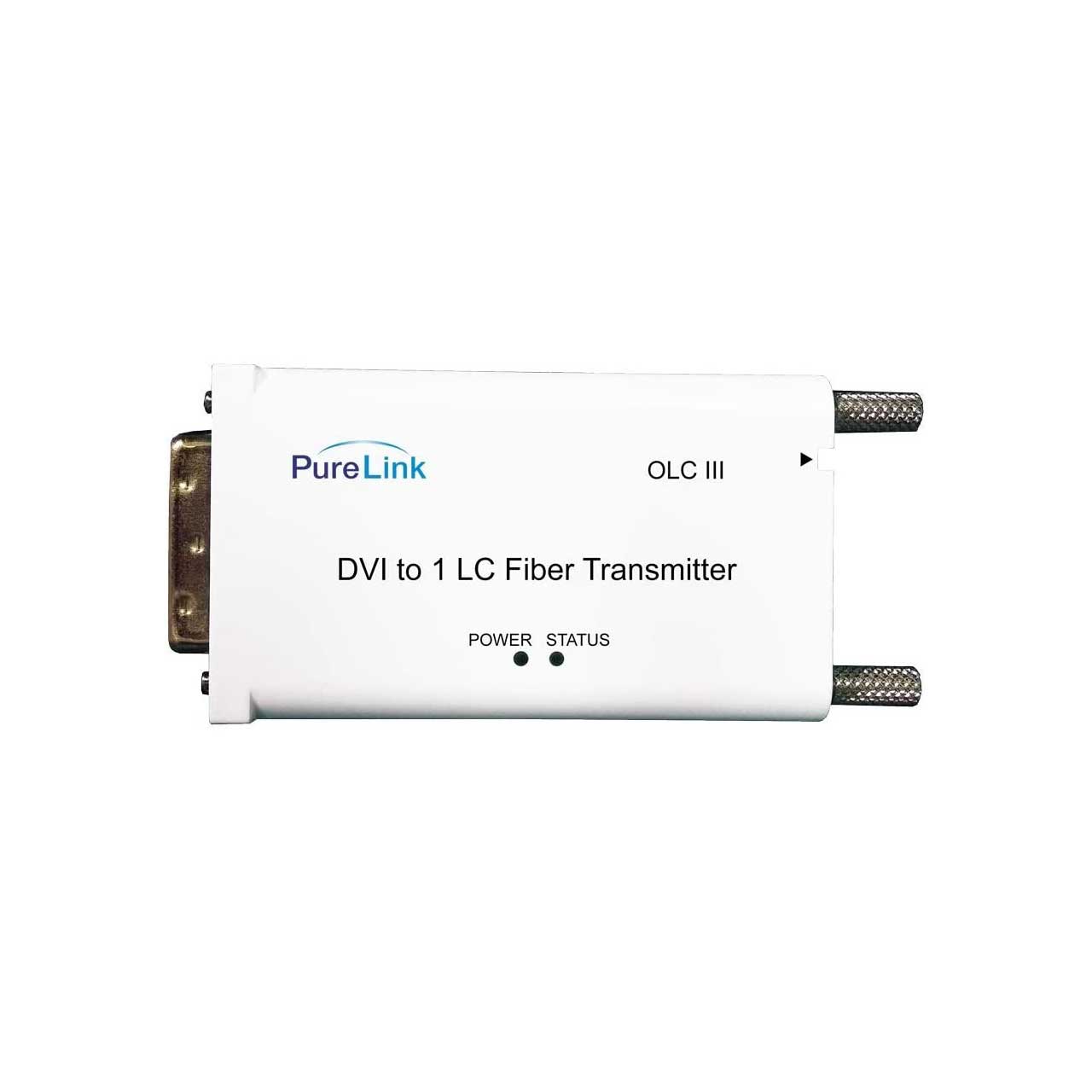

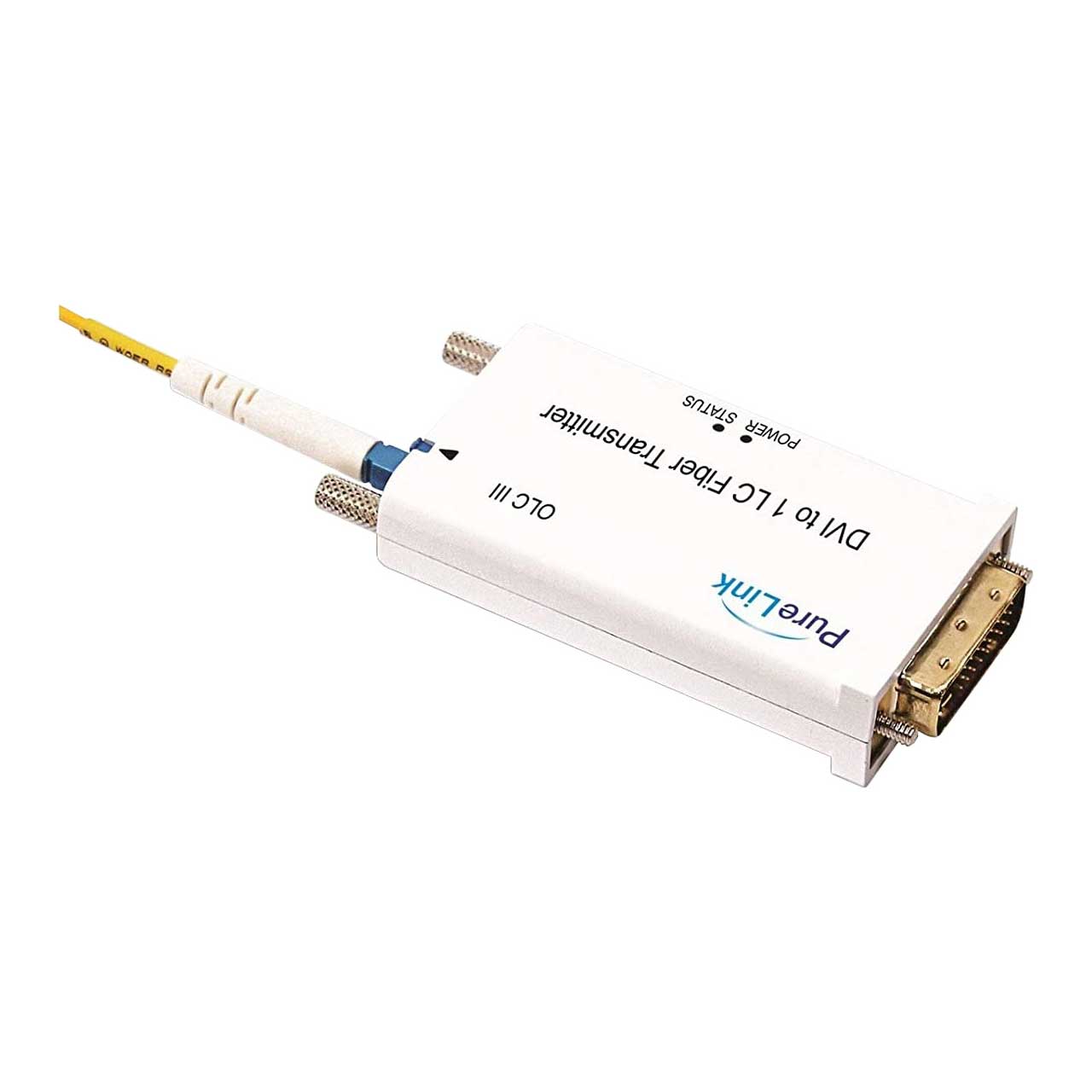

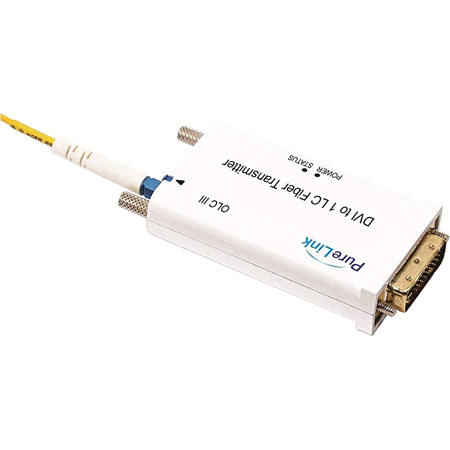

Purlink OLC III TX HDTools DVI to 1 LC Fiber Transmitter - Full HD

OLC III TX - Overview

• Features:

  • DVI extension over a single strand, OM3 multi-mode fiber optic cable
  • Reliable, long-range extension of Full-HD/1080p content
  • Supports distances up to 980 ft. (300 m.)
  • HDCP compliant
  • Compact, detachable modules for easy integration


• Specifications:

  • Performance
  • Supported Distance: up to 980 ft. (300 m.)
  • Supported Resolutions: up to WUXGA(1920x1200) / 60Hz
  • Video Bandwidth: 2.25 Gbps
  • Compliance: HDCP compliant
  • Power Supply: 100-240VAC 50/60Hz
  • Operating Temperature: 32° ~ 117° F (0° to 47° C)
  • Storage Temperature: - 40° ~ 158° F (-40° to 70° C)
  • Relative Humidity: 0 ~ 90% non-condensing
  • MTBF: 50,000 hours
  • Rack Mounting Option: Standard 19 inch rack-mountable design

    Hardware
  • Cabling: OM3 Multi-mode glass-fiber
  • Input Signal Type(s): DVI-D 29 pin
  • Output Signal Type(s): 1 LC Fiber Connector

    Enclosure
  • Rack Mounting Option: Standard 19 inch rack-mountable design
  • Product Dimensions: 3.06 x 1.58 x 0.63 in. (74.66 x 40.2 x15.9 mm)
  • Product Weight: 0.15 Lbs (68 g)
