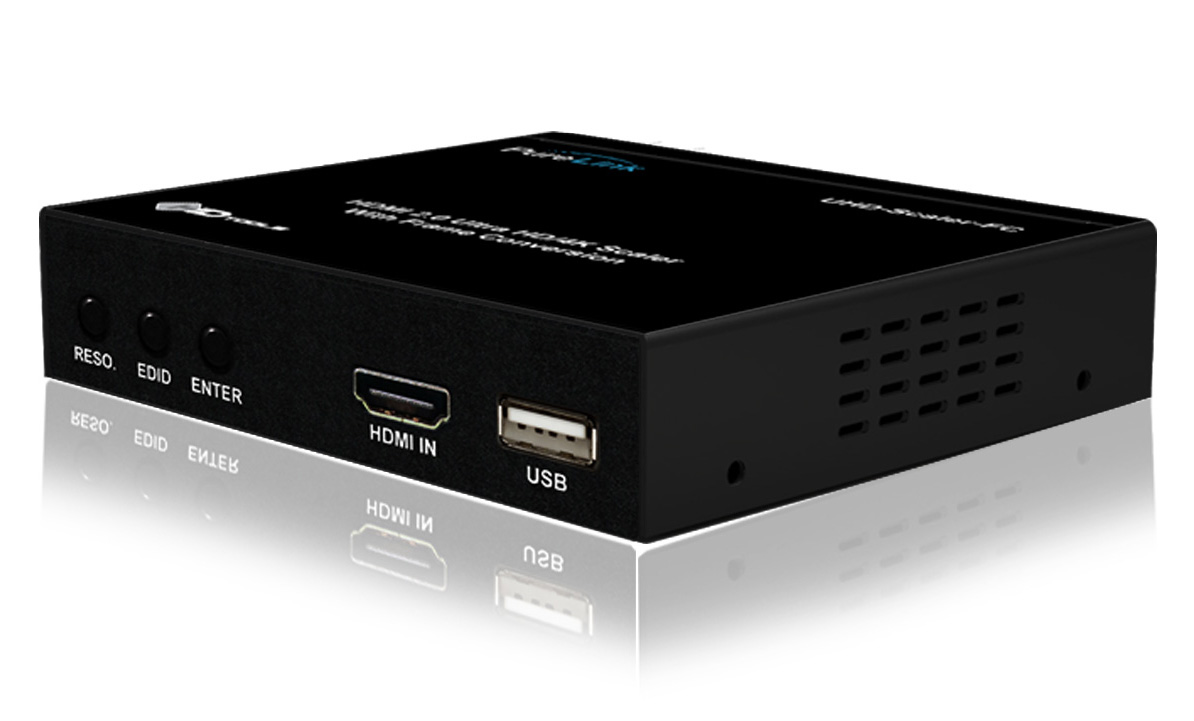

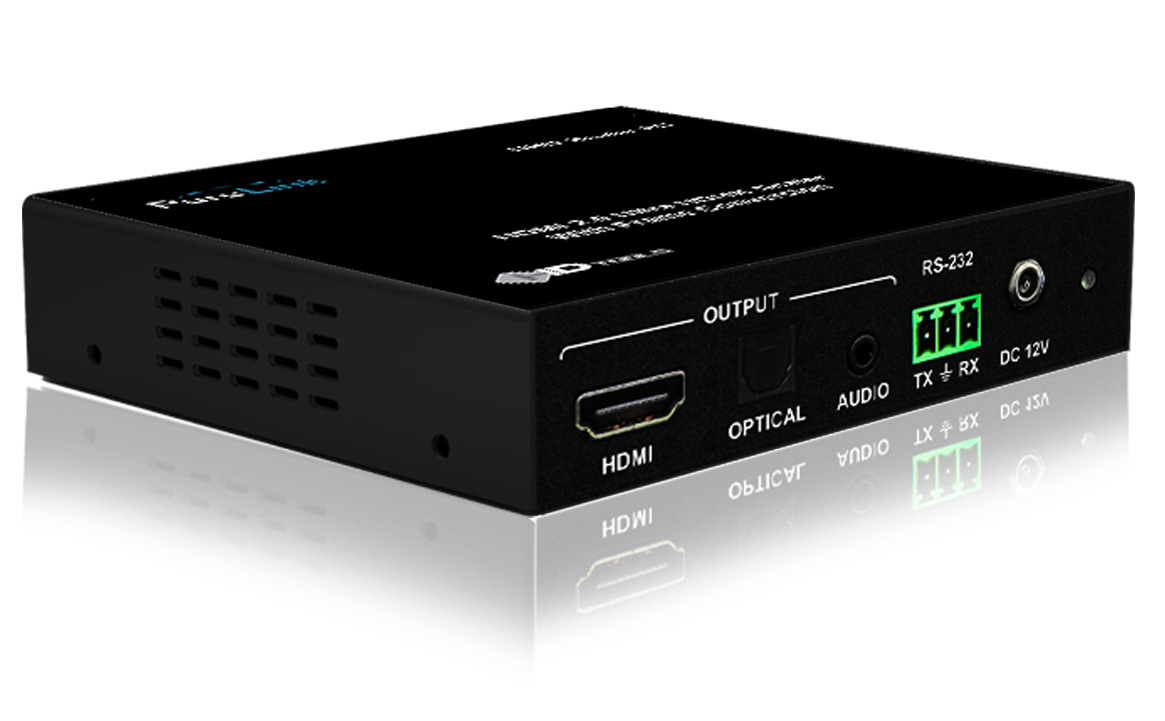

PureLink UHD-SCALER-FC HDMI 2.0/60 - 4:4:4 - HDCP 2.2 ULTRA HD Scaler

ITEM #: PLK-UHDSCALERFC MFG #: UHD-SCALER-FC

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$399.99

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    UHD-SCALER-FC - Overview

    The HDTools UHD-Scaler-FC accepts a wide range of input resolutions, from 480i up to [email protected] 4:4:4, and output resolutions of up to [email protected] 4:4:4 (with digital and analog audio extraction). It provides one HDMI input and one HDMI output and automatically scales any input signal to match the native resolution of the display, or any connected HDMI device. The output can also be manually set to a specific resolution if desired. The scaler supports a data rate of up to 18 Gbps with 4K60 4:4:4 color format (HDMI 2.0). It also features front panel buttons, an OSD (on screen display) menu, as well as RS-232 control. PureLink's UHD-Scaler-FC is ideal for HD/Full HD/Ultra HD 4K interoperation environments that have either mismatched resolutions or that are experiencing EDID or HDCP version issues.

    • Features:

      • Supports input & output resolutions from 480i up to [email protected] 4:4:4 (HDMI 2.0)
      • Automatically scales any input signal to match the native resolution of the display or any connected HDMI device
      • Supports 205/30/50/60Hz frame conversion
      • Manually set output to a specific resolution
      • Supports data rates of up to 18 Gbps
      • Automatic output picture adjustment including aspect ratio
      • Front panel, OSD (on screen display) menu, and RS-232 control
      • Supports HDMI audio extraction via optical digital audio and 3.5mm analog audio
      • HDCP 2.2 compliant?
      • CEC pass-through
      • Supports USB firmware update

    • Specifications:

      • Technical
      • HDMI Version: HDMI 2.0
      • HDCP Compliance: HDCP 2.2
      • Data Rate: 18 Gbps
      • Supporting Display Resolutions: Ultra HD/4K up to 4096 x 2160 @50/60Hz (RGB 4:4:4, YCbCr 4:4:4, 4:2:2, 4:2:0)
      • HDMI Audio: LPCM 2/5.1/7.1 Ch, Dolby Digital+, Dolby TrueHD, Dolby Digital, Dolby Atmos, DTS:X, DTS-HD Master Audio, DTS 5.1

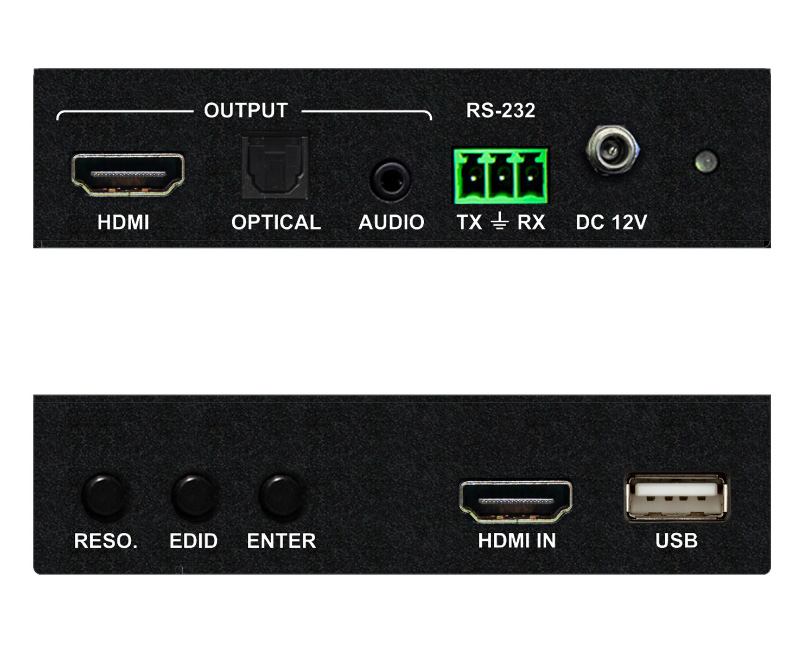

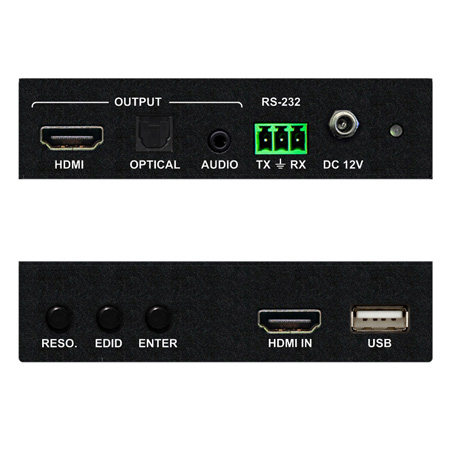

      • Input Ports: 1 x HDMI Type A [19-pin female], 1 x RS232 [Phoenix connector], 1 x Firmware [Mini USB]
      • Output Ports: 1 x HDMI Type A [19-pin female], 1 x Optical digital audio, 1 x 3.5mm analog audio

        General
      • Power Input: AC100 - 240V 50/60Hz
      • Power Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
      • Operational Temperature: 32° ~ 117° F
      • Storage Temperature: - 4° ~ 158° F
      • Humidity: 10 ~ 90% non-condensing
      • MTBF: 50,000 hours
      • Dimensions (WxDxH): 4.5" x 3.9" x 0.98"
      • Weight: Tx - 1.0 lbs; Rx - 1.0 lbs
