AJA Hi5-4K-Plus 4k SDI to 4K HDMI v2.0 Converter (18 Gbps 4K/UltraHD 50/59.94/60) Quad 3G & 1.5G/Dual Link 3G/3G-SDI

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

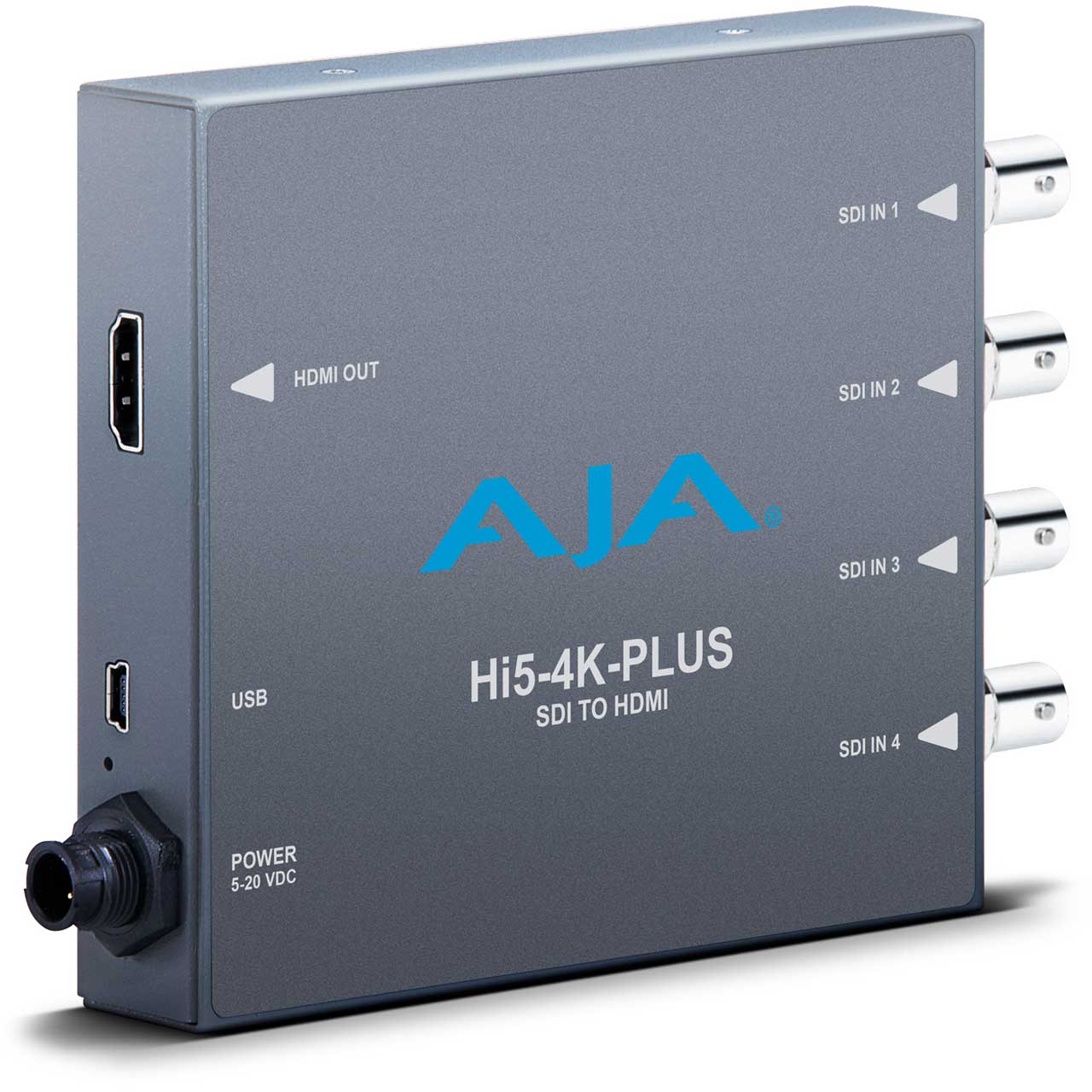

    AJA Hi5-4K-Plus 4k SDI to 4K HDMI v2.0 Converter (18 Gbps 4K/UltraHD 50/59.94/60) Quad 3G & 1.5G/Dual Link 3G/3G-SDI

    Manufacturer: AJA Video

    Item #: AJA-HI5-4K-PLUS   •   MFG #: HI5-4K-PLUS




    Our Price:$595.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      AJA's Hi5-4K-Plus preserves your vision with pristine image fidelity and HFR support up to 60p for 4K/UltraHD SDI to HDMI 2.0 conversion needs. Hi5-4K-Plus provides a simple monitoring connection from professional 4K devices using Quad 3G-SDI, Quad 1.5G-SDI, or Dual 3G-SDI outputs to new displays with HDMI 2.0 inputs, for cost-effective monitoring for 4:2:2/4:4:4 60p professional workflows.

      Connectivity
      The latest generation of affordable 4K monitors utilize an HDMI 2.0 connection, which allows a full 4K signal to be passed over a single cable. Typical professional 4K workflows use four SDI cables to carry the full resolution image, making it difficult to incorporate these newer monitors. Hi5-4K-Plus is an easy-to-use converter that bridges the gap between these two worlds for seamless integration.

      Audio
      Up to 8-channels of embedded audio in the incoming SDI signal are carried through seamlessly into the HDMI output, ensuring your audio is always in sync and can be easily played back on the connected monitor.

      4K and UltraHD
      Typical 4K signals use a resolution of 4096x2160 pixels while UltraHD signals measure 3840x2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. Hi5-4K-Plus can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.

      Hi5-4K-Plus also supports High Frame Rate (HFR) inputs. 4K/UHD signals at 50 or 60 fps can be fed into Hi5-4K-Plus and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

      HD Support
      Not every job is a 4K job. When you're not working in 4K, Hi5-4K-Plus can still be a useful tool for converting HD-SDI to HDMI. A single HD-SDI signal coming into the Hi5-4K will be sent out as an HD resolution HDMI signal, much like AJA's Hi5-3G Mini-Converter.

      Compact and Portable
      AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.


      • Features

        • 4 x 3G-SDI inputs
        • Support for 4:2:2/4:4:4 HDMI 2.0 output
        • HD conversion supported
        • Embedded audio support
        • Configure via USB port and supplied MiniConfig software
        • Uses 5-20VDC power (DWP-U-R1 universal power supply included)

      • Specifications

        • Video Formats
        • 4 x 3 Gb SDI (Level A or B-Dual Link)
        • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (4K) 4096 x 2160PsF* 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (Ultra HD) 3840 x 2160PsF* 23.98, 24, 25, 29.97, 30
        • *NOTE: PsF is Level B-Dual Link
          4 x 1.5 Gb SDI
        • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
        • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
          2 x 3 Gb SDI (Level B-Dual Stream)
        • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
        • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
        • (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
          1 x 3 Gb SDI (Level A or B-Dual Link)
        • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
        • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080i 25, 29.97, 30
        • (HD) 1280 x 720p* 50, 59.94, 60
        • *NOTE: 1280 x 720p is Level A Only
          1 x 1.5 Gb SDI
        • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
        • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
        • (HD) 1920 x 1080i 25, 29.97, 30
        • (HD) 1280 x 720p 50, 59.94, 60
          1 x 270 Mb SDI
        • (SD) 625i 25
        • (SD) 525i 29.97

        • Video Input Digital
        • 4 x 3G-SDI BNC, SMPTE-259/292/424

        • Video Output Digital
        • 1 x HDMI Type A connector
        • HDMI v1.4a 4K/UltraHD 4:2:2 up to 30fps, 4:2:0 up to 60fps
        • HDMI v2.0 4K/UltraHD 4:2:2/4:4:4 up to 60fps

        • HDCP
        • The Hi5-4K-PLUS does not encode the HDMI with HDCP encryption. By definition, HD-SDI inputs to the Hi5-4K are unencrypted.
        • The HDMI specification requires HDMI monitors to support unencrypted inputs.

        • Audio Input Digital
        • SDI embedded audio, 24-bit, 8-Channel

        • Audio Output Digital
        • SDI embedded audio, 24-bit, 8-Channel

        • Environment
        • Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
        • Storage Temperature: -40 to 60 degrees C (-40 to 140 degrees F)
        • Operating Relative Humidity: 10-90% noncondensing
        • Operating Altitude: <3,000 meters (<10,000 feet)

        • Size (w x d x h): 4.020" x 5.765" x 0.9" (102.108mm x 146.431mm x 22.86mm)
        • Weight: 0.5 lb (0.3 kg)
        • Power: 5-20VDC regulated, 8 watts, power supply required (included with purchase

      • Item Includes

        • HI5-4K-PLUS converter
        • DWP-U-R1 universal power supply

      • GTIN:

        0892448000090
