tvONE C2-2855 Universal Scaler PLUS Audio Embed/De-Embed Logo PIP Keying Mix
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

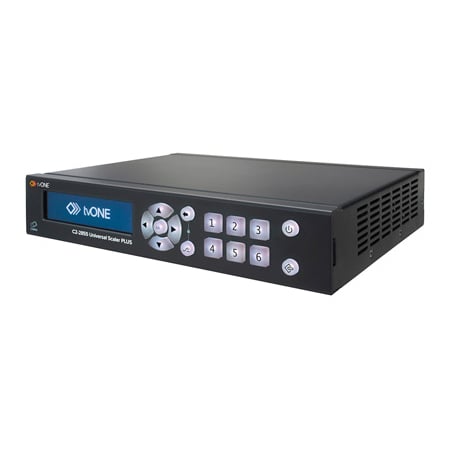

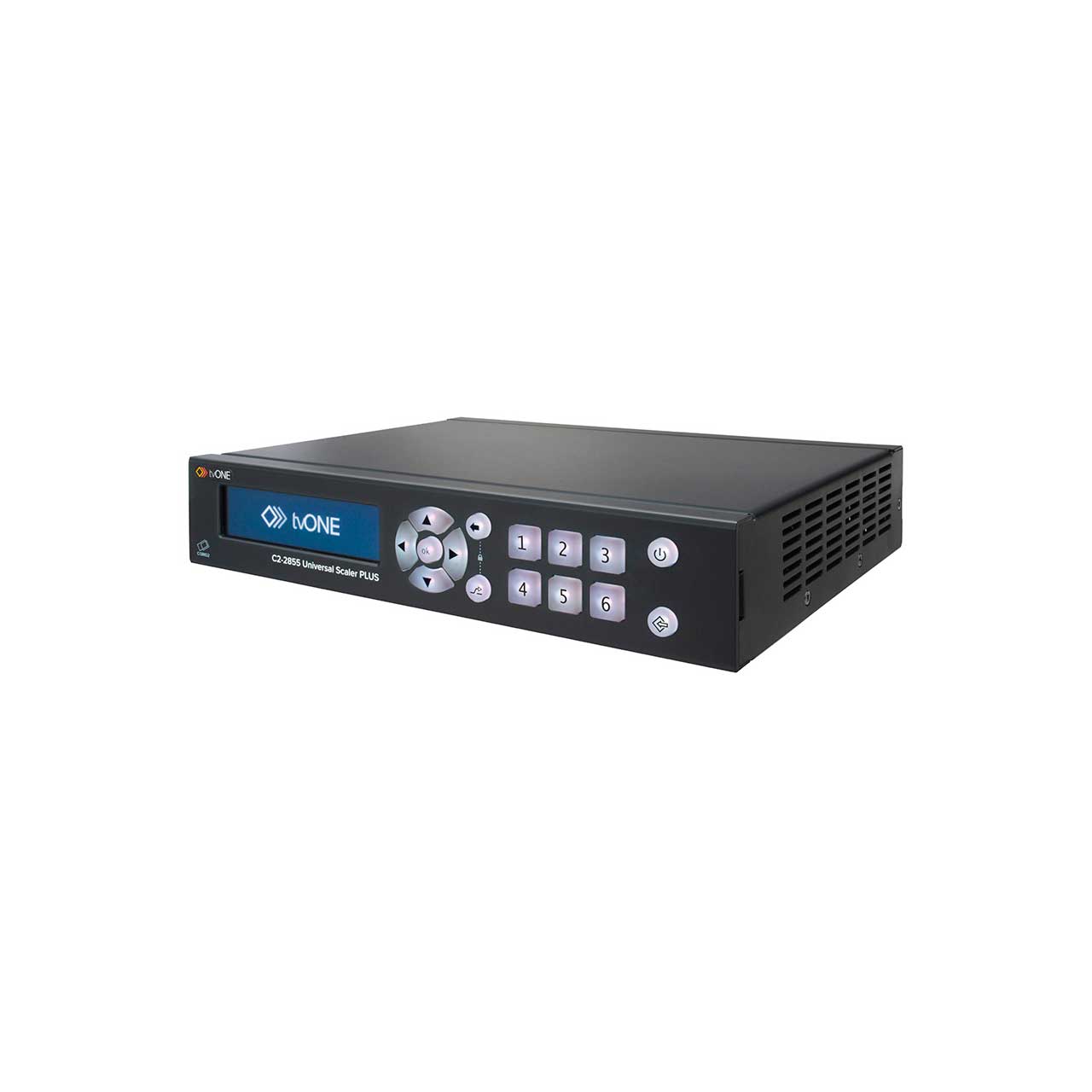

    tvONE C2-2855 Universal Scaler PLUS Audio Embed/De-Embed Logo PIP Keying Mix

    Manufacturer: tvONE

    Item #: TV1-C2-2855   •   MFG #: C2-2855


    Our Price:$2,990.00

    free ship
    Availability: In Stock
    Item is Available for immediate shipping from our warehouse.



      The C2-2855 Universal Scaler Plus is first in a new generation of high
      performance scalers that provides best-in-class video scaling and format

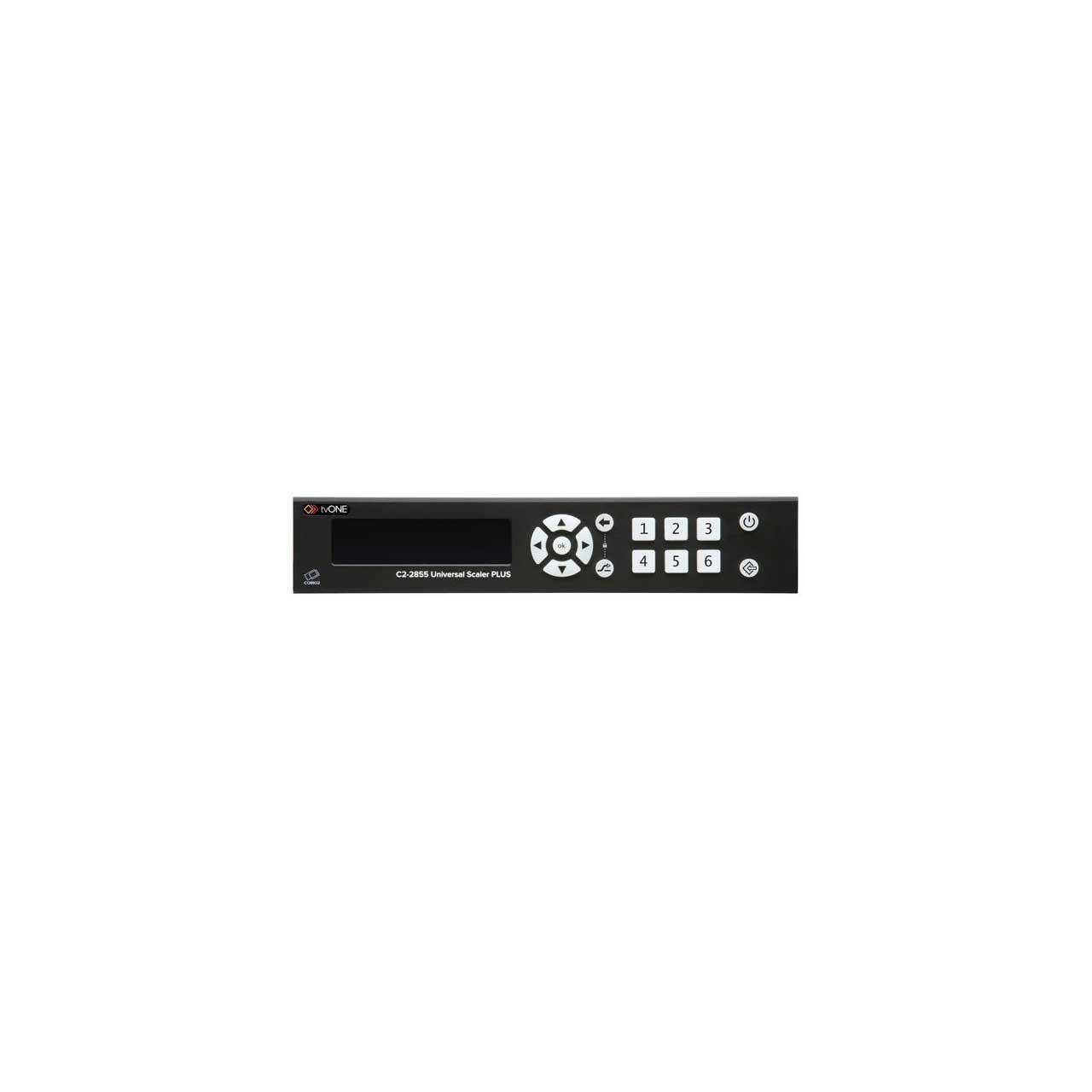

      conversion along with revolutionary, intuitive user interface tools. The crystal
      clear OLED display intuitively guides users through setup and control using
      color-modulated, backlit buttons. Alternatively, a graphic user interface for
      computer or tablet can be used to set up and control the unit remotely via IP.
      RS232 is also provided as a direct control interface for 3rd party control systems.
      The video performance of the C2-2855 is based on tvONE's exclusive
      CORIOr2 technology, which provides high quality bi-directional conversion and
      switching between a wide variety of analog and digital video formats. Living up
      to its designation as a "Universal Scaler" the C2-2855 supports SD/HD/3G-SDI,
      HDMI, DVI, Composite Video, YC, YUV, YPbPr or RGB, on both inputs and
      outputs, and the signal parameters of the incoming video may be adjusted. The
      high resolution RGB/YPbPr output is selectable at virtually any PC or HDTV
      resolution and NTSC, PAL, PAL-M, and PAL-N standards are all supported. Crisp,
      clear images are ensured by a high sampling rate and advanced Digital Flicker
      Elimination circuitry on CV & YC outputs, while full bandwidth chroma sampling
      ensures faithfully reproduced, high resolution colors. Motion compensation,
      diagonal interpolation and a 3:2 Pull-down feature provide for the best possible
      NTSC image quality, while temporal interpolation refines frame-rate conversion by
      merging successive frames.
      Designed for commercial 24/7/365 use, the C2-2855 automatically stores all
      settings in non-volatile memory for automatic restoration of the most recent
      settings even when power is switched off. Twelve user-defined presets are
      readily available for instant, on-the-fly adjustment to diverse customized
      tvONE's AutoSet feature automatically sizes and positions computer images to
      fit exactly on the video display, and the 10X Variable Zoom can enlarge and
      position any part of an input to fill the entire video output display. Variable
      Shrink with as much as 90% size reduction allows almost any image to fit on the
      tiniest screen.
      Advanced Features
      - Keying allows one input to be keyed over a second input.
      The keyed image may be faded in and out. Precise keying at the pixel level is
      possible due to 4:4:4 sampling format for RGB sources. Transitions permit
      Seamless Cut, Fade or Wipe transitions when switching between input sources.
      Picture-In-Picture (PIP) functionality allows an input to be inset in a window over
      a second input or vice versa, and the PIP window may be placed anywhere on
      the screen. Genlock ensures precise synchronization of the incoming signals.
      - Integral Stereo Audio switching is provided by an integral 4x1 audio
      routing switcher. The four impedance-independent unbalanced inputs follow

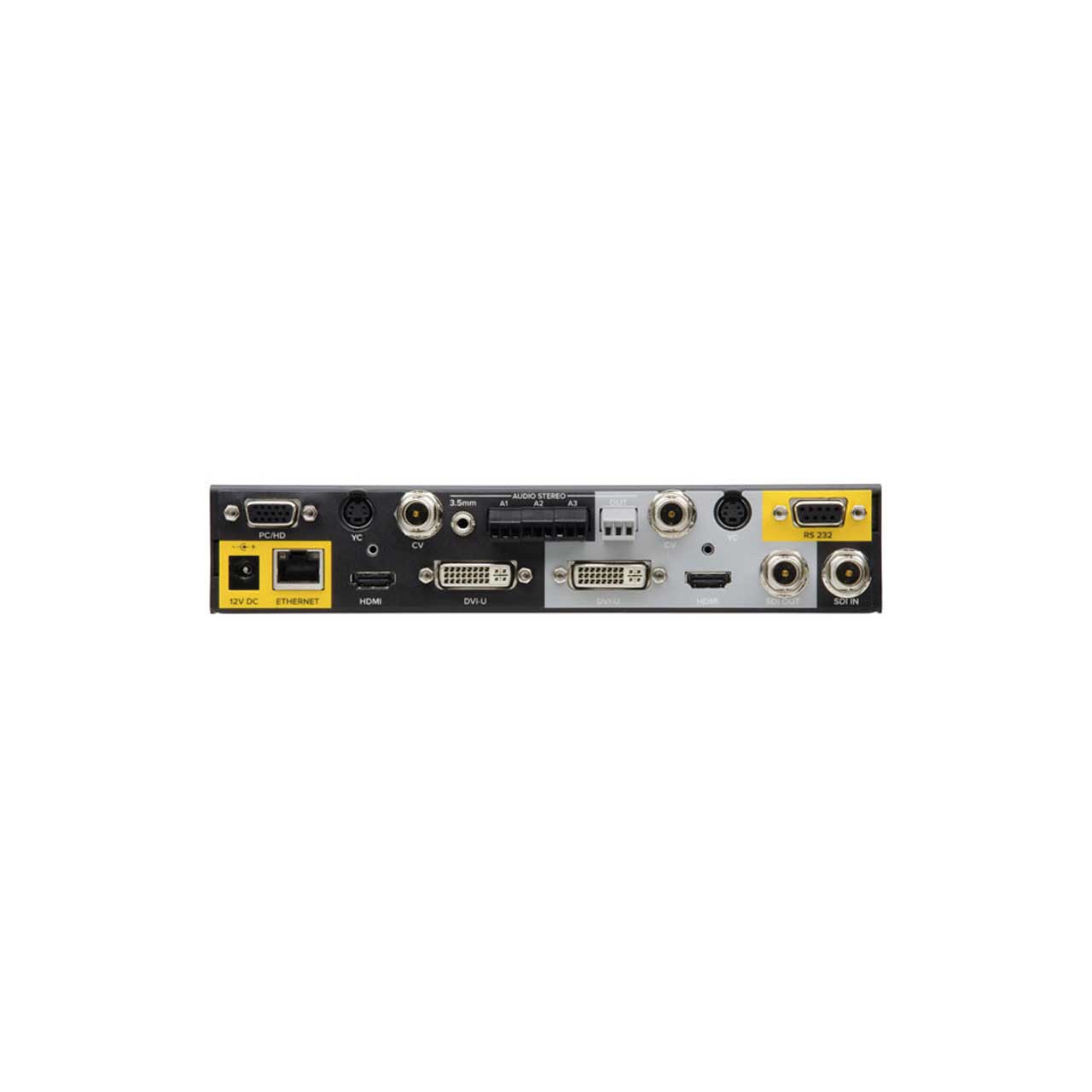

      the video input selection. A rear panel terminal block and a 3.5mm jack-socket
      provides access.
      Embedded Audio Support allows any audio input to be embedded on all
      outputs which support embedded audio data (HDMI/DVI-U/SDI).
      The unit is housed in a desktop case and can be rack-mounted with an optional
      19-inch rackmount kit that holds one or two units.

      • Features

        • Up/Down/Cross Conversion
        • Digital Inputs: SD/HD/3G-SDI, DVI-U*, HDMI (DVI 1.0, HDCP 1.4)
        • Analog Inputs: YUV/YPbPr, RGB/YPbPr, CV, YC
        • Digital Outputs: SD/HD/3G-SDI, DVI-U*, HDMI (DVI 1.0, HDCP 1.4)
        • Analog Outputs: DVI-U* (RGB/YPbPr/YUV), CV, YC
        • Analog: PC to 1920x1080, HDTV to 1080p/60
        • HDMI & DVI : PC to 1920x1200, HDTV to 1080p/60
        • Supports: NTSC, PAL, PAL-M, PAL-N
        • Motion Compensation & 3:2 Pulldown
        • Temporal Interpolation & Diagonal Interpolation
        • Automatic Incoming Resolution Detection
        • AutoSet - Automatic picture sizing of PC inputs
        • 4:4:4 Full bandwidth Chroma Sampling f or RGB sources. 4:2:2
        • f or SDI, YC and CV sources. HDMI YUV support for either 4:4:4 or 4:2:2 sampling
        • Video signal parameter adjustments
        • Integral 4x1 Stereo Analog Audio Routing Switcher, fully integrated
        • with digital audio
        • Stereo Audio Embedding on capable outputs (DVI-U*, HDMI, SDI)
        • RS-232 and IP Interf ace f or Control Sof tware
        • Variable Image Zoom to 10X and Shrink to 10%
        • Genlock
        • Framelock
        • PIP, Chromakey and Lumakey
        • Optional Single/Dual Rackmount Kit
      • Specifications

        • Video Input
        • Television Standards NTSC, PAL, PAL-M, PAL-N, SECAM
        • Composite Video 1x via BNC & 1x via DVI-U*
        • YC (S-Video) 1x via 4-Pin Mini-DIN & 1x via DVI-U*
        • HDTV 1x via HDMI (DVI 1.0, HDCP 1.4) & 1x via DVI-U*
        • SD/HD/3G-SDI 1x via BNC
        • Computer Inputs
        • Signal Type 1x Analog via PC/HD HD15, 1x DVI-U*
        • Format RGBHV, RGBS, RGsB, YPbPr, YUV
        • Sync TTL Level, 10K , Pos or Neg
        • Termination 75 U
        • R-G-B Level Range 0.5-2.0 Vp-p
        • Scan Rate Detection Automatic
        • Analog Signals PC to 1920x1080, HD to 1080p/60
        • DVI & HDMI signals PC to 1920x1200, HD to 1080p/60
        • Max Horiz Scan Rate 150kHz
        • Computer Compatibility PC, Mac, Workstations
        • Video Outputs
        • Television Standards NTSC, PAL, PAL-M, PAL-N
        • Impedance 75 U
        • Composite Video 1x via BNC
        • YC (S-Video) 1x via 4-PIN Mini-DIN
        • YUV, YPbPr 1x via DVI-U*
        • HDTV 1x via HDMI
        • CEC pass-through for HDMI In to Out
        • SD/HD/3G-SDI 1x via BNC
        • Maximum Latency 1-2 Frames
        • Computer Outputs
        • Signal Type 1x DVI-U* & 1 x HDMI
        • Format RGBHV, RGBS, RGsB, YPbPr
        • R-G-B Level 0.7 Vp-p
        • Analog Signals PC to 1920x1080, HD to 1080p/60
        • DVI & HDMI Signals PC to 1920x1200, HD to 1080p/60
        • Size and Position Automatic via AutoSet or Manual
        • Image Size User-Definable Presets
        • Image Freeze One Video Frame
        • Settings Memory Non-Volatile
        • Zoom Range Variable to 10X Zoom
        • Shrink Range Variable to 10%
        • Image Mirroring Horizontal and/or Vertical
        • Horizontal Filtering Full Digital
        • Conversion Technology Proprietary - CORIOr2
        • Framerate Conversion Temporal
        • Color Resolution 24-bit (16.8 Million Colors)
        • Sampling Rate 162MHz
        • Digital Sampling 24-bit, 4:4:4 or 4:2:2 format
        • depending on input source
        • Firmware Memory Flash upgradeable via RS-232 or IP
        • Video Encoder & Decoder 8-bit Digital
        • De-Interlacing (NTSC-PAL) Pixel-level Motion Adaptive,
        • Diagonal Interpolation
        • Film Mode (NTSC) 3:2 Pulldown
        • Maximum Latency 1-2 frames
        • Video Adjustments CV/YC: Contrast, Brightness,
        • Saturation, Hue (NTSC), Analog
        • RGB/YPbPr levels
