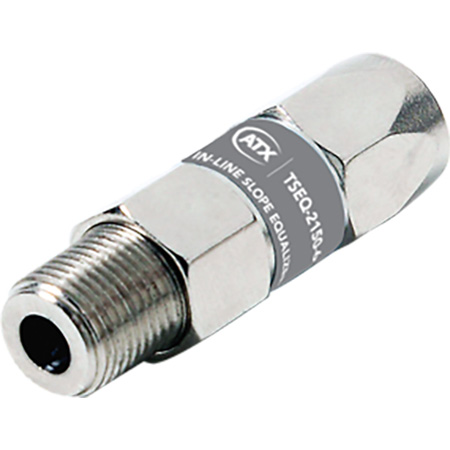

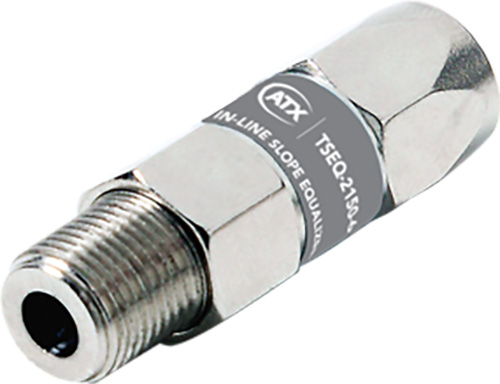

ATX Networks TSEQ-2150-12 Satellite IF Inline Slope Equalizer - 12 dB

ITEM #: PM-TSEQ-2150-12 MFG #: TSEQ-2150-12

Primary Image
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    TSEQ-2150-12 - Overview

    The TSEQ-2150-6 is a satellite IF inline slope equalizer. Slope equalizers compensate for long cable runs in either digital or analog applications. It features high performance SMD board circuitry that provides consistent performance and precision machined F-connector threads to ensure smooth connector interface.

    • Features:

      • Slope equalizers compensate for long cable runs digital or analog applications
      • High performance SMD board circuitry provides consistent performance
      • Precision machined F-connector threads ensures smooth connector interface

    • Specifications:

      • Bandwidth: 40 MHz to 2150 MHz
      • Impedance: 75 Ω
      • DC Pass-Thru Current: 500 mA max
      • Insertion Loss @ 40 MHz: 12 dB


    TSEQ-2150-12 - Required Accessories
