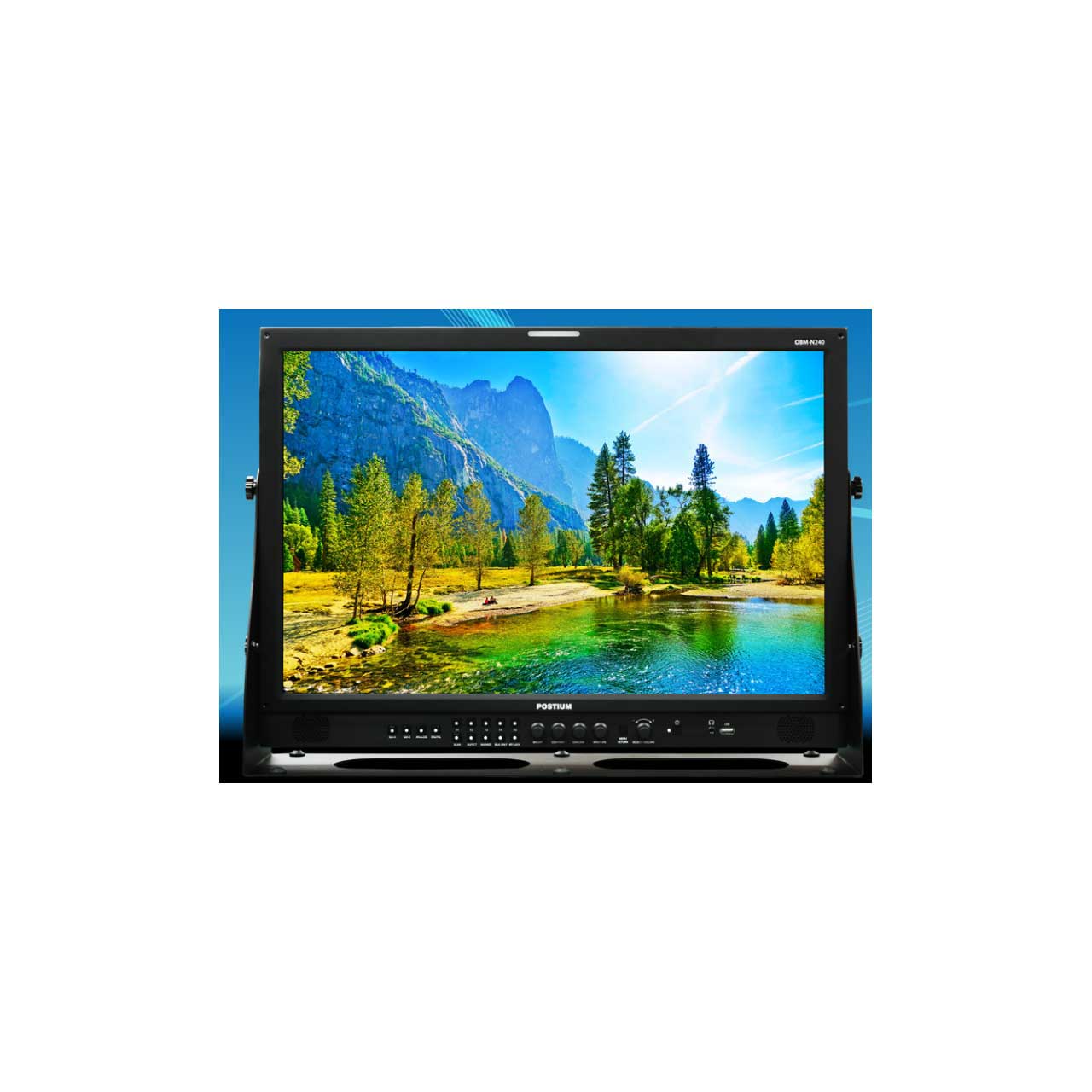

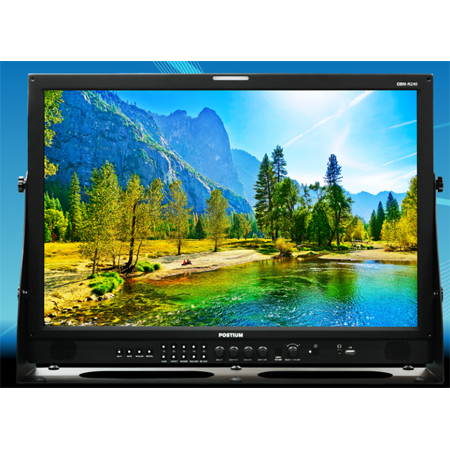

Postium OBM-N240 24 In 1920 x 1200 Resolution 3G-SDI LCD Monitor - 2x 3G-SDI Inputs

OBM-N240 - Overview

• Features:

  • 3G/HD/SD-SDI 2 Channel

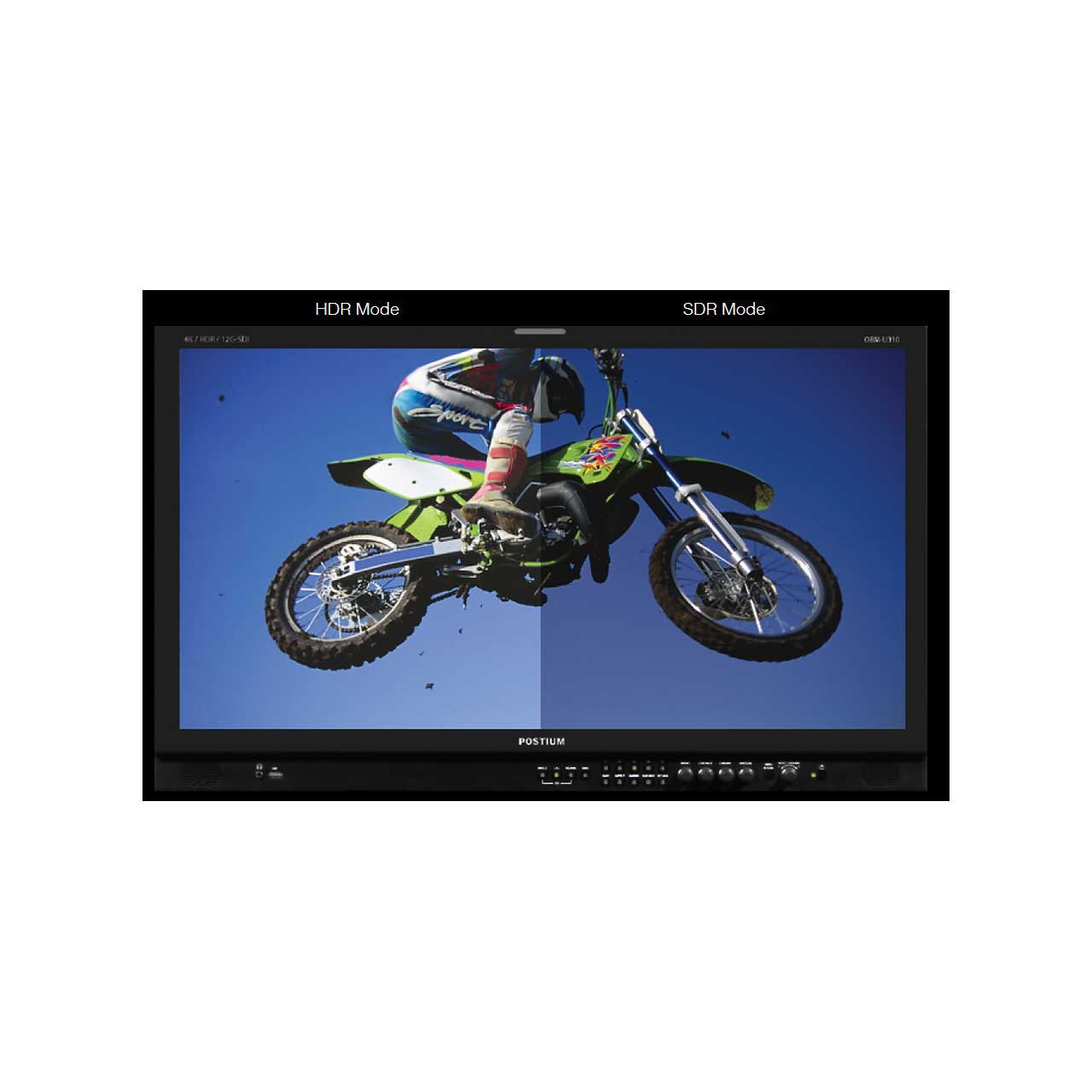

  • HDR(High Dynamic Range) Display supporting PQ EOTF(ST 2084), Hybrid Log Gamma, S-Log3
  • 3D-LUT for Accurate Color Reproduction
  • SDR EOTF - BT.1886 (Gamma 2.4)
  • 1.064 Billion Colors
  • Custom 3D LUT File Import Through USB
  • Color Temperature(3200K, 5500K, 6500K, 9300K, USER 1/2/3, D-CINEMA)
  • Compare Color Settings (Side by Side)
  • Waveform, VectorScope (Wave + Vector, Waveform Wide, Position Change, Size Adjustment)
  • Monitor Control via Ethernet, RS-422
  • Various Markers (EBU, 4:3, 16:9, 1.85:1, 2.35:1, Variable etc.)
  • Internal Patterns Display for Color Test (Black ~ 100% White, Color Bar)
  • Time Code Display (Position / Size Selection)
  • Easy Firmware Update by USB
  • Fast Mode
  • Focus Assist
  • HDR Waveform
  • De-embedded 8~16ch Audio Level Meter
  • Remote Control via GPI(RJ-45) Port
  • 3 Color TALLY Lamp
  • Closed Caption(608, 708)
  • Key Lock & Password Lock


• Specifications:

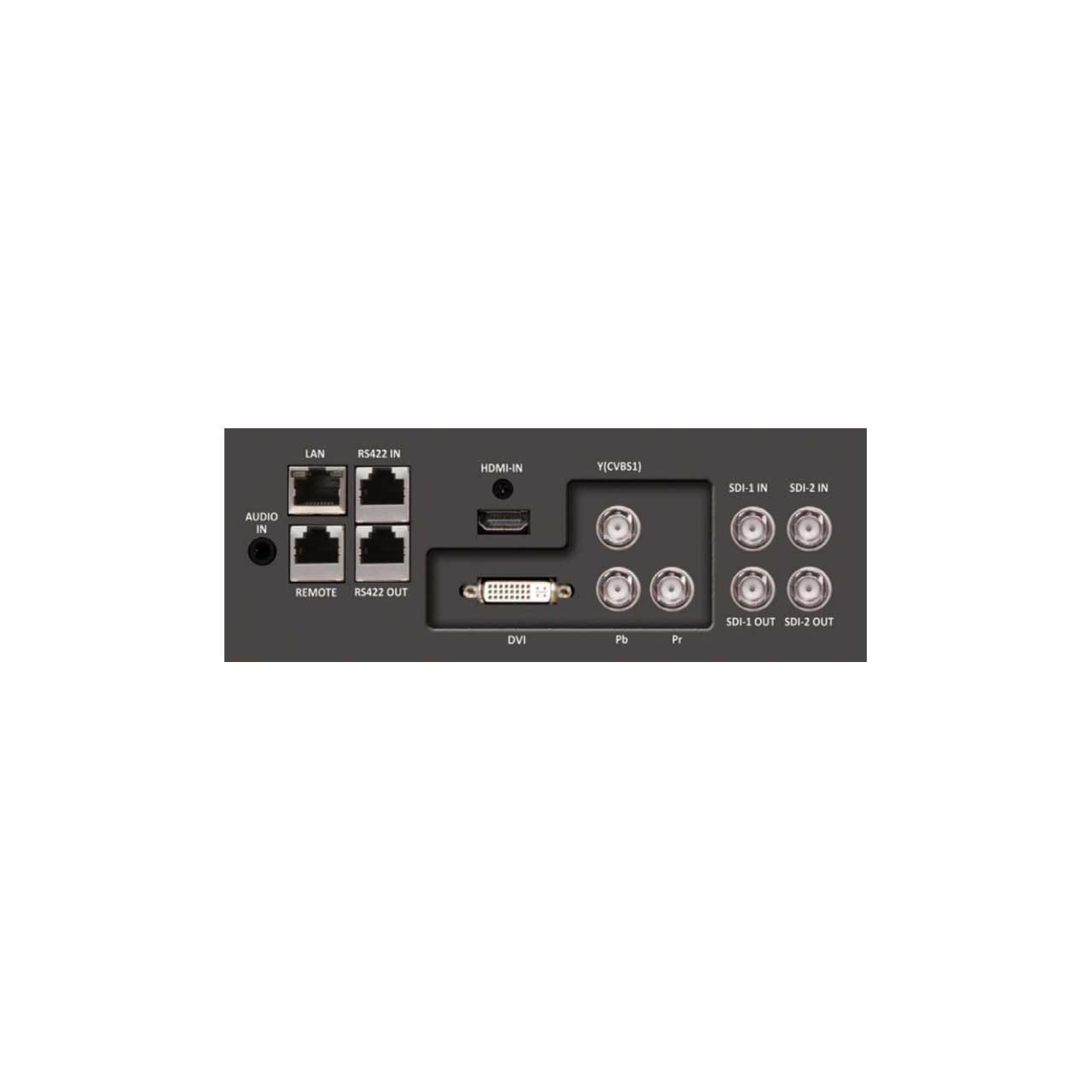

  • Input:
    - 2x BNC: 3G/HD/SD-SDI-1/2
    - 1x HDMI: HDMI 1.3a
    - 3x BNC (YPbPr): Analog(YPbPr)
    - 1x BNC (CVBS): Composite
    - 1x DVI: DVI-D
  • Output: 2x BNC: 3G/HD/SD-SDI-1/2
  • Input Signal Format:
    - SMPTE ST 425-AB: 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
    - SMPTE ST 274: 1080p(30/29.97/25/24/23.98/24sF/23.98sF), 1080i (60/59.94/50)
    - SMPTE ST 296: 720p(60/59.94/50)
    - SMPTE ST 260: 1920 x 1035i(60/59.94)
    - SMPTE ST 2048: 2048 x 1080p(24/23.98/24sF/23.98sF)
    - SMPTE ST 125: 480i(59.94)
    - ITU-R BT.656: 576i(50)
    - HDMI: ~ 1080p(60)
    - DVI-D: VESA/IBM Modes
  • Audio In/Out:
    - 1x Phone Jack In: Line In(Stereo)
    - 1x phone Jack Out: H/P Out(Front, Stereo)
    - 2x Speaker Out: Stereo

    Display:
  • Size: 18.5" LCD
  • Resolution: 1920 x 1200 (16:10)
  • Pixel Pitch: 0.270mm
  • Color: 1.064B colors(8bit+2bit FRC)
  • Viewing Angle: 178(H), 178(V)
  • Luminance of White: 300cd/m²
  • Contrast: 1000 : 1
  • Display Area (HxV): 518.4 x 324.0 (mm)

    General:
  • 1x Ethernet: Control/Update, RJ-45P Input / Output
  • 1x GPIO: GPI-7 Port, RJ-45P Jack
  • 2x Serial: RS-422 Jack, RJ-45P Input / Output
  • 1x USB: For Firmware Update, Color Calibration
  • Power Requirements: AC(100-230V,50/60Hz)/DC12V
  • Power Consumption: Max 40W
  • Operating Temperature: 0 ~ 40°C(32~104°F)
  • Operating Humidity: 20 ~ 80% RH
  • Weight: Main Body: 10.5kg/23.14lbs
  • Dimensions: 23.70 x 16.85 x 5.51 inch
  • Accessories: Power Cable


• Item Includes:

  • 1x Power Cable


• GTIN:

  8809771070241
