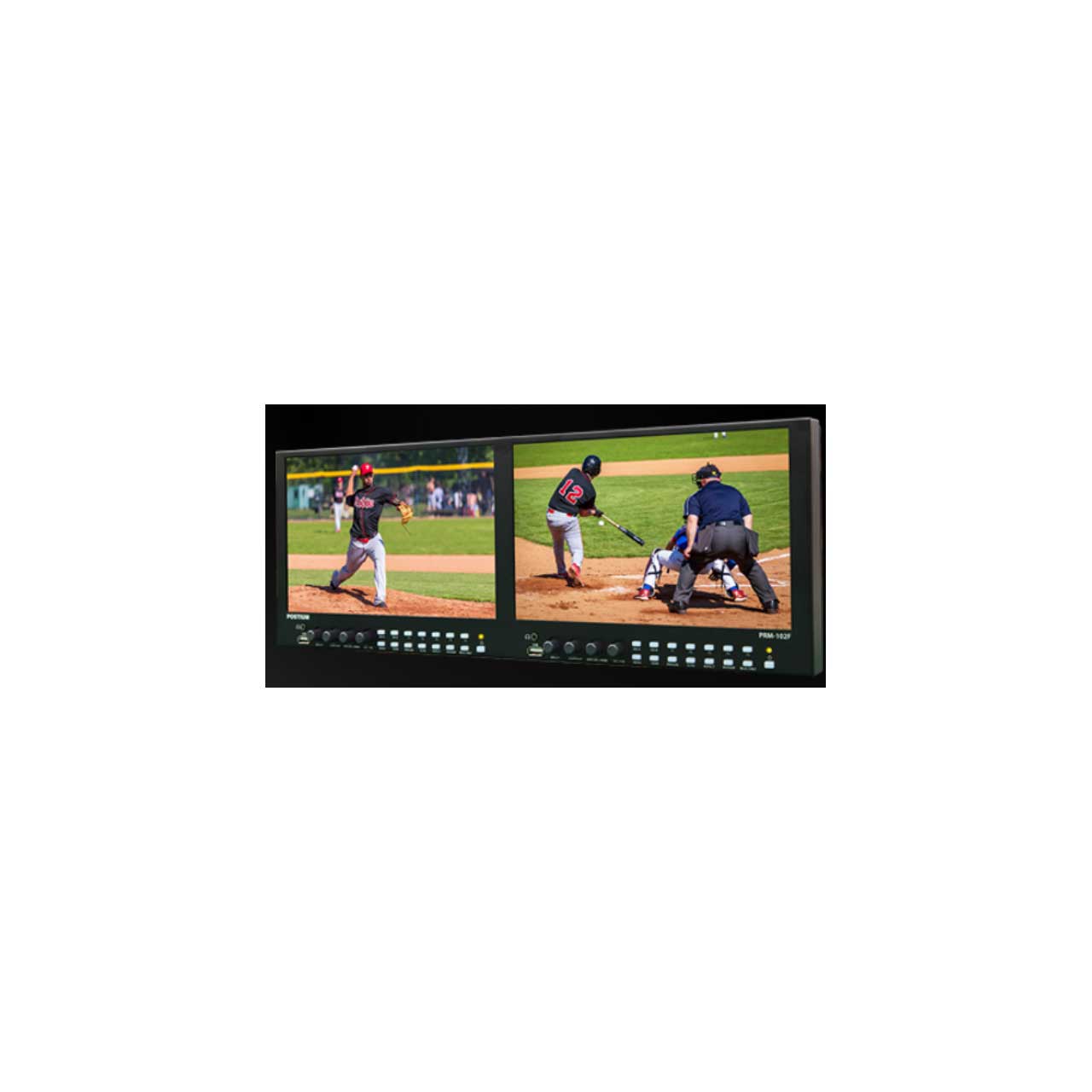

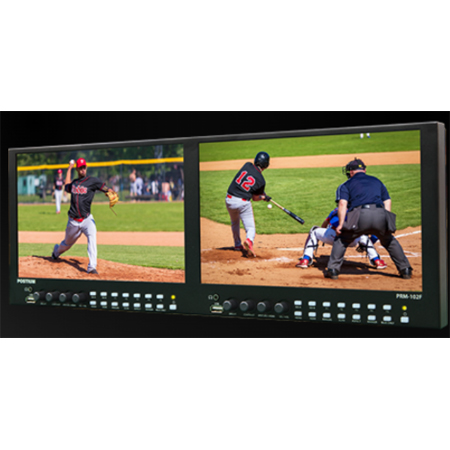

Postium PRM-102F 10 In Multi Format Dual LCD Rack Monitor with 3G-SDI

PRM-102F - Overview

• Features:

  • 3G/HD/SD-SDI 2 Channel Input and Active Loopout
  • HDMI 1.4a, YPbPr, CVBS Input
  • HDMI to SDI Conversion
  • HDR(High Dynamic Range) Display supporting ST 2084, Hybrid Log Gamma, S-Log3
  • 3D-LUT for Accurate Color Reproduction
  • 16.7M Colors
  • Custom 3D LUT File Import Through USB
  • Color Temperature (3200K, 5500K, 6500K, 9300K, USER 1/2/3, D-CINEMA)
  • Compare Color Settings (Side by Side)
  • Waveform, VectorScope (Wave + Vector, Waveform Wide, Position Change, Size Adjustment)
  • Monitor Control via Ethernet, RS-422
  • Various Markers (EBU, 4:3, 16:9, 1.85:1, 2.35:1, Variable etc.)
  • Internal Patterns Display for Color Test (Black ~ 100% White, Color Bar)
  • Time Code Display (Position / Size Selection)
  • Easy Firmware Update by USB
  • De-embedded 8~16ch Audio Level Meter
  • Remote Control via GPI(RJ-45) Port
  • Closed Caption(608, 708)
  • Key Lock & Password Lock
  • Fast Mode
  • Focus Assist
  • HDR Waveform


• Specifications:

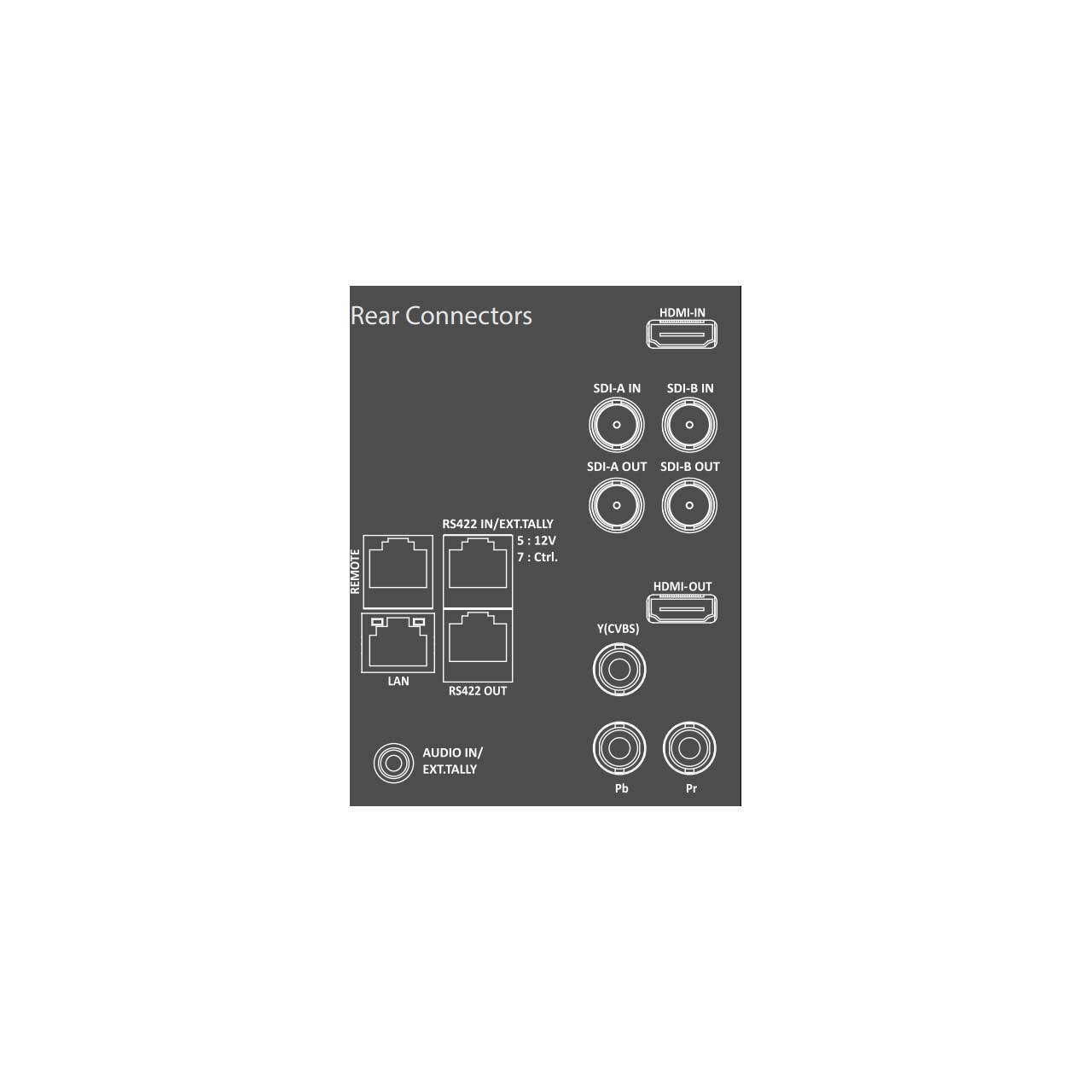

  • Input:
    - 2x BNC: 3G/HD/SD-SDI-1/2
    - 1x HDMI: HDMI 1.4a
    - 3x BNC (YPbPr): Analog(YPbPr)
    - 1x BNC (CVBS): Composite
  • Output:
    - 2x BNC: 3G/HD/SD-SDI-1/2
    - 1x HDMI: HDMI 1.4a
  • Input Signal Format:
    - SMPTE ST 425-AB: 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
    - SMPTE ST 274: 1080p(30/29.97/25/24/23.98/24sF/23.98sF), 1080i (60/59.94/50)
    - SMPTE ST 296: 720p(60/59.94/50)
    - SMPTE ST 260: 1920 x 1035i(60/59.94)
    - SMPTE ST 2048: 2048 x 1080p(24/23.98/24sF/23.98sF)
    - SMPTE ST 125: 480i(59.94)
    - ITU-R BT.656: 576i(50)
    - HDMI: 1.4a (~ 1080p(50/60))
    - DVI-D: VESA/IBM Modes
  • Audio In/Out:
    - 1x Phone Jack In: Line In(Stereo)
    - 1x phone Jack Out: H/P Out(Front, Stereo)
    - 2x Speaker Out: Stereo

    Display:
  • Size: 10" LCD
  • Resolution: 1920 x 1200 (16:10)
  • Pixel Pitch: 0.11292 (H) x 0.11292 (V) mm
  • Color: 16.7M colors(6-bit+Hi-FRC)
  • Viewing Angle: 170(H), 170(V)
  • Luminance of White: 320cd/m²
  • Contrast: 800 : 1
  • Display Area (HxV): 198.72 x 111.78 (mm)

    General:
  • 1x Ethernet: Control/Update, RJ-45P Input / Output
  • 1x GPIO: GPI-7 Port, RJ-45P Jack
  • 2x Serial: RS-422 Jack, RJ-45P Input / Output
  • 1x USB: For Firmware Update, Color Calibration
  • DC In: 4-pin XLR
  • Power Requirements: DC 12V
  • Power Consumption: 29 W
  • Operating Temperature: 0 ~ 40°C(32~104°F)
  • Operating Humidity: 20 ~ 80% RH
  • Weight: Main Body: 3.5kg / 7.71 lbs
  • Dimensions: 482 x 175 x 55 (mm) / 18.97 x 6.88 x 2.16 (in)
  • Accessories: Power Adapter / Power Cable


• Item Includes:

  • 1x Power Adapter
  • 1x Power Cable


• GTIN:

  8809771070388
