Pure Resonance Audio PRA-MA60BT 60 Watt 7 Channel Commercial Mixer Amplifier with Bluetooth

ITEM #: PRA-MA60BT MFG #: PRA-MA60BT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$467.99

Our Price:

$389.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

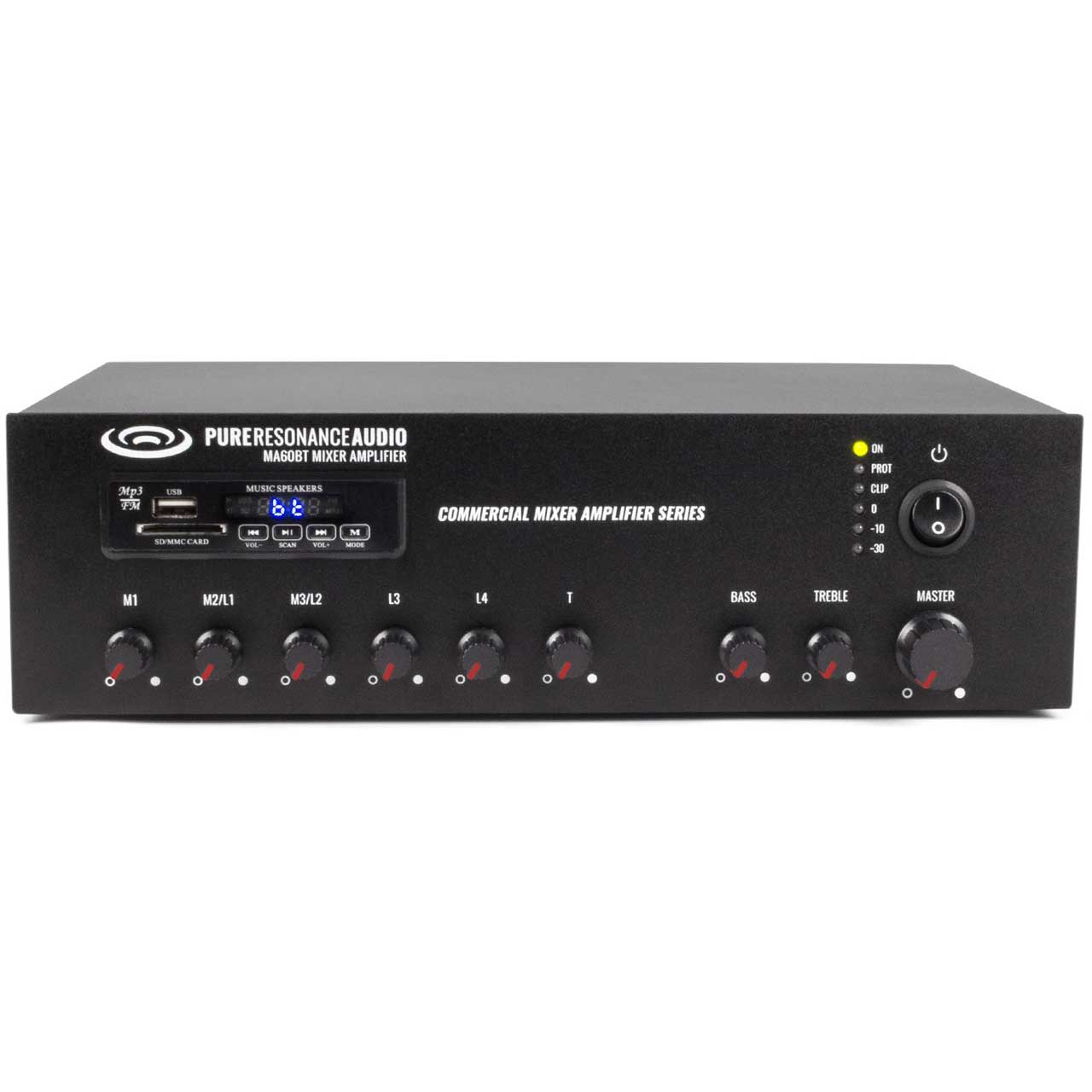

    PRA-MA60BT - Overview

    Versatility
    The MA60BT 7-channel mixer-amplifier from Pure Resonance Audio with built-in 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70V, 100V, 8 ohm or 4 ohm outputs, and a compact size and interface are all combined to make this mixer-amp an easy choice for any application in need of background music and general announcements. It is perfect for use in restaurants, retail stores, offices, schools, hospitality, etc. and is equipped with paging and MOH (Music On Hold).

    Flexibility
    The on-board plug-in play MP3 player accepts SD cards and USB thumb drives that can be plugged in on the front panel. The unit includes RCA inputs and RCA line level outputs, a telephone input with VOX priority and a MOH (Music on Hold) output, as well as an XLR input with phantom power. The IR remote for MP3, FM Radio and Bluetooth provides freedom and flexibility allowing full control, even from across the room.

    Bluetooth-Enabled
    This compact public address amplifier also supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets or mobile phones, enabling anyone to walk-in and link up with their Bluetooth Wireless Connection to instantly play music or any sound source file.

    • Features:

      • 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
      • Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
      • MP3 Player, FM Radio & Bluetooth (with IR remote control)
      • USB and SD inputs on front panel
      • Power output rating 60 Watts
      • Built-in 70V/100V transformer
      • Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
      • Mic 1 of balanced XLR input (with phantom power)
      • Mic 2-3 microphone or line switchable
      • Line 1-2 input of RCA inputs
      • DIP switches for Mic/Line, phantom power and microphone priority
      • Unbalanced 6.3 mm phone jack input
      • One RCA line output (0.775 line level 0 dBV)
      • Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
      • LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
      • Short-circuit, clip, overload and high temp protection
      • 24 VDC Emergency backup supply
      • 115V 60 Hz & 24V DC both operation system

    • Specifications:

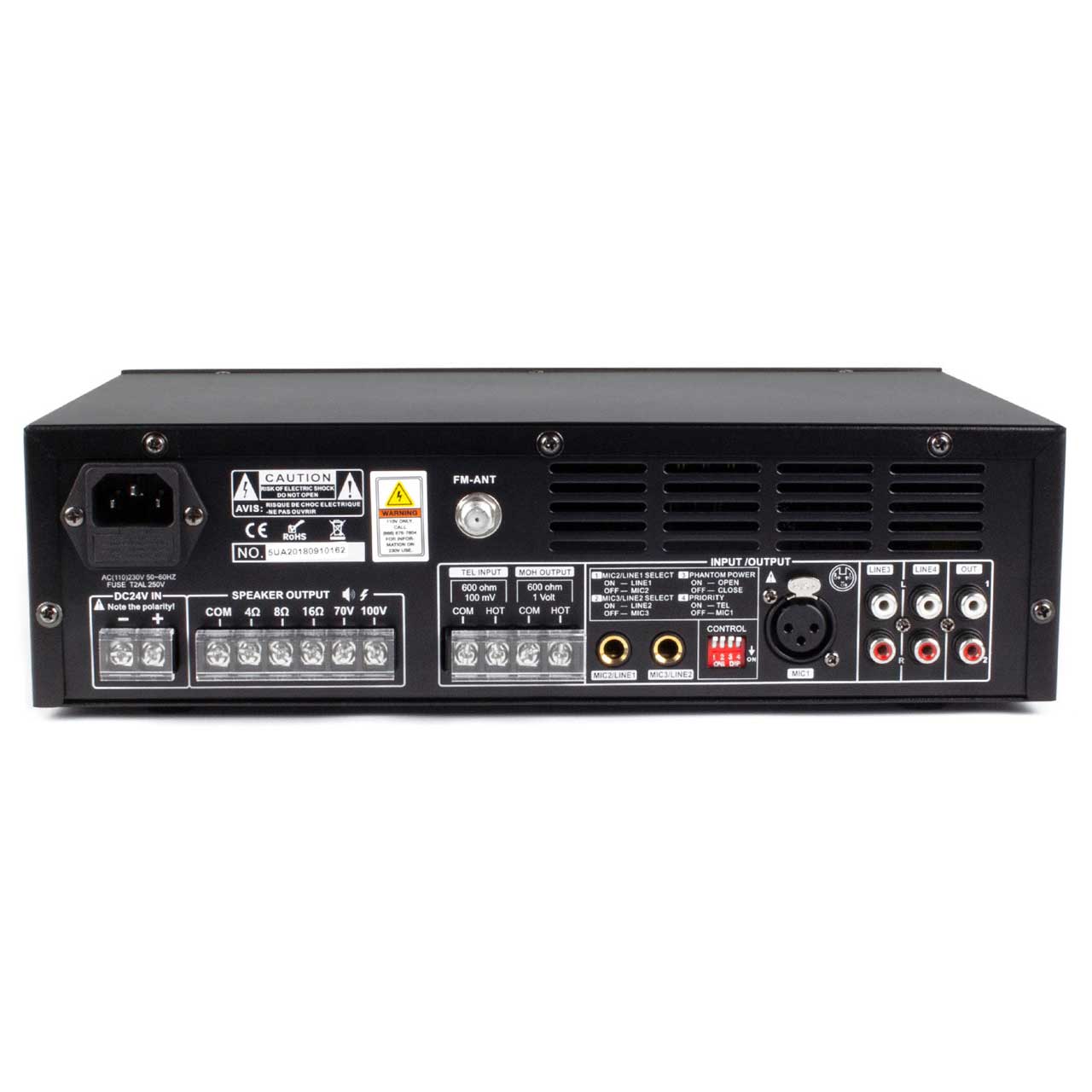

      • Connectors
      • Mic: 1 input by balanced XLR with phantom power
      • Input: 2-3 Mic/Line switchable unbalanced 6.3 mm phone jack
      • Line: 1-2 inputs by RCA; Line output by RCA

        General
      • Rated Power Output: 60W
      • Speaker Outputs: 70V, 100V and 4 Ohms, 8 Ohms or 16 Ohms
      • Attenuation Microphone: 1-3, line 1-2 and MP3/FM Radio, bass/treble and master
      • Input MIC 1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
      • Line Out: 0.775 (0dBV)
      • Frequency Response: 60Hz - 15kHz (±3dB)
      • S/N Ratio: Line ≥ 85dB, Mic ≥ 72dB
      • THD: Less than 0.5%
      • Protection: Short-circuit, clip, overload and high temp protection
      • Power Consumption: 60W
      • Power Supply: 115V 60Hz & 24V DC
      • Dimensions (H x W x D): 3.5" (88 mm) x 11.8" (300 mm) x 10.8" (275 mm)
      • Weight 6.6 lbs (3 kg)

    • Item Includes:

      • (1) MA60BT Bluetooth Mixer Amplifier

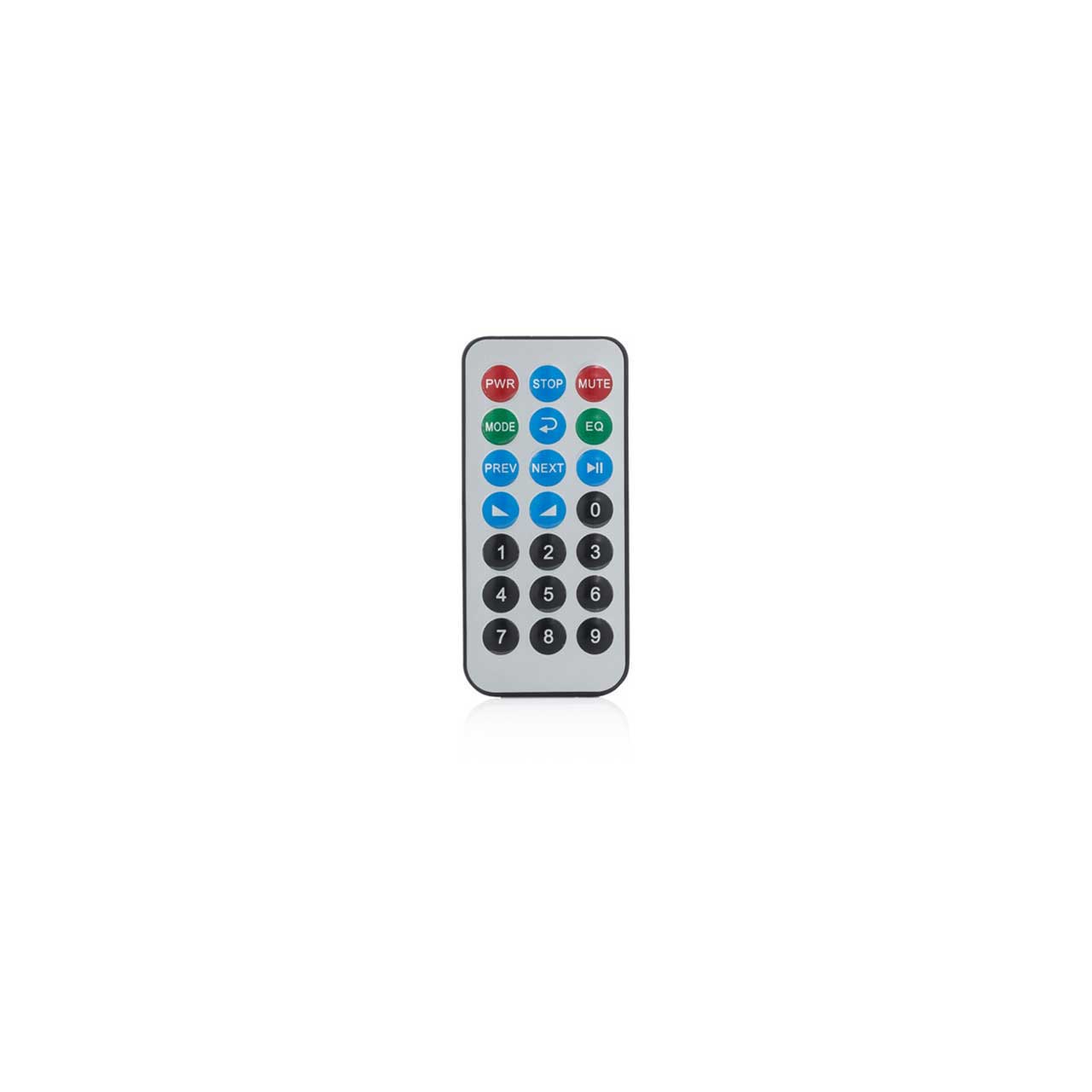

      • (1) IR Remote Control
      • (1) Power Cord
