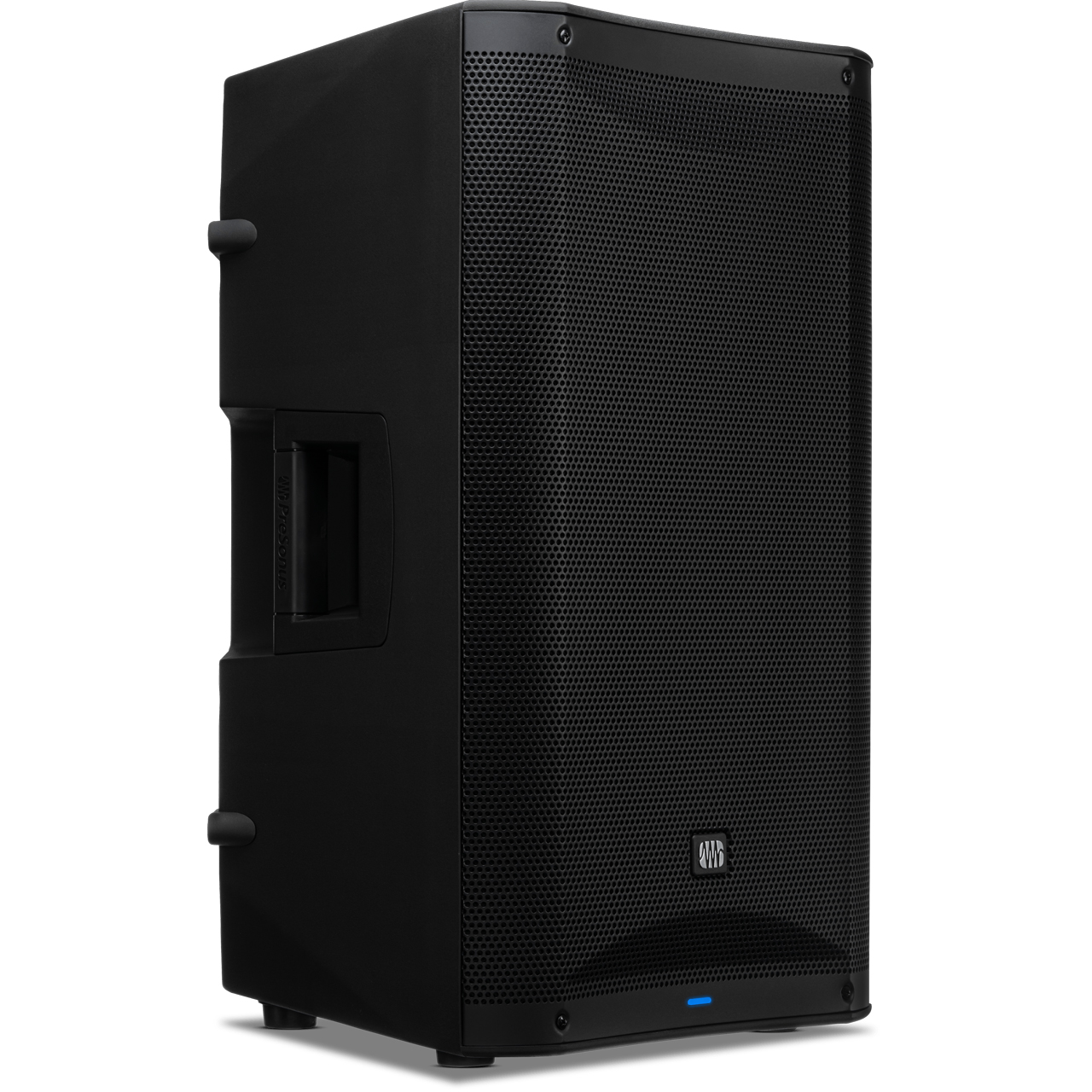

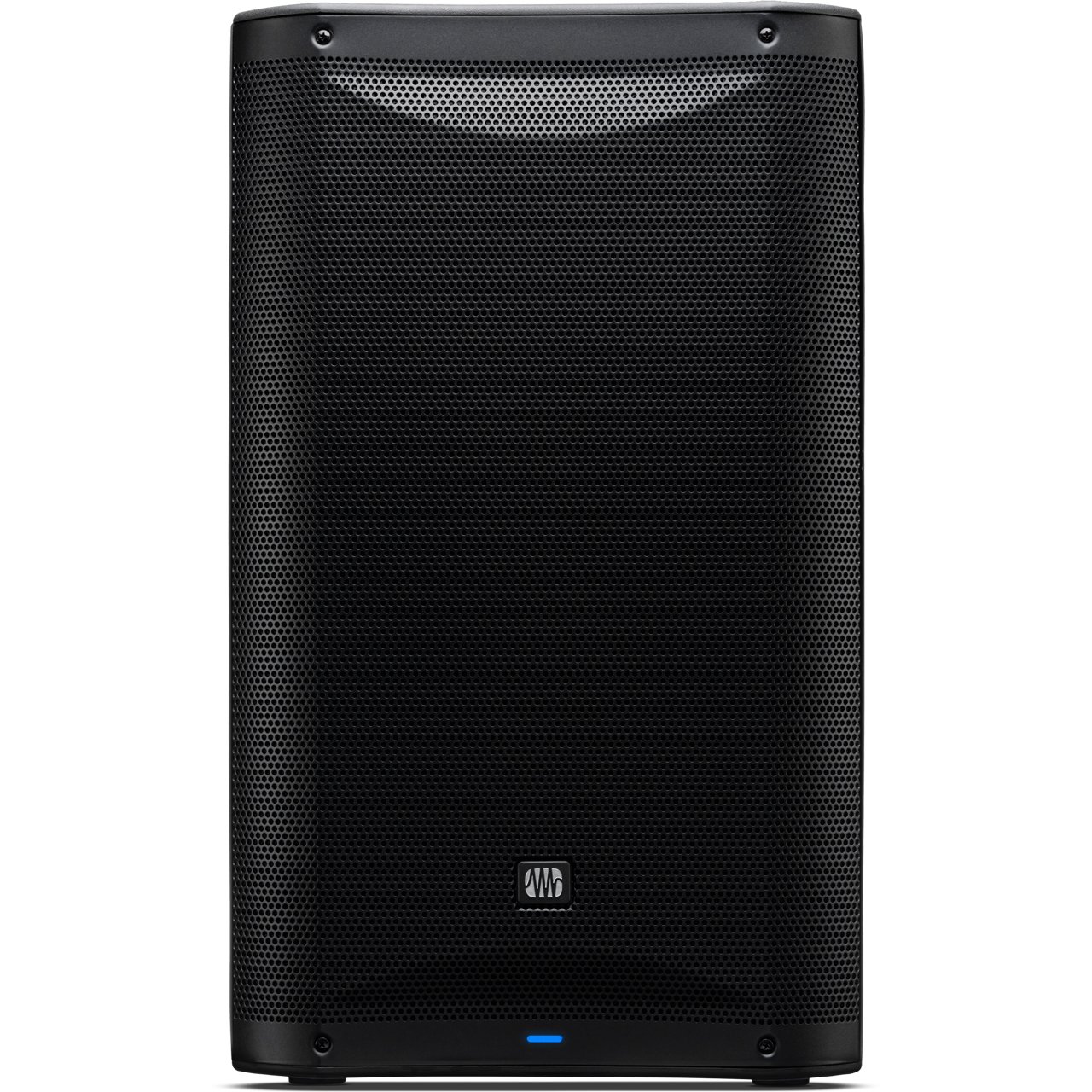

PreSonus AIR XD 12 2-Way 1500W Active Extended Definition Portable Loudspeaker with 12-Inch Woofer

ITEM #: PRE-AIR-XD-12 MFG #: AIR XD 12

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$749.99

Our Price:

$599.99

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


AIR XD 12 - Overview

Extended-Definition Active Loudspeaker with DSP

Powerful yet portable, the PreSonus AIR XD 12 delivers extended-definition sound with a 12" woofer, 1.35" tweeter, 1500W of Class D power, and TWS Bluetooth stereo - ideal for mobile gigs or permanent installs.

The PreSonus AIR XD 12 is a full-range active loudspeaker designed for professional use, delivering extended-definition sound, high SPL, and precise tonal balance for any application. Its custom 12" low-frequency driver features an enlarged 2.56" voice coil for efficient power handling and extended low-end response down to 48Hz, producing tight, dynamic bass with minimal distortion. The 1.35" high-frequency driver uses a PEEK diaphragm, offering exceptional stiffness, wear resistance, and high-temperature tolerance, resulting in clear, detailed, and ultra-responsive highs even under prolonged, high-output operation.

Powered by 1500W of efficient Class D amplification, the AIR XD 12 can reach up to 132dB SPL while maintaining clarity and headroom. Onboard DSP presets, &plsumn;10dB EQ, and performance tuning modes allow quick adjustment for speech, music playback, FOH, or monitor use. A full-color 2.6" LCD provides intuitive metering, system control, and rapid access to all settings.

Built-in Bluetooth with TWS Bridge Mode enables effortless wireless stereo pairing, making it ideal for mobile DJs, corporate events, and fast setups. The integrated mixer includes combo mic/line and aux inputs, allowing seamless connectivity and versatile signal routing. Rugged enclosures with ergonomic handles and multiple mounting options make the AIR XD 12 as portable as it is powerful, whether flown, pole-mounted, ground-stacked, or used as a floor monitor.

Scalable Performance for Any Setup
With 10", 12", and 15" full-range models and 15" or 18" subs, AIR XD speakers deliver massive output and precise, detailed sound across the full frequency spectrum. Class D amplification provides high efficiency, maximum headroom, and clean power handling, making them perfect for everything from intimate gigs to large-scale events.

Precision DSP for Perfect Sound
Shape your system with intuitive DSP presets for FOH, monitoring, speech, music, or enhanced warmth. Subwoofer tuning includes crossover control, array presets, alignment delay, and more.

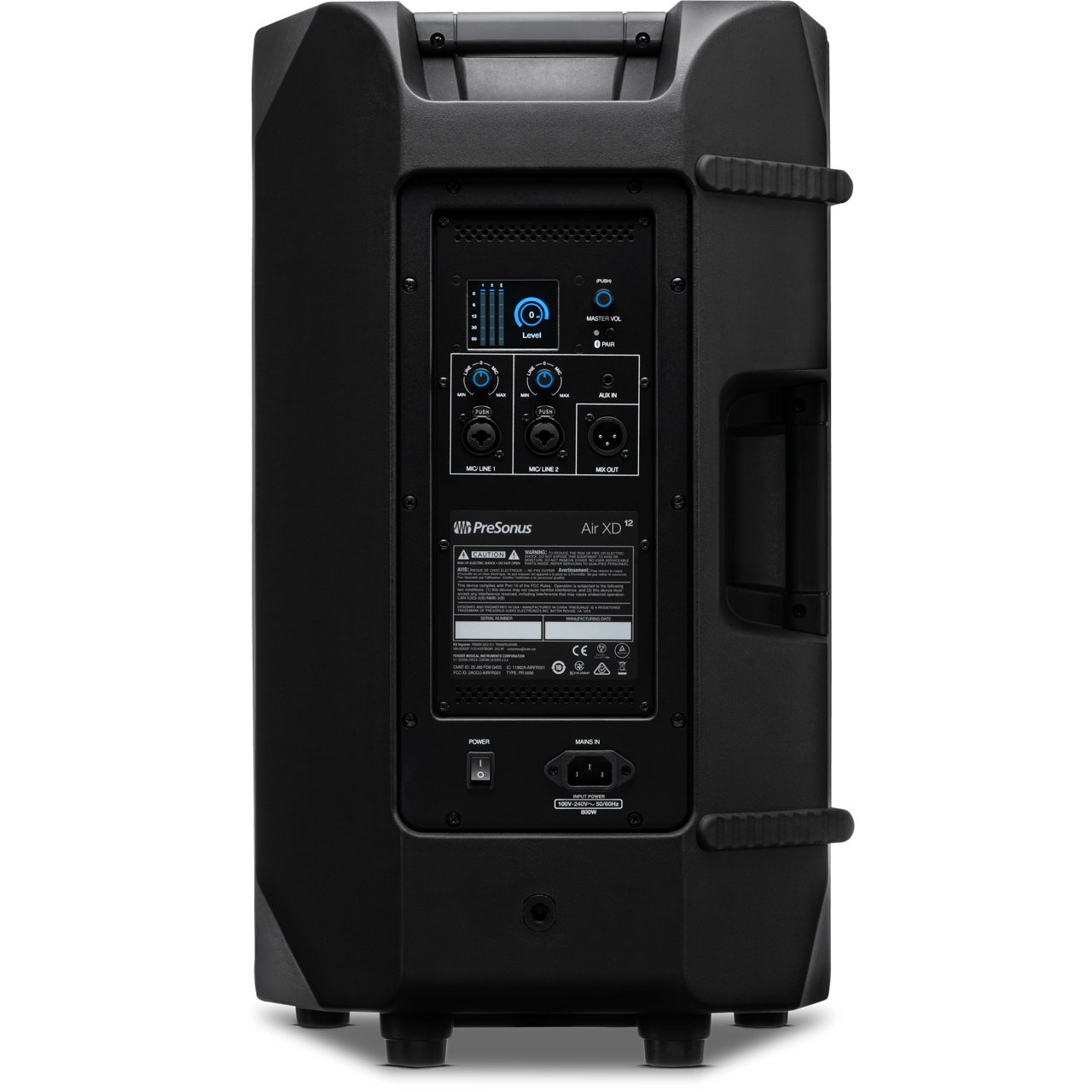

Flexible Connectivity Built In
Each speaker includes an onboard mixer with combo mic/line inputs, aux support, and built-in Bluetooth with TWS Bridge Mode for true wireless stereo pairing - no extra gear or cables required.

Built to Move. Ready to Install.
Rugged enclosures, full-color displays, versatile mounting options, and ergonomic hardware make AIR XD perfect for the stage, the road, or permanent installs.

  • Features:

    • Custom 12" low-frequency driver with enlarged 2.56" voice coil for extended low-end response down to 40Hz
    • 1.35" High-frequency compression driver with PEEK diaphragm for clear, detailed, and durable highs
    • 1500W Class D bi-amplification for clean, efficient power and up to 132dB SPL
    • Onboard DSP with performance presets, ±10dB EQ, and tuning modes for speech, music, FOH, or monitor use
    • Full-color 2.6" LCD for fast, intuitive metering and system control
    • Built-in Bluetooth with TWS Bridge Mode for true wireless stereo pairing
    • Integrated 3-channel mixer with combo mic/line and aux inputs for flexible connectivity
    • 90° horizontal dispersion and 60° vertical dispersion
    • Frequency Response: 51Hz - 20kHz (-3dB), 48Hz - 20kHz (-10dB)

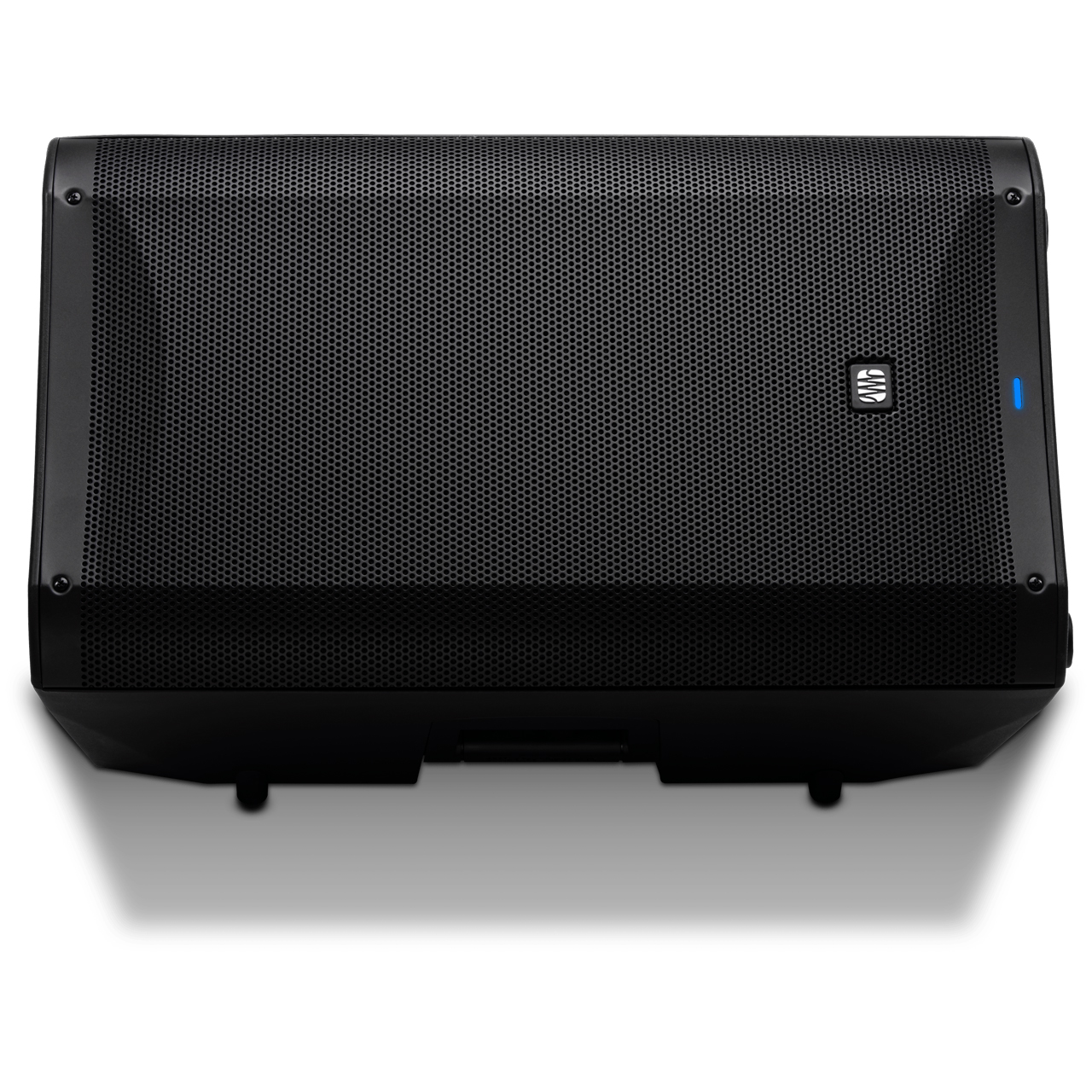

    • Rugged, portable enclosure with ergonomic handles and multiple mounting options: flown, pole-mounted, ground-stacked, or floor wedge

  • Specifications:

      Electronics
    • Bluetooth: Bluetooth V5.0
    • Channels: 3
    • Connectivity: Bluetooth
    • Power Consumption: 3.3A (230V, 50Hz), 6.6A (120V)
    • Voltage Requirements: 100V - 240VAC, 50-60Hz

      General
    • Amplifier Type: Class-D
    • Color: Black

      Hardware
    • Audio Controls: Gain, Volume, Hi/Lo EQ
    • Cabinet Material: H-PP Molded
    • Cooling: Passive radiator
    • Grille Material: 1.2mm Steel
    • HF Power: 468W
    • HF Transducers: 1.35" Compression
    • Handle: 1 Top, 1 Side
    • LF Power: 1060W
    • LF Transducers: 12" (2.56" Voice Coil)
    • Pole Socket: Dual Position (0°, 7.5°)

      Inputs
    • Auxiliary Input: 1x 3.5mm Stereo
    • Line Input Connection Type: 2x XLR/TRS Mic/Line Combo
    • Line Input Impedance: 30kΩ
    • Line Input Maximum Level: +14dBu
    • Microphone Preamp Input Impedance: 30kΩ

      Output
    • Line Output Connection Type: 1x XLR Male Mix Out, Balanced

      Measurements
    • Product Depth: 13.8" (35.1cm)
    • Product Height: 24.4" (61.9cm)
    • Product Height/Length: 24.4" (61.9cm)
    • Product Width: 14.2" (36.0cm)
    • Product Weight: 43.3lbs (19.5kg)

      Miscellaneous
    • DSP Features: Speaker modes, Location, Bass, Treble
    • Power Cable: IEC
    • Protections: Output limiter
    • Suspension: M10 Suspension Points, Flypoints: 2 Top, 1 Back

      Performance
    • Peak SPL: 130dB
    • Total Power Output: 1500W

      Speakers
    • Coverage Pattern: 90° (H) x 60° (V)
    • Crossover Frequency: 1.6kHz
    • Speaker Type: Active 2-Way

  • Item Includes:

    • 1x Air XD 12 loudspeaker
    • 1x IEC power cable
    • 1x Manual

  • Warranty:

    • 6 Year Warranty

  • GTIN:

    0673454013232
