PTZOptics PT20XSE-PRODUCER-JOY4 3x Move SE 20x Zoom PTZ Cameras and PT-JOY-G4 Joystick Bundle

ITEM #: PT20XSEPRODJOY4 MFG #: PT20XSE-PRODUCER-JOY4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,341.00

Our Price:

$3,745.00

Availability: In Stock
iAvailability Description Popup


    PT20XSE-PRODUCER-JOY4 - Overview

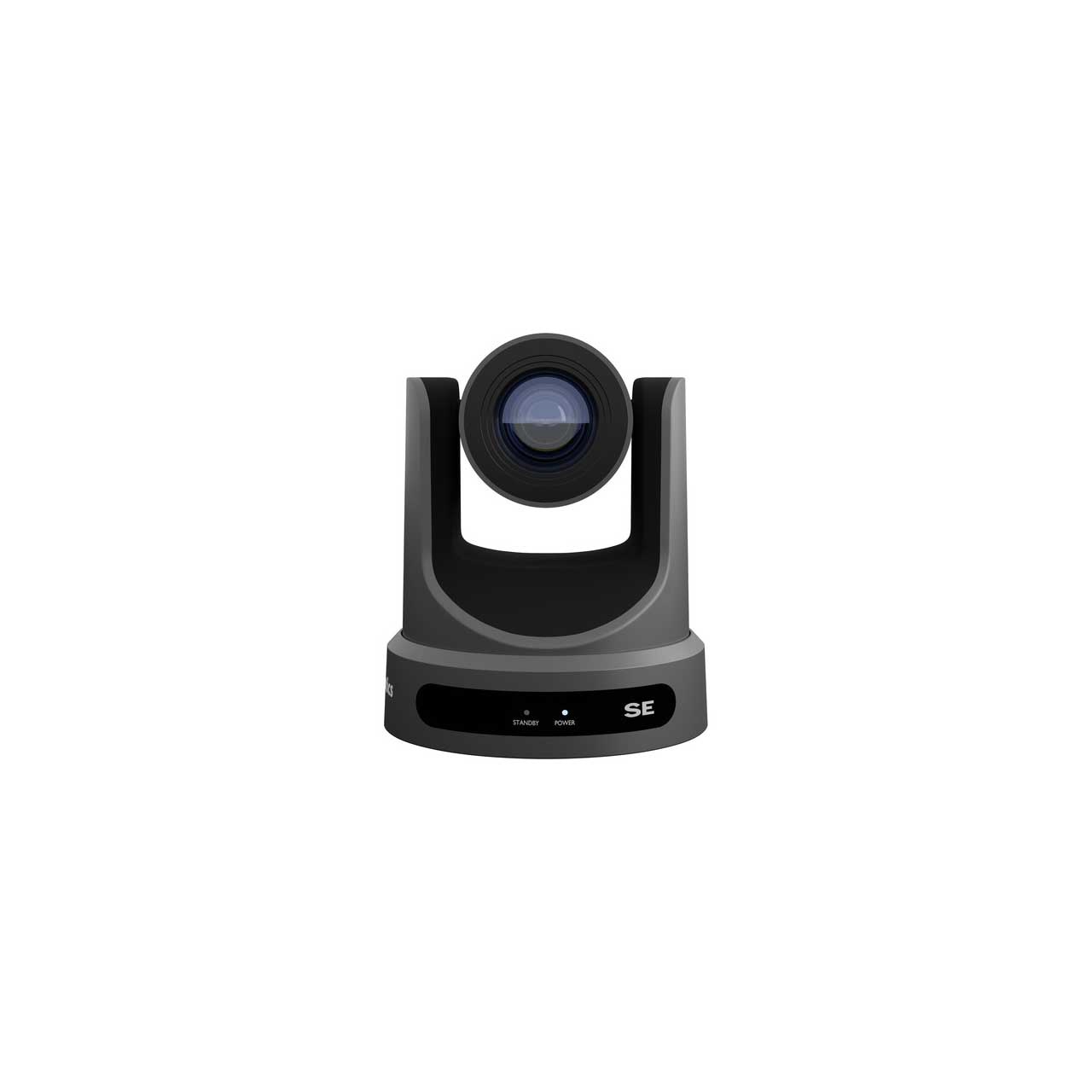

    Move SE 20x 1080p60 PTZ Camera
    Built on the award-winning PTZOptics camera line, the PTZ and auto-tracking features you love are now more within reach than ever. The PTZOptics Move SE combines HDMI, SDI, USB and IP outputs - plus NDI®|HX upgradeability - all into a single camera. Ideal for live streaming and video production, the Move SE offers high-quality video with a resolution of 1080p at 60fps. And with SONY CMOS image sensors, you can count on great image quality even in low-light scenarios.

    Designed with You - and the Future - in Mind
    Experience a more intelligent video production workflow with the Move SE's updated user interface and feature set that continually expands based on user feedback. Plus, PTZOptics' one-click firmware updates make it easy to future-proof your investment, with new capabilities continuing to come online as the platform evolves over time. And with 12x, 20x, and 30x optical zoom options, plus PoE, the Move SE can fit seamlessly into any production scenario.

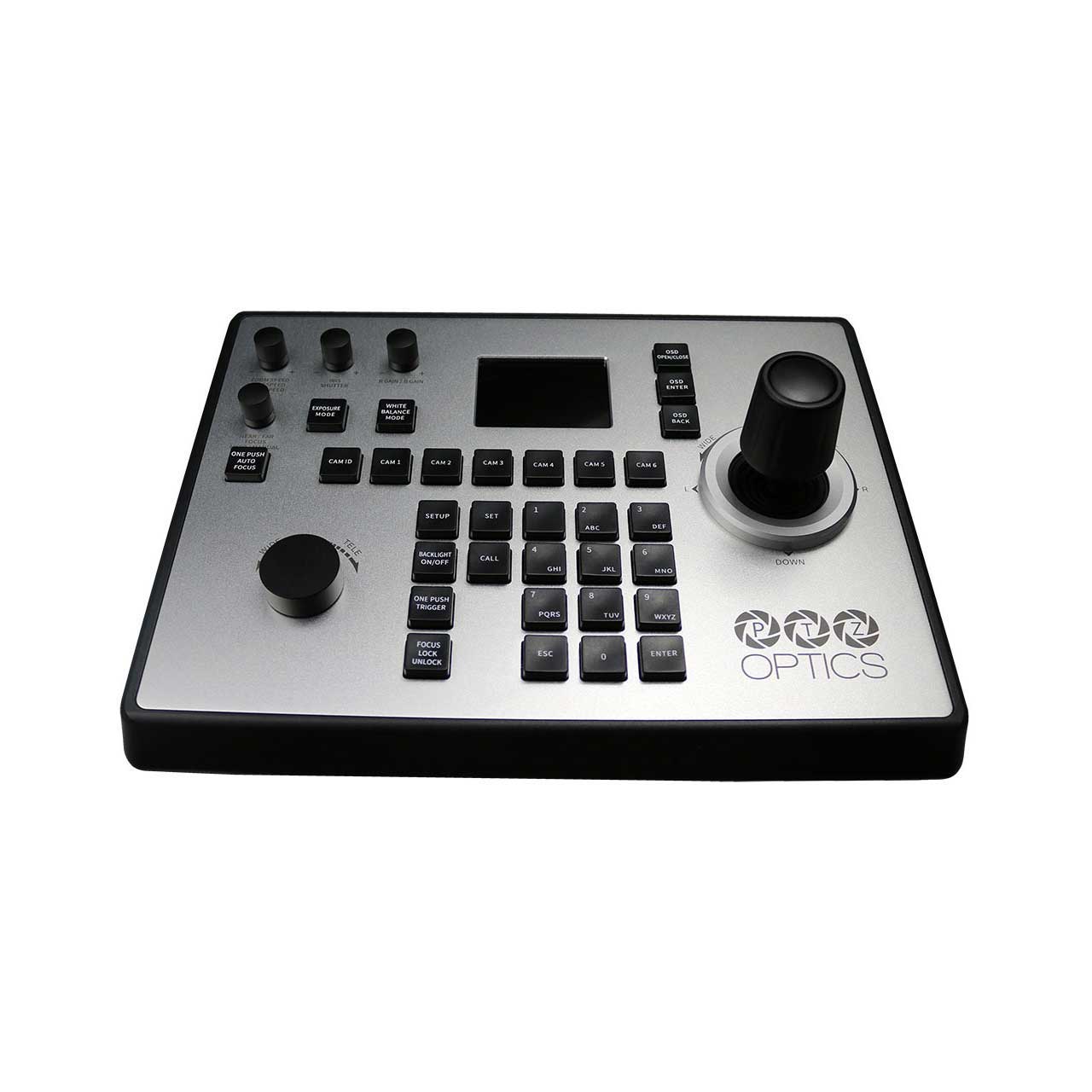

    PTZOptics JOY-G4 P Joystick Controller
    Introducing the PTZOptics 4th Generation IP Joystick Controller. Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the PT-JOY-G4 is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.

    Enhanced Setup Management
    A newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you're using the PT-JOY-G4 for different productions or sets, we've got you covered. Import and export settings for specific use cases or production environments.

    For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller.

    • Features:

      • Built-In Auto-Tracking
      • Advanced White Balance Modes
      • Wide Dynamic Range
      • Full Frame Rates: 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
      • Up to 1080p Resolution @ 60fps
      • SRT Support
      • 2D & 3D Noise Reduction
      • 5 Year Parts & Labor Manufacturer Warranty
      • VISCA over IP or Serial Control
      • Full Pan, Tilt, Zoom Camera Control
      • Fine Tune Focus Control
      • Focus Lock and Unlock
      • Larger LCD Screen with Controller Status

    • Specifications:

      • Move SE 20x 1080p60 PTZ Camera
      • Video Sensor: 1/2.8", CMOS, Effective Pixel: 2.07M
      • Resolution and Frame Rate: 1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
      • Digital Zoom: Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72)
      • Min. Lux: 0.5 Lux @ (F1.8, AGC ON)
      • Shutter: 1/30s ~ 1/10000s
      • Lens: 20x: f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8
      • White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR
      • Backlight Compensation: Supported
      • Digital Noise Reduction: 2D & 3D Digital Noise Reductions
      • Field of View: 20x: Horizontal: 3.4° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)(wide)

        Pan/Tilt Movement
      • Pan Movement: ±170°
      • Pan Speed: 1.7° ~ 100°/s
      • Tilt Movement: +90° to -30
      • Tilt Speed: 1.7° ~ 69.9°
      • Image Flip, Mirror and Freeze: Supported
      • Presets: 255 Presets
      • Preset Accuracy: 0.1°

        Power Options
      • Power Supply: DC 12V
      • Input Power: 2A (Max)

        Physical
      • Material: Aluminum, Plastic
      • Color: White and Gray
      • Dimensions (W x D x H): 5.6" W x 6.7" D 6.5" H (7.88" H max height w/ tilt up)
      • Weight: 3.2 lbs
      • Working Environment: Indoor
      • Operating Temperature: 14°F ~ 104°F
      • Storage Temperature: -40°F ~ 140°F

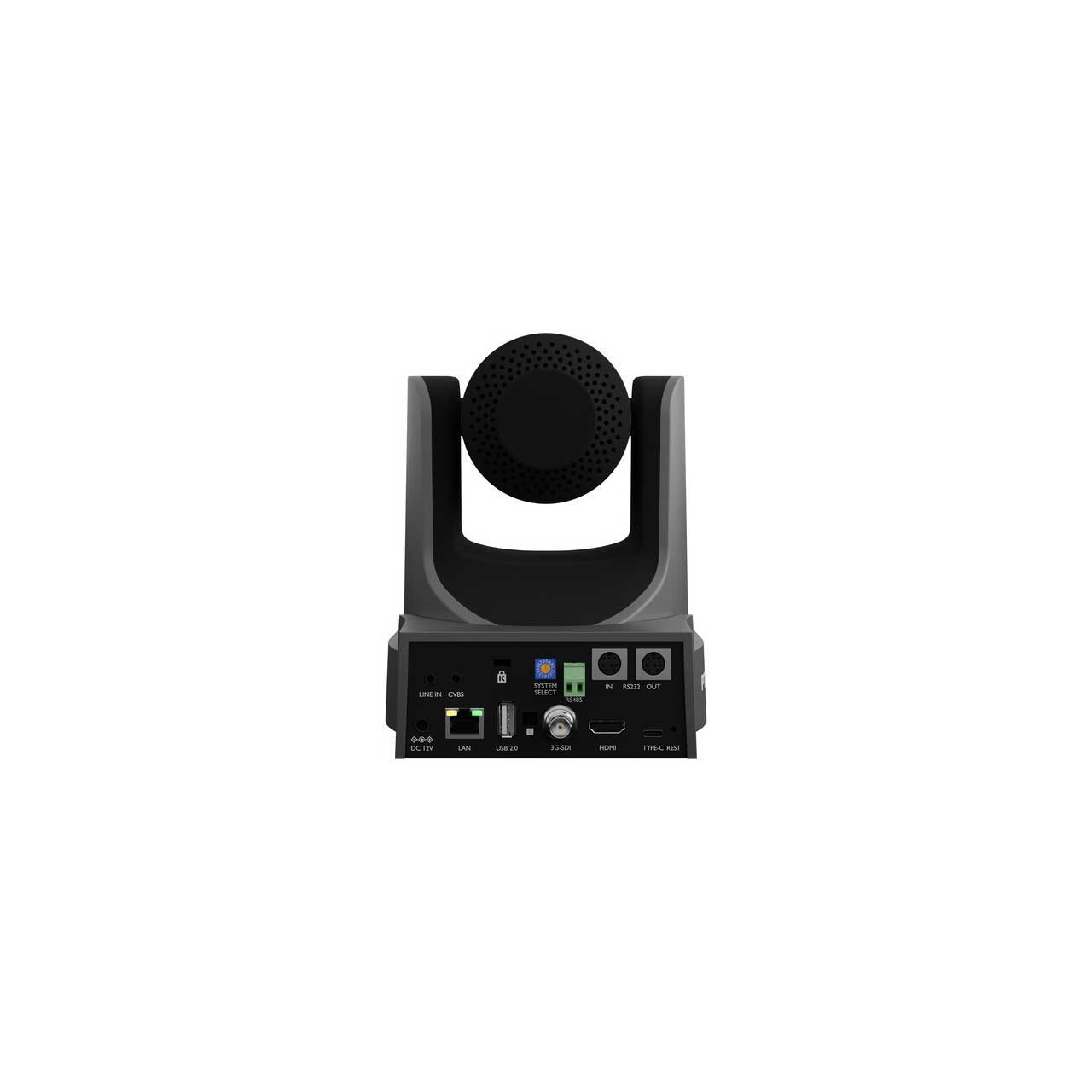

      • Rear Board Connectors
      • HD Video Output: 1x RJ45: 10/100 Adaptive Ethernet Port 424M standard, 1x HDMI: version 1.3, 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard, USB 3.0 Type C, 1x USB 3.0 Type C
      • Audio Interface: 1x 3.5mm Line level Input
      • Communication Interface: 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P, 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P, 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
      • IR: 4x IR Addresses, Max distance 30ft / 9m
      • Power Jack: JEITA type (DC IN 12V)

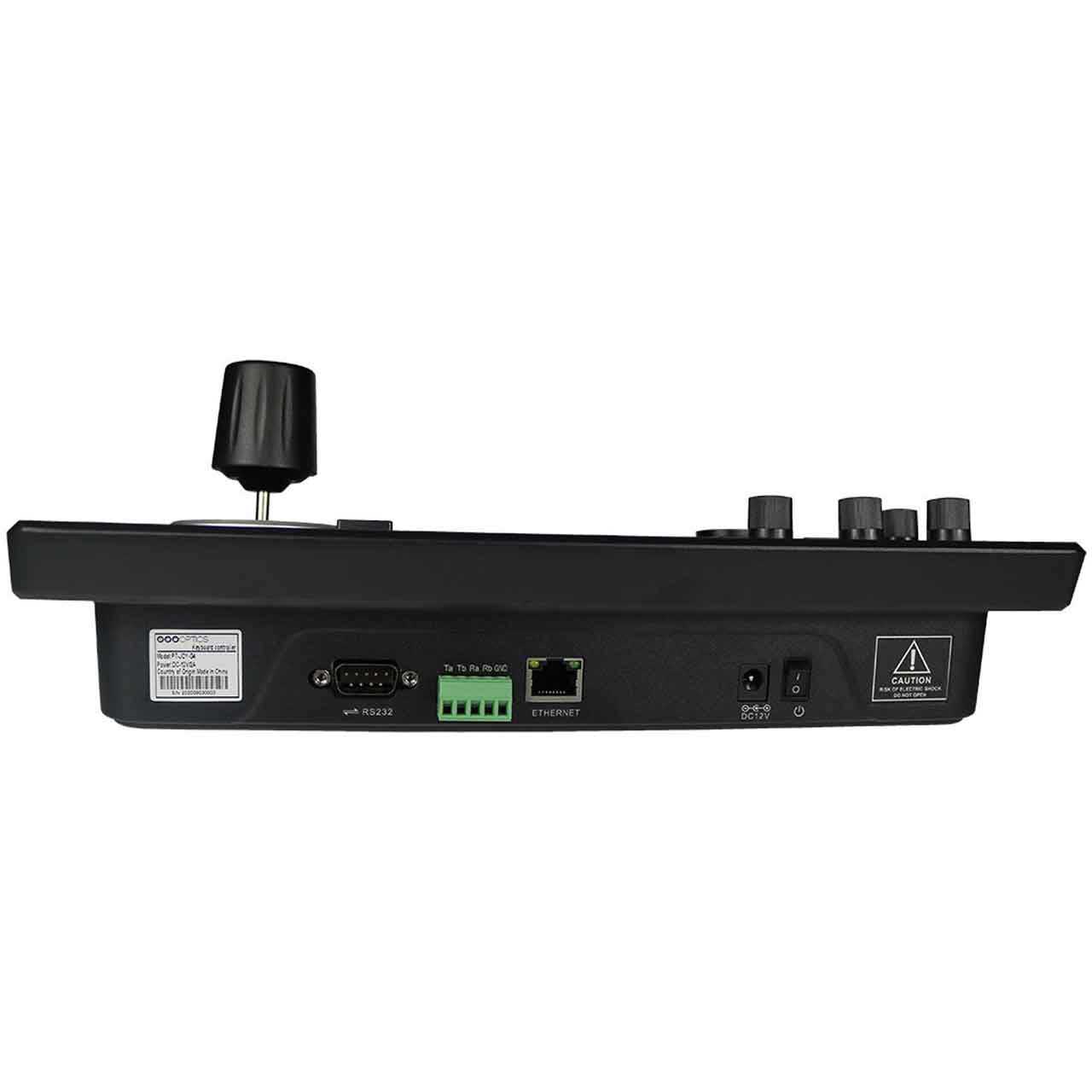

      • PTZOptics JOY-G4 P Joystick Controller
      • Connections: RS-232, RS-485, RS-422, RJ-45
      • Max Cameras: 255 cameras via network, 7 cameras via serial VISCA
      • Recommended Max Distance: RS-232 / RS-422: 50 ft (15m), RS-485: 3,937 ft (1200m), Ethernet: 328 ft (100m)
      • Baud Rate: 1200 ~ 19200 bps

        Operation Specifications
      • Power: 6W (12VDC) / PoE (802.3af)
      • Working Temp: 14° F ~ 122° F
      • Working Humidity: 10% ~ 90% (non-condensation)
      • Weight: 4.45 lbs
      • Dimensions (in.): 11.938 W x 9.25 D x 4.25 H

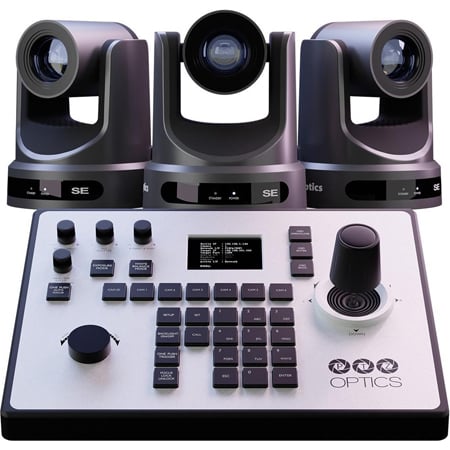

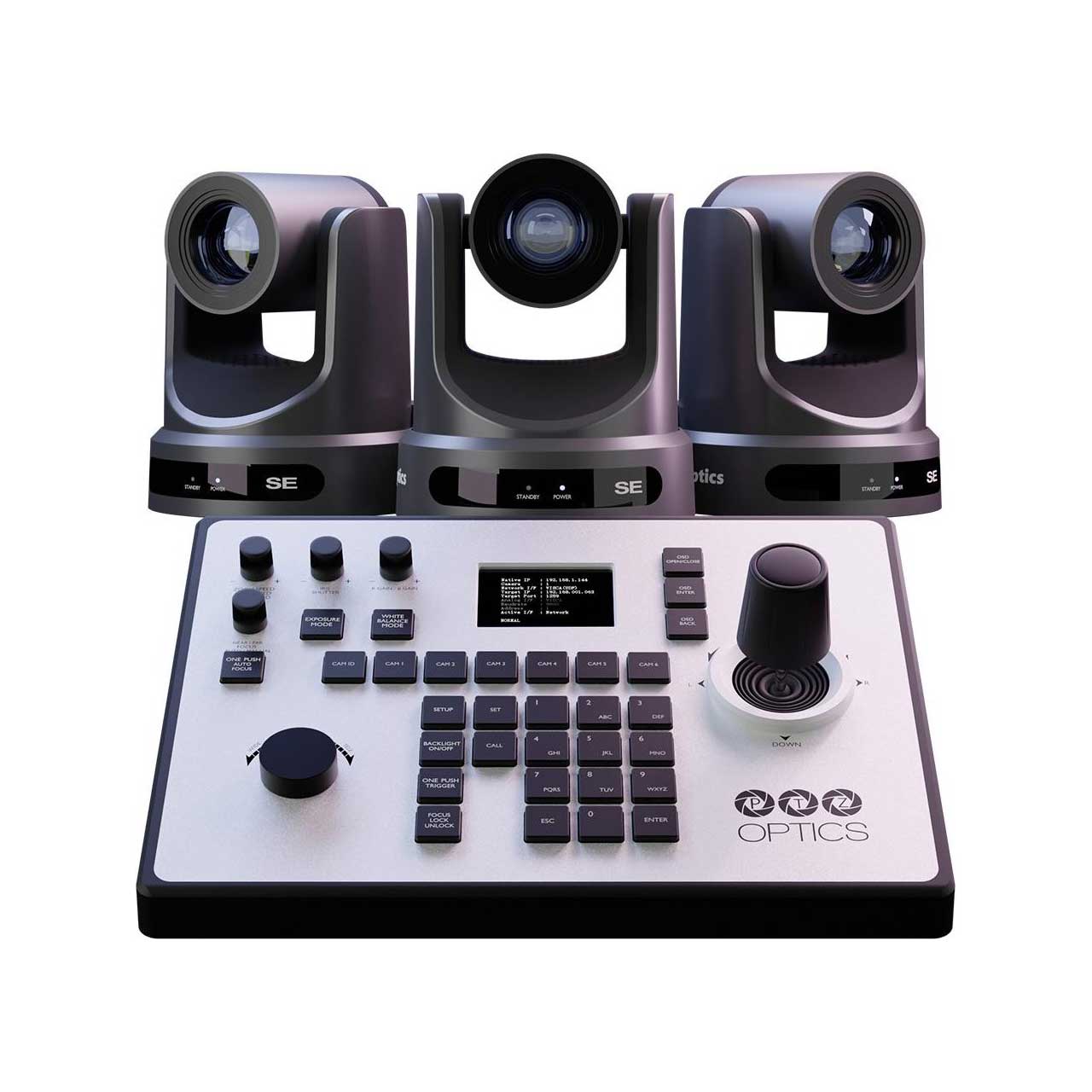

    • Item Includes:

      • 3x Gray 20X Move SE PTZ cameras
      • 1x PT-JOY-G4 Joystick Controller
