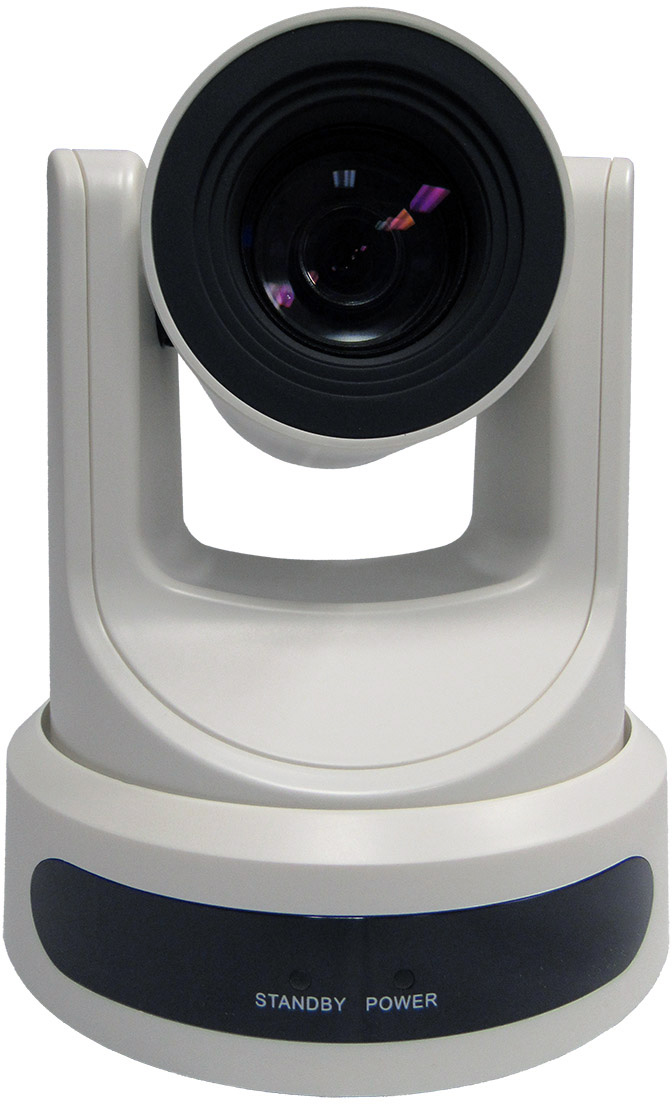

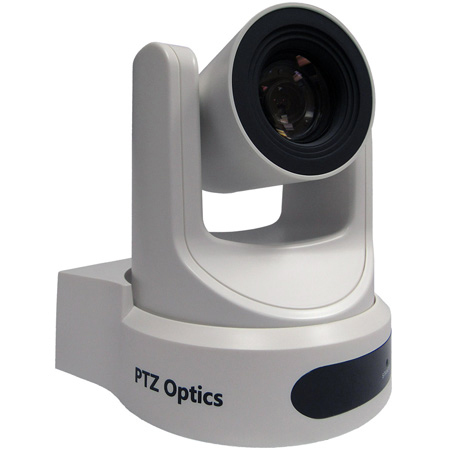

PTZOptics 12X Optical Zoom - USB 3.0 IP Network RJ45 HDMI CVBS - 1920 x 1080p - 72.5 Degree FOV (White) US Style Power
  • PTZOptics 12X Optical Zoom - USB 3.0 IP Network RJ45 HDMI CVBS - 1920 x 1080p - 72.5 Degree FOV (White) US Style Power
  • PTZOptics 12X Optical Zoom - USB 3.0 IP Network RJ45 HDMI CVBS - 1920 x 1080p - 72.5 Degree FOV (White) US Style Power
  • PTZOptics 12X Optical Zoom - USB 3.0 IP Network RJ45 HDMI CVBS - 1920 x 1080p - 72.5 Degree FOV (White) US Style Power

Questions? Ask a Markertek Expert:
800-522-2025 Email

PTZOptics 12X Optical Zoom - USB 3.0 IP Network RJ45 HDMI CVBS - 1920 x 1080p - 72.5 Degree FOV (White) US Style Power

Manufacturer: PTZOptics

Item #: PTZ-PT12XUSBWHG2   •   MFG #: PT12X-USB-WH-G2



List Price:$1,869.00
Our Price:$1,699.00

free ship


Availability:
Extended Lead Time. Email, Chat or Call Us for more details.
i
This item is currently subject to an extended manufacturer’s lead time. Please email, chat or call us at 800-522-2025 for more details.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The PTZOptics PT12X-USB-WH-G2 is a 1080p camera with 12X optical zoom for capturing both wide angles and long shots. With support for USB 3.0, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.


    • Features

      • Full 1920x1080p HD Resolutions up to 60 frames per second.

    • Specifications

      • Camera & Lens
      • Video Sensor: 1/2.7 inch CMOS, 2.12 Mega Pixels
      • Frame Rates: 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25
      • Frame Rates: (CVBS) 576i/30, 480i/30
      • Focal Length: 12x, F4.42mm-132.6mm, F1.8-F2.8
      • Lens Zoom: 12x
      • Field of View: 72.5°
      • Min Lux: 0.5 Lux at F1.8, AGC ON
      • Shutter Speed: 1/30s - 1/10000s
      • SNR: ≥55dB
      • Horizontal Angle of View: 6.9° (tele) to 72.5° (wide)
      • Vertical Angle of View: 3.9° (tele) to 44.8°(wide)
      • Working Environment Specifications: Indoor
      • Pan Movement: ±170°
      • Tilt Rotation Up: 90°, Down: 30°
      • Presets: 10 via IR (255 via Serial or IP)

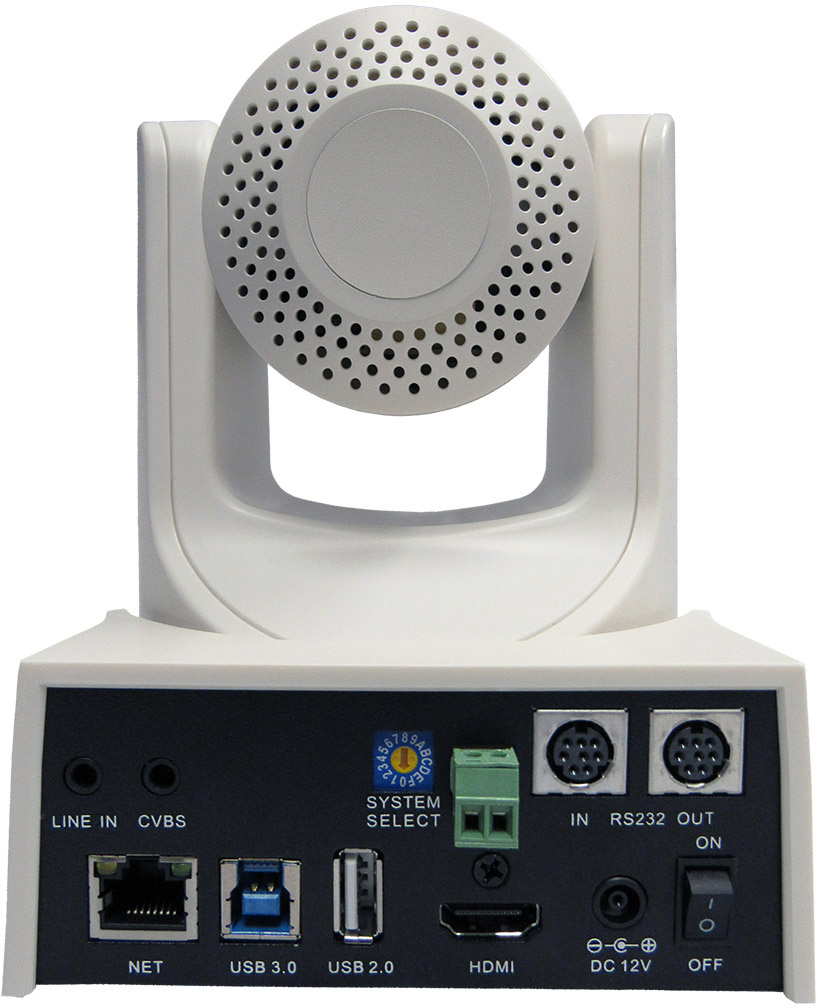

      • Rear Board
      • Video Output: HDMI, USB 3.0, IP Streaming, CVBS
      • Network Interface: RJ45
      • Audio Interface: Line In, 3.5mm (USB & IP Stream Only)
      • Communication: RS-232, RS485, PELCO-D/P, UVC 1.5
      • Baud Rate: 2400/4800/9600 bits
      • Power Supply: JEITA type Power Adapter (DC IN 12V)
      • 3G-SDI Interface: BNC - 75 Ohm, Female
      • USB 3.0 Interface USB 3.0 (Requires Quad Core Processor)
      • USB 2.0 Interface: Future Use

        Physical
      • Power Supply: 12W (Max)
      • Input Voltage: 12V DC (10.8 - 13.0V DC) or PoE 802.3af
      • Dimension (in.): 5.6 W x 6.5 H x 6.7 D (7.8H max w/ Tilt)
      • Dimensions (mm): 142 W x 164 H x 169 D (198H max w/ Tilt)
      • Box Dimensions: 9 inch x 9 inch x 10 inch (229 mm x 254 mm x 229 mm)
      • Camera Weight: 3.05 lbs. (1.38 kg)
      • Boxed Weight: 5.4 lbs. (2.45 kg)

    • Item Includes

      • 12X Zoom USB 3.0 Camera
      • Power Adapter + Cord
      • USB 3.0 Cable
      • IR Remote Control
      • RS-232C Cable
      • User Manual

    • Warranty

      • 5 Years

    • GTIN:

      0737993158851
