QSC AD-P.SAT 2.75-inch Small Format Satellite Pendant Loudspeaker - White - Pair

ITEM #: QSC-AD-P-SAT-WE MFG #: AD-P.SAT-WH

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$270.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AD-P.SAT-WH - Overview

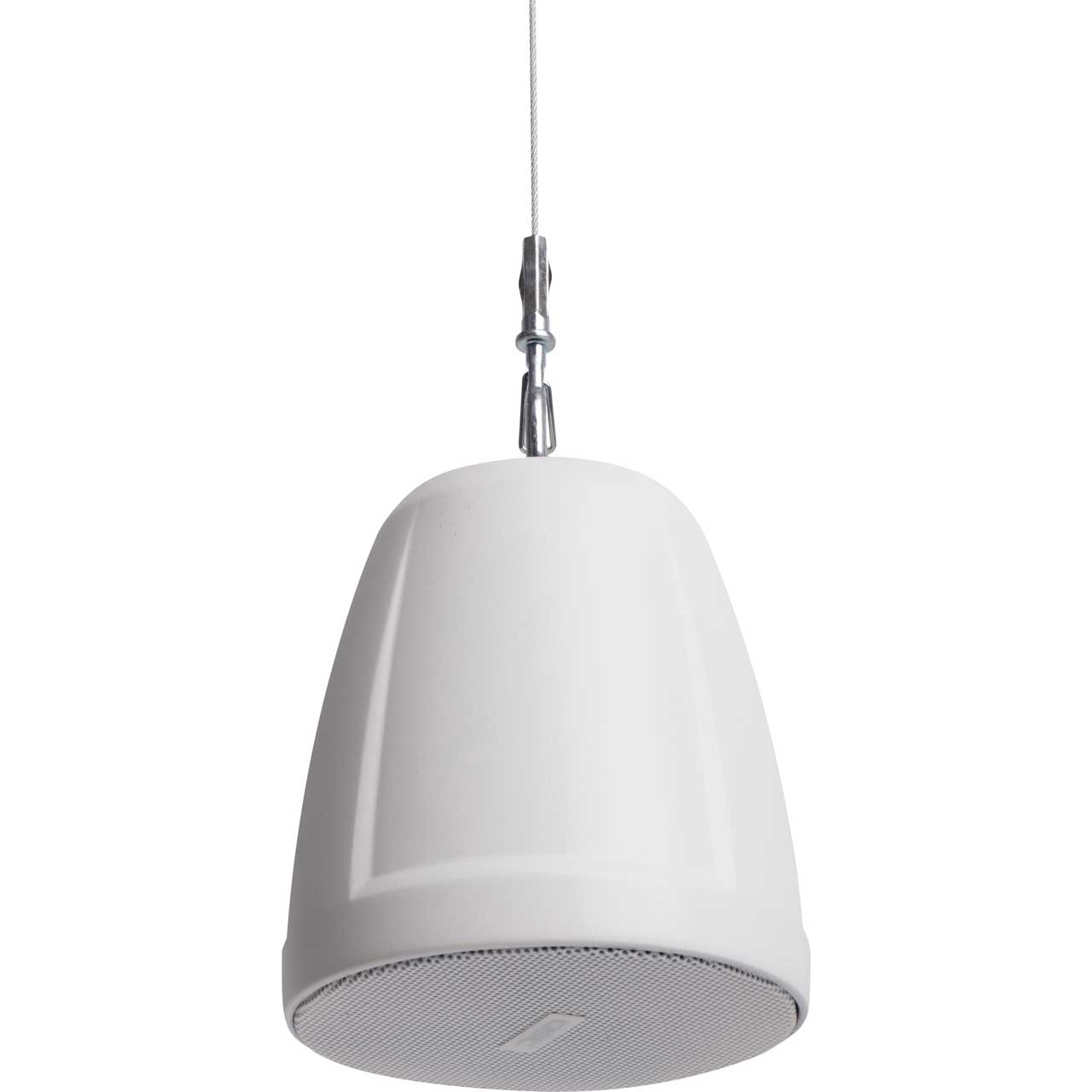

    The QSC AD-P.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings.

    The AcousticDesign Series offers integrators a premium quality installed sound solution where performance, consistent coverage, and aesthetics are paramount. Specifically designed to maintain a consistent tonal characteristic across the entire family in ceiling, surface, and pendant enclosures, the AcousticDesign Series allows integrators seamless transitions within blended installations.

    The AcousticDesign Series SUB/SAT loudspeakers have been specifically designed to be mix-and-match capable. Any combination of satellites may be paired with any subwoofer in the SUB/SAT line.

    The AD-P.SAT features a high quality 2.75-inch weather treated paper cone\ woofer with an inverted aluminum dust cap for extended high frequency presence within a sealed enclosure.

    These loudspeakers are rated at 16 Ω, and up to four satellites may be connected to any AcousticDesign Series SUB/SAT subwoofer's high-pass filtered outputs. Satellites also may be used as stand-alone loudspeakers using an external high-pass filter.

    • Features:

      • Inverted aluminum dome dust cap
      • Rated at 16 Ω
      • Locking 2-pole Euroblock connectors
      • Snap-fit magnetic grills
      • Quick link cable assemblies and slip-lock fasteners supplied
      • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
      • Available in black (RAL 9011) or white (RAL 9010)
      • UL1480 certified

    • Specifications:

      • HF transducer: 2.75-inch (70 mm) weather treated paper cone woofer
      • Effective frequency range: 150 Hz - 20 kHz
      • Rated noise power / voltage: 25 W / 20 V (rms)
      • Sensitivity [dB] (rated @1 W, 1 m): 82
      • Coverage (-6 dB) [°]: 170° Conical
      • Maximum SPL [dB] (rated, 1 m (continuous / peak)): 90 / 96
      • Recommended amplifier: 25 W (with 1st order high-pass filter at 200 Hz)
      • Impedance: 16 Ω
      • Connectors: 2-pole Euroblock
      • Enclosure material: ABS
      • Grille material: Powder coated steel
      • Ingress protection: IP-34
      • Operating environment: Designed for indoor use
      • Operating temperature range: -4 to 122° F (-20 to 50° C)
      • Net weight: 0.92 lb (416 g)
      • Product dimensions (Ø x H): Ø 4.3 x 4.5-inch (Ø 110 x 115 mm)
      • Shipping weight: TBD (pair packed)
      • Shipping dimensions (H x W x D): TBD (pair packed)
      • Included accessories: Cable rigging, 1x Euroblock connector, grill
      • Safety agency: UL1480, Transformer UL registered per UL1876, ROHS, CE compliant

    • Item Includes:

      • Cable rigging
      • 1x Euroblock connector
      • Grill

    • GTIN:

      0684284075871
