QSC High Energy Sports Bar Bundle with AD-P6T Loudspeaker x 6/AD-P.SUB Subwoofer/MP-M40 Mixer and MP-A40V Amplifier

ITEM #: QSC-BUSINESSKIT7 MFG #: BUSINESSKIT7

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order


Item unavailable.Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email


Availability: Sold Out
iAvailability Description Popup


BUSINESSKIT7 - Overview

QSC Business Music Solutions make it simple to set up your place of business with the perfect sound system. From a Small Office or Waiting Room to a 1500 square foot Sports Bar these bundles were created by QSC's in-field System Designers to take the guess work out of choosing your in-house audio.

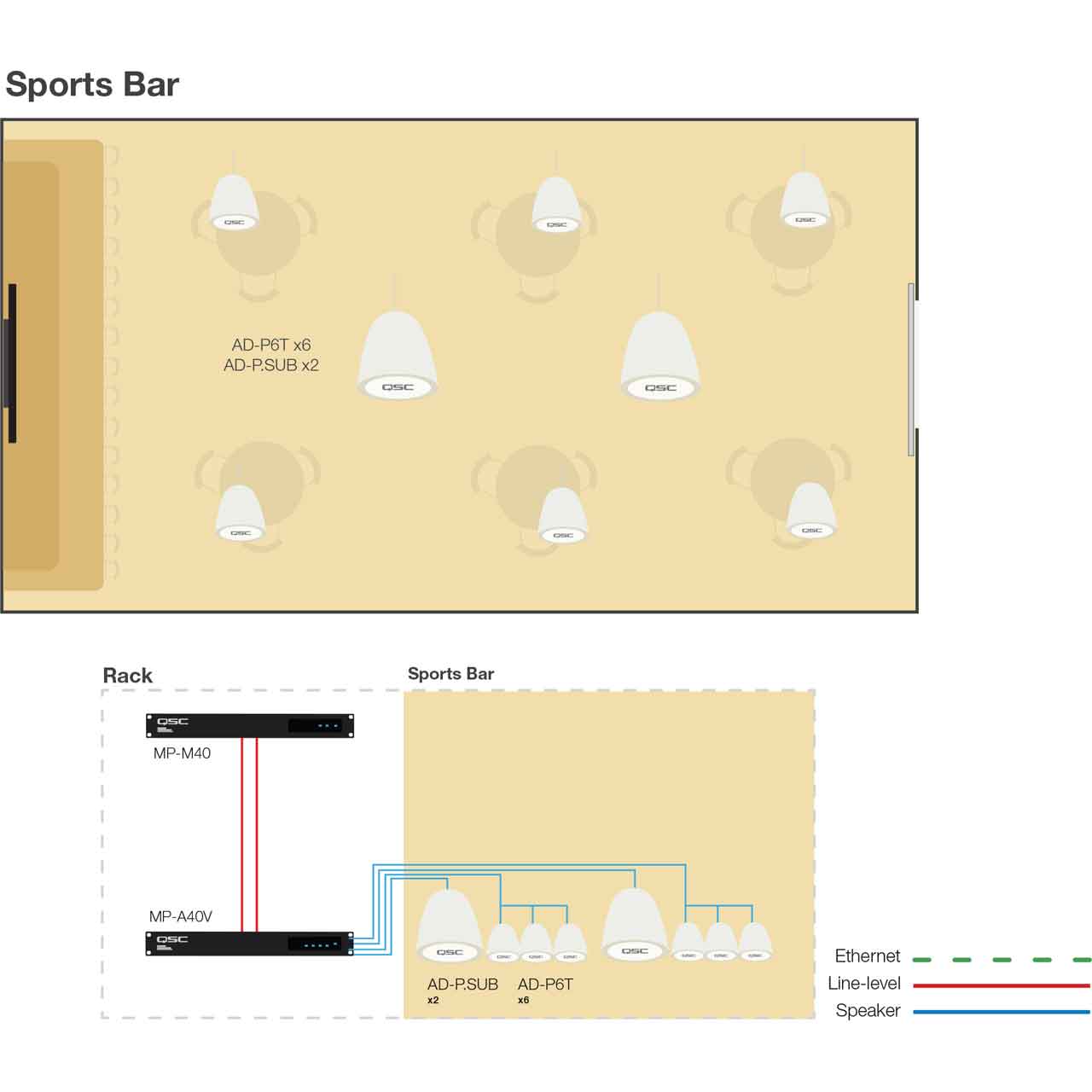

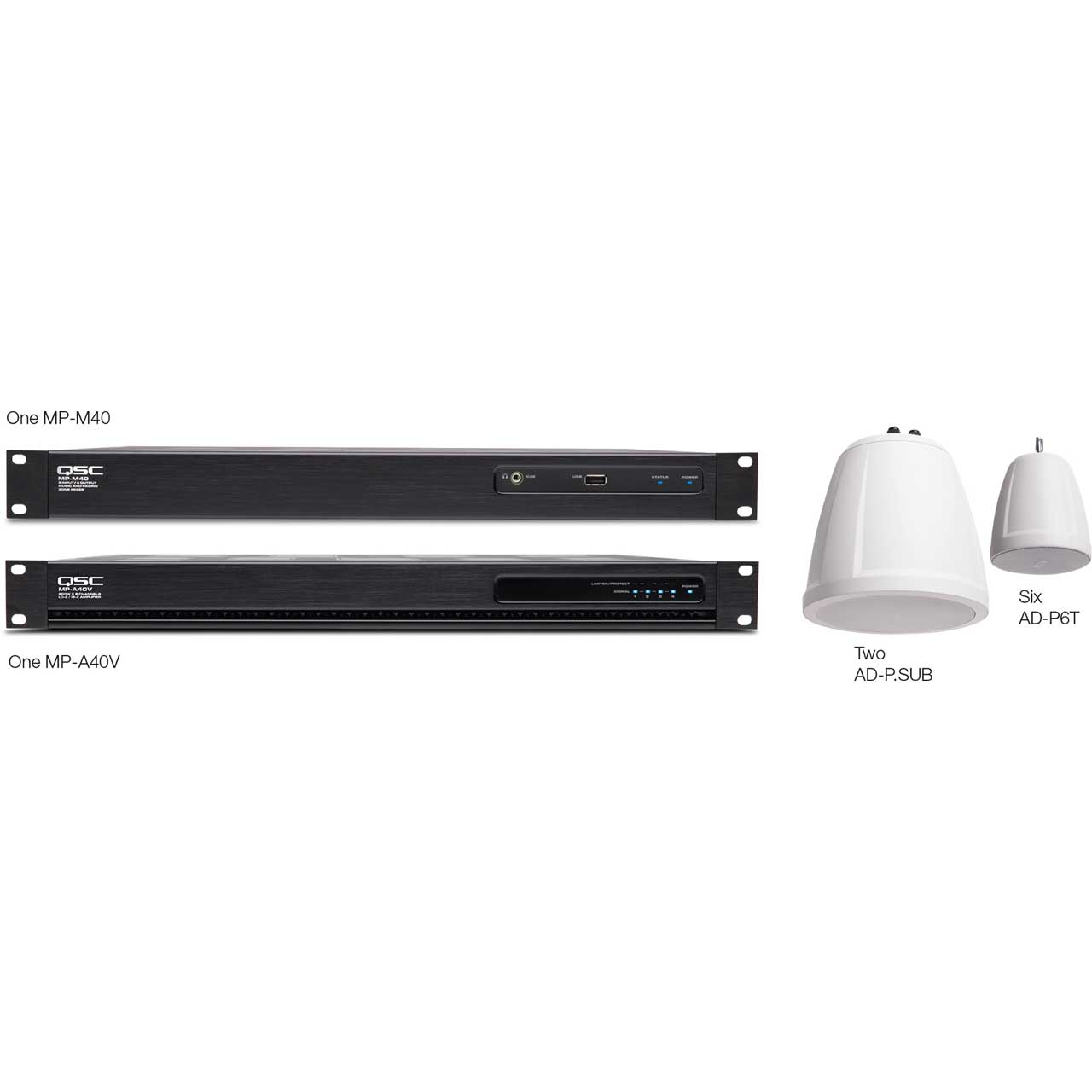

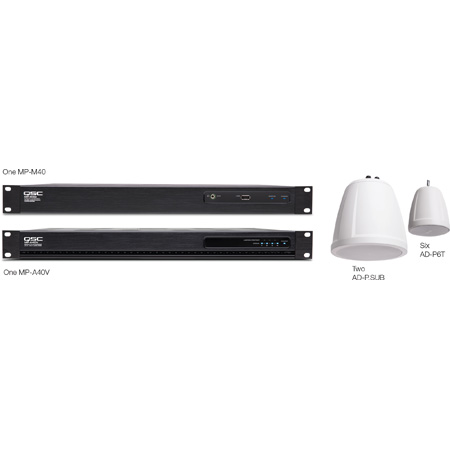

The BUSINESSKIT-7 was designed for a 1500 Square Feet High Energy Sports Bar and consists of:

6x AC-P6T Loudspeakers

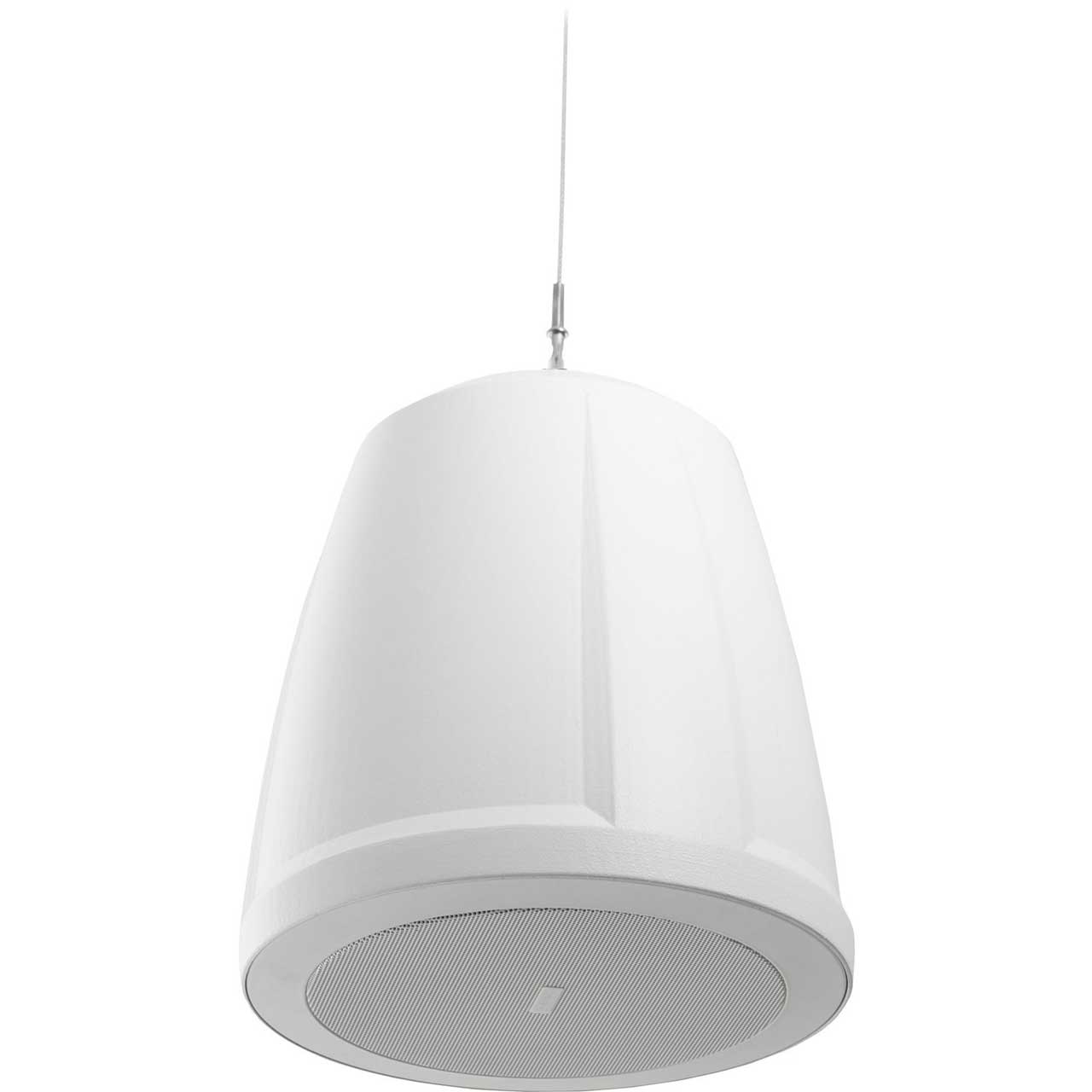

The QSC AcousticDesign™ AD-P6T is a 6.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16Ω bypass configurations.

2x AD-P.SUB

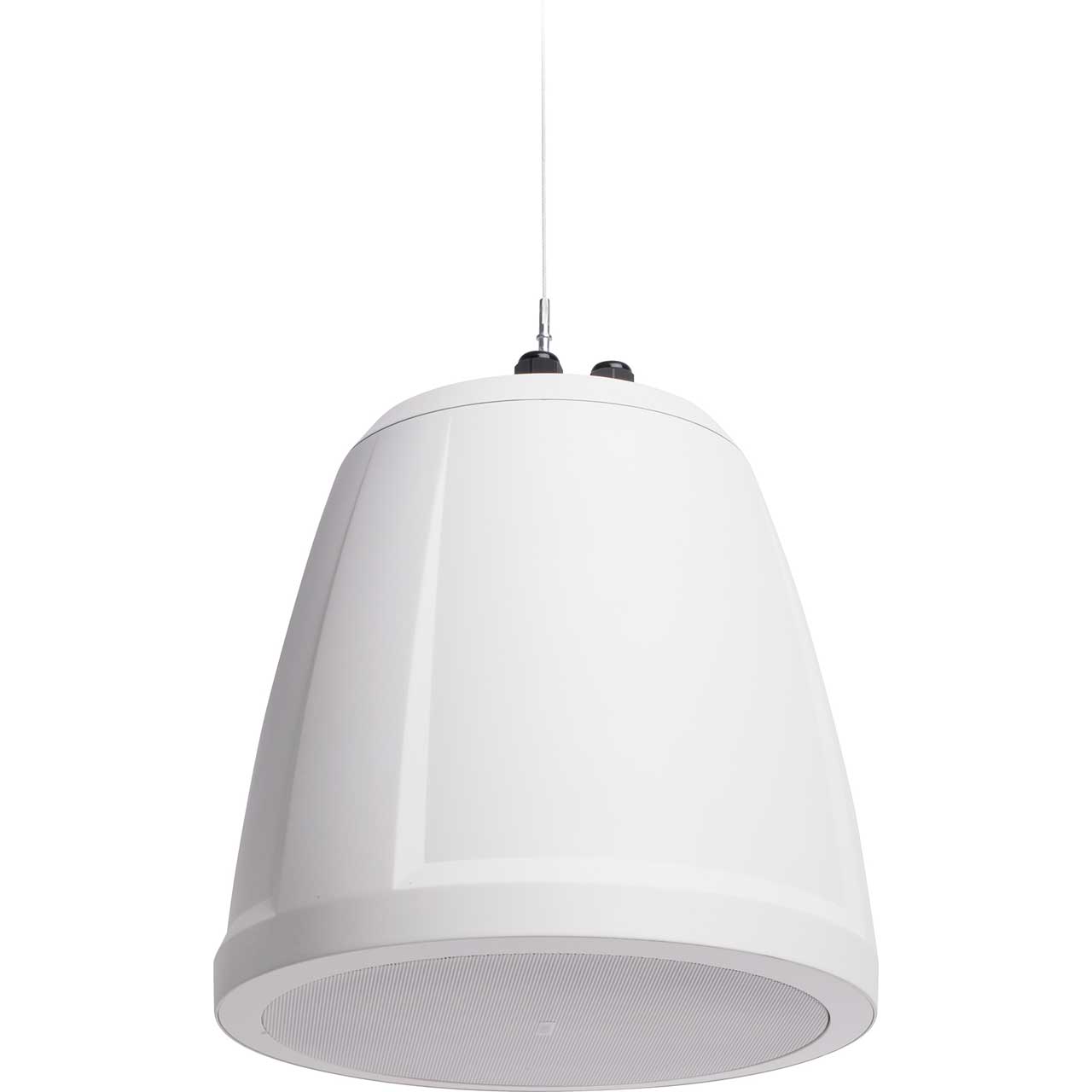

The QSC AD-P.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings.

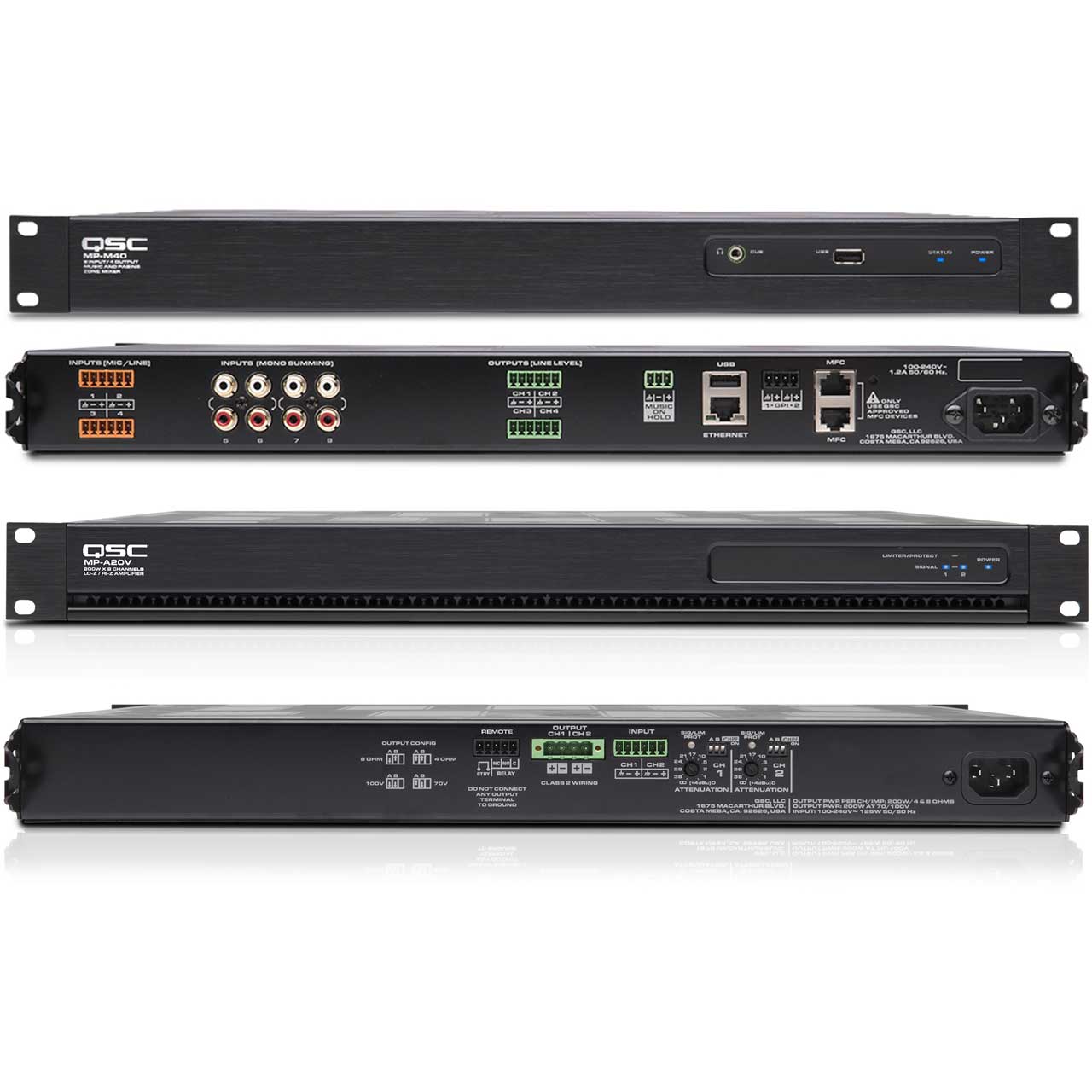

1x MP-M40 Mixer
The MP-M Series music and paging mixers offer unprecedented capabilities for processing and routing high-quality foreground/ background audio for multi-zone retail and hospitality applications, and provides live mixing functionality for business applications that also require live speech reinforcement, including fitness clubs, hotel meeting rooms, banquet halls etc.

1x MP-A40V Amplifier
The QSC MP-A40V Series music and paging amplifier family builds on a 50 year legacy of QSC amplifier dependability and quality while offering an incredible amount of flexibility for business music and paging applications.

  • Features:

    • AD-P6T
    • Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
    • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
    • Snap-fit magnetic grille
    • 2x quick-link suspension cables and slip-lock fasteners provided
    • Intrinsic Correction™ voicings available via Q-SYS Platform and CXD Series amplifiers
    • Low-saturation and low-loss 70/100V transformers with 16Ω bypass
    • Blemish-free removable logo
    • Sealable input cover to prevent moisture from entering the input terminal block
    • UL1480 certified
    • Available in black (RAL 9011) or white (RAL 9010)
    • Complete EASE, CF2, CAD, & BIM information available online

      AD-P.SUB
    • The QSC AD-P.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings.

      MP-M40
    • Easy configuration and design: MP Install app gives you an attractive graphic user environment with an intuitive workflow and controls that make it simple to manage all the inputs and outputs.
    • Workflow Wizard: Helps the installer keep track of tasks and easily navigate the mixer.
    • QSC loudspeaker voicings: Apply Intrinsic Correction™ (factory FIR/IIR presets) to QSC loudspeakers to maximize the performance and value of the system.

      MP-A40V
    • FlexAmp Technology allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio
    • Class-D output circuitry and switchmode power supply for high efficiency and low cost of ownership
    • 1RU amplifier design for rack space savings
    • Load selector for driving 4 Ω, 8 Ω, 70 V or 100 V on each channel

  • Specifications:

    • AD-P6T
    • LF transducer: 165 mm [6.5 in] weather treated paper cone woofer
    • HF transducer: 19 mm [0.75" in] aluminum dome tweeter
    • Effective frequency range: 56 Hz - 20 kHz
    • Rated noise power / voltage: 2 60 watts / 31 volts (rms)
    • Sensitivity [dB]: 88
    • Rated coverage (-6 dB): 135° conical DMT™
    • Directivity factor: 6.5
    • Directivity index [dB]: 8
    • Maximum continuous SPL [dB]: 106
    • Maximum peak SPL [dB]: 112

      AD-P.SUB
    • LF transducer: 6.5-inch (165 mm) dual voice coil weather treated paper cone woofer
    • HF transducer: N/A
    • Effective frequency range: 55 Hz - 150 Hz
    • Rated noise power / voltage: 100 W / 20 V (rms)
    • Sensitivity [dB] (rated @1 W, 1 m): 86
    • Coverage (-6 dB): Omni
    • Maximum SPL [dB] (continuous / peak): 100 / 106
    • Recommended amplifier: 100 W

      MP-M40
    • Inputs Total: 8
    • Mic/Line: 4 (Euroblock)
    • RCA: 4 (mono-summed RCA pairs)
    • Outputs Total: 6
    • Line: 4 (Euroblock, balanced)
    • Music on Hold: 1 (Euroblock, transformer balanced)

      MP-A40V
    • Watts: 800
    • Channels: 4
    • Power (All Channels Driven):
      8Ω 4Ω - 200W
      70V - 200W
      100V - 200W
    • FlexAmp Technology: Allows each pair of amplifier channels to deliver up to 400W total power, in any ratio
    • Frequency Response @ 8Ω: 20Hz - 20kHz ± 0.5dB

  • Item Includes:

    • 6x AC-P6T Loudspeakers
    • 2x AD-P.SUB Subwoofers
    • 1x MP-A40V Amplifier
    • 1x MP-M40 Mixer
