Radial PRO-ISO Balanced +4dB to -10dB Unbalanced Passive Converter - Voice Range

ITEM #: RAD-PRO-ISO MFG #: R800 1150

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$240.00

Our Price:

$199.99

Availability: In Stock
iAvailability Description Popup


    R800 1150 - Overview

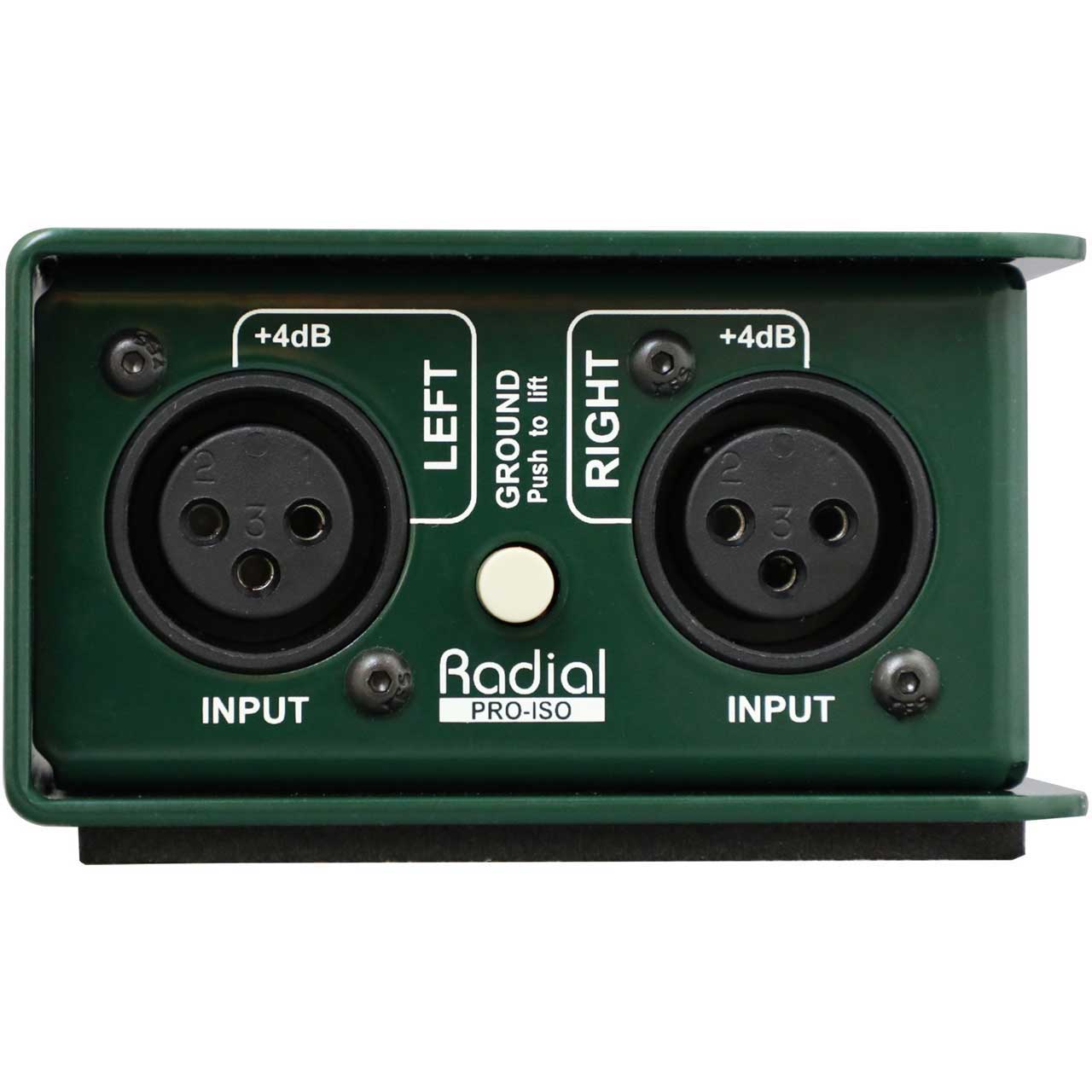

    The ProISO is a stereo interface designed to take a high output +4dB line level signal from a mixing console and convert it so that it may be connected to low level unbalanced devices. In effort to adapt to all of the variables, the output may be adjusted with a recessed `set & forget' level control. This makes it easy to interface professional audio gear with devices such as computer sound cards, iPods or -10dB recorders. To reduce noise problems, the ProISO is equipped with an audio isolation transformer on each channel that helps eliminate hum and buzz caused by ground loops. Connections are straight forward: inputs are standard balanced XLR female while outputs include choice of stereo RCA, 3.5mm or standard ¬". All connectors and controls are protected with a book-end design and the ProISO may be rack-mounted in the optional J-Rak or secured to a podium using the J-clamp. This makes the ProISO an easy to use solution for interfacing between pro and consumer electronics and an ideal interface for recording events.

    Exceptional Signal Handling

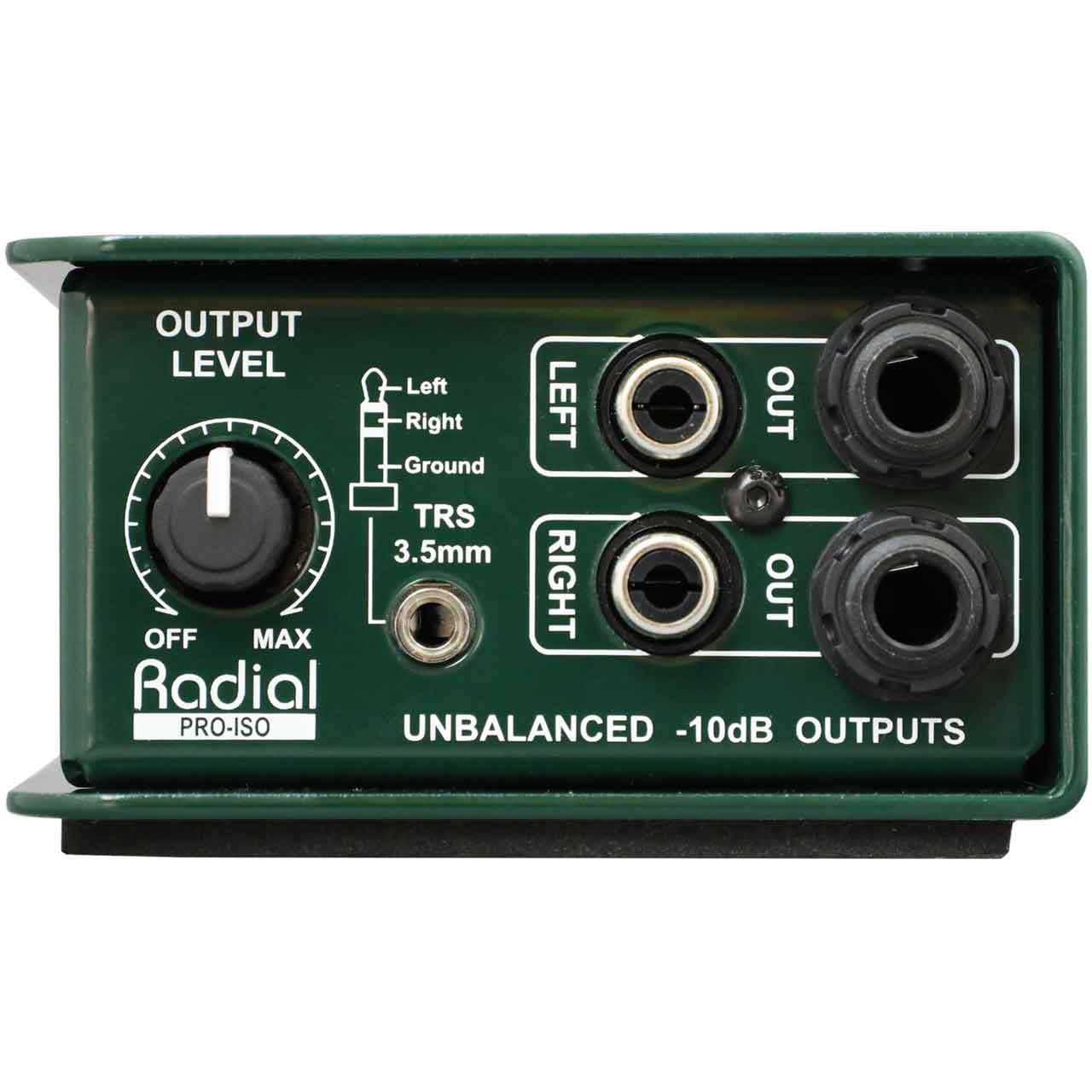

    The passive design begins with 100% discrete components throughout. A set & forget level control lets you attenuate the input signal to prevent it from overloading the destination device. Output connections include a stereo pair of ¬" connectors, a set of RCAs and a mini 3.5mm (1/8") for interfacing to a mini recorder or lap-top computer. Transformer isolation helps eliminate hum and buzz caused by ground loops while eliminating stray DC currents from flowing.

    Applications
    Using the Pro-Iso to record a performance
    Using the Pro-Iso to convert a balanced signal
    Using the Pro-Iso to feed a computer

    • Features:

      • Converts balanced line level signals to unbalanced
      • Stereo signal path with set & forget level control
      • Transformer isolated to eliminate hum & buzz
      • Cost effective transformers targeting voice range

    • Specifications:

      • Audio circuit type: Passive, transformer based
      • Transformer: Radial transformer
      • Number of channels: Stereo (dual mono)
      • Frequency response: 20Hz ~ 18KHz (+0dB/ -3dB)
      • Dynamic range: 130dB
      • Total harmonic distortion: 0.005% @ 1kHz
      • Phase Deviation: 1.5° @ 100Hz; 3° @ 20Hz
      • Input Impedance: 1.3k Ohms
      • Output Impedance: 1.9k Ohms
      • Common Mode Rejection Ratio: -76dB
      • Maximum Input: +20dBu @ 1kHz/1% THD+N
      • Construction: 14 gauge steel chassis
      • Size (L x W x D): 8.4cm x 12.7cm x 4.8cm (3.3" x 5" x 2")
      • Weight: 0.7 kg (1.55 lbs)
      • Shipping size (L x W x D): 10.2cm x 7.6cm x 16.5cm (4" x 3" x 6.5")
      • Shipping weight: 0.87 kg (1.92 lbs)
      • Power: Passive, no power required
      • Conditions: For use in dry locations only between 5°C and 40°C

    • GTIN:

      0676101038480
