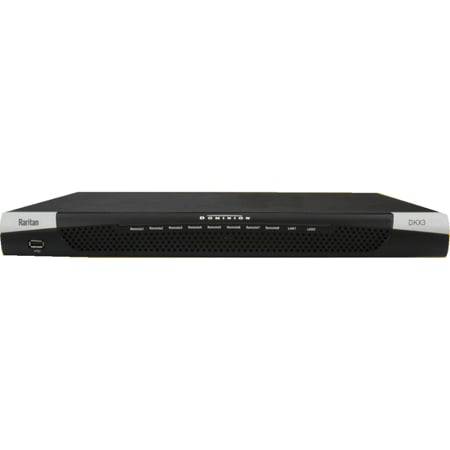

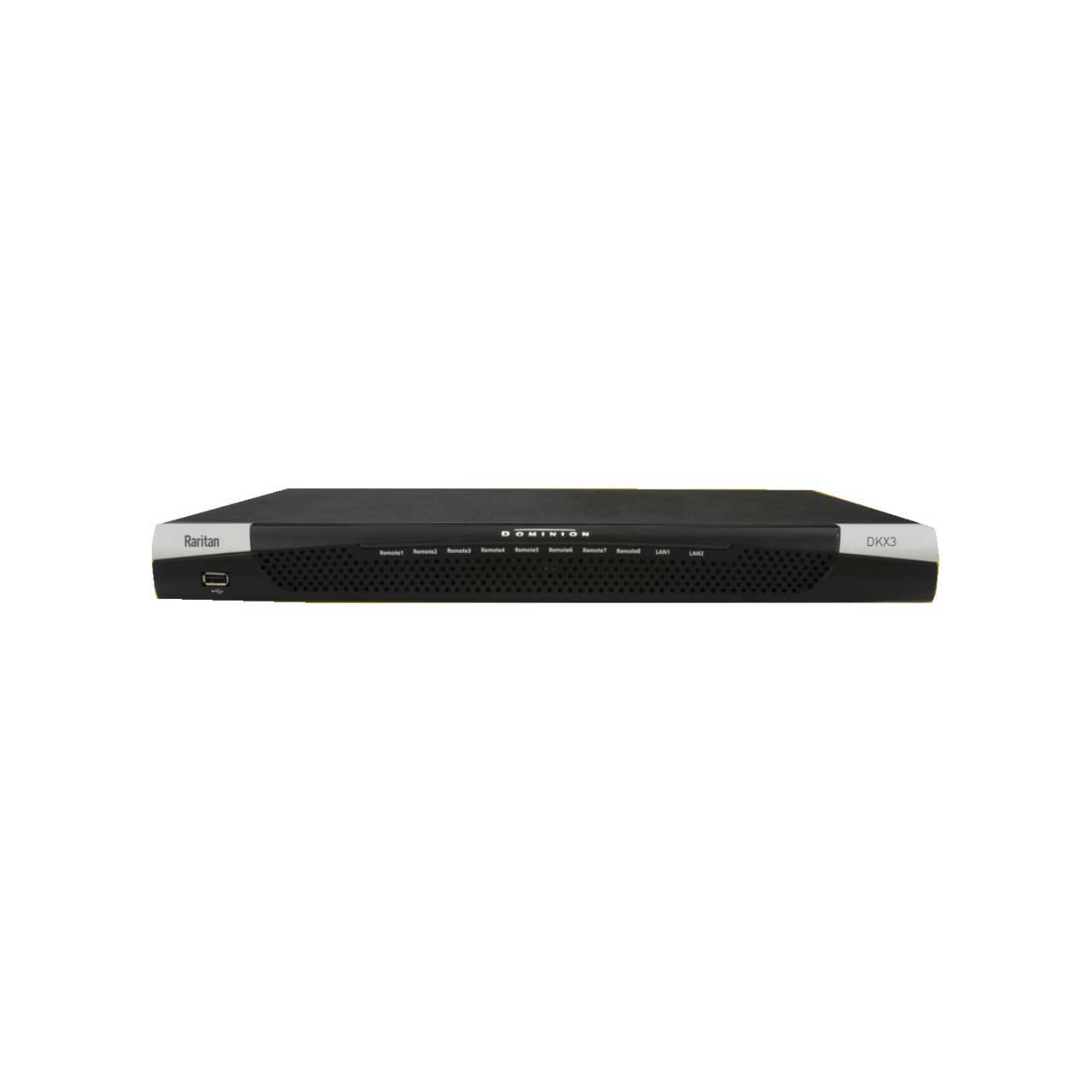

Raritan Dominion KX III High Performance KVM-over-IP Switch - 32 Server Ports/2 Remote Users/1 Local Port

ITEM #: RAR-DKX3-232 MFG #: DKX3-232

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    DKX3-232 - Overview

    High Performance KVM-Over-IP Solution

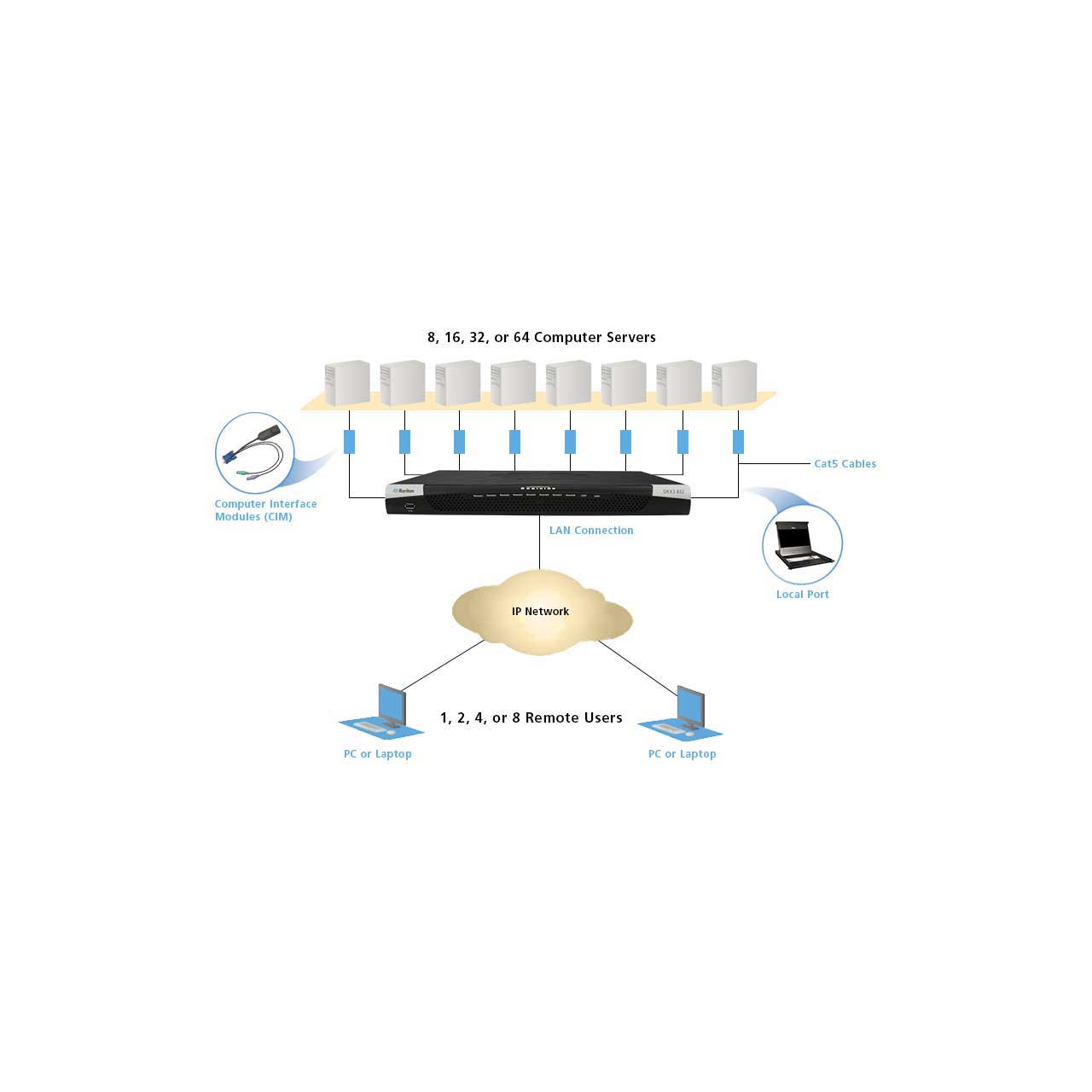

    The Dominion® KX III is an enterprise-class KVM-over-IP switch that provides 1, 2, 4 or 8 users with remote BIOS-level control of 8 to 64 servers. It comes with standard features such as DVI/HDMI/DisplayPort/USB-C digital and analog video, audio, virtual media, smart card/CAC with new smartcard/CAC/PKI login to KX III, blade server support, and mobile access. Deploy it alone, or with Raritan's CommandCenter® Secure Gateway (CC-SG) for centralized access to all KX IIIs; or with the KX III or IV User Stations for high performance access.

    IT, Data Centers And Labs
    Eliminate trips to the data center! Java-free Virtual Media lets administrators remotely install software, transfer files, and back up data. Manage up to 8 serial devices with the new Dominion Serial Access Modules (DSAM). Users can even access and manage servers via Apple iOS devices directly or through Raritan's CommandCenter Secure Gateway.

    Broadcast And Entertainment

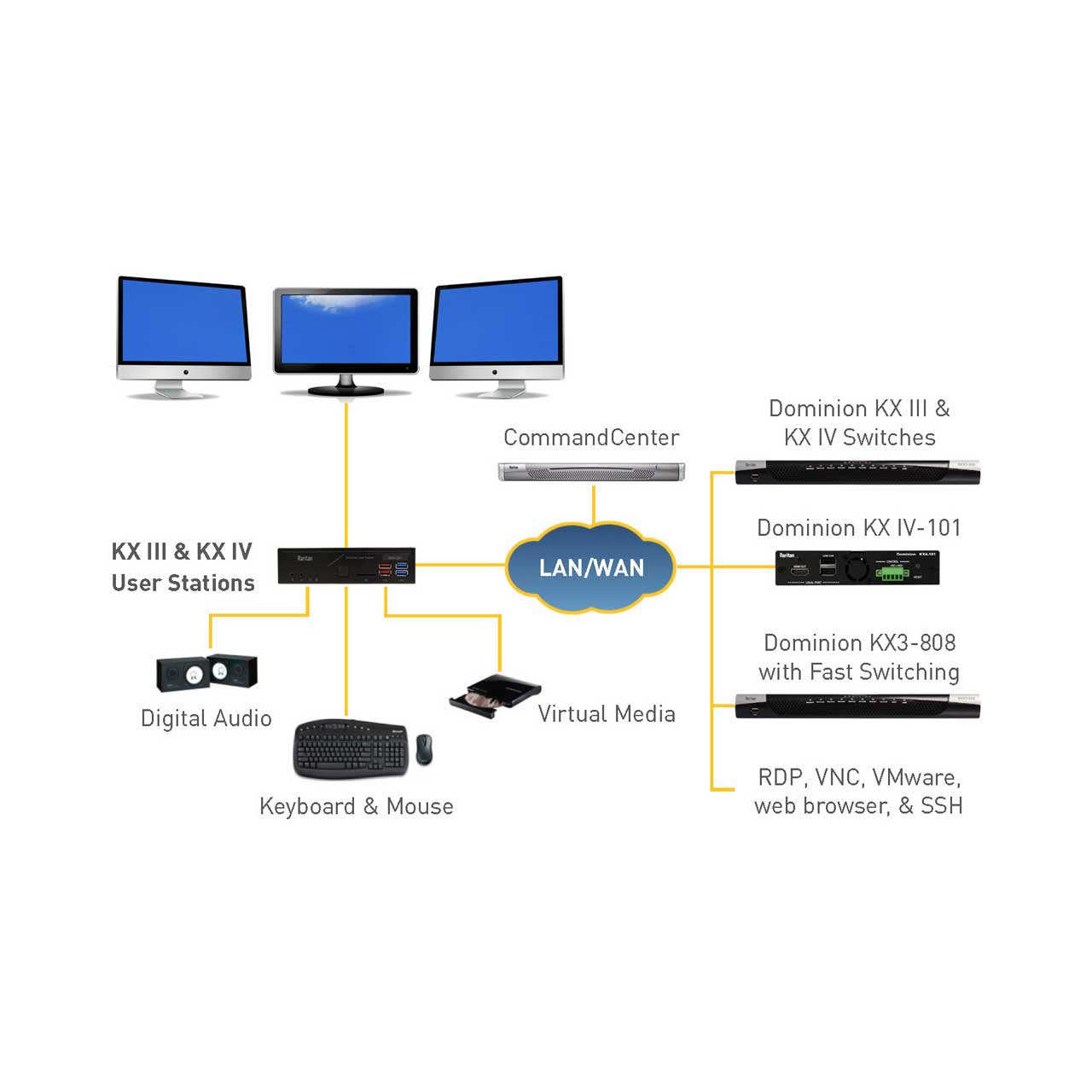

    The KX III's next generation video processing engine supports dynamic broadcast applications that require 1920x1200 HD resolution, 24 bit color, digital audio, dual monitors and DVI, HDMI, DisplayPort, USB-C and VGA video. View streaming 1080p video at 30 frames-per-second over your LAN. Two high performance IP User Stations available for labs, studios, and control rooms. Fast connections and subsecond switching available with the DKX3-808 model.

    Military Grade Security And Reliability
    KX III meets widely used U.S. and Canadian government security mandates like: FIPS 140-2 certified cryptographic module, smart-card/CAC with new smartcard/ CAC/PKI login to KX III, two factor RSA SecurID and IEEE 802.1X authentication, and IPv6. And with dual power supplies and dual gigabit Ethernet ports, it is the most reliable and secure digital KVM switch in the industry.

    • Features:

      • BIOS Level Remote Access and Control
      • Blazing, High Performance Audio and Video
      • Digital and Analog Video
      • Java-Free KVM with Virtual Media
      • Military Grade Security
      • KX III login via SmartCards, CAC and PKI
      • Two-Factor Authentication and IEEE 802.1X

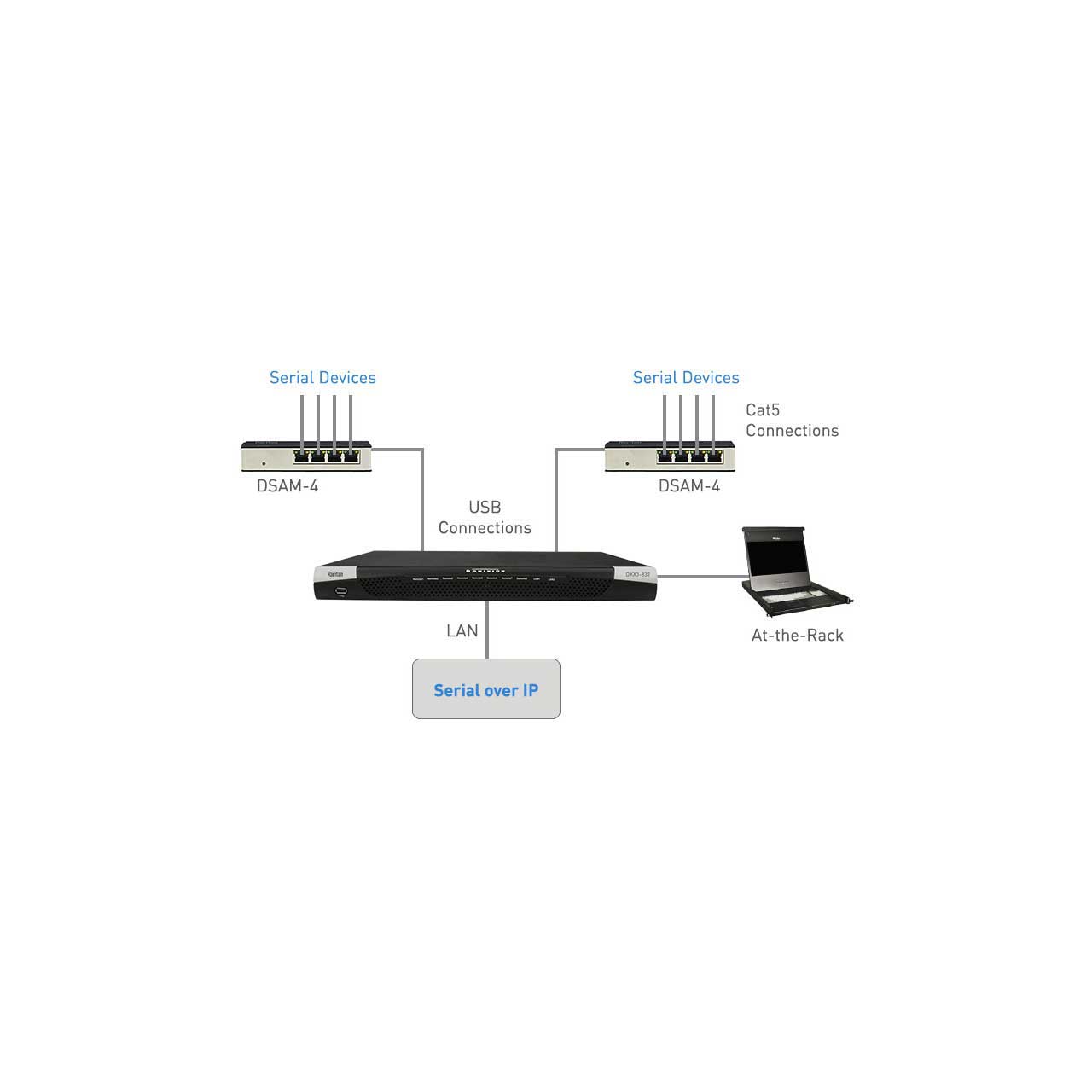

      • Up to 8 True Serial Ports
      • Mobile Access for iPad and iPhone
      • Redundancy for Reliability
      • Remote Power Control

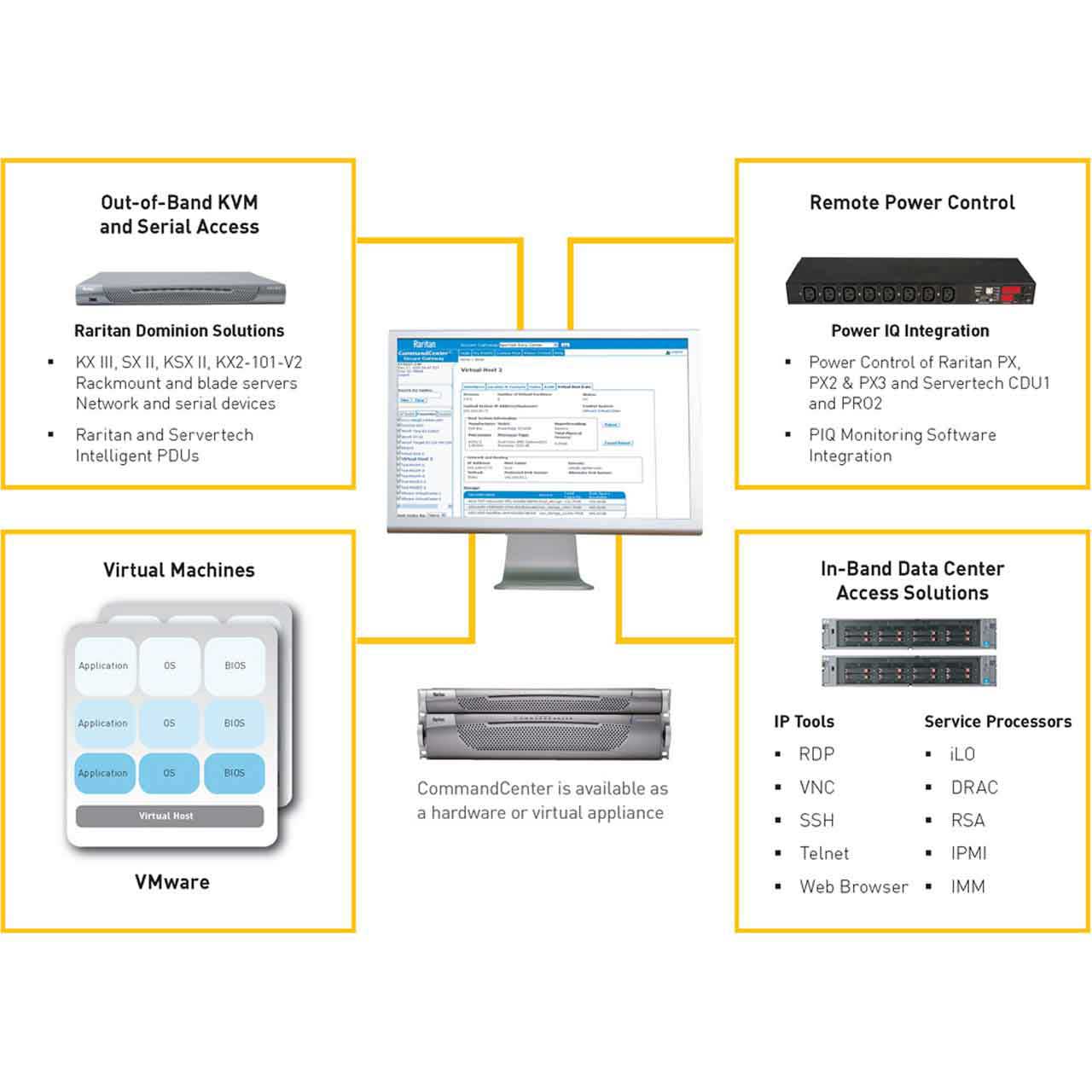

      • CC-SG Integration
      • KX III SDK and API
    • Specifications:

      • Form Factor: 1RU and 2RU full width, rack mountable (brackets included)
      • Operating Temperature: Humidity 0° - 45° C (32° - 113° F), 0% - 85% RH
      • Remote Connection Network: Dual 10/100/1000 gigabit Ethernet access; dual-stack: IPv4 and IPv6, DB9(F) DTE
      • Modem Port Protocols: TCP/IP, HTTP, HTTPS, UDP, RADIUS, SNTP, DHCP, PAP, CHAP, LDAP, SNMP v2 and v3
      • Local Access Port Video: Single Link DVI-D (F)
      • Keyboard/Mouse Tiering Port: USB(F), 1 USB front, 3 USB rear, RJ45
      • Sample Video Resolutions PC text mode, PC graphic mode: 640x350, 640x480, 720x400, 640x480, 800x600, 1024x768, 1152x864, 1280x1024,1440x900, 1680x1050, 1600x1200, 1920x1080, 1920x1200
      • Sun Video Mode: 1024x768, 1152x864, 1152x900, 1280x1028
    • Item Includes:

      • 1x Raritan Dominion KX III High Performance KVM-over-IP Switch - 32 Server Ports/2 Remote Users/1 Local Port
    • GTIN:
