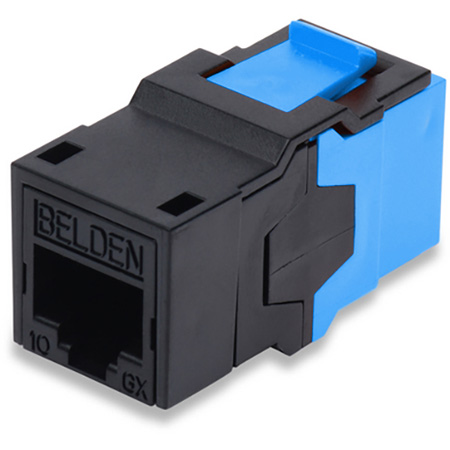

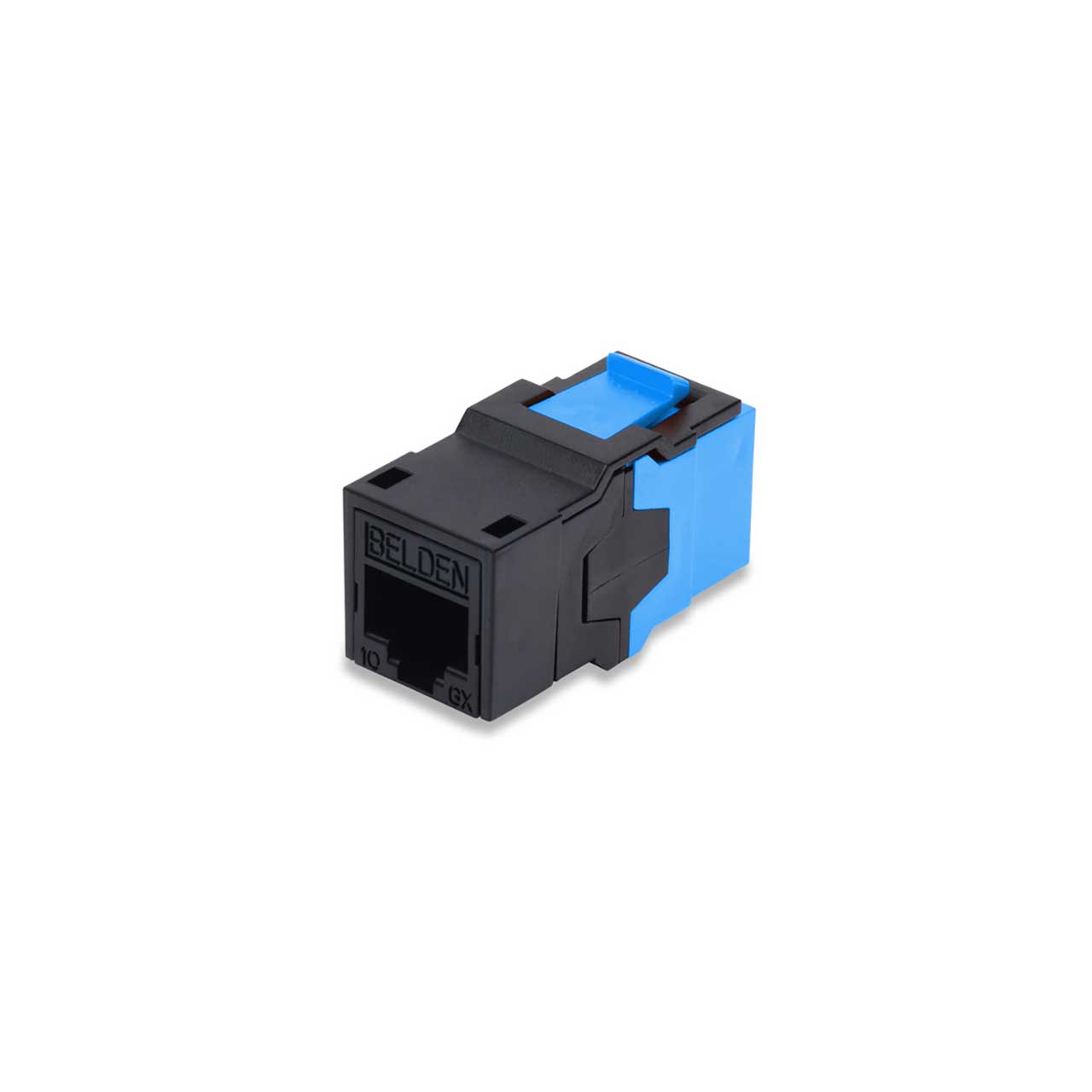

Belden AX104019 KeyConnect 10GX RJ45 Cat6A Coupler - Blue - Each

ITEM #: BL-AX104019 MFG #: AX104019

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$30.86

Our Price:

$26.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    AX104019 - Overview

    Belden KeyConnect AX104019 is a 10GX RJ45 Cat6A Coupler that is designed for IBDN System 10GX, TIA Category 6A, and 10GBASE-T applications.

    • Specifications:

      • Height: 0.895 in
      • Width: 0.692 in
      • Depth: 1.522 in
      • Wiring Scheme: T568A/B-T568A/B
      • Packaging: Individually packaged in a clear plastic bag.
      • Weight: 0.380 lbs
      • Current Rating: 1.500 A
      • Insulation Resistance: 500 M-Ohm Minimum
      • Max Contact Resistance: 20 mOhm
      • Termination Resistance: 1,000V RMS @ 60 Hz for 1 minute
      • Installation Temp Range: -10°C to +60°C
      • Storage Temp Range: -40°C to +70°C
      • Operating Temp Range: -10°C to +60°C
      • Footprint/Type: KeyConnect
      • Plug /Jack Compatibility: RJ45
      • Termination Front Connection: Mated Connection
      • Termination Front Connection Durability: 750 cycles
      • Termination Rear Connection: Mated Connection
      • Termination Rear Connection Durability: 750 cycles
      • Connector/Hardware Retention: 20 lbs
      • Data Category: Category 6A
      • TIA/EIA Compliance: ISO/IEC 11801:2002 Amendment 2
      • Other Standards: FCC Part 68, Subpart F, IEC 60603-7
      • Environmental Space: Indoor


    • Item Includes:

      • 1x Belden AX104019 KeyConnect 10GX RJ45 Cat6A Coupler - Blue
