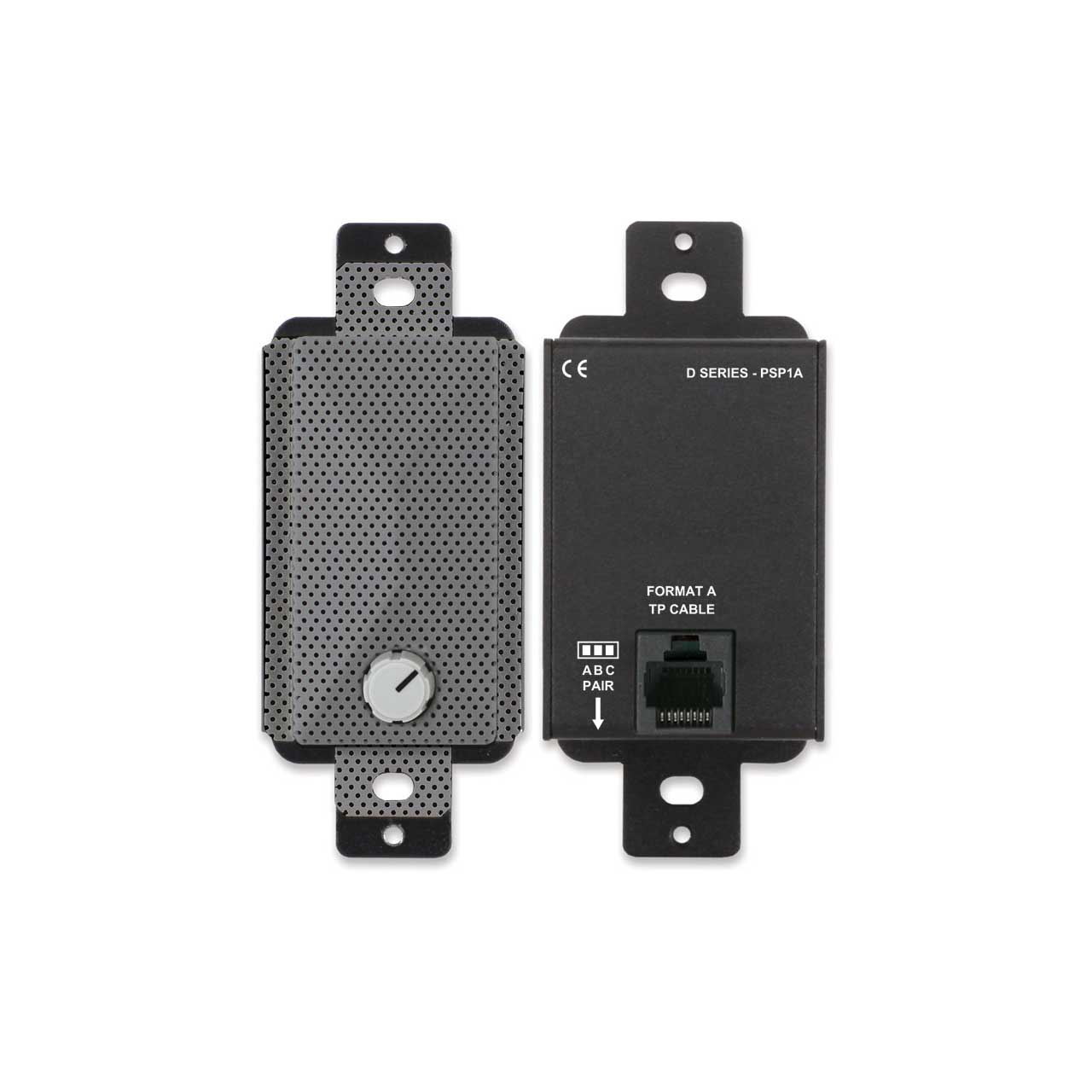

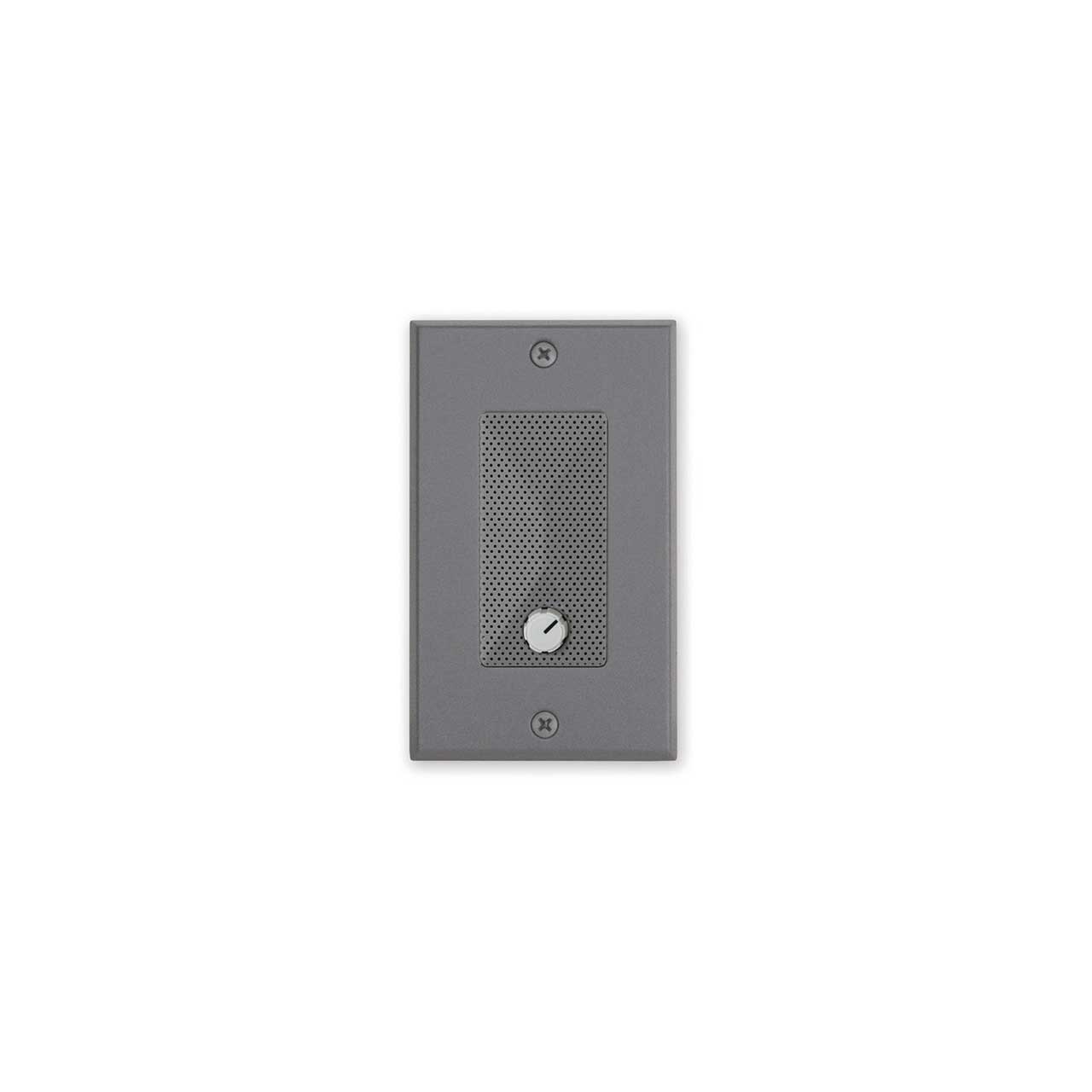

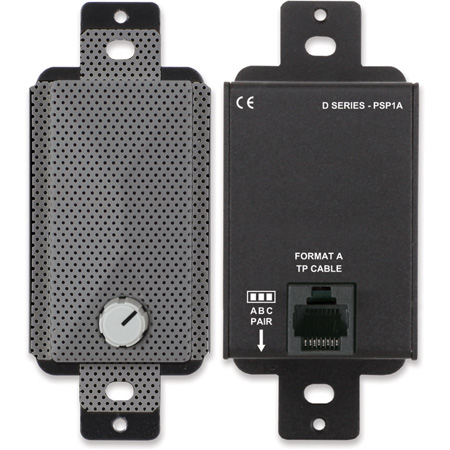

RDL DG-PSP1A Decora-Style Active Loudspeaker - Format-A
  • RDL DG-PSP1A Decora-Style Active Loudspeaker - Format-A
  • RDL DG-PSP1A Decora-Style Active Loudspeaker - Format-A
Questions? Ask a Markertek Expert:
800-522-2025 Email

RDL DG-PSP1A Decora-Style Active Loudspeaker - Format-A

Manufacturer: Radio Design Labs

Item #: RDL-DG-PSP1A   •   MFG #: DG-PSP1A




The D SERIES-PSP1A is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. It is a single-pair audio amplifier module compatible with RDL Format A twisted pair products. The PSP1A receives audio and 24 Vdc power through a rear-panel RJ45 jack. A rear-panel switch set during installation determines which of the three FORMAT-A pairs is amplified. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1A includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.Models are available with grills in black (DB-PSP1A), white (D-PSP1A), gray (DG-PSP1A) or stainless steel (DS-PSP1A).

  • Features

    • Exceptional Audio Quality for Ultra-Compact Size
    • 2 Watt RMS Audio Amplifier
    • Compressor/Limiter Prevents Clipping
    • Connects to Format-A Sender using Twisted-Pair Cable
    • Powered from RDL Twisted Pair Format-A Sender
    • Front-Panel Gain Adjustment
    • Acoustically Optimized Decora Enclosure
    • Fidelity Comparable to Larger Drivers
    • Hemispherical Dispersion Mounted In Wall or Flat Surface
  • Specifications

    • Input: RDL Format-AInput Connection: RJ45
    • Format-A Signal Pair Used: Switch-selectable A, B, or C (Rear-panel)
    • Gain Adjustment: Single-turn audio taper (Front-panel)
    • Maximum SPL: 81 dB
    • Frequency Range: 150 Hz to 20 kHz, nominal
    • CMRR: > 80 dB (50 Hz to 120 Hz)Power Requirement: 24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referencedAmbient Operating Environment: 0° C to 40° C Maximum; 20° C RecommendedDimensions: Height: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.27 in. 5.77 cm
    • Package Type: Cardboard Box
    • Package Dimensions: 3.625 x 4.625 x 2.125 in.
    • Shipping Weight: .562 lbs.
    • WEEE weight: .423 lbs.
    • Tariff code: 8518.40.2000
