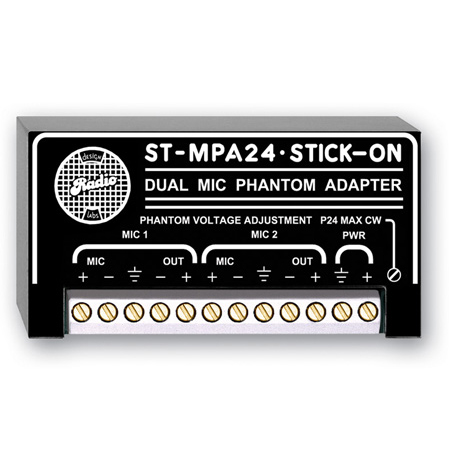

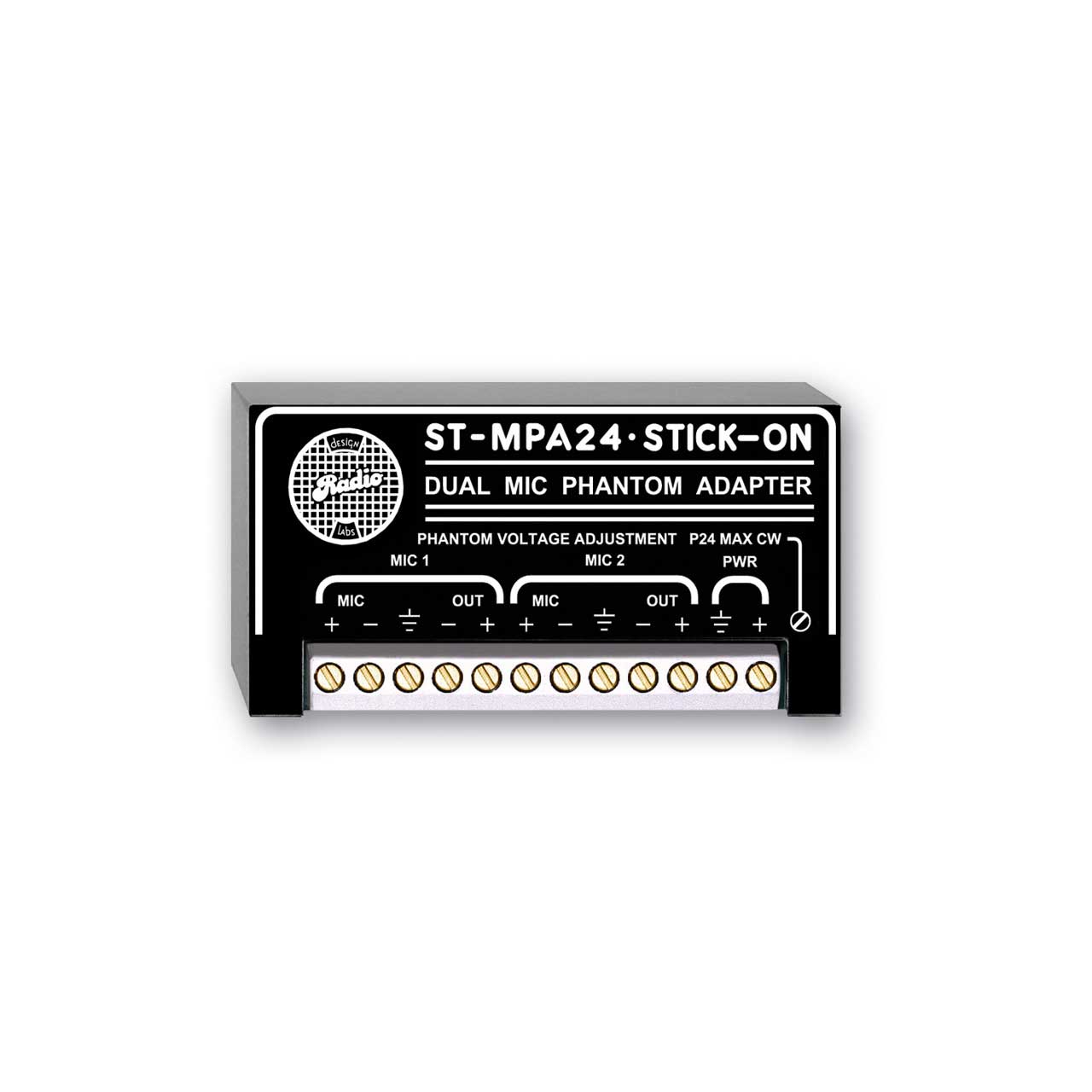

RDL ST-MPA24 Dual Microphone Phantom Adapter - 24 V Adjustable

ITEM #: RDL-ST-MPA24 MFG #: ST-MPA24

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$172.46

Our Price:

$129.34

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    ST-MPA24 - Overview

    The ST-MPA24 contains two identical phantom power circuits and a common power supply input. If only one mic input is to be converted for phantom operation, only one circuit needs to be used. Each circuit has a mic input and a mic output. Phantom voltage appears on each of the mic input terminals. There is no voltage on the mic output terminals. Therefore, the ST-MPA24 can convert any existing mic input into a phantom powered input.Module operation is from a 24 Vdc ground referenced power supply. The ST-MPA24 has an internal pass transistor-regulator filter circuit which permits this incoming voltage to be adjusted to the desired phantom voltage, up to 92% of the supply input voltage. A multi-turn trimming potentiometer is provided to reduce the phantom voltage if desired. In the default fully clockwise position, the ST-MPA24 provides "P24" 24 Vdc phantom voltage conformant to IEC 61938.

    • Features:

      • Add Phantom Powered Mics to Standard Inputs
      • Two Phantom Adapters in One Module
      • P24 per IEC 61938
      • Phantom Conversion with Full Frequency Response
      • Phantom Voltage Adjustable Up to IEC Standard 24 Vdc
      • Highly-Filtered Phantom Power

    • Specifications:

      • Channels: 2
      • Frequency Response: 20 Hz to 100 kHz (± 0.025 dB, 150 Ω source, 1 kΩ load)
      • Phantom Voltage: P24, 24 Vdc
      • Standard for Phantom: IEC 61938: 2013
      • Ambient Operating Environment: 0° C to 55° C
      • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 35 mA (with 20 mA load)
      • Package Type: Cardboard Box
      • Package Dimensions: 2 x 2 x 4 in.
      • Shipping Weight: 0.2 lbs.
      • WEEE weight: 0.145 lbs.
      • Tariff code: 8518.40.2000

    • GTIN:

      0813721012364
