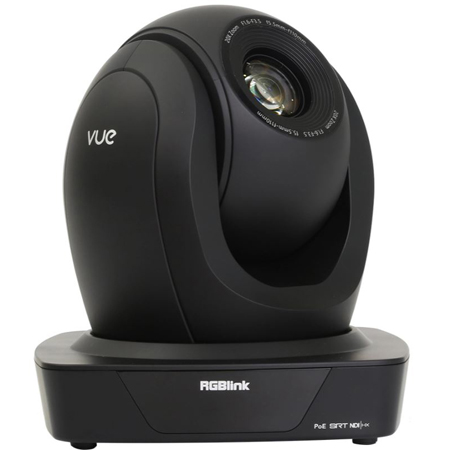

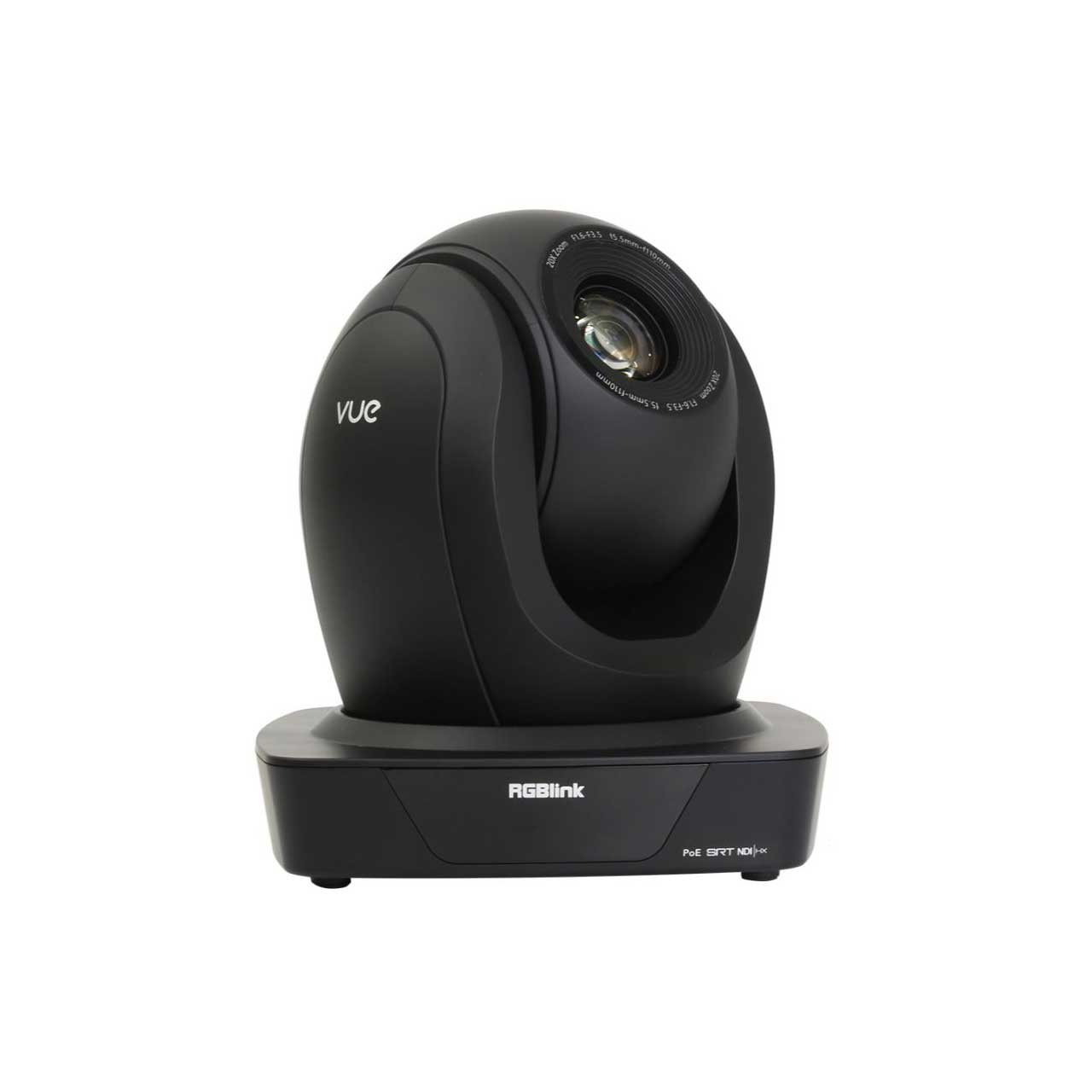

RGBLink RGB20XPOETLY VUE 20x H.265/H.264 HD PTZ Camera with PoE+ - Black

ITEM #: RGL-RGB20XPOETLY MFG #: RGB20XPOETLY

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the RGL-RGB20XPOETLY

RGB20XPOETLY - Overview

Add whole new dimensions to capturing video presentations with RGBlink vue PTZ cameras.

RGBLink RGB20XPOETLY features advanced an ISP image processor and a 2 mega pixel sensor, vue cameras are available in a range models across 12X, 20X & 30X optical zoom and a range of output options from HDMI & SDI to H.264, H.265 & NDI.

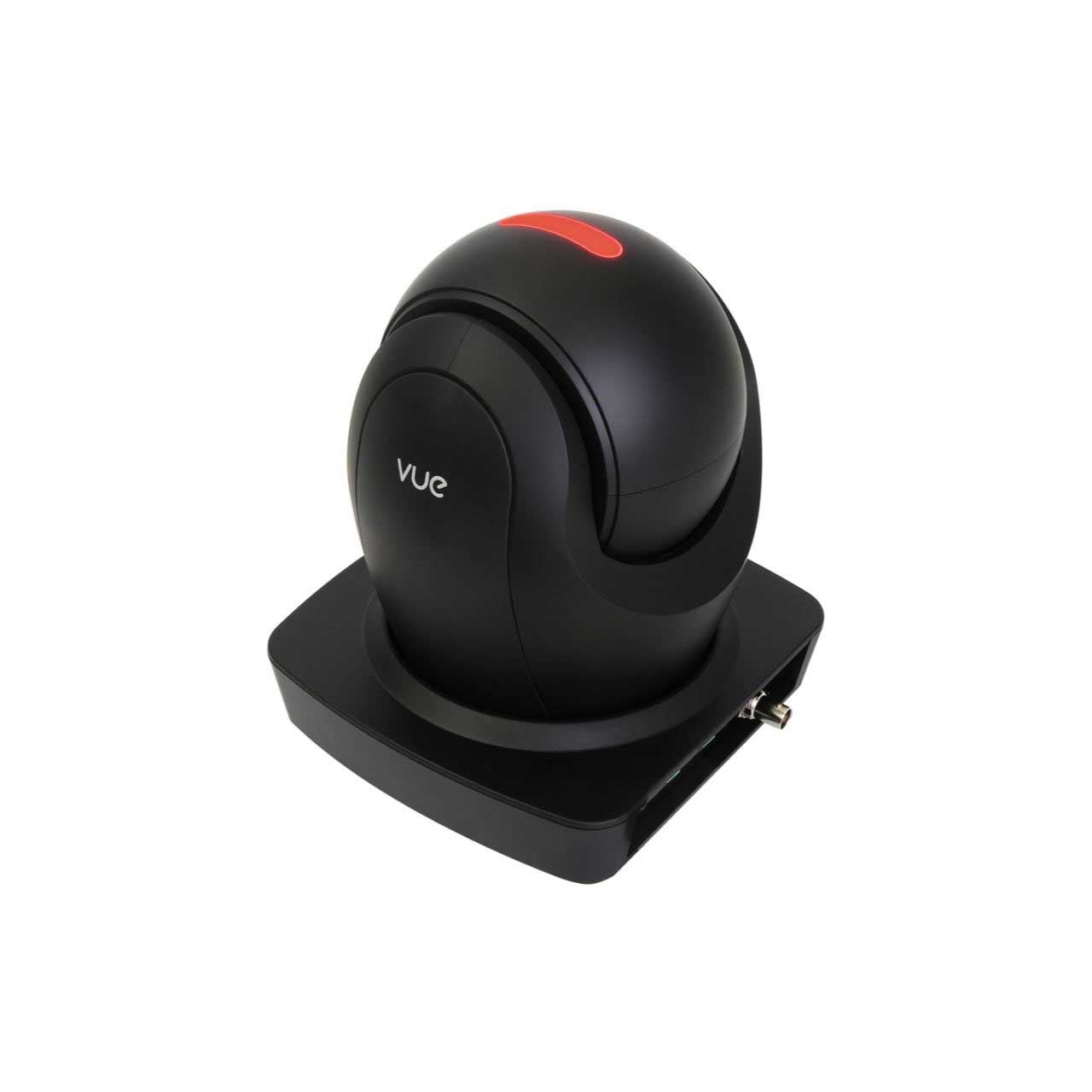

Pan, Tilt, Zoom to capture all the action - get in even closer with 10X digital zoom, and the best video with auto focus, dynamic level adjustment (WDR) and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps. All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment.

  • Features:

    • High speed optical zoom
    • RTSP/RTMP/SRT encoding output
    • High performance in low light scenarios with Wide Dynamic Range
    • Full 1920x1080p HD resolutions up to 60 frames per second
    • H.265/H.264 dual stream output adapted to different network environments
    • Pan and Tilt Control
    • 12X/20X/30X optical zoom
    • Applicable to meeting, live streaming, church, classroom and more
    • Low-power sleep function
    • Support TALLY
    • Support PoE


  • Specifications:

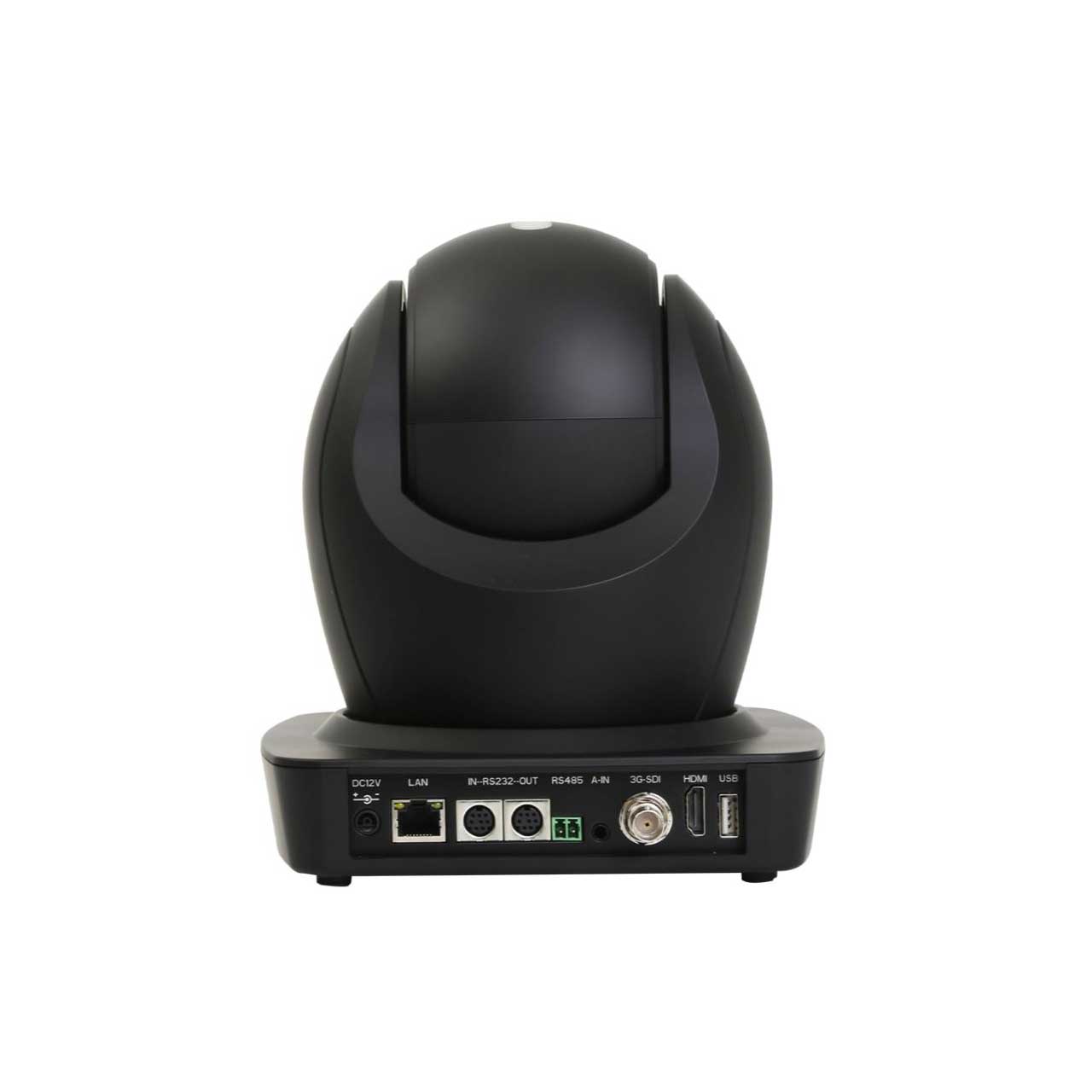

    • Interface
    • Output: 3G SDI: 1xBNC
    • HDMI: 1x HDMI-A
    • USB: 1x USB-A
    • LAN: 1x RJ45
    • Audio IN: 1x 3.5mm Stereo Jack:
    • Control: RS232 IN/OUT 2x DIN8, RS485: 1x 4pin Terminal
    • Power: 1x DC12V Jack

      Performance
    • Camera: 12X: 20X: 30X
    • Optical Zoom: f=4.1~49.2mm: f=4.8~96mm: f=5.2~148.4mm
    • View Angle: 6.57°~ 70.28°: 3.45°~ 60.04°: 2.14°~58.1°
    • AV: F1.8 ~ F2.68: F1.8 ~ F2.9: F1.3 ~ F4.8
    • Digital Zoom: 10X
    • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
    • DNR: 2D & 3D DNR
    • White Balance: Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
    • Focus: Auto/Manual
    • Aperture/Electronic Shutter: Auto/Manual
    • BLC: ON/OFF
    • WDR: OFF/Dynamic Level Adjustment
    • Video Adjustment: Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
    • SNR: >55dB
    • Effective Pixels: 2.07m,16:9
    • Audio Compression Format: AAC / MP3 / G.711A
    • Video Compression Format: H.264 / H.265 / Dual Streaming Output
    • Output Resolutions: 720p50/59.94/60 / 1080p25/29.97/30/50/59.94/60 / 1080i50/59.94/60
    • Control Protocol: VISCA / Pelco-D / Pelco-P / ONVIF
    • Baud Rate(bps): 115200 / 9600 / 4800 / 2400bps
    • Network Protocol: RTSP / RTMP / SRT / ONVIF
    • Supported Standards: SDI: SMPTE 425M (Level A & B) / SMPTE 424M / SMPTE 292M / SMPTE 259M-C / DVB-ASI

      Power
    • Input Voltage: DC12V/1.5A
    • Max Power: 12W

      Environment
    • Temperature: -10°C~50°C
    • Humidity: 20%~80%

      Physical
    • Weight: Net - 1.7kg
    • Dimension: Net - 180mm(front) x 188mm(side) x 198mm(height)


  • Item Includes:

    • 1x RGBLink RGB20XPOETLY VUE 20x H.265/H.264 HD PTZ Camera with PoE+ - Black


  • GTIN:

    6970447704073
