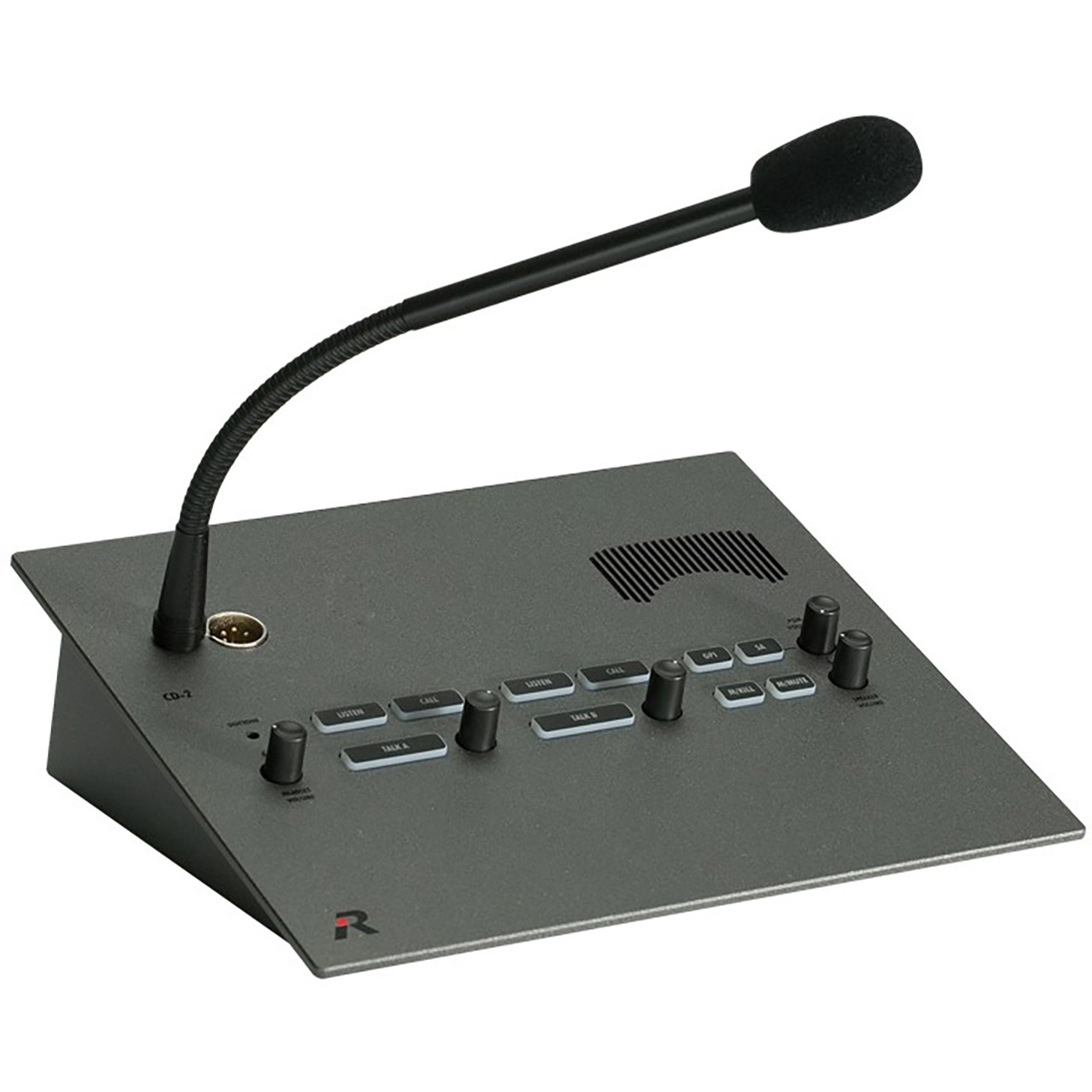

Riedel CD2 2 Channel Desktop Speaker/Headset Station for Performer Digital Partyline Intercom - 4 Pin XLR Male

ITEM #: RI-CD2 MFG #: CD2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$1,450.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CD2 - Overview

The Riedel CD-2 Desktop Speaker/Headset Station provides the same feature set as the CR-2 Master Station except for the internal power supply. This makes the CD-2 ideal either for operation as a desktop speaker station or - in combination with an external power supply - as a 2-channel master station for setting up a stand-alone digital partyline system.The color-illuminated buttons are ideal for applications in operational environments. The remote microphone kill function allows the user to silence any open microphone on the intercom channels. The CD-2 features an additional program input that can be routed individually to each of the intercom channels. Other features include individual listen volume controls for all partylines, Call and GPI, PGM IN and a stage announce function to use the intercom microphone to talk over a PA system.

The Performer Series provides the world's first digital partyline intercom system, offering 2 and 4-channel master stations, rack-mount, wall-mount and desktop speaker stations as well as call light indicators and 2-channel beltpack headset stations.

PERFORMER Partyline Intercom
In addition to pure partyline applications, the C44plus system interface makes the Performer series the first fully integrated "digital" solution for combined digital matrix and partyline intercom. The Performer product line is completed by the Performer 32 digital intercom matrix/stage management system, which is designed for the requirements of stand-alone broadcast applications, opera houses, and theaters as well as sports and cultural ev

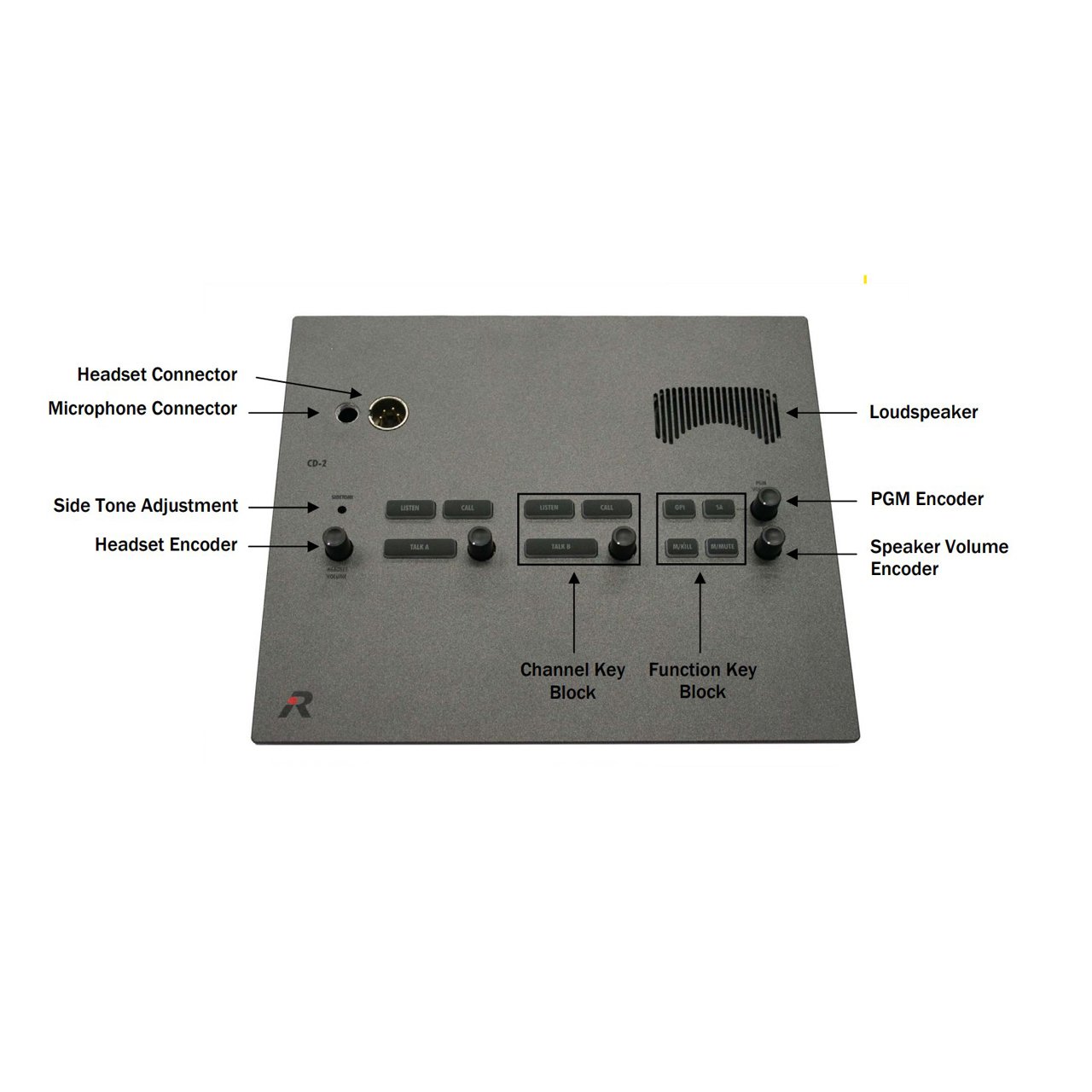

  • Features:

    • Built in Loudspeaker
    • Speaker Volume Encoder
    • Microphone Connector
    • Channel Key Block
    • Side Tone Adjustment
    • Function Key Block
    • PGM Encoder
    • Headset Connector
    • Headset Encoder

  • Specifications:

      General
    • Dimensions (HxWxD): 3" x 10" x 9" (76mm x 255mm x 220mm)
    • Weight: 2.9lbs (1.3kg)

      Electrical Properties
    • Audio Bandwidth: 50Hz - 20kHz
    • Audio Bandwidth (DPL): 50Hz - 10kHz
    • Resolution: 16 bit

      Microphone Preamp
    • Mic Input Impedance: 1.6kΩ
    • Dynamic Mic Input Level: -52dBu
    • Electret Mic Input Level: -38dBu
    • Frequency Response: 80Hz - 12kHz, ±3dB

      Headphone Amplifier
    • Load Impedance: 24Ω - 600Ω
    • Max. Output Level: 16V peak-to-peak
    • Max. Output Power: 160mW @ 200Ω
    • Frequency Response: 80Hz - 12kHz, ±3dB
    • Signal-to-Noise-Ratio: > 82dB (A)

      Power Supply
    • Power Requirements: +48V DC
    • Power Consumption: 60mA @ 48V

  • Item Includes:

    • 1x Riedel CD2 2 Channel Desktop Speaker/Headset Station for Performer Digital Partyline Intercom

  • Warranty:

    • 1 Year Limited Warranty
