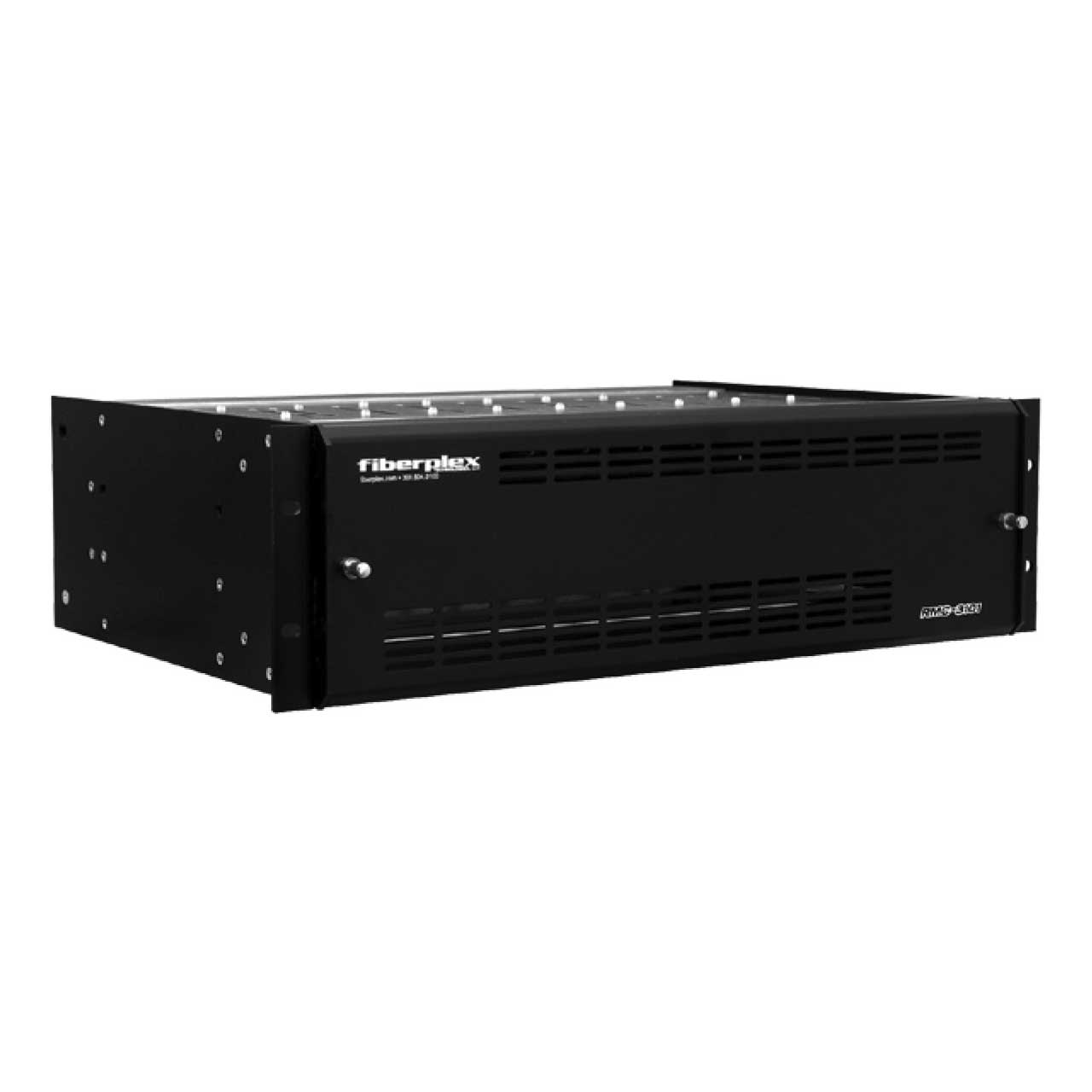

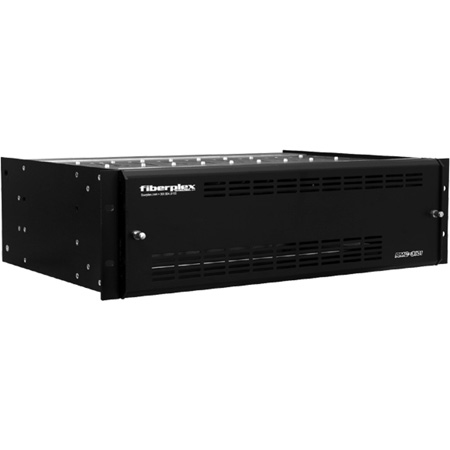

Fiberplex RMC-3101-R 3U 9 Slot Rack Mount Chassis - RFI Suppressed

ITEM #: RMC-3101-R MFG #: RMC-3101-R

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

RMC-3101-R - Overview

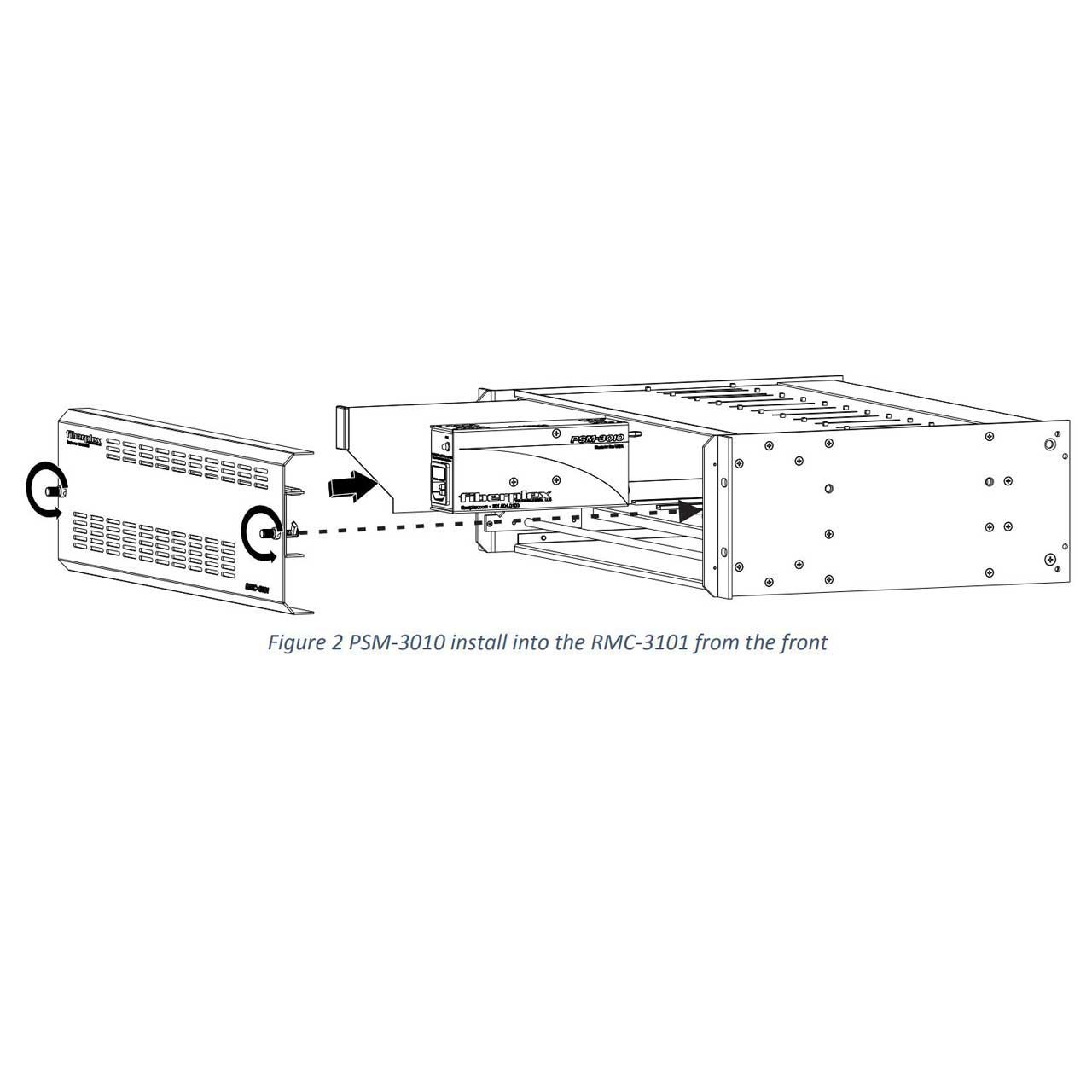

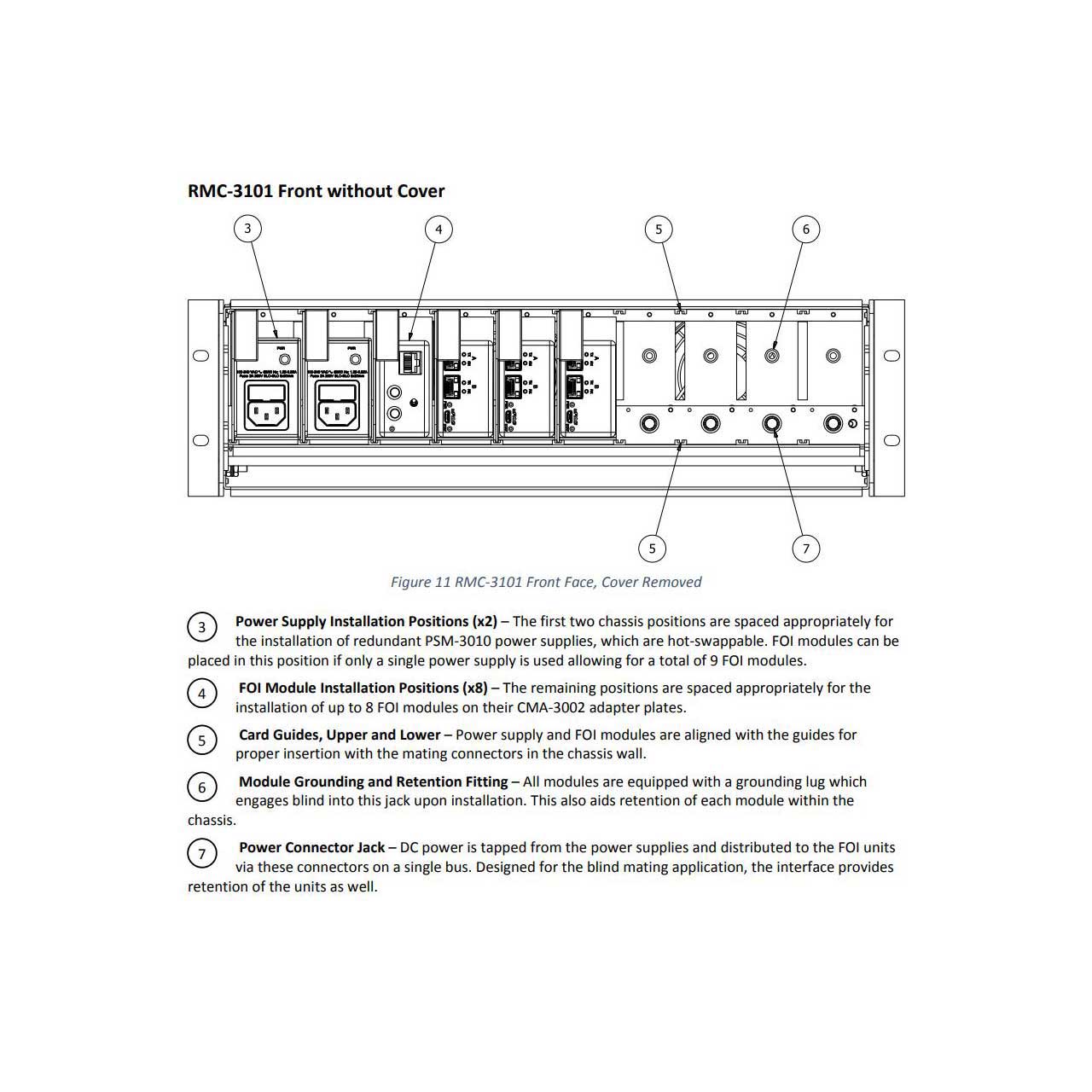

The FiberPlex RMC-3101-R provides up to nine available slots for any fiber optic isolator or telephone disconnect unit. The tenth available slot must be occupied by a PSM-3010 power supply module. Each RMC-3101 will be shipped with one PSM-3010. A second PSM-3010 may also be added for power redundancy, leaving eight available slots for any fiber optic isolator. If the first PSM-3010 fails, the second PSM-3010 will take over the entire load and carry on normally. A cable bay is provided below the module bay for cable routing and enhanced air flow through two rear exhaust fans and a vented front panel. An RMC-3102 is identical to the RMC-3101 with the addition of an optical patch bay mounted on the rear.

Each fiber optic isolator must also be accompanied by a CMA-3002 chassis mount adapter, which slides the fiber optic isolator into the slot and assures correct alignment of the isolator power connector to the power bus inside the RMC-3101. FiberPlex recommends the RMC-3101R for TEMPEST or other high security applications.

  • Features:

    • 3U Chassis holds up to 9 FOI isolators
    • Power redundancy is available with a second power module (only 8 FOIs fit with redundant power)
    • Each FOI isolator is easily accessable through a removable front panel
    • Enhanced cooling via tow rear mounted exhaust fans
  • Specifications:

    • Power Supply
    • Input Voltage: Min. 85 / Max. 250 VAC
    • Input Frequency: Min. 40 / Max. 400 Hz
    • Input Power: 75W
    • Output Voltage: 9VDC
    • Supply Current: 8.3A
    • Output Power: 75W
    • Environmental
    • Storage Temperature: -40 to 185F
    • Operating Temperature: 32 to 122F

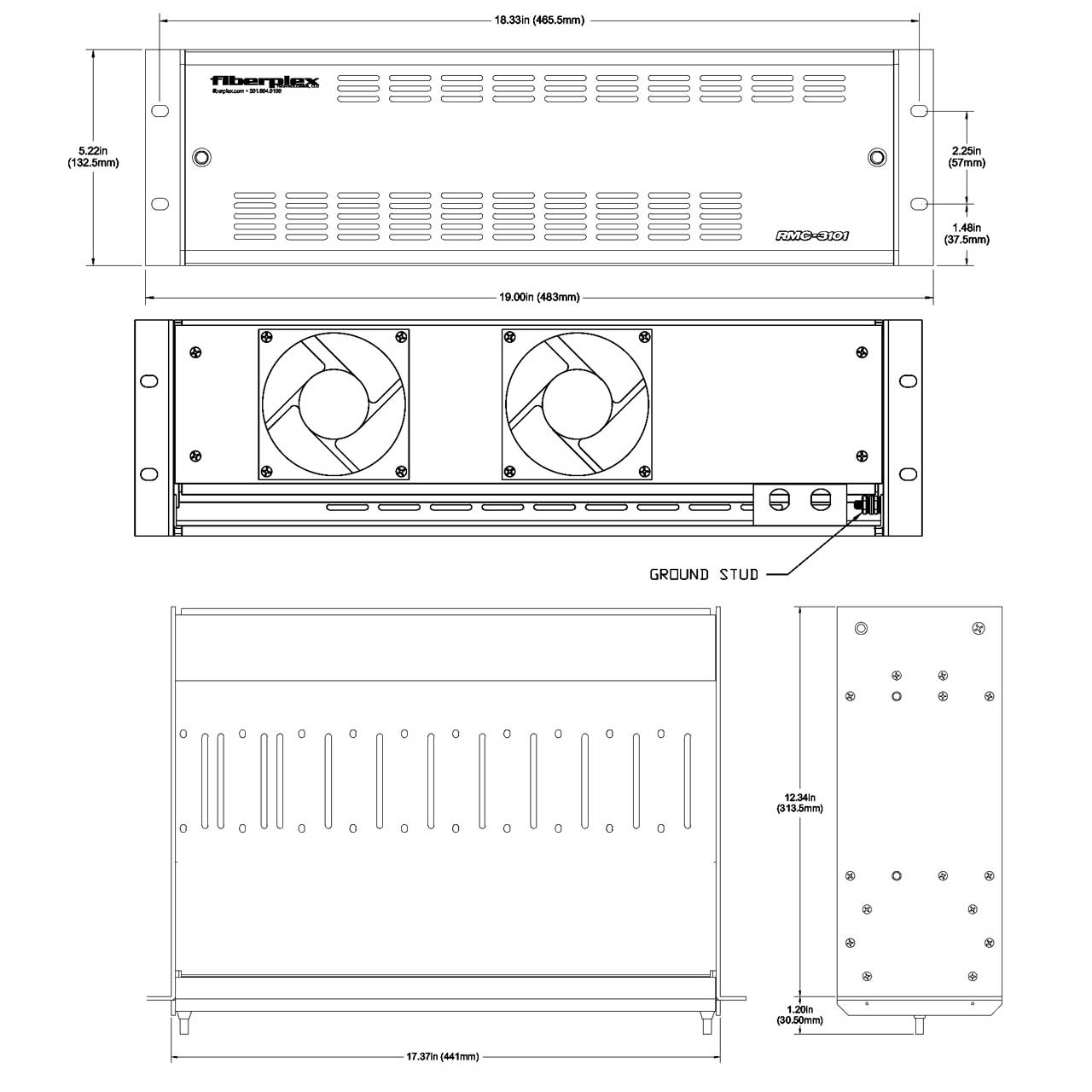

    • Case Dimensions
    • Length: 9.559 in
    • Width: 1.57 in
    • Height: 3.468 in
    • Weight: 1.6 lb
